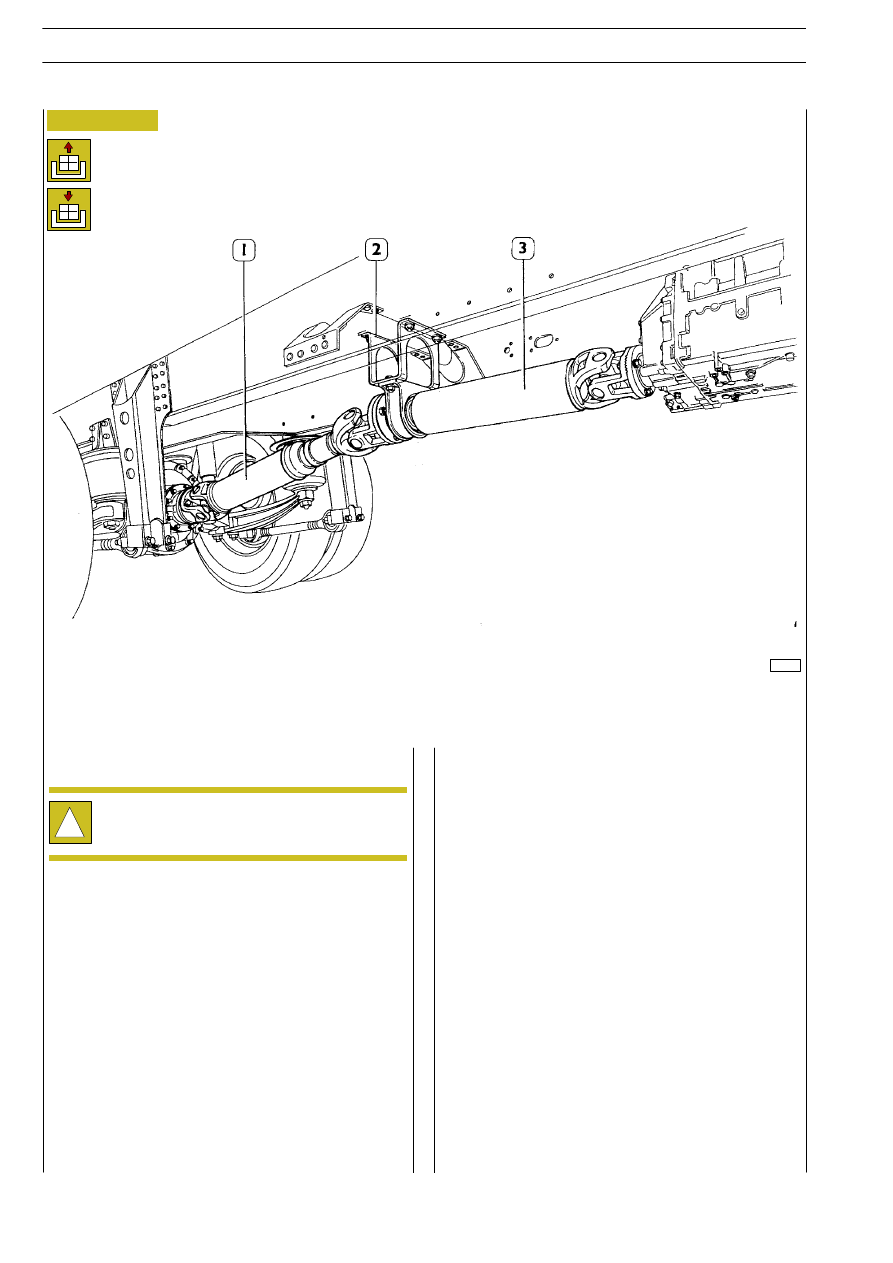

LAY-OUT OF A TRANSMISSION COMPOSED OF:

Front propeller shaft (3) - Support (2) - Sliding rear shaft (1)

49255

Figure 3

Removal

Place a hydraulic jack, fitted with support 99370618,
underneath the rear propeller shaft.
Remove the nuts fastening the flanges and disconnect the
propeller shaft; as for the front propeller shaft, also remove the
support fastening the shaft to the chassis.

Reassembly

Follow the above mentioned procedure backwards, checking
for the following:

- Rear propeller shaft

D

make sure the arrows on the sliding sleeve and shaft
are aligned;

- Front propeller shaft

D

make sure the holes in the front flange match those
in the rear flange;

D

do not re-use the nuts of the flange fastening screws;
replace them;

D

make sure the flange fastening screws match the
flange holes on the universal joint end;

D

make sure nuts and screws are tightened to the
required torque;

D

make sure the sliding propeller shaft flange is
connected to the input shaft flange.

!

Always remove the rear propeller shaft first before
overhauling a transmission.

8

PROPELLER SHAFTS

S

TRALIS

AT/AD

Base - January 2003

REMOVING AND REASSEMBLING THE PROPELLER SHAFT

38824

Figure 4

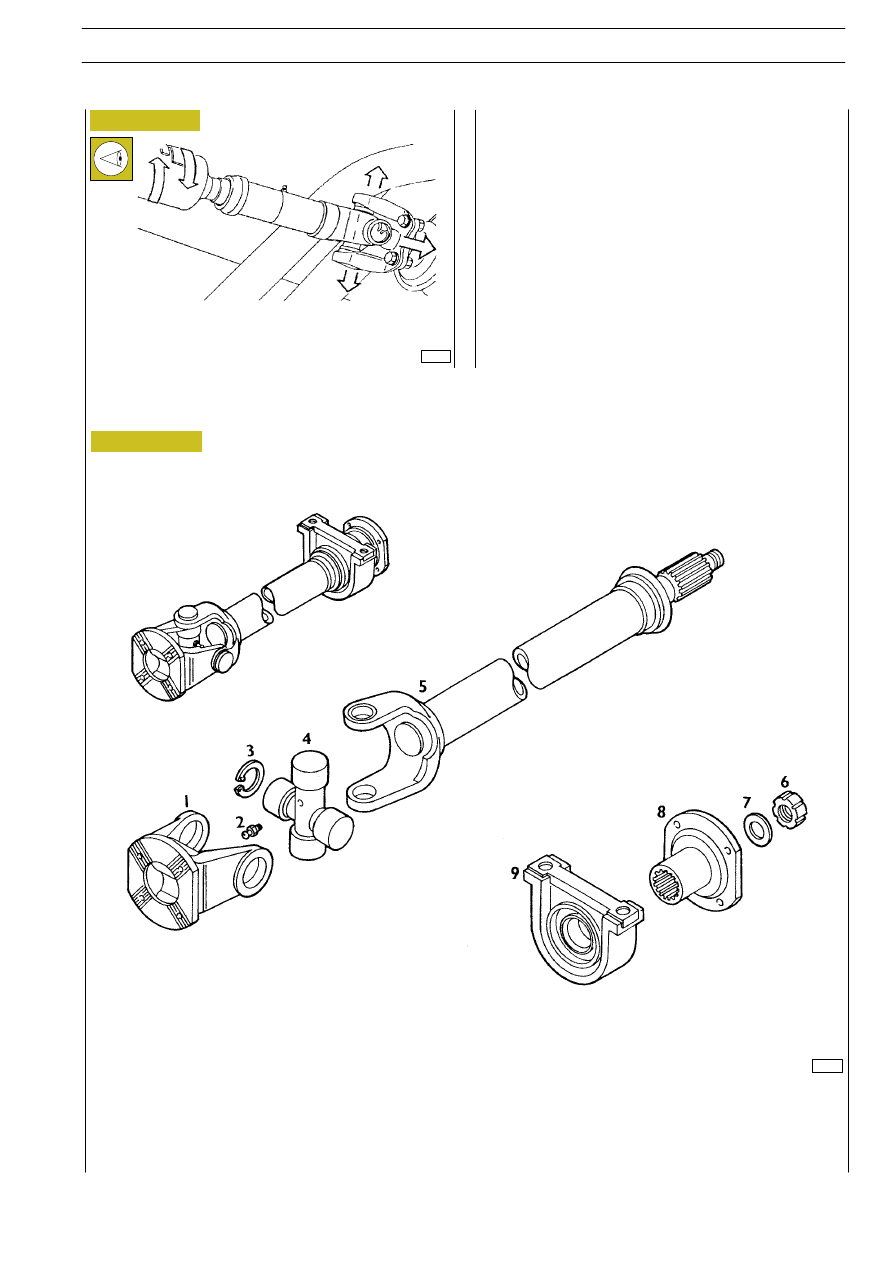

FRONT PROPELLER SHAFT COMPONENTS

1. Front fork flange - 2. Grease nipple - 3. Split ring - 4. Spider - 5. Propeller shaft - 6. Ring nut

7. Washer - 8. Rear flange - 9. Support

Figure 5

The propeller shafts are supplied by the supplier as assemblies
ready to be mounted.
They are statically and dynamically balanced.
The plates welded to the transmission shafts are balancing
plates.
If the plates are missing, it will be necessary to re-balance the
shaft.
Working on the transmission shaft and, at the same time, but
in the opposite direction, on the sliding sleeve (arrows) check
that there is no clearance between the grooves.
Working on the forks of the sleeves (arrows) check that the
spiders are not worn. If they are, replace them as described
previously.

33808

PROPELLER SHAFTS

9

S

TRALIS

AT/AD

CHECKING THE PROPELLER SHAFT ON THE VEHICLE

38825

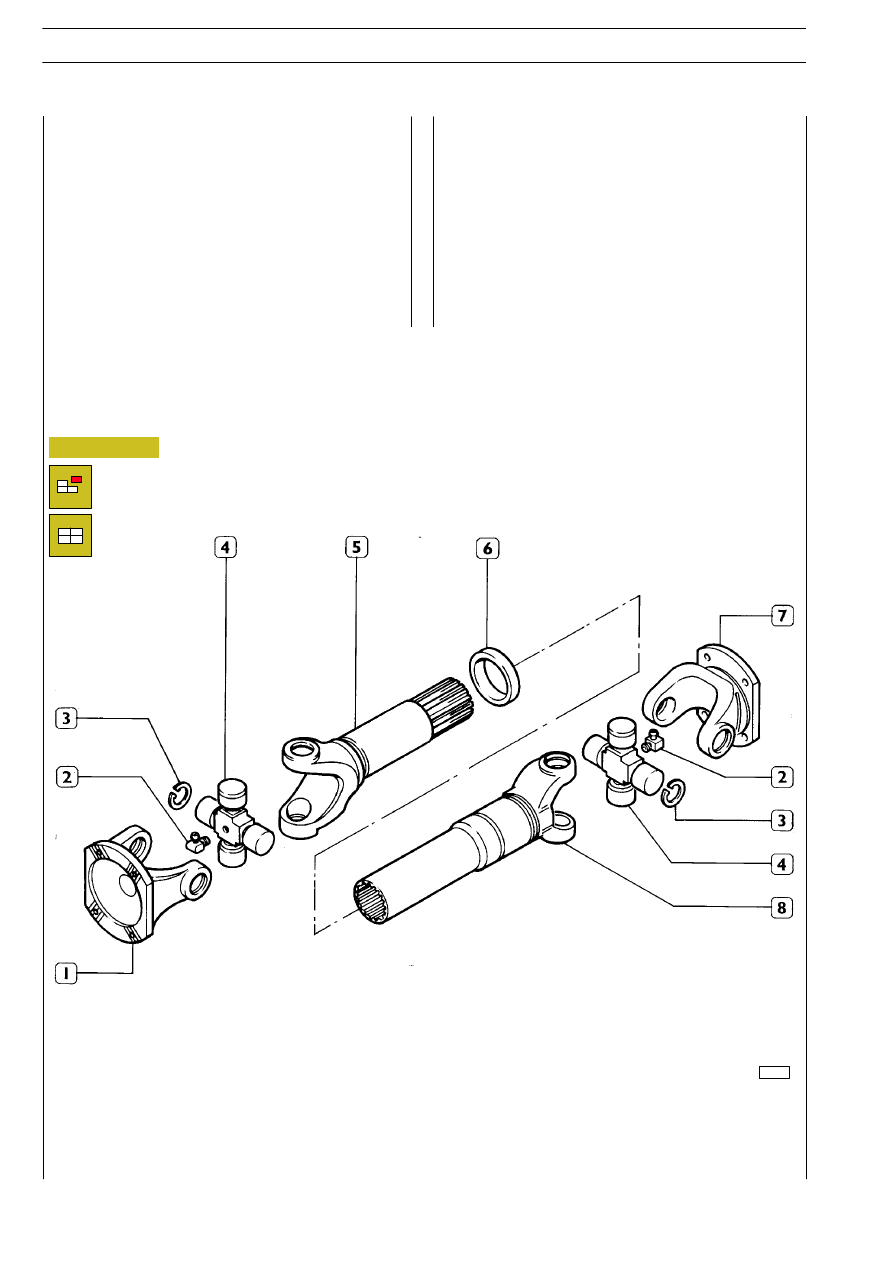

FRONT PROPELLER SHAFT COMPONENTS

1. Front fork flange - 2. Grease nipple - 3. Split ring - 4. Spider - 5. Front half-propeller shaft - 6. Ring nut (for KLEIN supply only)

- 7. Rear fork flange - 8. Rear half-propeller shaft

Figure 6

Using a suitable wrench, remove the ring nut (6, Figure 5) and
the following components from the propeller shaft:

- washer (7);

- rear flange (8);

- support (9).

To reassemble, repeat the above mentioned procedure
backwards.

Using suitable pliers, remove the split ring (3, Figure 6).
Beat the fork flange (1) with a hammer until the bearing starts
coming out of its housing, i.e. Until the spider (4) interferes with
the fork. Turn the component upside down and repeat the
above operations.
Manually remove one of the two bearings. Remove the fork (1)
and use a punch to remove the other bearing.
Repeat this procedure to remove bearings from the other fork
and free the spider (4).
To reassemble, repeat the above mentioned procedure
backwards.

REMOVING AND FITTING BACK THE
UNIVERSAL JOINTS

REMOVING

AND

REASSEMBLING

THE

SUPPORT

10

PROPELLER SHAFTS

S

TRALIS

AT/AD

Base - January 2003
