GEARBOX EuroTronic 12 AS 2301 D.D./O.D. with Intarder

161

S

TRALIS

AT/AD

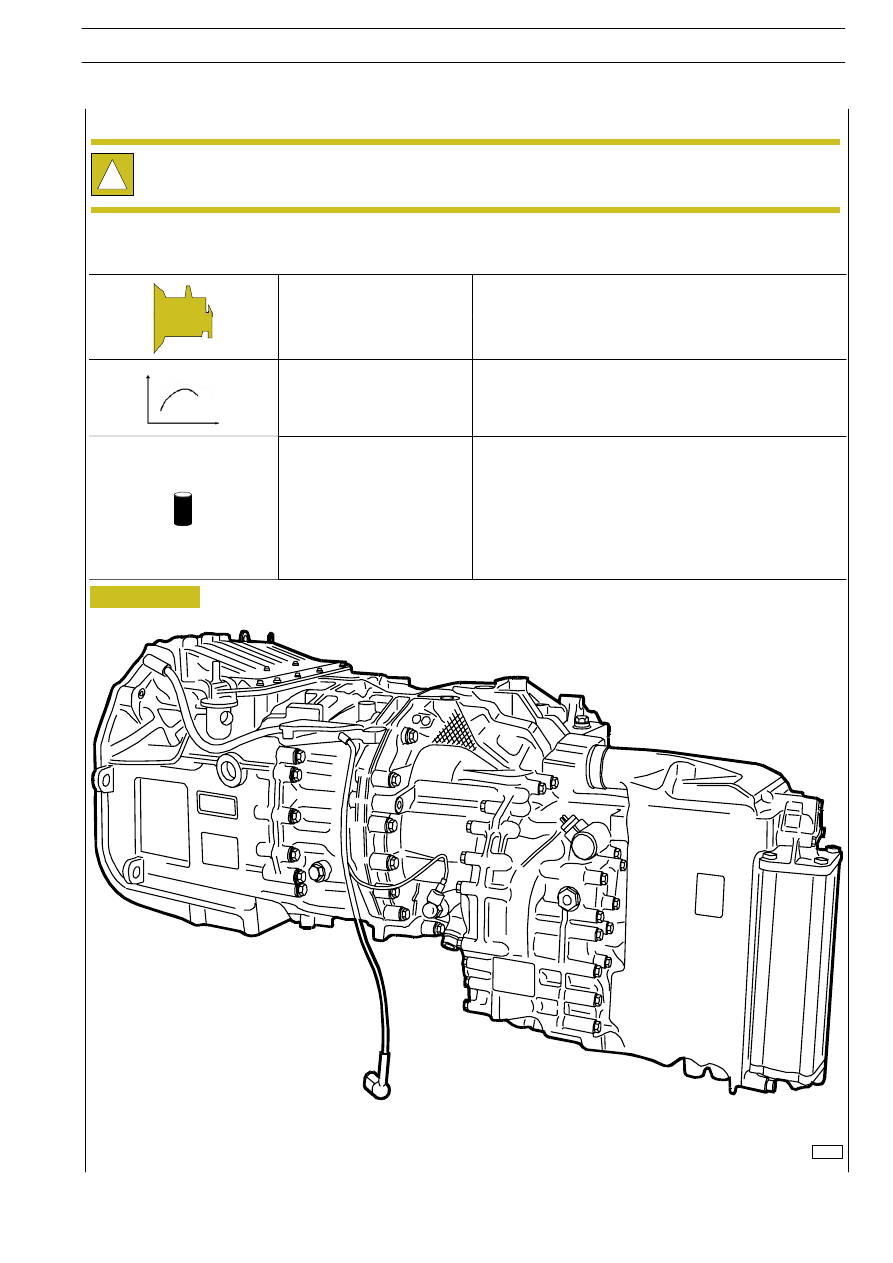

SPECIFICATIONS AND DATA

GEARBOX

EuroTronic Automated 12 AS 2301 D.D./O.D.

Type

EuroTronic Automated 12 AS 2301 D.D./O.D.

with intarder

Maximum braking
torque

Nm

3000

Braking capacity

Kw

520

Type of oil

Quantity after overhauling
gearbox and retarder drained
completely

litres

kg

Tutela Truck FE-Gear

Tutela ZC 90

21

19

Figure 1

70831

!

This differs from the 12 AS 2301 D.D./O.D. gearbox in the following:

EuroTronic Automated 12 AS 2301 D.D./O.D. with intarder

D.D. = Direct Drive
O.D. = Over Drive (Multiplied)

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

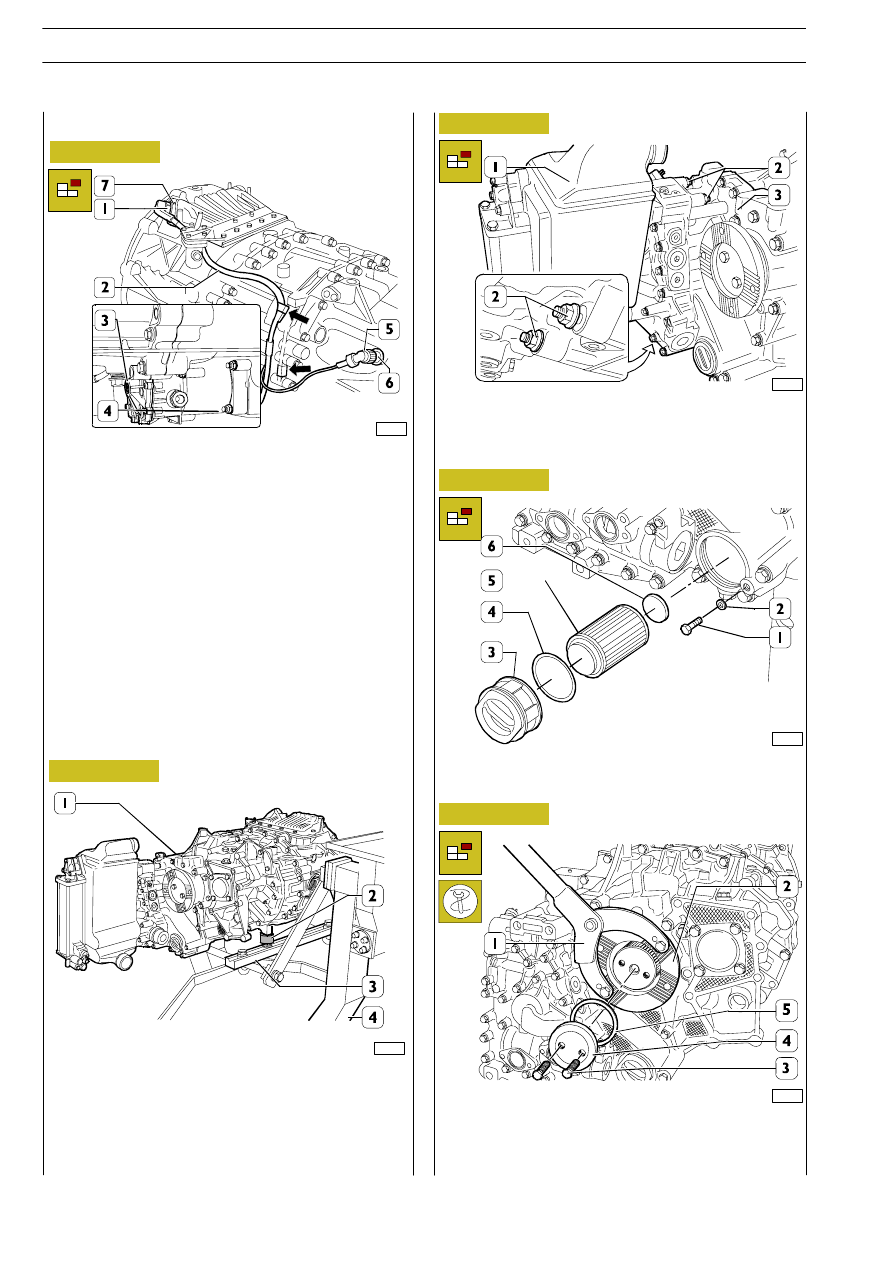

Unscrew the ring nut (1 and 5) and disconnect the electric
wiring (2) from the speed sensor (6 and 7).

Detach the wiring (2) from the clips (

→) securing it to the

middle box.

Remove the nuts (4) and detach the actuator (3) from the
front box.

Fir spacers SP. 2396 (2) and fasten the gearbox (1) to
brackets 99322225 (3) on the rotating stand 99322205 (4).

Drain off the lubricating oil by removing the plugs from the
Intarder and from the gearbox.

If applicable, remove the four nuts (2) fixing the heat
exchanger (1) to the hydraulic retarder (3) and detach the
heat exchanger (1).

Remove the screw (1) and the washer (2) beneath. Extract
the plug (3) with the seal (4), oil filter (5) and magnet (6).

Block rotation of the sleeve (2) by applying the lever
99370317 (1) to it and remove the screws (3), disc (4) and
underlying seal (5).

78649

70934

70936

78324

78652

Removing the hydraulic retarder

162

GEARBOX EuroTronic 12 AS 2301 D.D./O.D. with Intarder

S

TRALIS

AT/AD

Base - January 2003

OVERHAULING THE GEARBOX

Figure 7

Figure 8

Figure 9

Figure 10

Figure 11

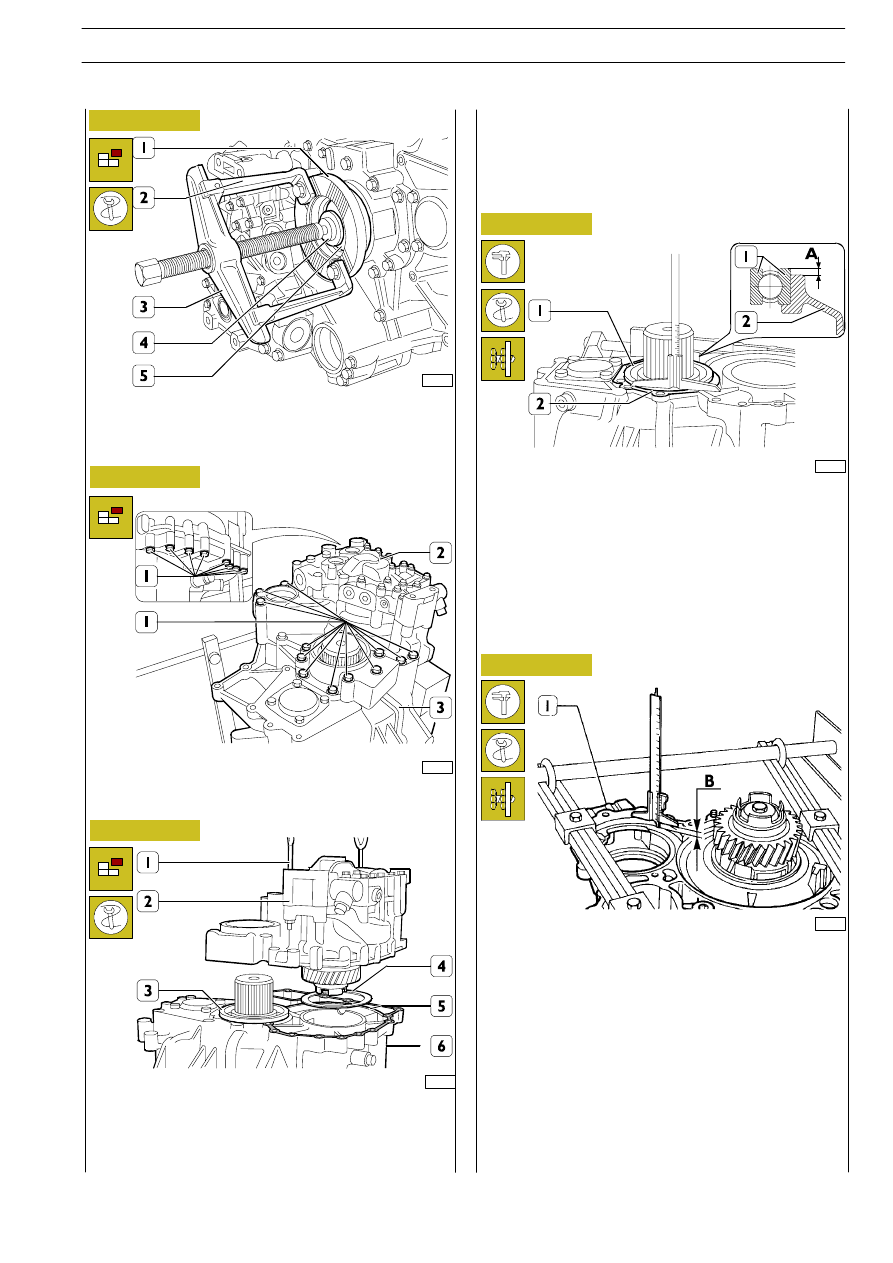

Using an extractor composed of the bridge 99341003 (3),
brackets 99341018 (2) and reaction block 993410134 (4),
remove the sleeve (1) from the shaft (5).

Remove the screws (1) fixing the hydraulic retarder (2) to the
rear box (3).

Fit the eyebolt 99370565 (1) to the hydraulic retarder (2).
With special ropes and lifter, detach the hydraulic retarder
(2) from the rear box.

Remove the adjustment rings (3 and 4) and the gasket (6).

Determine the ball bearing end float adjustment thickness (1)
by proceeding as follows:

- measure the protrusion of the bearing (1) from the

surface of the rear box (2): distance A;

- measure the distance between the sealing surface (1) of

the half box of the retarder and the supporting surface
of the bearing (1, Figure 10): distance B;

- measure the thickness of the gasket between the

retarder and gearbox: distance C.

The thickness S of the adjustment ring is given by the
following equation:

S = [ B + C - A ] - G

where:

- B - C - A = measurements

- G = 0.1 mm: end float of the ball bearing (1 Figure 10)

(0

÷ 0.1 mm)

Before refitting, determine the thickness of the adjustment
rings (3 and 4 Figure 9) as follows:

Adjusting

epicyclic

reduction

gear

train

bearing end float

78344

78321

78325

44005

78326

GEARBOX EuroTronic 12 AS 2301 D.D./O.D. with Intarder

163

S

TRALIS

AT/AD

Refitting the hydraulic retarder

Figure 12

Figure 13

Figure 14

Figure 15

Figure 16

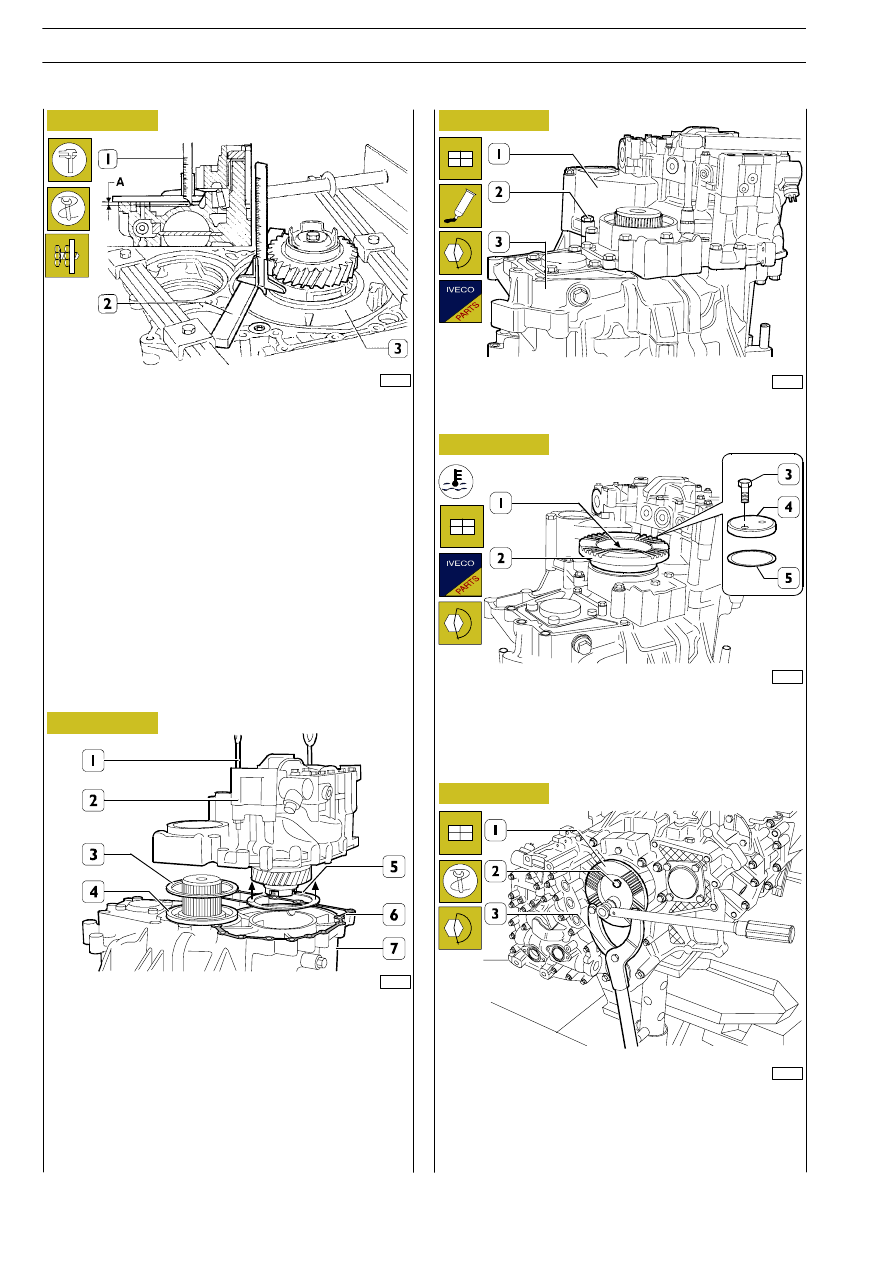

Determine the thickness S of the stator end float adjustment
ring:

- using a depth gauge (1) and calibrated rule (2), measure

the distance between the sealing surface of the half
boxes and the supporting surface of the stator (3):
distance A;

- measure the thickness of the gasket between the

retarder and gearbox: distance B.

The thickness S of the stator end float adjustment ring is given
by the following sum: S = A+B+C

- A and B

= measurements

- C

= 0.05 mm: stator end float adjustment ring

pre-load. (- 0.05

÷ 0.05 mm)

Fit the eyebolt 99370565 (1) to the hydraulic retarder (2)
and lift it with a hoist.

Position the adjustment rings (3 and 5) of the thickness
determined in the preceding measurements on the bearing
(4) and on the seat (

→) of the stator.

Fit a new gasket (6) on the rear box.

Mount the hydraulic retarder (2) on the rear box (7) making
sure that the gasket (6) gets positioned correctly.

Screw down the screws (2) fixing the hydraulic retarder (1) to
the rear box (3) and tighten them to the prescribed torque.

Heat the flange (2) to approx. 80

°C and fit it onto the spider

shaft (1).

Fit on a new seal (5), the disc (4), screw down the screws (3)
and tighten them to the prescribed torque.

Block rotation of the sleeve (1) by applying the lever
99370317 (3) and tighten the fixing screws (2) to the
prescribed torque.

70946

70948

70949

78327

70954

164

GEARBOX EuroTronic 12 AS 2301 D.D./O.D. with Intarder

S

TRALIS

AT/AD

Base - January 2003
