Iveco Stralis AT/AD. Manual - part 80
71113

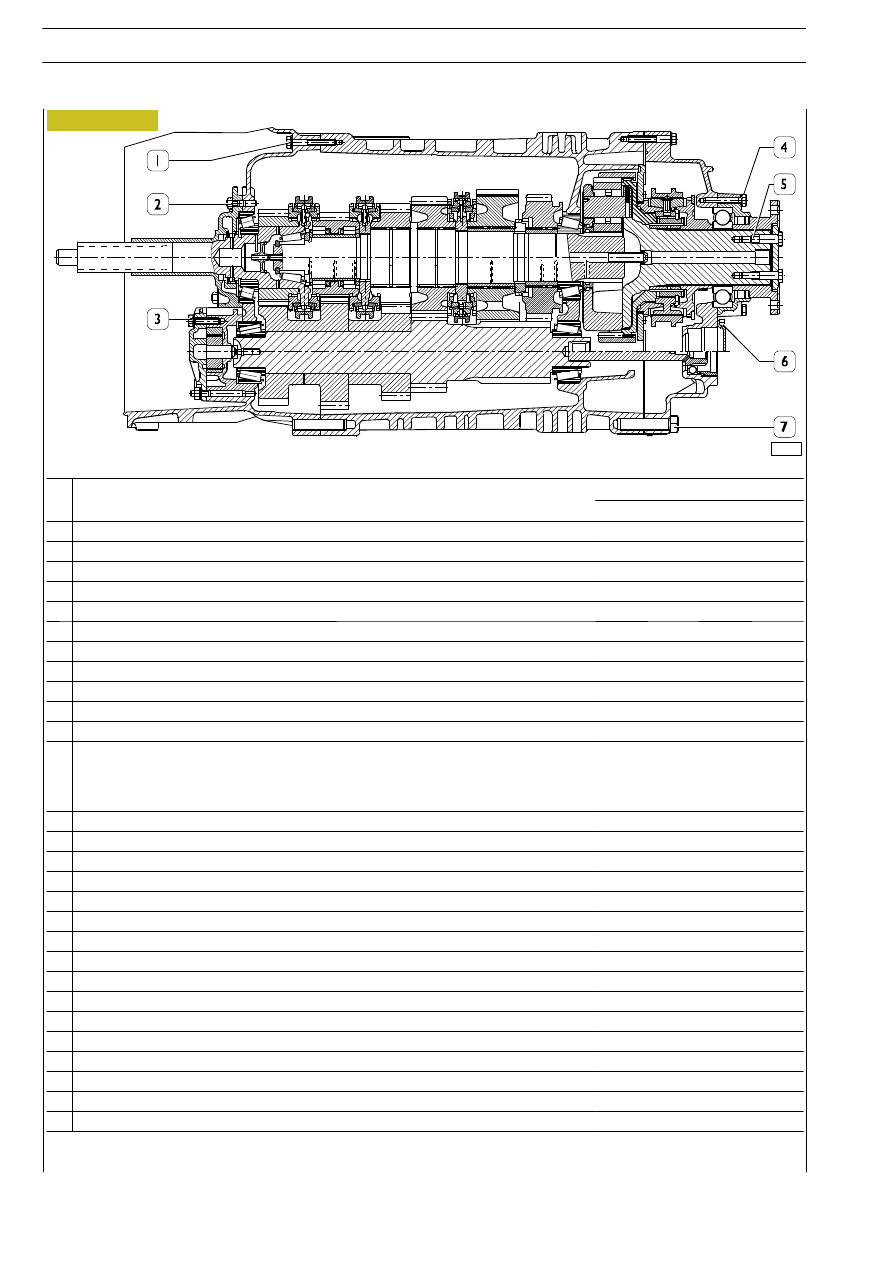

Figure 8
56

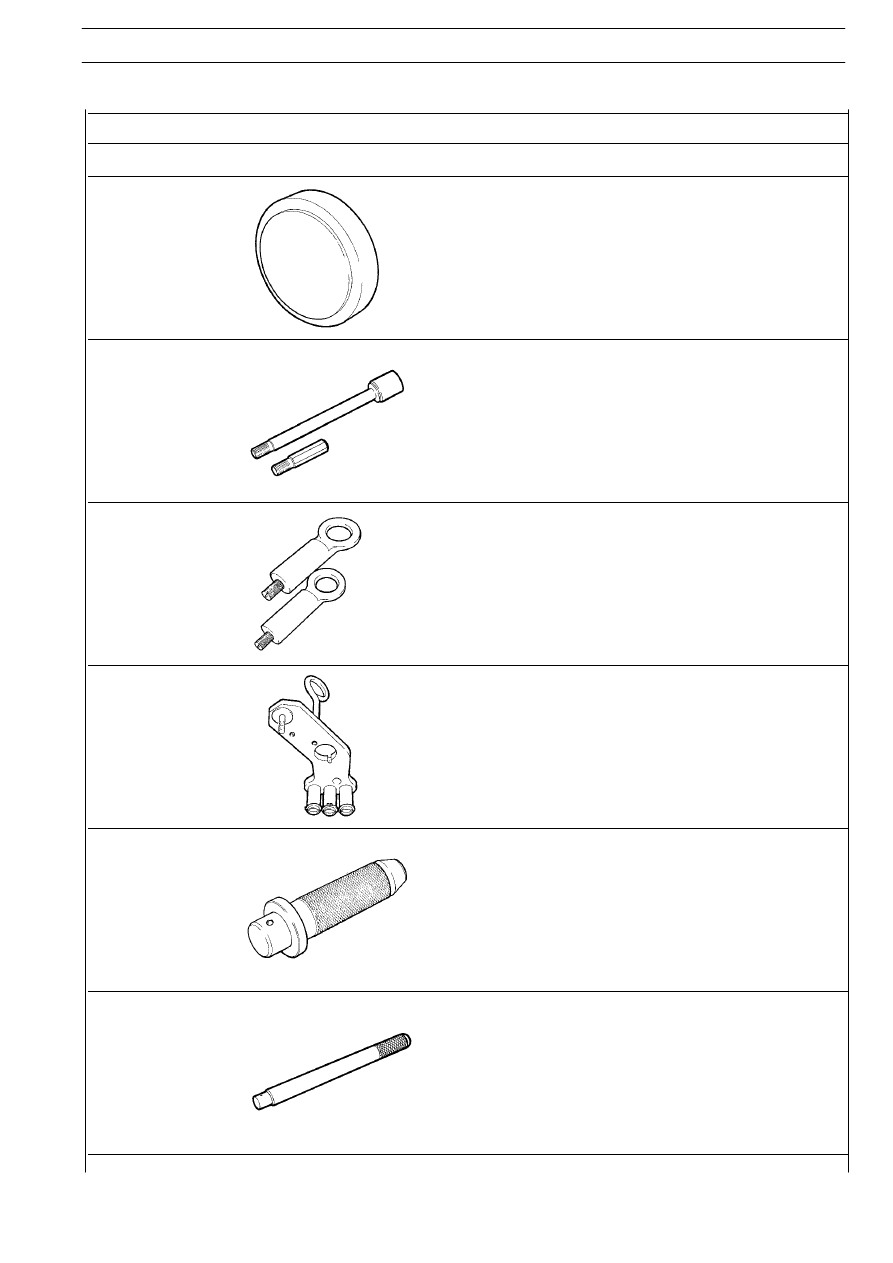

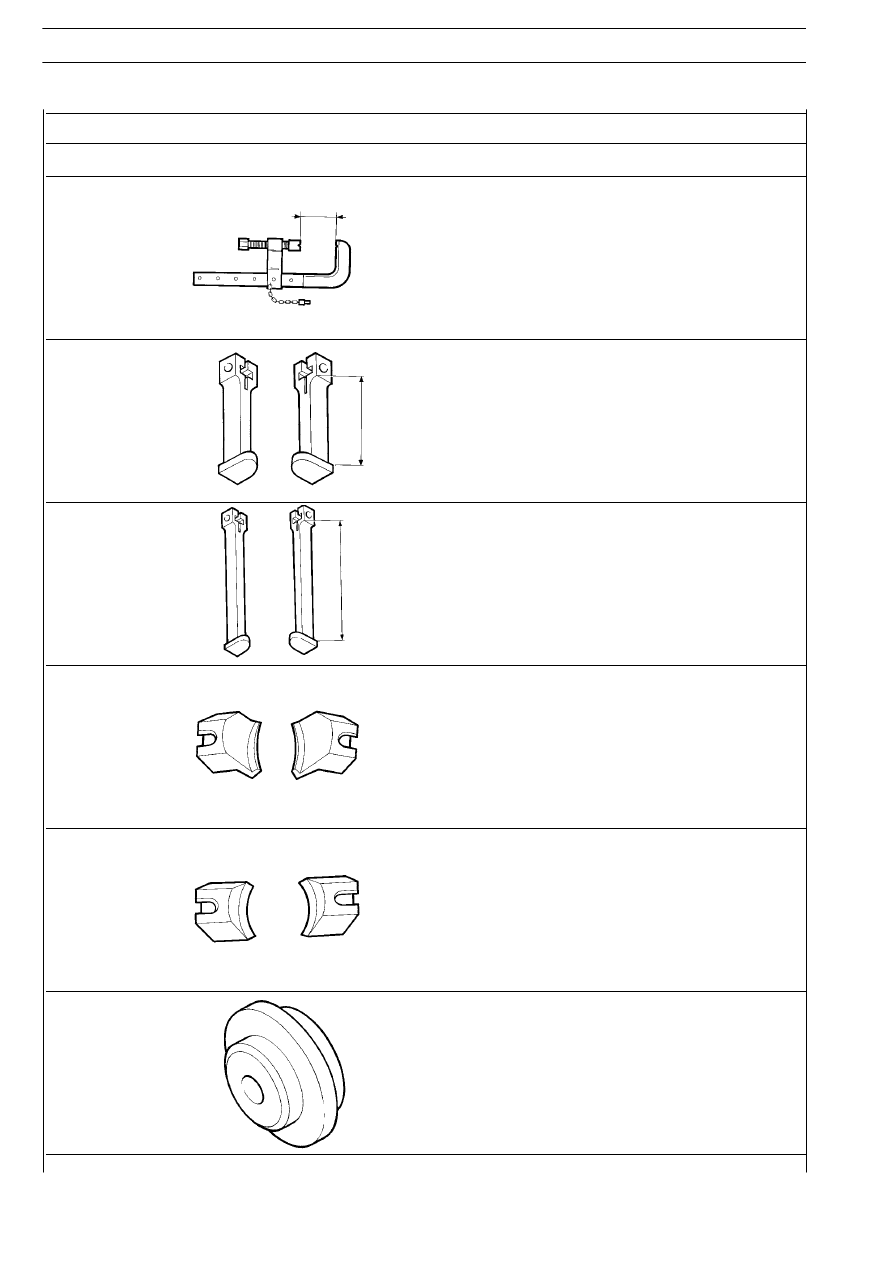

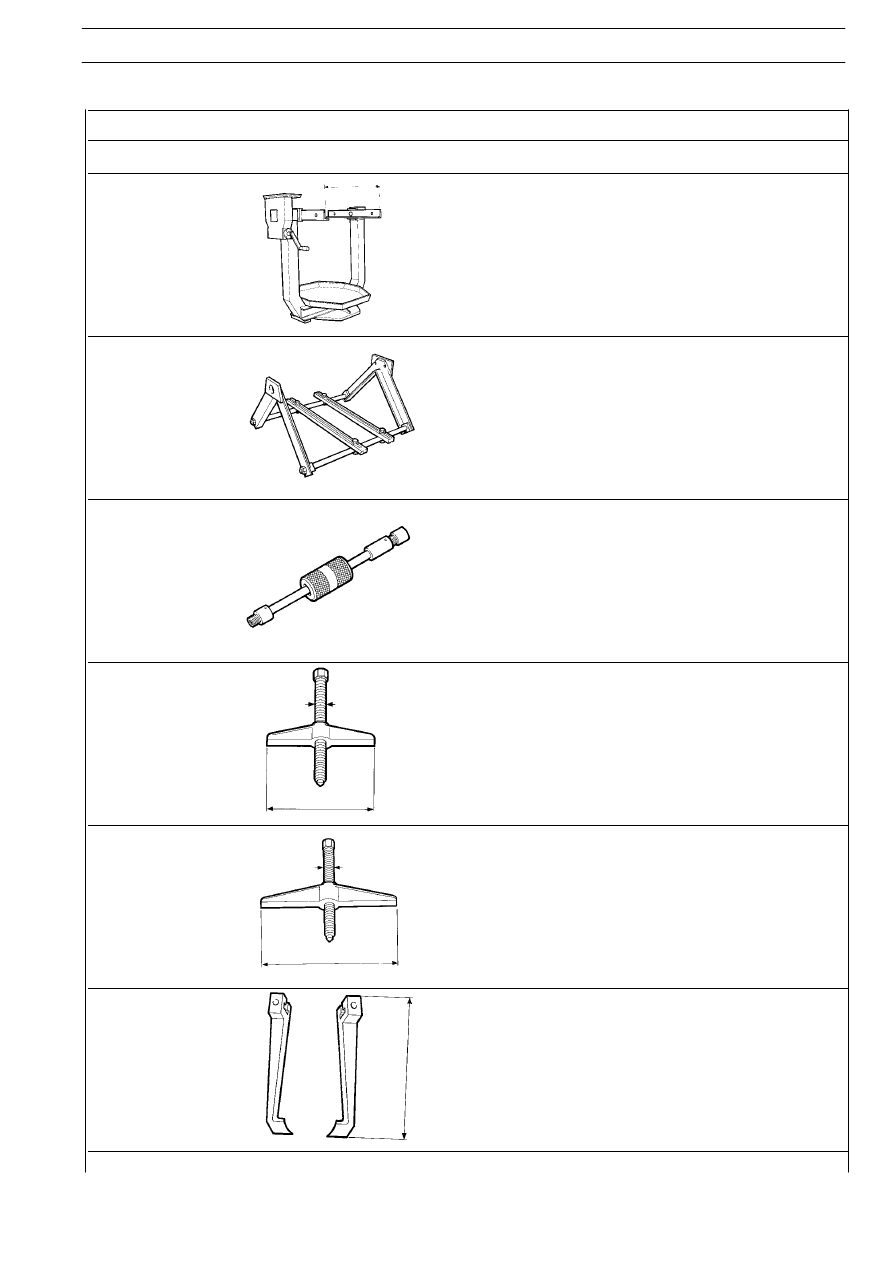

GEARBOX ZF 16 S 151 D.D. - 181 D.D./O.D. - 221 D.D.
S
TRALIS
AT/AD
Base - January 2003
PART
TORQUE
Nm
kgm
1
Screws fixing splitter box
50
5
2
Screws fixing drive input shaft cover
46
4.6
3
Nut fixing oil pump
46
4.6
4
Screws fixing rear cover
50
5
5
Screws fixing drive output flange
120
12
6
Screws fixing PTO fitting cover
79
7.9
7
Screws fixing ERG* box
50
5
Screws fixing gearbox
43
4.3
Screws fixing valve to gearbox
23
2.3
Screws fixing ERG* cylinder to the box
50
5.0
Self-locking nuts fixing splitter control rods and ERG to pistons
150
15.0
Fixing screws
-
M18 x 1.5
-
M22 x 1.5
-
M24 x 1.5
35
50
60
3.5
5
6
Screw for reverse gear shaft retaining plate (if applicable)
86
8.6
Screws fixing fork on splitter control shaft
60
6
Screws fixing disengagement bearing control fork mount
150
15
Screws fixing RM gearbox bottom cover
49
4.9
Screws fixing gearbox side cover
23
2.3
Socket-head screws fixing pipes
35
3.5
Oil drain plugs
80
8.0
Oil drain plugs M38 x 1.5 with magnetic filter
140
14.0
Pressure switches / pulse transmitters
50
5.0
Screws fixing oil pump cover
46
4.6
Switches on gearbox
35
3.5
Screws fixing splitter control valve
9,5
0.9
Nut for screw fixing lever to gearbox control rod
5
4.9
Threaded pins for articulation of ERG* control fork
250z
25z
Oil vapour breather pipe
10
1
Push rods for positioning rods
50
5
ERG* = Epicyclic Reduction Gear unit
z
= Apply LOCTITE 241 on the thread
