Iveco Stralis AT/AD. Manual - part 65





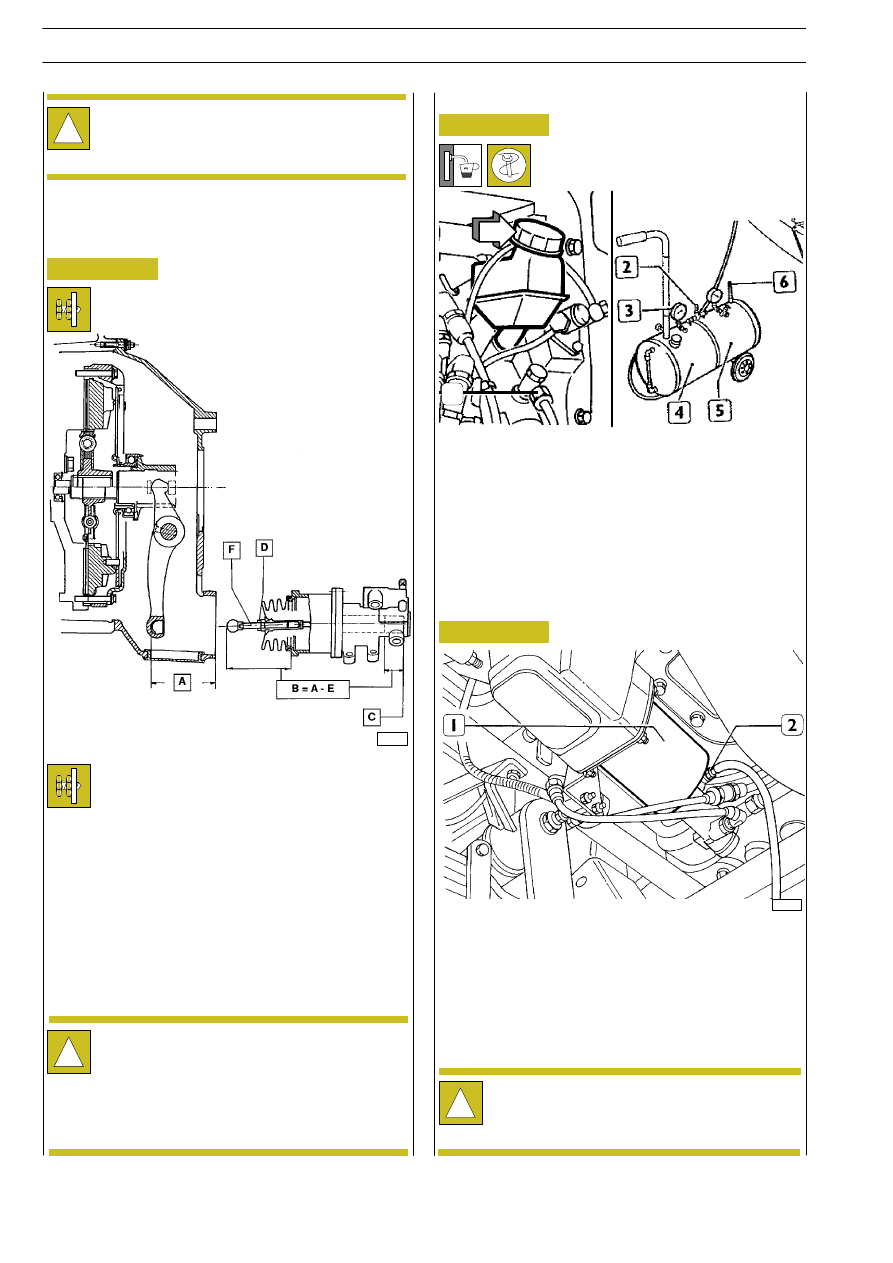

Carry out the following operations:
Measure the distance (A) between the bottom of the
spherical cavity of the clutch lever and the actuator
fixing surface. Press the spherical push rod to reach
the stop (C).
Loosen the nut (D).
Screw or unscrew the push rod (F) to obtain the dis-
tance (B).

B = A — E

E = 26 mm (VALEO or BORG & BECK clutch)

E = 30 mm (FICHTEL & SACHS clutch)

35537

!

It is necessary to observe this adjustment to make the
worn plate indicator trip, which is located in the oper-
ator cylinder, close to the complete wear of the fric-
tion linings.
The plate wear (90% of the friction material) is indi-
cated by a significant increase in load on the pedal
when disengaging the clutch.

!

Should any oil leaks from the main cylinder and/or
the clutch actuator be detected, replace the involved
component and bleed the hydraulic system.

505272

PUSH ROD ADJUSTMENT

Operator cylinder (new clutch)

BLEEDING CLUTCH CIRCUIT

Bleed air from clutch hydraulic circuit after repairing clutch as-
sembly or following periodic oil changes. Use air remover
99306010 for this purpose as follows:
- introduce compressed air into reservoir (5);
- fill reservoir (4) with Tutela TRUCK DOT SPECIAL fluid;
- replace clutch reservoir cover (

⇒) with one of those

provided with device 99306010 and connect device line
to cover.

1

!

When clutch fluid is changed, bleed master cylinder
by loosening fitting (1, Figure 31) before bleeing clutch
servo.

40355

- apply a plastic pipe to bleed screw (2) of slave cylinder (1)

and immerse the opposite end of the pipe in a recipient
containing Tutela TRUCK DOT SPECIAL fluid. Undo bleed
screw (1) by one turn, open (see Figure 31) crock (2) until
pressure gauge (3) shows a reading of 1

÷ 1,2 bars;

- when clutch fluid emerging from circuit is free of bubbles,

tighten bleed screw and drain air from device reservoir
(5) through valve (6).

Figure 30

Figure 31

Figure 32

18

CLUTCH

S

TRALIS

AT/AD

Base - January 2003

!

!

!

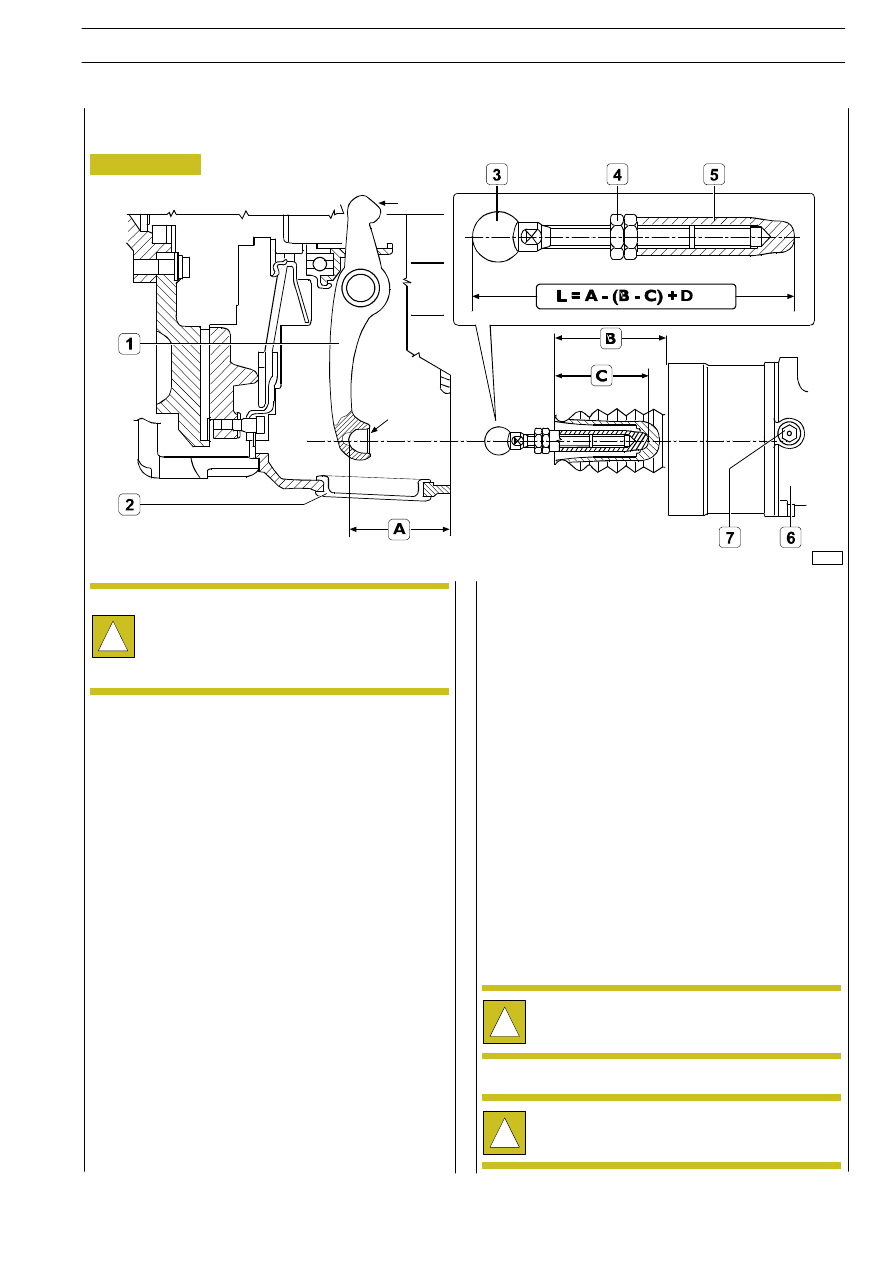

Push the lever (1) down fully so as to cancel the disengaging
travel with no load.
In the above conditions, measure the distance (A) between
the bottom of the spherical cavity of the clutch lever and the
clutch actuator (6) fixing surface of the box (2).
Extract the push rod (composed of parts 3, 4, 5) from the
clutch actuator (6).
Unscrew the plug (7) to discharge the air under pressure
from the piston so that the spring inside the working piston
moves forwards as far as the stop.
Measure the distance B = distance between the front edge
of the tapered front portion of the clutch actuator (6) and
the fixing surface of the actuator.
Measure the distance C = depth of the tapered front portion
of the piston.
Measure the length L of the push rod that has to be:

L = A — (B — C) + D

A-B-C = measurements made
D = 33 mm, fixed value of the maximum stroke of the actua-
tor.
If you find a different value, loosen the nut (4) and use parts
(3 and 5) to obtain the calculated length.

Tighten the nut (4) to a torque of 52 Nm (5.2 kgm) and fit
the push rod back into the actuator (6).

Fasten the clutch actuator (6) to the front box (2), checking
that the push rod (3) goes inside correctly and tighten the
nuts to the required torque.
Unscrew the plug (7) so that the internal spring of the actua-
tor (6) pushes the piston forwards and tighten the plug (7)
to the required torque.
Hook up the electrical connector and the compressed air
supply pipe.

Replacing the clutch actuator

Not having to replace the push rod (3), mount the new
actuator as described in the above paragraph, without alter-
ing the distance L of the push rod (3).

The operator cylinder is equipped with a device to
automatically recover the clearance due to the wear
of the clutch plate. Therefore, it must only be ad-
justed when replacing the clutch plate or the clutch
actuator (6).

Before connecting the air pipe, check that the clutch
actuator (6) is correctly secured to the front box (2).

Lubricate the indicated points (

→) with TUTELA

MR2.

Fitting the clutch actuator

Discharge the air under pressure from the actuator (6) by un-
screwing the plug (7).
Move the piston of the actuator (6) back, overcoming the re-
action of the spring, as far as its stop.
Screw the plug (7) back on to keep the piston in the retracted
position.
Lubricate the spherical cavity of the lever (1) with TUTELA
MR2 and position the push rod (3) in it.

72138

Figure 33

505272

Clutch actuator push rod adjustment (new clutch)

CLUTCH

19

S

TRALIS

AT/AD

\

5052

CLUTCH ACTUATOR FOR EUROTRONIC AUTOMATED GEARBOX

20

CLUTCH

S

TRALIS

AT/AD

Base - January 2003

GEARBOXES

1

S

TRALIS

AT/AD

SECTION 4

5302

Gearboxes

ZF 9 S 109 D.D.

1-42

. . . . . . . . . . . . . . . . . . . . . . . . .

ZF 16 S 151 D.D. - ZF 16 S 181 D.D./O.D. -

ZF 16 S 221 D.D.

43-94

. . . . . . . . . . . . . . . . . . . . . .

ZF 16 S 151 D.D. - ZF 16 S 181 D.D./O.D. -

ZF 16 S 221 D.D. with intarder

95-112

. . . . . . . . . . . .

EUROTRONIC 12 AS 2301 D.D./O.D.

113-158

. . . . . . .

EUROTRONIC 12 AS 2301 D.D./O.D.

with intarder

159-172

. . . . . . . . . . . . . . . . . . . . . . . . . .

ALLISON MD 3060 PR - ALLISON MD 3066PR

173-196

EXTERNAL CONTROL

197-204

. . . . . . . . . . . . . . . . . . .

POWER TAKE-OFF

205-232

. . . . . . . . . . . . . . . . . . . . . .

POWER TAKE-OFF

233-252

. . . . . . . . . . . . . . . . . . . . . .
