Iveco Stralis AT/AD. Manual - part 46





Make sure the piston does show any trace of seizing, scoring,
cracking; replace as necessary.

60608

60607

Figure 88

Figure 89

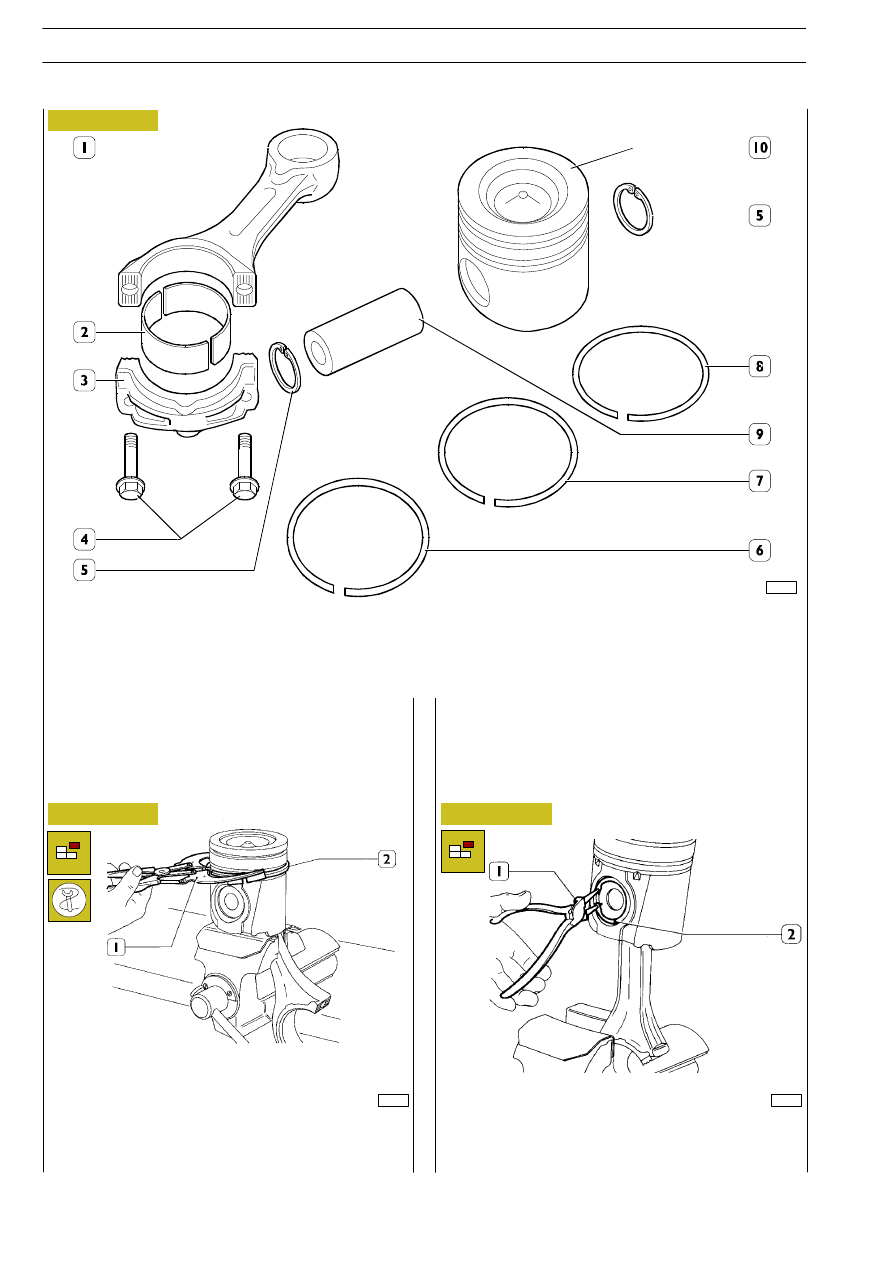

PISTON CONNECTING ROD ASSEMBLY

1. Connecting rod body - 2. Half bearings - 3. Connecting rod cap - 4. Cap fastening screws - 5. Split ring -

6. Scraper ring with spiral spring - 7. Bevel cut sealing ring - 8. Trapezoidal sealing ring - 9. Piston pin - 10. Piston

Removal of the piston split rings (2) using the pliers 99360184
(1).

Removal

Pistons are equipped with three elastic rings: a sealing ring, a
trapezoidal ring and a scraper ring.

Pistons are grouped into classes A and B for diameter.

49024

Figure 90

Remove the piston pin split rings (2) using the round tipped
pliers (1).

S

TRALIS

AT/AD

170

F3A ENGINE

Base - January 2003

PISTON CONNECTING ROD ASSEMBLY

49025

32618

49026

Figure 91

Figure 92

Figure 93

Figure 94

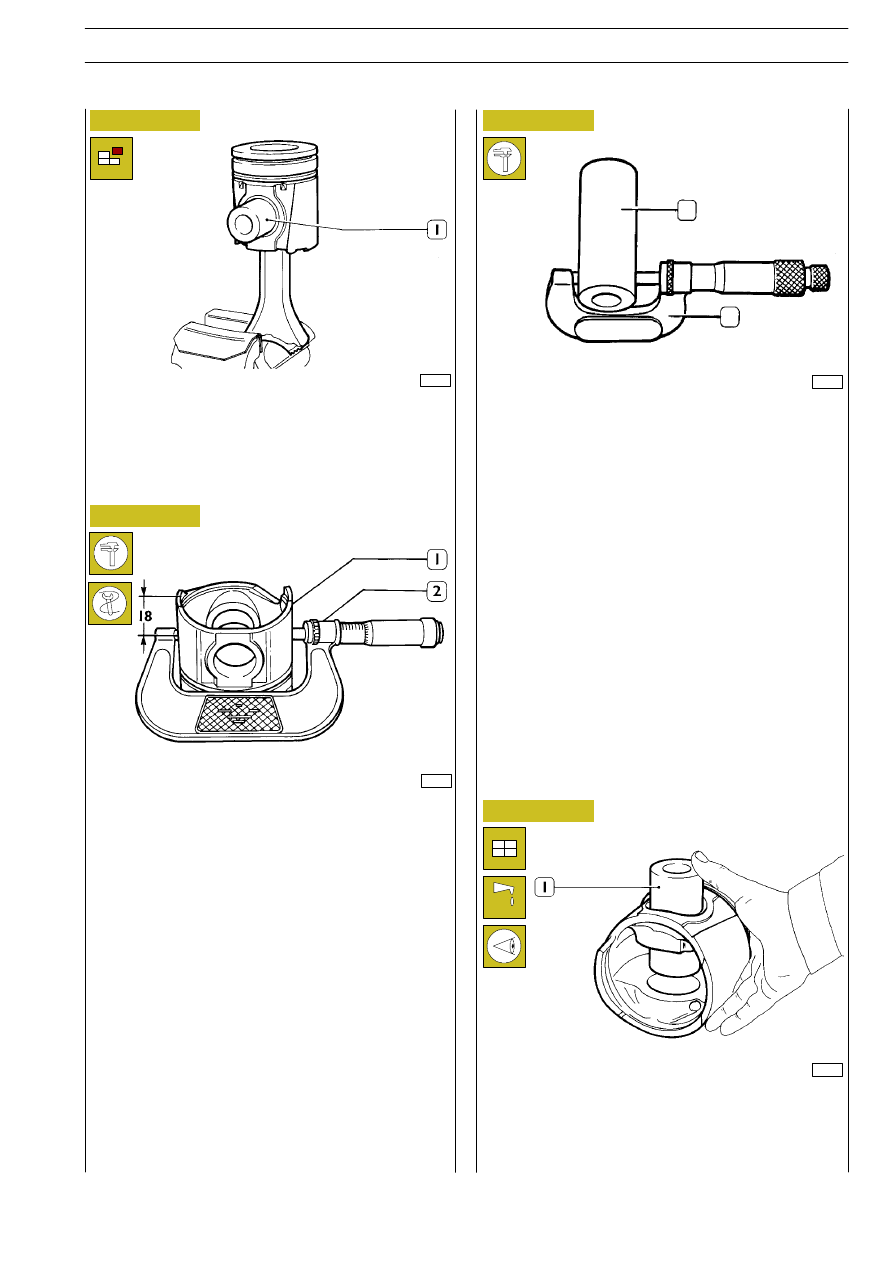

Remove the piston pin (1).
If removal is difficult use the appropriate beater.

Measuring the diameter of the pistons

Measuring the gudgeon pin diameter (1) with a micrometer (2).

Conditions for correct gudgeon pin-piston coupling

Lubricate the pin (1) and the relevant housing on the piston
hubs with engine oil; piston must be inserted with a slight
finger pressure and it should not come out by gravity.

47584

Using a micrometer (2), measure the diameter of the piston
(1) to determine the assembly clearance; the diameter has to
be measured at the value X shown:

1

2

171

S

TRALIS

AT/AD

F3A ENGINE

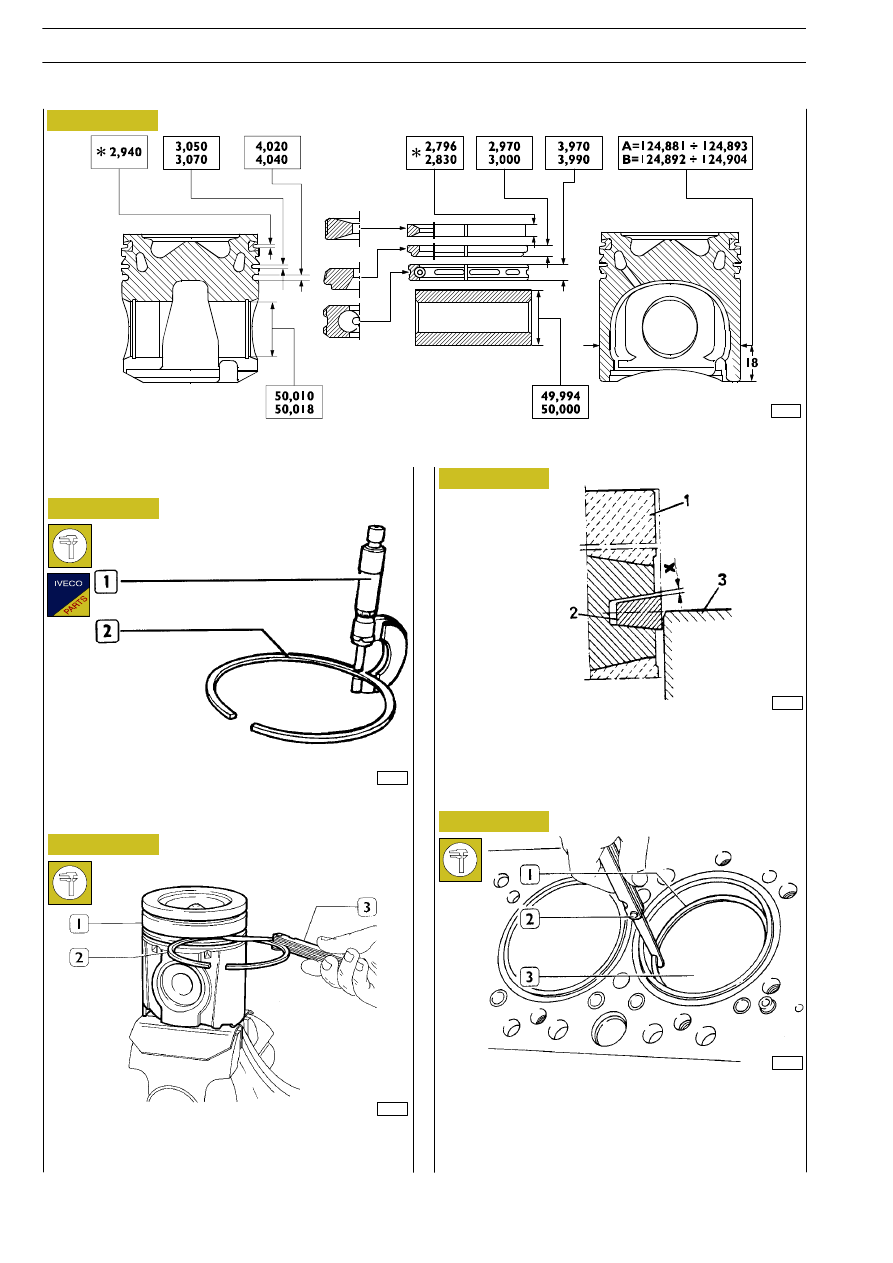

MAIN DATA OF THE PISTON, SUPPLIED BY MONDIAL PISTON, PISTON RINGS AND PIN

* Values are determined on

∅ of 120 mm.

16552

3513

Figure 95

Figure 96

Check the thickness of the piston ring (2) using a micrometer
(1).

The sealing ring (2) of the 1st cavity is trapezoidal. Clearance
“X” between the sealing ring and its housing is measured by
placing the piston (1) with its ring in the cylinder barrel (3),
so that the sealing ring is half-projected out of the cylinder
barrel.

540842

Piston rings

78904

60610

Check the clearance between the sealing rings (2) and the
relative piston housings (1) using a thikness gauge (3).

36134

Check the opening between the ends of the sealing rings (1),
using a thickness gauge (2), entered in the cylinder barrel (3).
If the distance between ends is lower or higher than the value
required, replace split rings.

Figure 97

Figure 98

Figure 99

S

TRALIS

AT/AD

172

F3A ENGINE

Base - January 2003

47557

44927

Figure 100

Figure 101

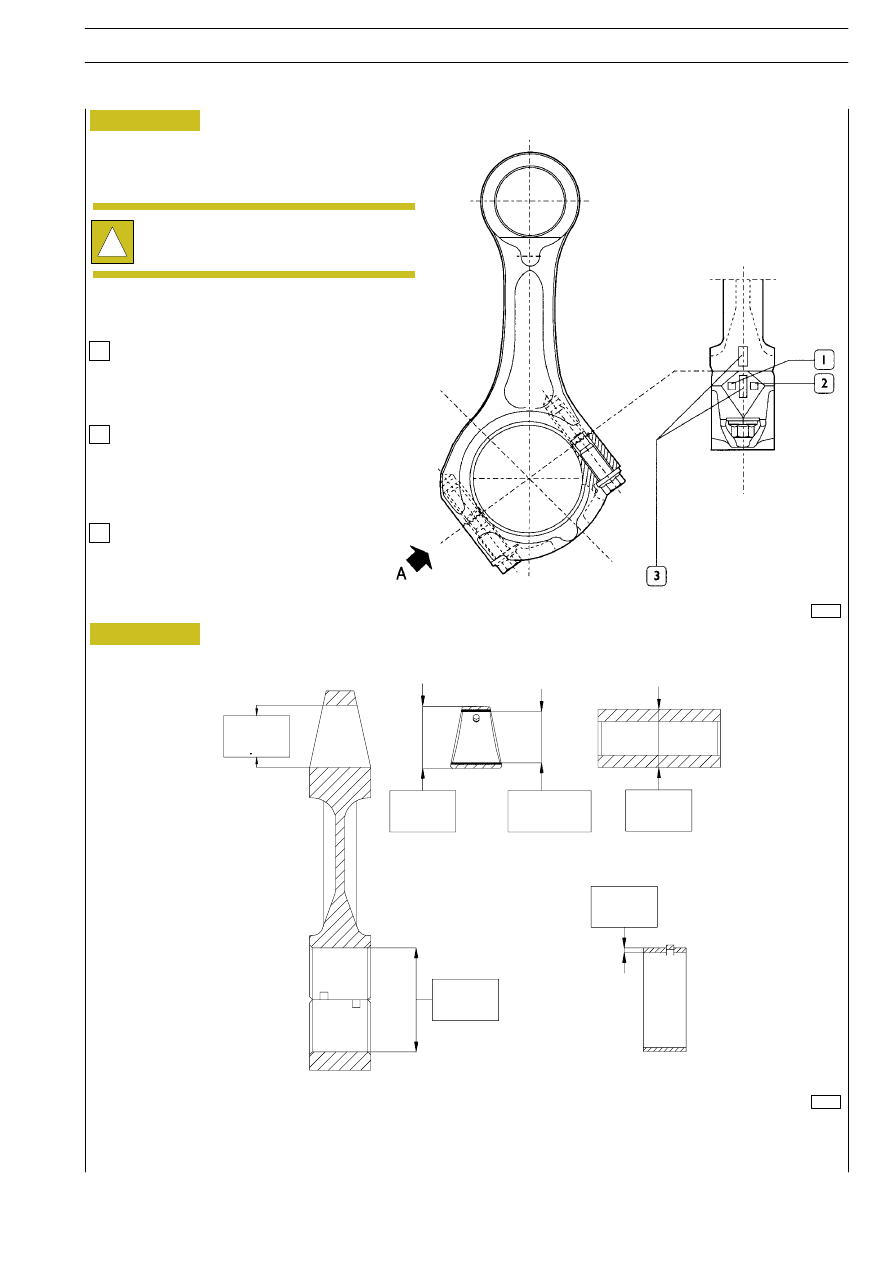

MAIN DATA - BUSH, CONNECTING ROD, PIN AND HALF-BEARINGS

* Values to be obtained after installing the bush.

DIAGRAM OF THE CONNECTING ROD
MARKS
Letter indicating the weight class:

A

=

3973 to 4003 g.

B

=

4004 to 4034 g.

C

=

4035 to 4065 g.

Number indicating the selection of diameter for
the big end bearing housing:

1

=

87.000 to 87.010 mm

2

=

87.011 to 87.020 mm

3

=

87.021 to 87.030 mm

Numbers identifying cap-connecting rod coupling.

1

2

3

Data concerning the class section of connecting rod
housing and weight are stamped on the big end.

!

When installing connecting rods, make sure
they all belong to the same weight class.

VIEW FROM “A”

54.000
54.030

54.085
54.110

50.019*
50.035*

49.994
50.000

1.970
2.000

87.000
87.030

173

S

TRALIS

AT/AD

F3A ENGINE

540830

CONNECTING RODS
