Iveco Stralis AT/AD. Manual - part 29





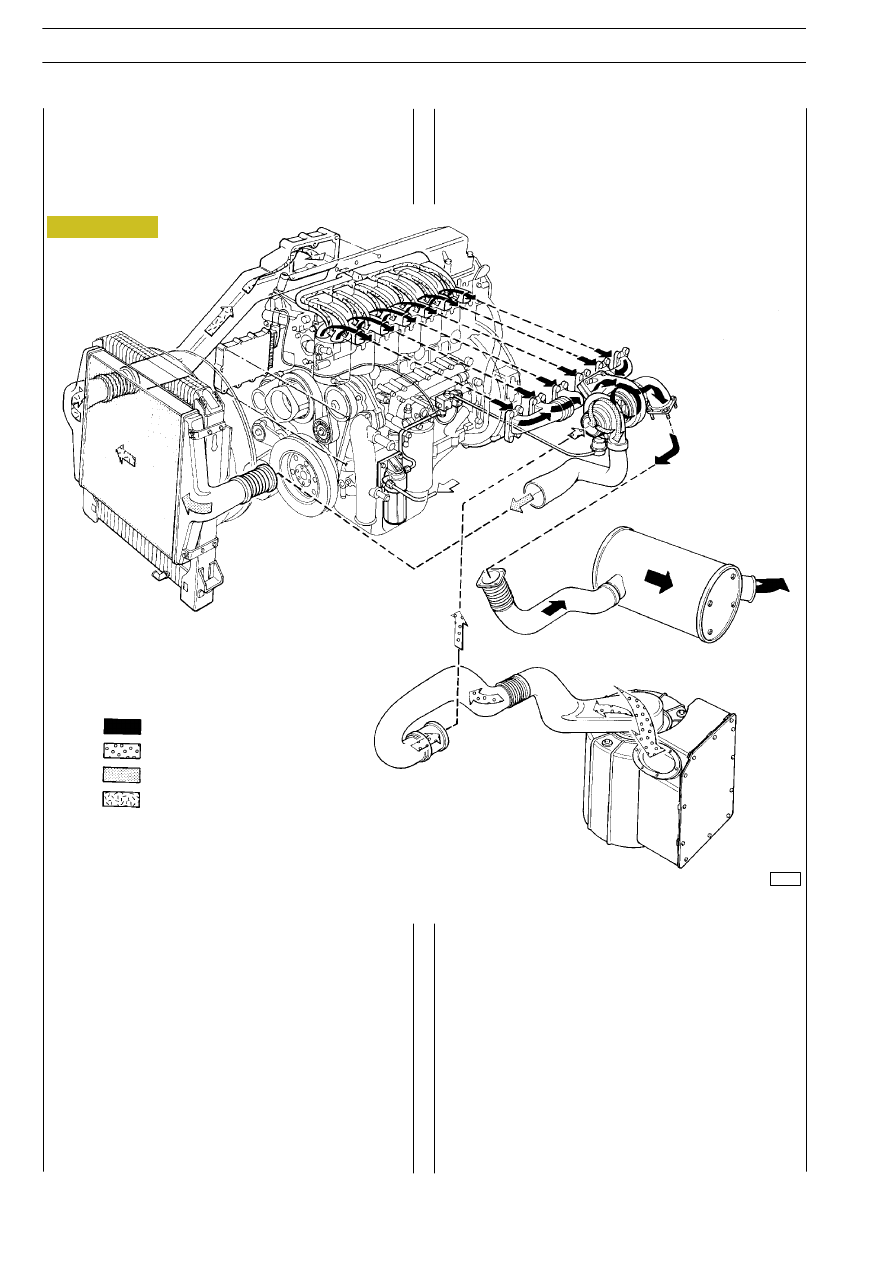

Compressed air (hot)

Intake air

Engine exhaust gas

Compressed air (cooled)

Figure 206

The turbocharging system consists of:

- air filter;

- variable geometry turbocharger;

- “intercooler” radiator.

44916

TURBOCHARGING DIAGRAM

TURBOCHARGER

Operating principle

The variable geometry turbocharger (VGT) consists of a
centrifugal compressor and a turbine, equipped with a
mobile device which adjusts the speed by changing the area
of the passing section of exhaust gases to the turbine.

Thanks to this solution, gas velocity and turbine speed can
be high even when the engine is idling.

If the gas is made to go through a narrow passage, in fact,
it flows faster, so that the turbine rotates more quickly.

The movement of the device, choking the exhaust gas
flowing section, is carried out by a mechanism, activated by
a pneumatic actuator.

This actuator is directly controlled by the electronic control
unit by a proportional solenoid valve.

The device is in maximum closing condition at idle speed.

At high engine operating speed, the electronic control
system is activated and increases the passing section, in
order to allow the in-coming gases to flow without
increasing their speed.

A toroidal chamber is obtained during the casting process
in the central body for the passage of the coolant.

102

ENGINE F2B

S

TRALIS

AT/AD

Base - January 2003

TURBOCHARGING

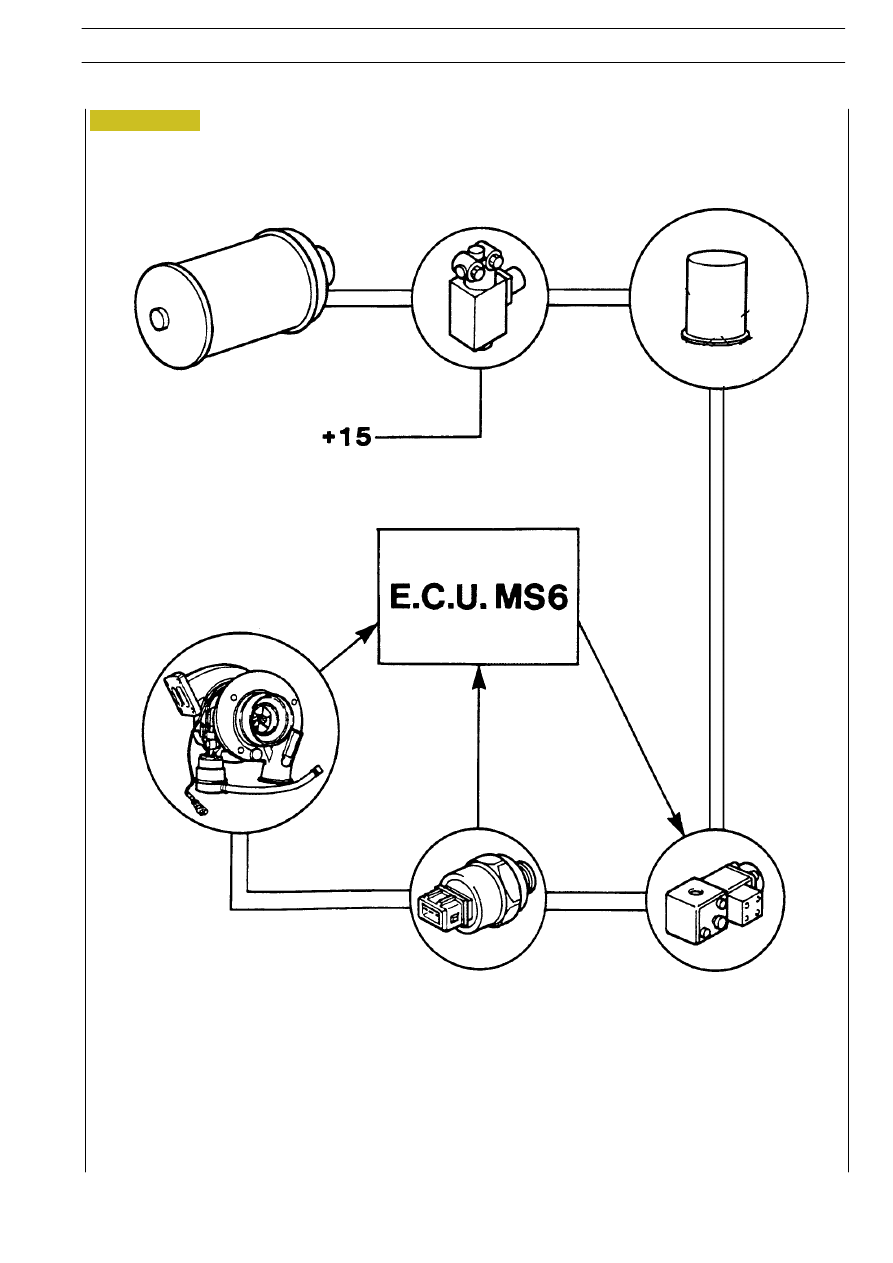

Figure 207

1

2

3

4

5

6

1) Service tank

2) Shut-off solenoid valve

3) Air filter

4) VGT control solenoid valve

5) Actuator pressure sensor

6) Turbine actuator

CONTROL AIR SYSTEM DIAGRAM

ENGINE F2B

103

S

TRALIS

AT/AD

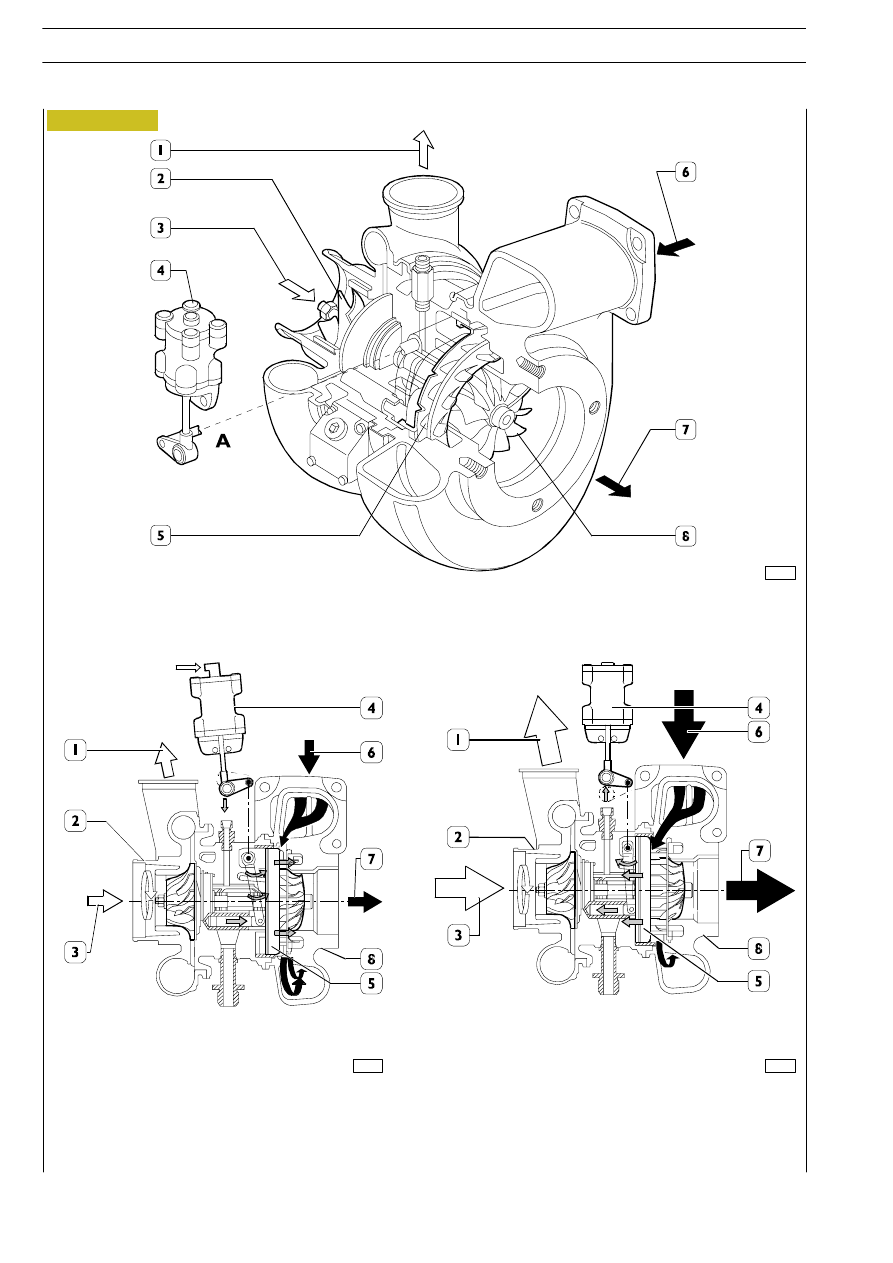

CROSS-SECTION OF TURBOCHARGER

1. Air delivery to the intake manifold - 2. Compressor - 3. Air inlet - 4. Actuator - 5. Exhaust gas flow-rate adjustment ring -

6. Exhaust gas inlet - 7. Exhaust gas outlet - 8. Turbine - 9. Exhaust gas flow-rate control fork

71759

Figure 208

1. Air delivery to the intake manifold - 2. Compressor - 3. Air inlet - 4. Actuator -

5. Exhaust gas speed governor - 6. Exhaust gas inlet - 7. Exhaust gas outlet - 8. Turbine

71734

CROSS-SECTION OF MAXIMUM FLOW

71733

CROSS-SECTION OF MINIMUM

FLOW

104

ENGINE F2B

S

TRALIS

AT/AD

Base - January 2003

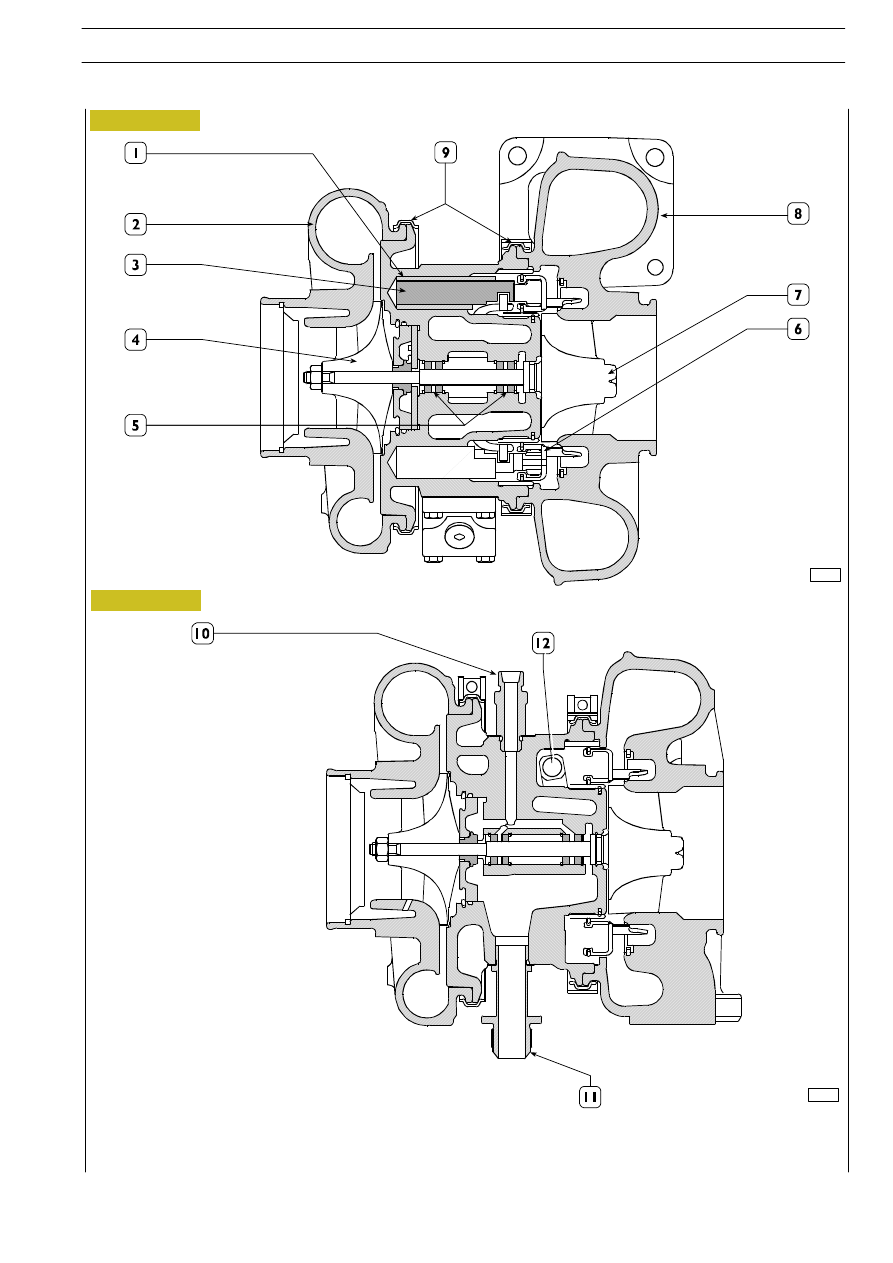

Figure 209

60754

60753

1. Slide guide - 2. Compressor - 3. Slide rods - 4. Compressor fan - 5. Lubrication bushings -

6. Exhaust gas flow-rate adjustment ring - 7. Exhaust gas fan - 8. Gas exhaust body -

9. Locking rings - 10. Oil delivery - 11. Oil outlet - 12. Actuator drive shaft

Figure 210

ENGINE F2B

105

S

TRALIS

AT/AD
