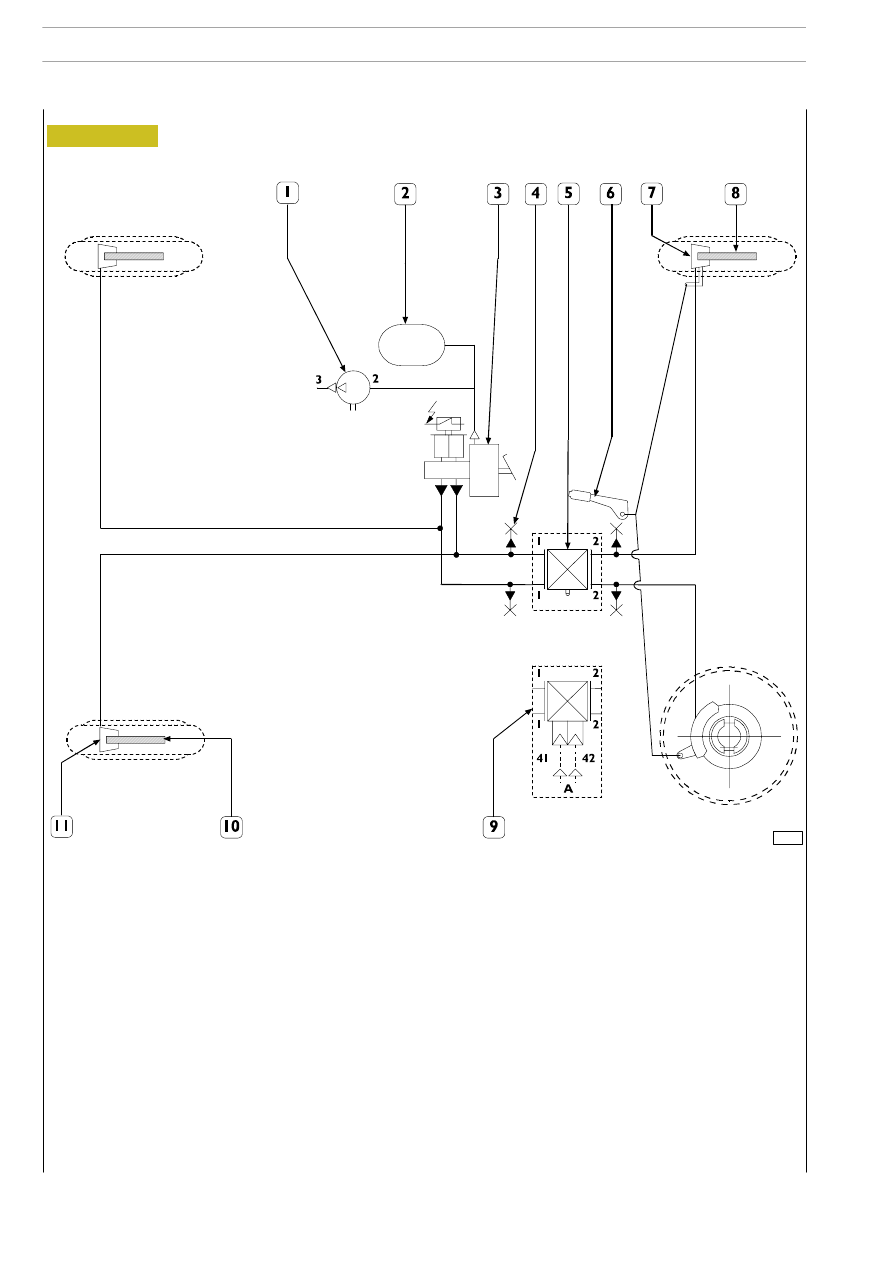

Figure 22

1. Pressure reducer - 2. Vacuum tank (2 litres) - 3. Servo brake - 4. Hydraulic pressure test point - 5. Dual mechanical operated

load proportioning valve (for vehicles with mechanical suspensions) - 6. Parking brake lever - 7. Rear brake caliper -

8. Rear brake disc - 9. Dual pneumatic operated load proportioning valve (for vehicles with pneumatic suspensions) -

10. Front brake disc - 11. Front brake caliper - A. From pneumatic suspension circuit.

HYDRO-PNEUMATIC SYSTEM - BRAKES

AILY

Base - May 2004

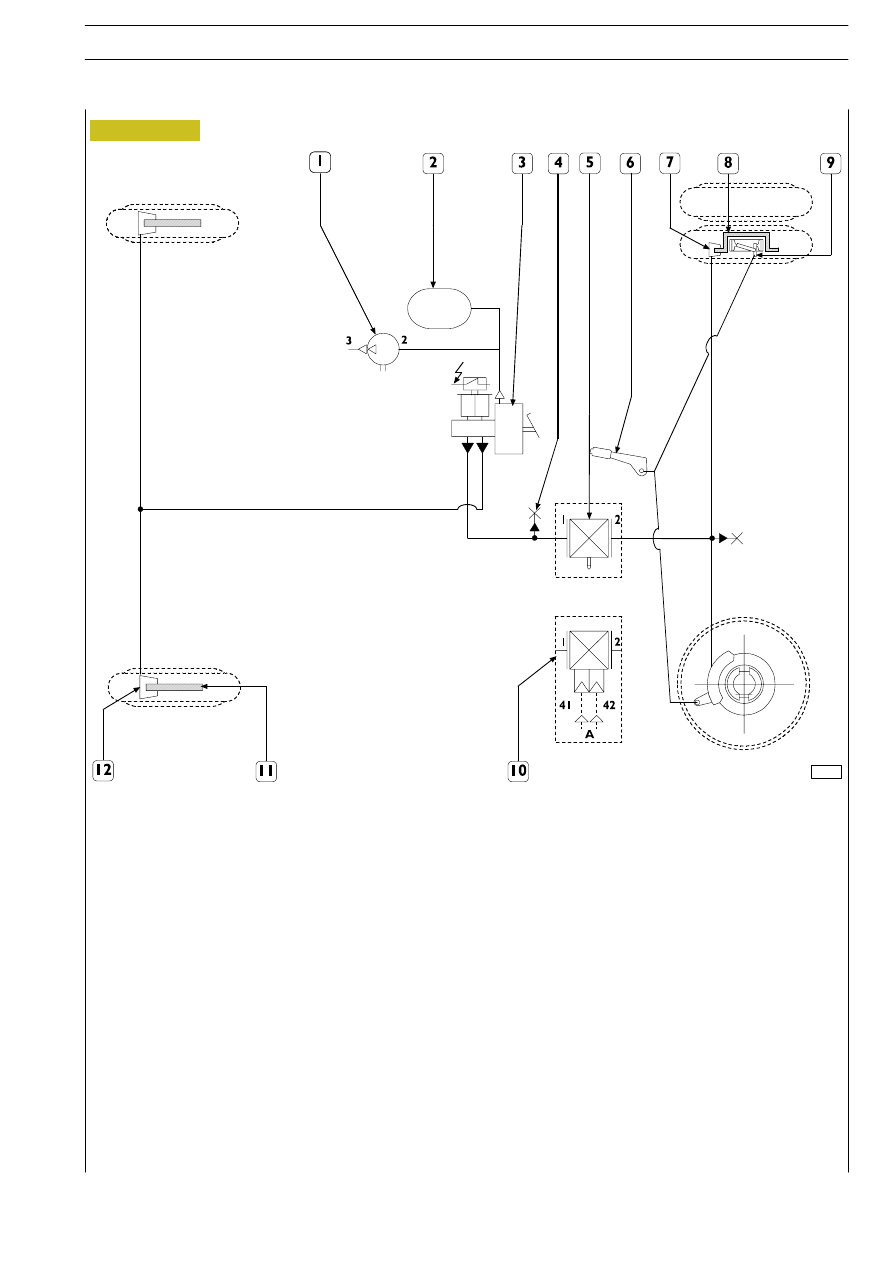

Figure 23

1. Pressure reducer - 2. Vacuum tank (2 litres for 35C, 40C vehicles, 5 litres for 45C / 50C / 60C / 65C vehicles) -

3. Servo brake - 4. Hydraulic pressure test point - 5. Dual mechanical operated load proportioning valve (for vehicles with

mechanical suspensions) - 6. Parking brake lever - 7. Rear brake caliper - 8. Rear brake disc - 9. Parking drum brake - 10. Dual

pneumatic operated load proportioning valve (for vehicles with pneumatic suspensions) - 11. Front disc brake - 12. Front brake

caliper - A. From the pneumatic suspension circuit.

52379

HYDRO-PNEUMATIC SYSTEM - BRAKES

AILY

Outline diagram for vehicles 35C - 40C - 45C - 50C - 60C - 65C

74938

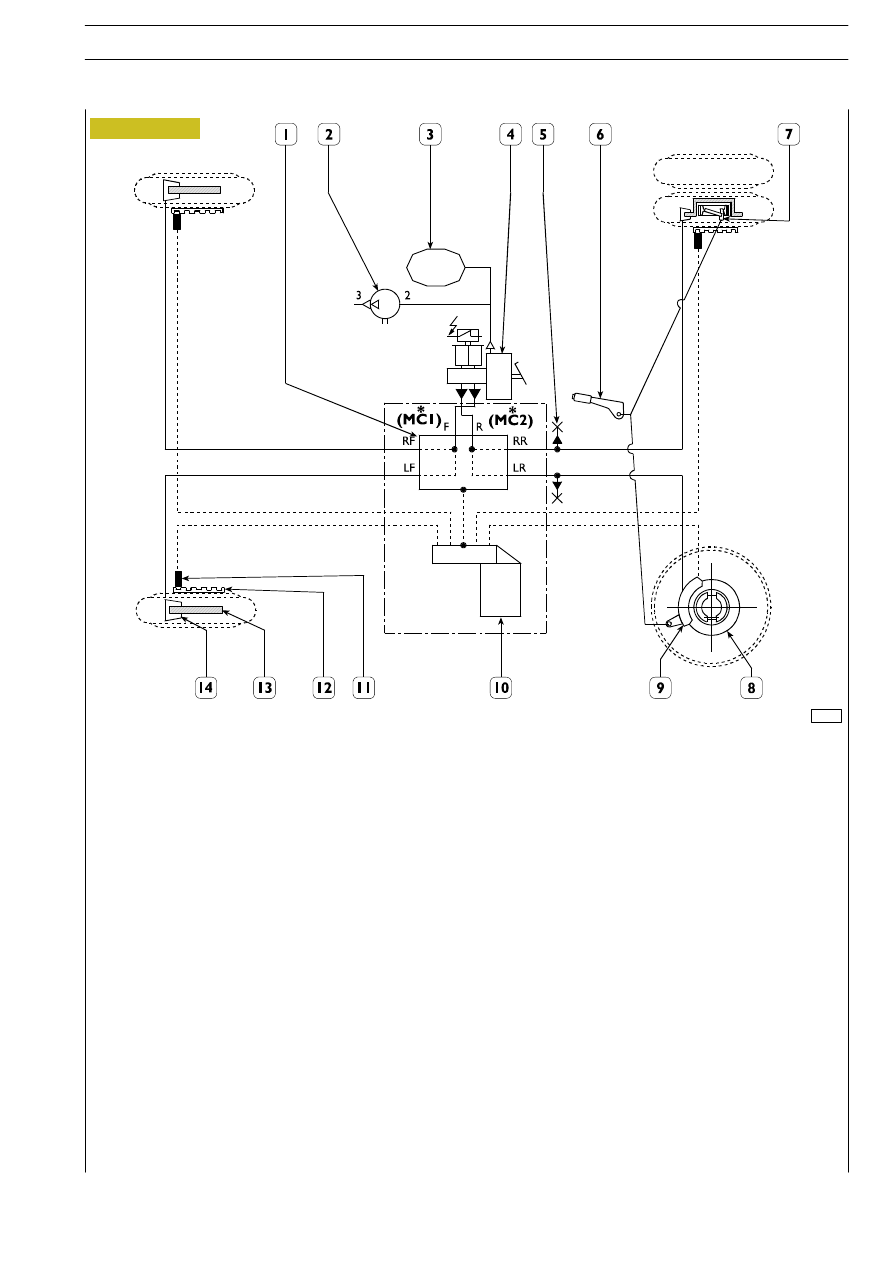

Figure 24

1. Electro-hydraulic modulator - 2. Vacuum pump - 3. Vacuum tank - 4. Servo brake - 5. Hydraulic pressure test point -

6. Parking brake lever - 7. Rear brake caliper - 8. Rear brake disc - 9. Electronic control unit -

10. Wheel revolutions sensor - 11. Phonic wheel - 12. Front brake disc - 13. Front brake caliper.

Revi - February 2005

HYDRO-PNEUMATIC SYSTEM - BRAKES

AILY

Base - May 2004

Revi - February 2005

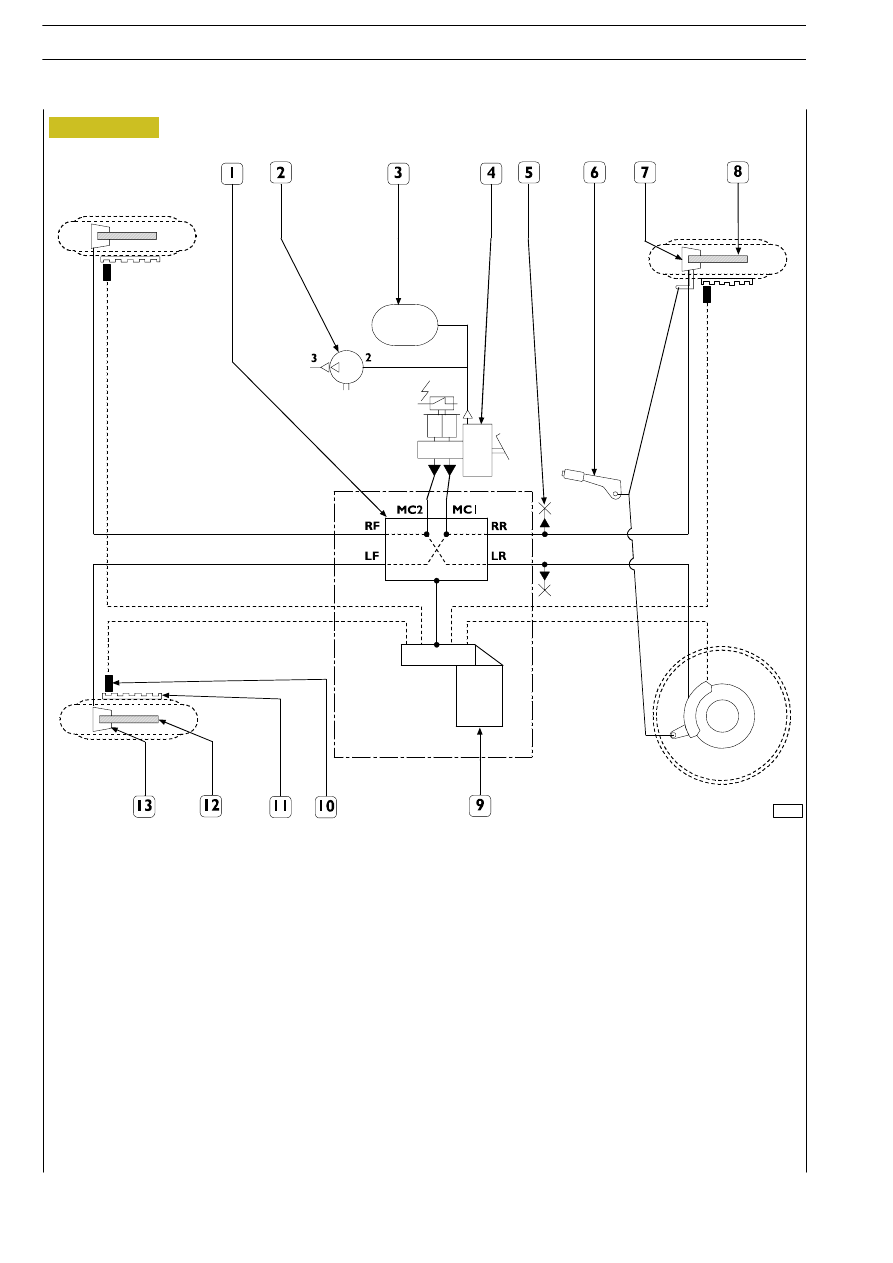

Figure 25

1 Electro-hydraulic modulator - 2. Vacuum pump - 3. Vacuum tank - 4. Servo brake - 5. Hydraulic pressure test point -

6. Parking brake lever - 7. Parking drum brake - 8. Rear brake disc - 9. Rear brake caliper - 10. Electronic control unit -

11. Wheel revolutions sensor - 12. Phonic wheel - 13. Front brake disc - 14. Front brake caliper.

For vehicles equipped with the ABS 8 system, connections “F” and “R” shall become “MC1” and “MC2”, respectively.
