Iveco Daily. Manual - part 196
51459
51398
51461
51396

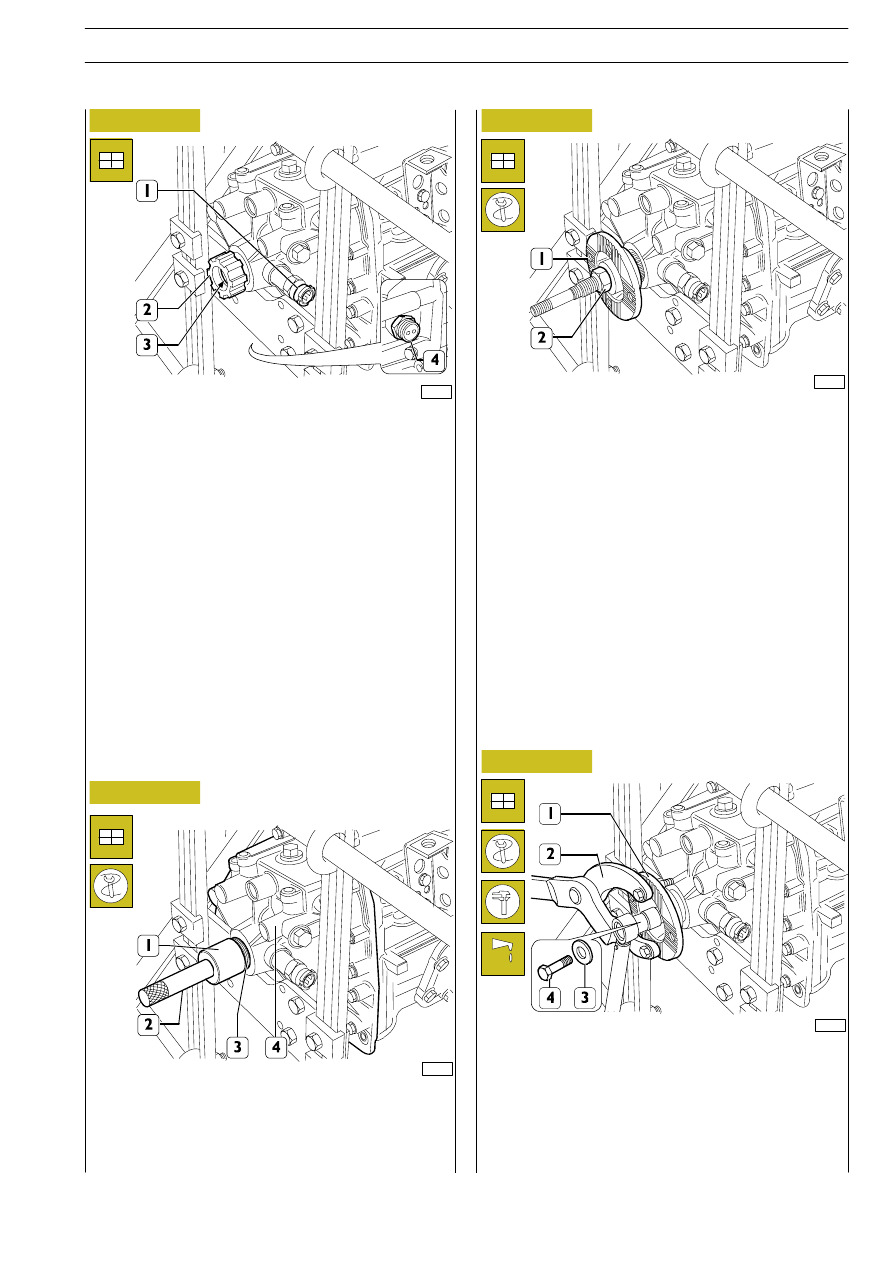

Figure 92
Figure 93
Figure 94
Figure 95
Figure 96

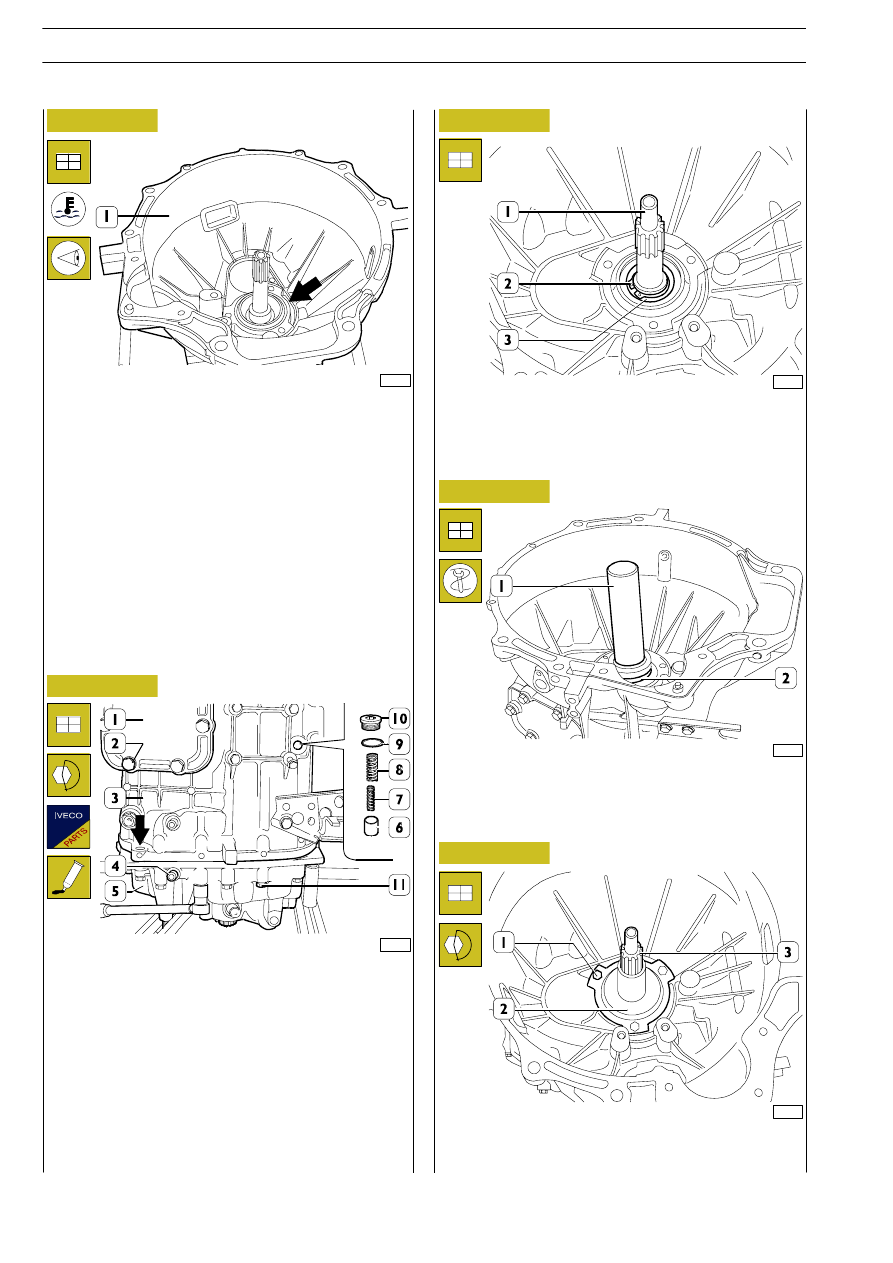

Warm up the roller bearing inner ring (
→) at 80°C and fit the
gearbox (1) on the rear cover and check that the shafts and
the control rods fit correctly in the respective seats.
Insert the centring pins (
⇒) in the rear cover (5).
Screw on the screws (11) fixing the rear cover (5) to the
transmission (3) and tighten them to the required torque.
Tighten the screw (4) fixing the reverse gear idler shaft to the
transmission (3) to the required torque.
Insert the push rod (6) and springs (7 - 8) and tighten the plug
(10) with a new gasket (9) to the required torque.
If the side cover (1) has been removed, apply LOCTITE 5206
sealant on the mating surface and tighten the screws (2) to the
required tightening torque.
Mount the front bearing (3) retaining ring (2) on the input shaft
(1).
Mount the O-ring (2) with the key 99374453 (1).
Mount input shaft (3) protection cover (2) and tighten screws
(1) to the required torque.
74966
Revi - February 2005
40
5 S 200 - 5 S 270 - 5 S 300 - TRANSMISSIONS
D
AILY
Base - May 2004
