Engines Iveco C10,C13, Cursor 10, Cursor 13. Manual

Figure 25

116814

60514

102935

60515

104784

Figure 26

Figure 27

Figure 28

Figure 29

Apply tool 99360553 (1) to the rocker holder shaft (5) and
remove the shaft (5) from the cylinder head.

To extract the pump injector from the engine block, using the
tool proceed as follows:
- Hook up the detail (3) of the tool illustrated in the figure

to the injector pump (4);

- fit part (2) on part (3), resting the former on the cylinder

head;

- tighten the nut (1) and extract the pump injector (4) from

the engine block

- Fit the plugs 99360180 (1) instead of injectors.
- Remove the camshaft (2).
- Unscrew the fixing screws on the cylinder head (3).

- By means of metal ropes, lift the cylinder head (1).

- Remove the seal (2)

Only for types: F3BE0684J*E902 - F3BE9687A*E001 -
F3BE9687B*E001 - F3BE9687C*E001

Loosen screws (3), then remove sump (1) complete with
spacer (2) and seal gasket (4).

Figure 30

101606

Loosen screws (3), then remove sump (1) complete with
spacer (2) and seal gasket (4).

For all types except: F3BE0684J*E902 - F3BE9687A*E001
- F3BE9687B*E001 - F3BE9687C*E001

SECTION 3 - INDUSTRIAL APPLICATION

F3B CURSOR ENGINES

Base - May 2007

101607

Figure 31

Figure 32

Figure 33

Figure 34

Figure 35

Figure 36

Loosen the screws, then remove suction strainer (1).

Using the centring ring 99396035 (2), check the exact position
of the cover (1). If it is wrong, proceed accordingly and lock
the screws (3).

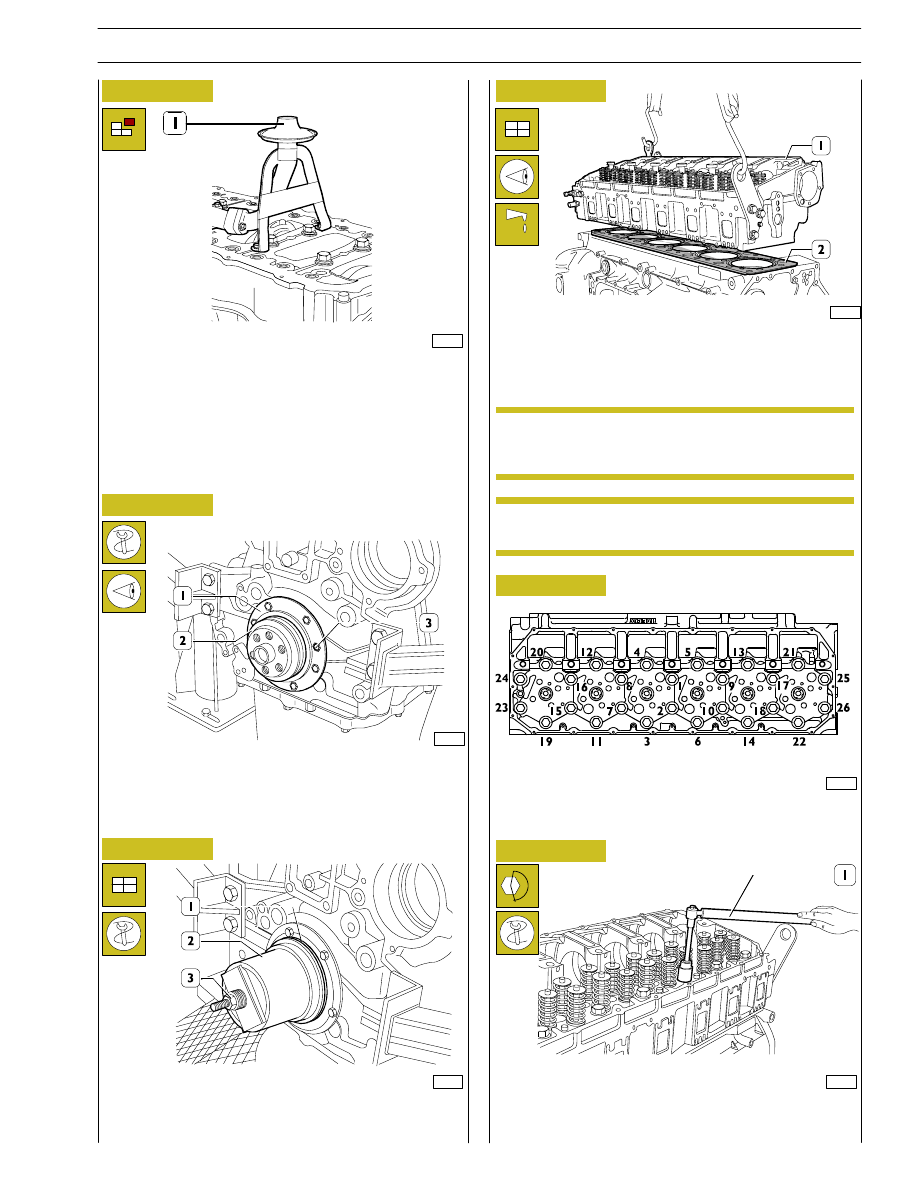

Key on the gasket (1), mount the key 99346250 (2) and,
screwing down the nut (3), drive in the gasket (1).

Check that the pistons 1-6 are exactly at the T.D.C.
Put the gasket (2) on the crankcase.
Mount the cylinder head (1) and tighten the screws as shown
in Figs. 34-35-36.

Diagram of the tightening sequence of the screws fixing the
cylinder head.

- Pre-tightening with the torque wrench (1):

phase: 60 Nm (6 kgm).

phase: 120 Nm (12 kgm).

60563

60564

60515

60565

61270

Lubricate the thread of the screws with engine oil
before assembly.

ENGINE ASSEMBLY

NOTE

Use new screws every time the under block is
re-assembled.

NOTE

SECTION 3 - INDUSTRIAL APPLICATION

F3B CURSOR ENGINES

Apply LOCTITE 5970 IVECO n˚ 2992644 silicone on the gear
housing, using appropriate tools (1), as shown in the figure.
The sealer string (1) diameter is to be 1,5

Using a torque wrench, tighten the highlighted screws with the
following sequence and tightening torques:

4 screws M12 x 1.75 x 35

63 Nm

10 screws M12 x 1.75 x 100

63 Nm

1 screw M12 x 1.75 x 120

63 Nm

2 screws M12 x 1.75 x 70

63 Nm

Figure 37

Figure 38

Figure 39

60566

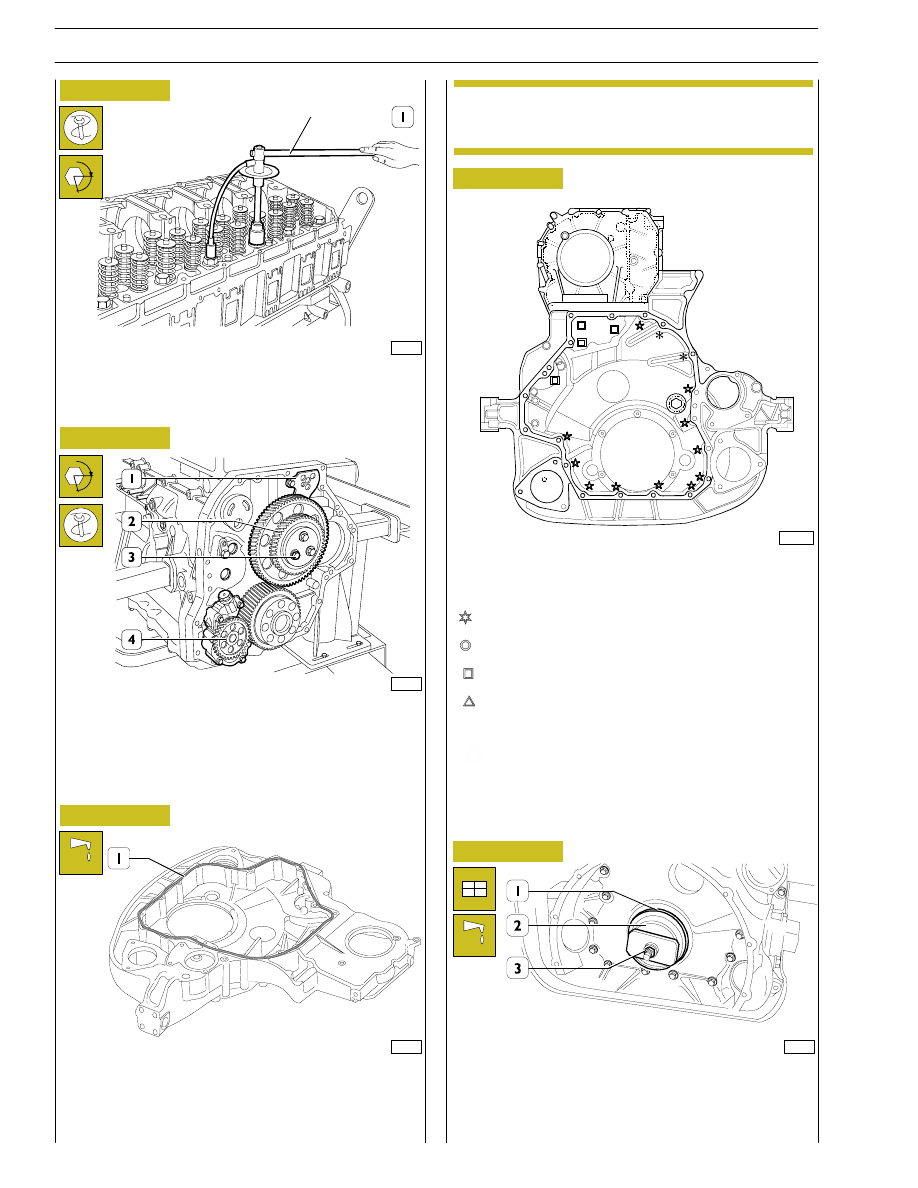

- Closing to angle with tool 99395216 (1):

phase: angle of 120

°.

phase: angle of 60

°.

Mount the oil pump (4), the intermediate gears (2) together
with the link rod (1) and lock the screws (3) in two phases:
pre-tightening

30 Nm.

closing to angle

°.

104311

60567

104281

Figure 40

Figure 41

Key on the gasket (1), mount the keying device 99346251 (2)
and, screwing down the nut (3), drive in the gasket.

Mount the gear housing within 10 min. of applying
the sealant.

104282

2 screws M12 x 1.75 x 193

63 Nm

0.5
0.2

NOTE

SECTION 3 - INDUSTRIAL APPLICATION

F3B CURSOR ENGINES

Base - May 2007

Apply LOCTITE 5970 IVECO n˚ 2992644 silicone on the gear
housing, using appropriate tools (1), as shown in the figure.
The sealer string (1) diameter is to be 1,5

Using a torque wrench, tighten the highlighted screws with the
following sequence and tightening torques:

4 screws M12 x 1.75 x 35

63 Nm

10 screws M12 x 1.75 x 100

63 Nm

1 screw M12 x 1.75 x 120

63 Nm

2 screws M12 x 1.75 x 70

63 Nm

Figure 42

104785

104786

Figure 43

Figure 44

Key on the gasket (1), mount the keying device 99346251 (2)
and, screwing down the nut (3), drive in the gasket.

Mount the gear housing within 10 min. of applying
the sealant.

104787

2 screws M12 x 1.75 x 193

63 Nm

0.5
0.2

Only for types: F3BE0684J*E902 - F3BE9687A*E001 -
F3BE9687B*E001 - F3BE9687C*E001

NOTE

SECTION 3 - INDUSTRIAL APPLICATION

F3B CURSOR ENGINES
