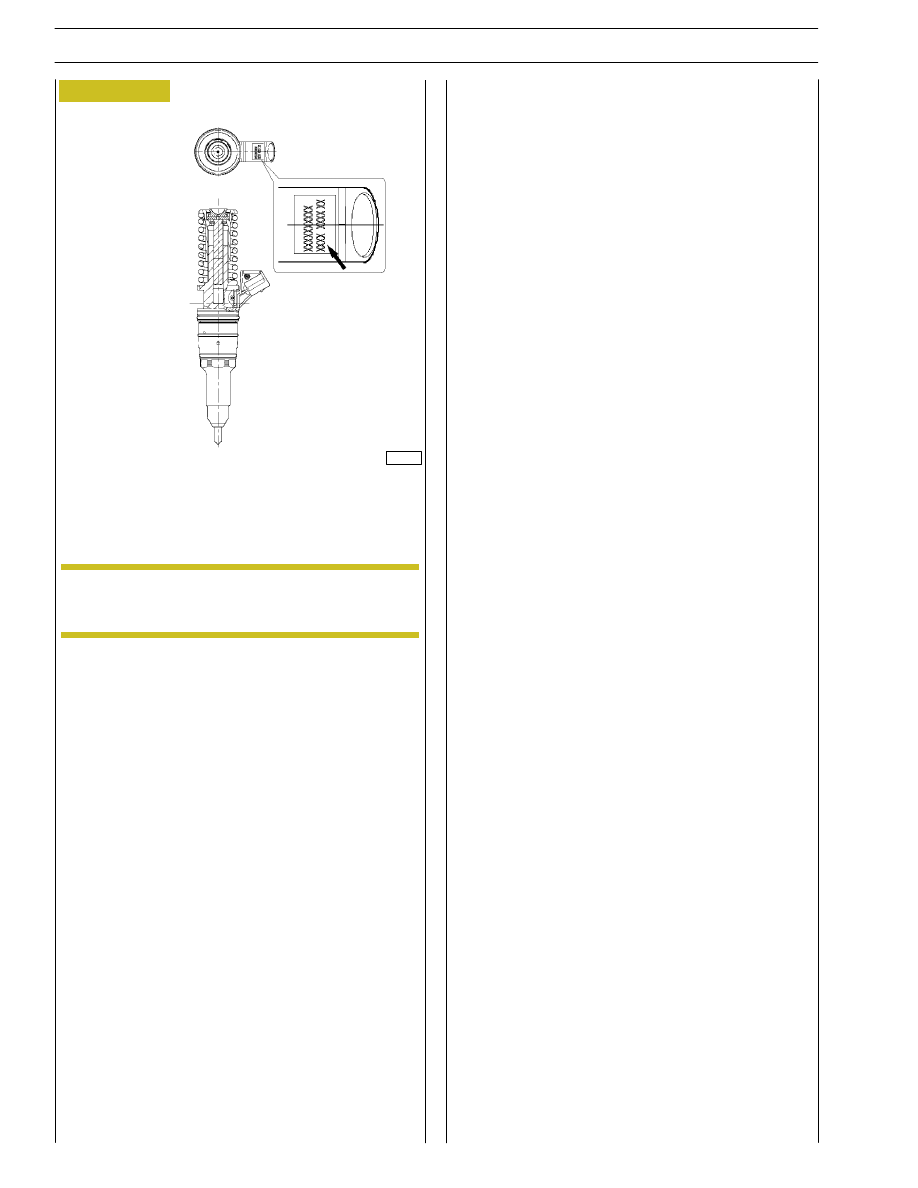

Figure 6

For each injector replaced, hook up to the diagnostic station
and, when asked by the program, enter the code punched on
the injector (

→) to reprogram the control unit.

When checking the clearance of the rocker arms,
it is important to check the injector-pump pre-load.

NOTE

SECTION 2 - FUEL

F3B CURSOR ENGINES

Base - May 2007

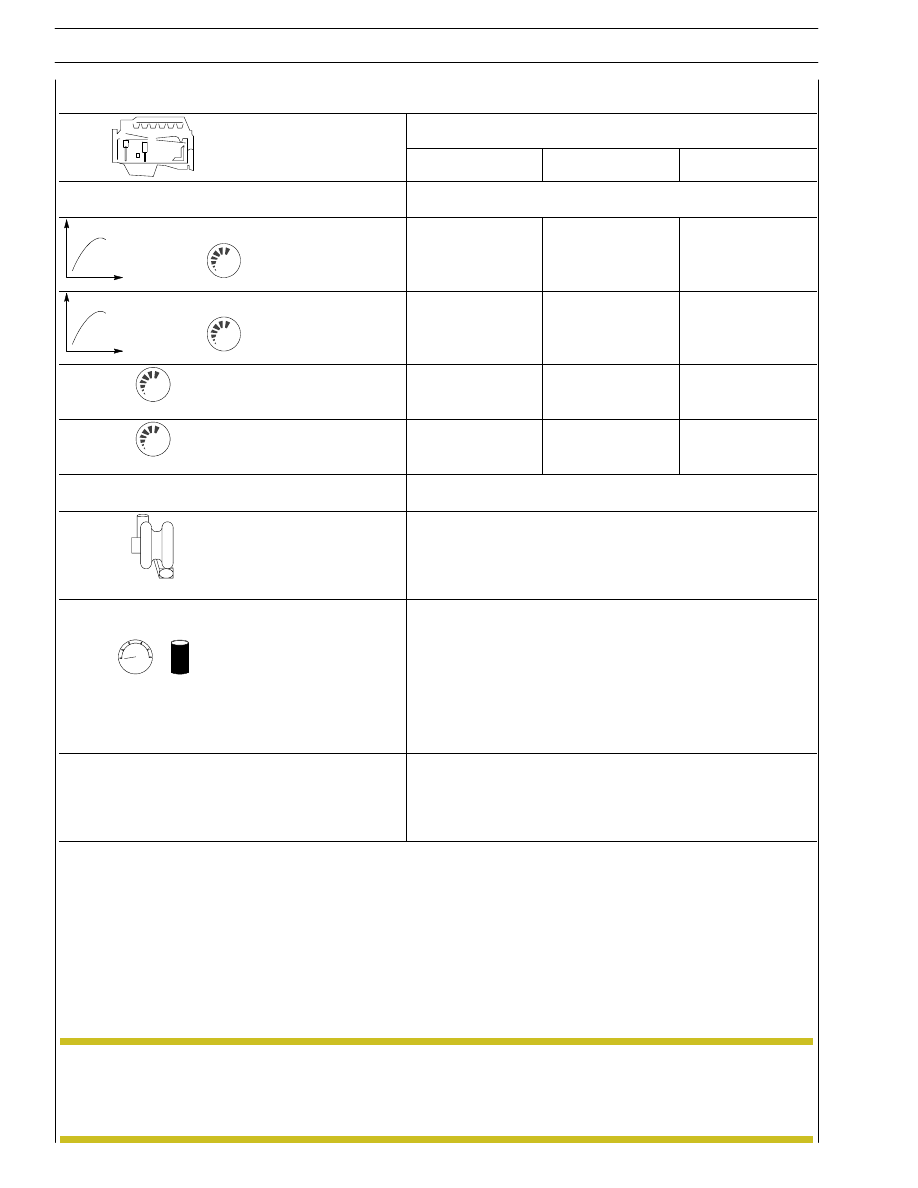

Data, features and performances are valid only if the setter fully complies with all the installation prescriptions provided
by FPT.

Furthermore, the users assembled by the setter shall always be in conformance to couple, power and number of turns
based on which the engine has been designed.

NOTE

SECTION 3 - INDUSTRIAL APPLICATION

F3B CURSOR ENGINES

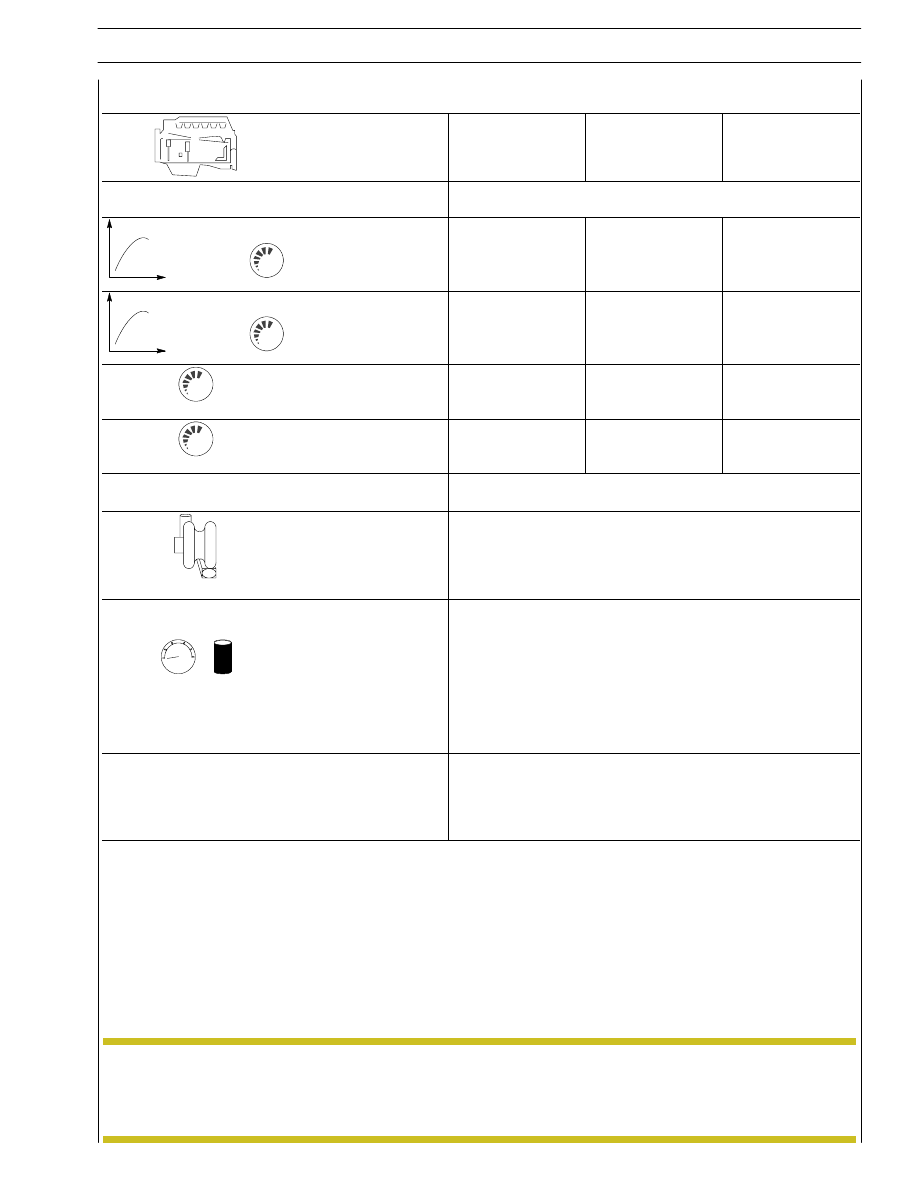

CLEARANCE DATA

Type

F3BE0684H*E901

F3BE0684G*E901

F3BE0684J*E902

Compression ratio

16.5

± 0.8

Max. output

(HP)

rpm

324

(441)

2000

286

(389)

2000

343

(467)

2100

Max. torque

(kgm)

rpm

2164

(216)

1400

1914

(191)

1400

2144

(214)

1500

Loadless
engine
idling

rpm

875

600

Loadless
engine
peak

rpm

2350

2110

Bore x stroke

Displacement

135 x 150

12880

SUPERCHARGING

Turbocharger type

Intercooler

Direct injection

HOLSET HX55

bar

LUBRICATION

Oil pressure
(warm engine)

- idling

bar

- peak rpm

bar

Forced by gear pump, relief valve single action

oil filter

-
-

COOLING
Water pump control
Thermostat
- start of opening

ºC

Liquid

Through belt

Data, features and performances are valid only if the setter fully complies with all the installation prescriptions provided
by FPT.

Furthermore, the users assembled by the setter shall always be in conformance to couple, power and number of turns
based on which the engine has been designed.

NOTE

SECTION 3 - INDUSTRIAL APPLICATION

F3B CURSOR ENGINES

Base - May 2007

Type

F3BE9687

Type

A*E001

B*E001

C*E001

Compression ratio

16.5

± 0.8

Max. output

(HP)

rpm

325

(442)

2100

350

(476)

2100

375

(510)

2100

Max. torque

(kgm)

rpm

2140

(218)

1400

2140

(218)

1400

2140

(218)

1400

Loadless
engine
idling

rpm

800

Loadless
engine
peak

rpm

2300

Bore x stroke

Displacement

135 x 150

12880

SUPERCHARGING

Turbocharger type

DIRECT INJECTION INTERCOOLER

HOLSET HX 55

bar

LUBRICATION

Oil pressure
(warm engine)

- idling

bar

- peak rpm

bar

Forced by means of gear pump, pressure relief valve, oil filter

-
-

COOLING
Water pump control
Thermostat
- start of opening

ºC

Liquid

By means of belt

Cover all electrical components before washing with
high-pressure water jets.
Before securing the engine to the rotary stand, remove:
-

the electrical cable of the engine by unplugging it from the
control unit and from all sensors/transmitters to which it
is connected.

Only for the types: F3BE0684H*E901 and F3BE0684G*E901

Handle all parts with great care. Never put your
hands or fingers between one part and another.
Wear suitable personal protective equipment such
as a visor, gloves and safety shoes.

Figure 1

Figure 2

Figure 3

104780

104781

104782

Figure 4

Remove the oil pressure regulating valve (1).

ASSEMBLING AND DISASSEMBLING THE
ENGINE

Using an appropriate tool, regulate the belt tightener (2) to
release the pressure and remove the belt (1) for controlling
various parts.

Loosen the locking screws and remove the compressor (1)
complete with its support (2) from the engine.

Loosen the locking screws and remove the alternator (3).

Loosen the locking screws and remove the alternator support
(4) from the engine.

Remove:

the fixed belt tightening roller (1);

the support (2);

the automatic belt tightener (3);

the damping flywheel (4) and the pulley beneath it;

all the coolant pipes (5);

the water pump (6);

the fixed belt tightening roller (7);

the thermostat assembly (8).

For all types

104246/A
