Index Iveco Engines Iveco C10,C13, Cursor 10, Cursor 13 (CURSOR TIER 3 SERIES) - service repair manual 2007 year
|
|

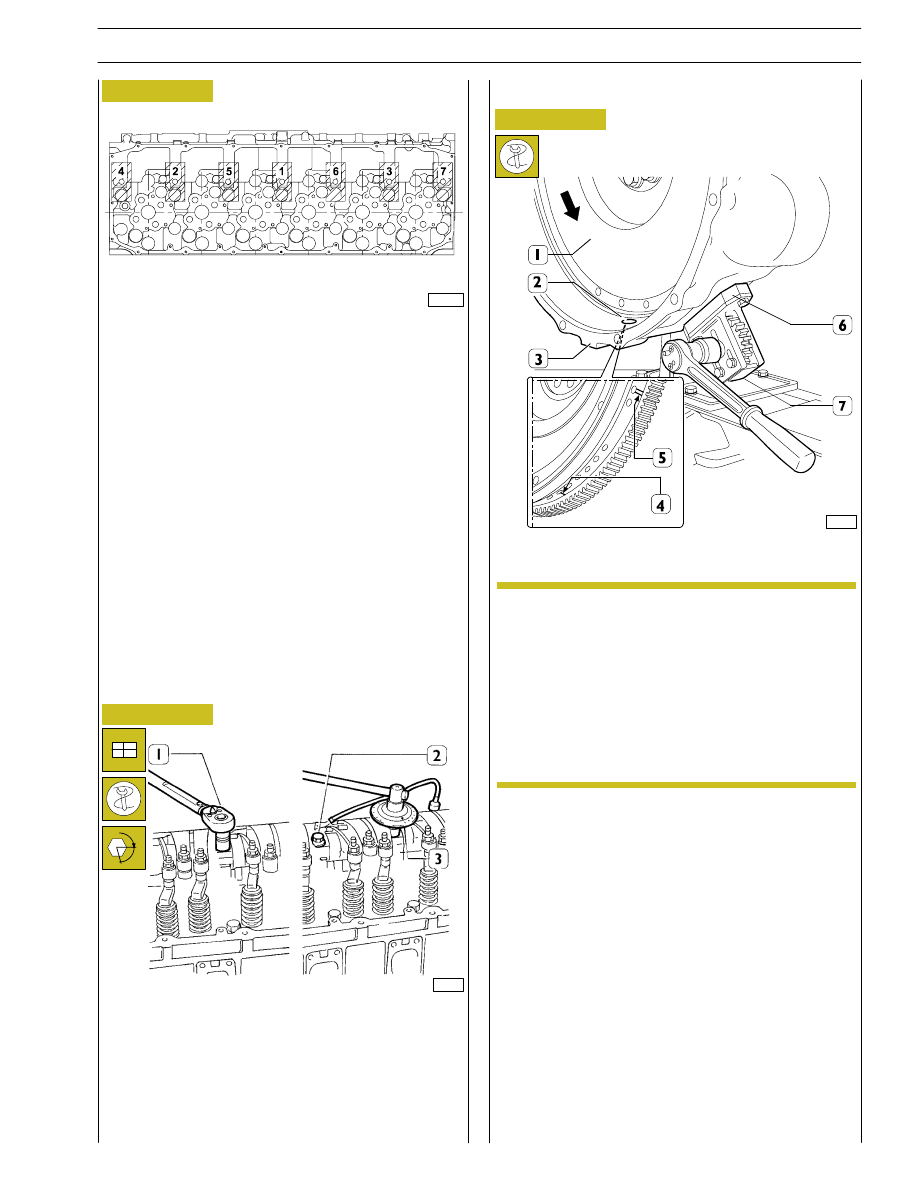

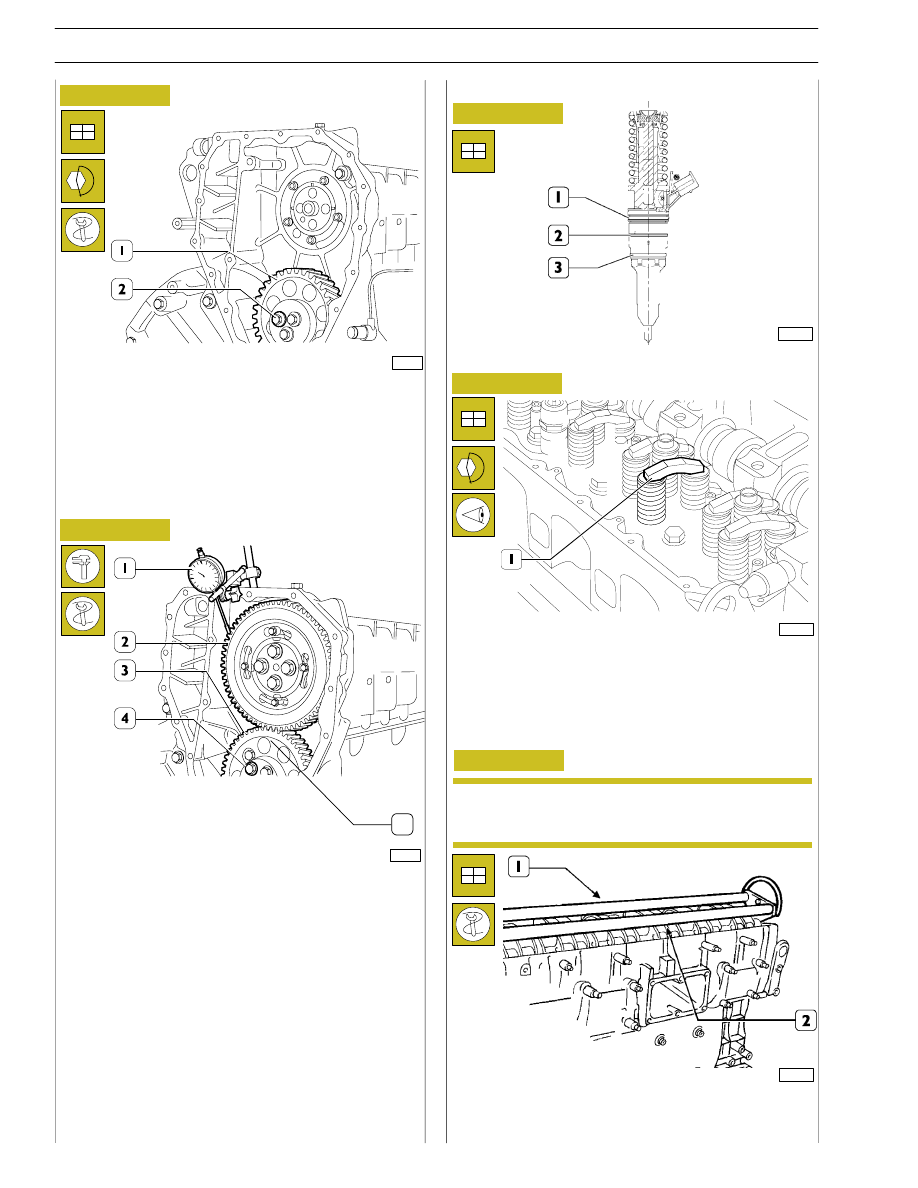

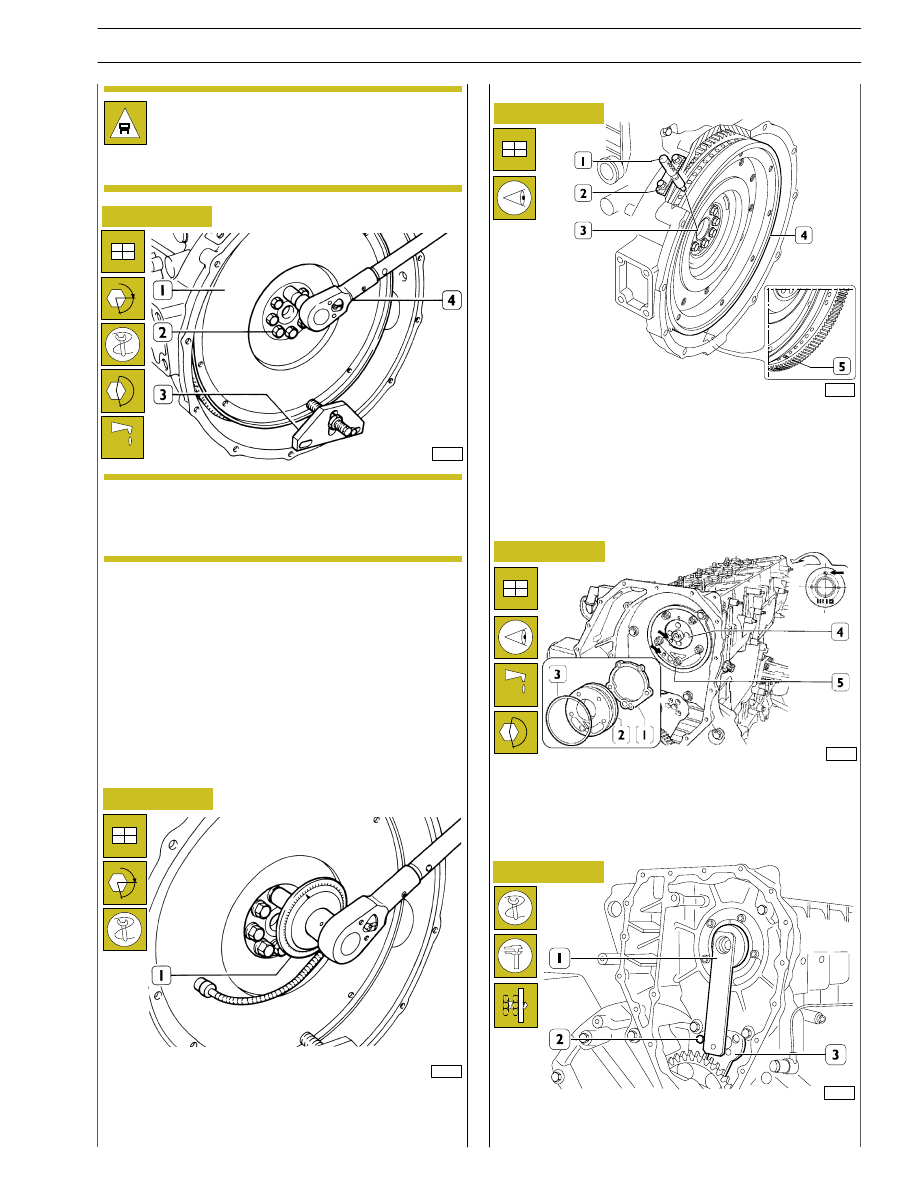

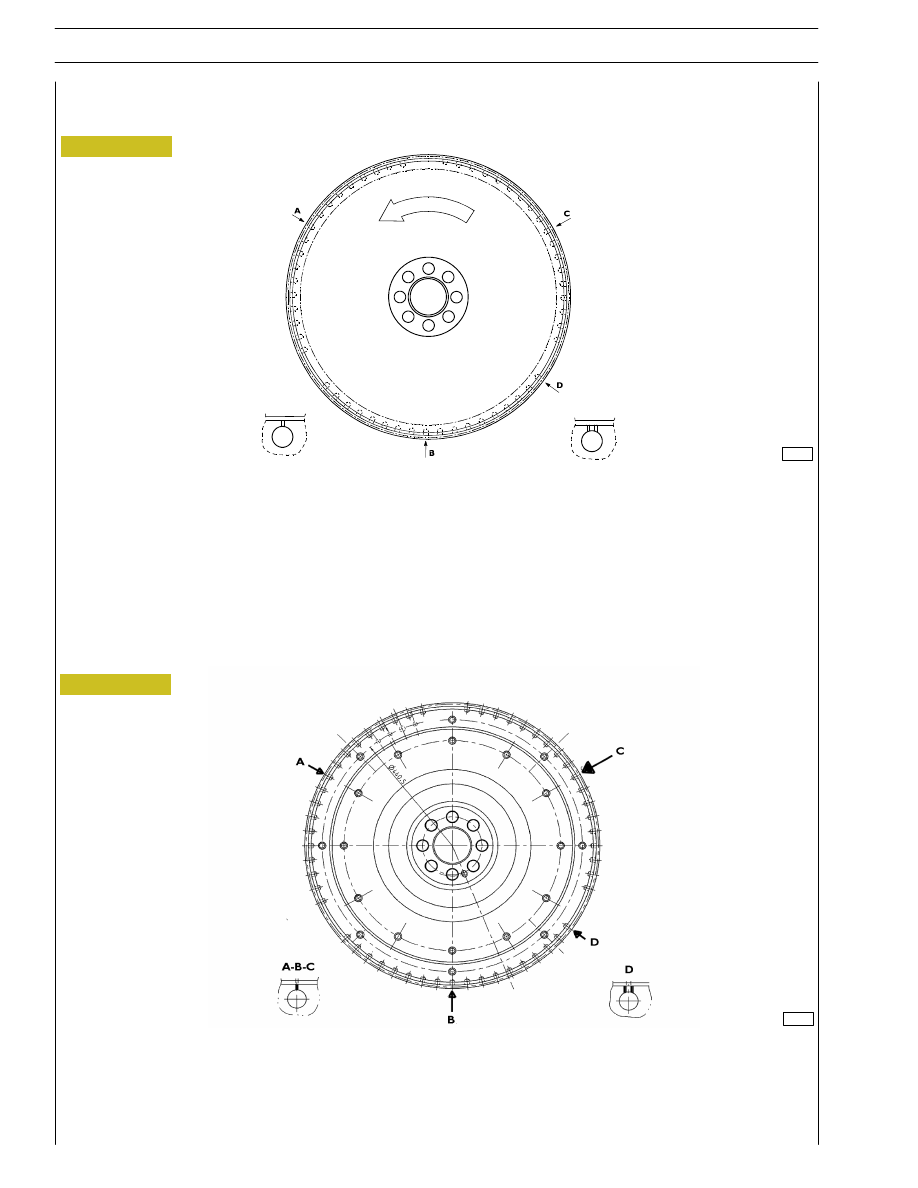

104764 60668 Figure 46 DETAIL OF PUNCH MARKS ON ENGINE FLYWHEEL FOR PISTON POSITIONS C = Hole on flywheel with one reference mark, corresponding to the TDC of pistons 2-5. D = Hole on flywheel with two reference marks, position corresponding to 54 °. A = Hole on flywheel with one reference mark, corresponding to the TDC of pistons 3-4. B = Hole on flywheel with one reference mark, corresponding to the TDC of pistons 1-6. VIEW OF HOLES: A — B — C VIEW OF HOLE: D Figure 47 ENGINE FLYWHEEL Fitting engines flywheel (Only for type: F3AE0684N*E907 - F3AE9687A*E001 - F3AE9687B*E001 - DETAIL OF PUNCH MARKS ON ENGINE FLYWHEEL FOR PISTON POSITIONS C = Hole on flywheel with one reference mark, corresponding to the TDC of pistons 2-5. D = Hole on flywheel with two reference marks, position corresponding to 54 °. A = Hole on flywheel with one reference mark, corresponding to the TDC of pistons 3-4. B = Hole on flywheel with one reference mark, corresponding to the TDC of pistons 1-6. 16 SECTION 3 - INDUSTRIAL APPLICATION CURSOR ENGINES F3A Base - May 2007 |
