Engines Iveco C10,C13, Cursor 10, Cursor 13. Manual

Figure 5

Figure 6

For all types excluding F3AE0684P*E904
-

Using a suitable tool (3), work in the direction of the arrow
on the tightener (2) and remove the belt (1).

104249

Remove:

alternator (2).

supports (1 and 3).

104249/A

Figure 7

104251

Remove:

thermostat assembly (8);

pipes complete with coolant (6);

pulley (4);

water pump (7);

automatic tightener support (1);

fixed tightener (5);

damper flywheel (3) and pulley beneath;

automatic tightener (2);

Figure 8

with the extractor 99340053 (2) applied as shown in the
figure, extract the seal (4). Undo the screws (3) and take off
the cover (1). Disconnect all the electrical connections and
sensors.

99361

Figure 9

Only for type F3AE0684P*E904
-

Using a suitable tool, operate on the belt take-up units (1)
and (3) in order to remove the belts (2) and (4).

Remove the compressor (5) and the fan hub (6) with
related supports.

104250

SECTION 3 - INDUSTRIAL APPLICATION

CURSOR ENGINES F3A

Base - May 2007

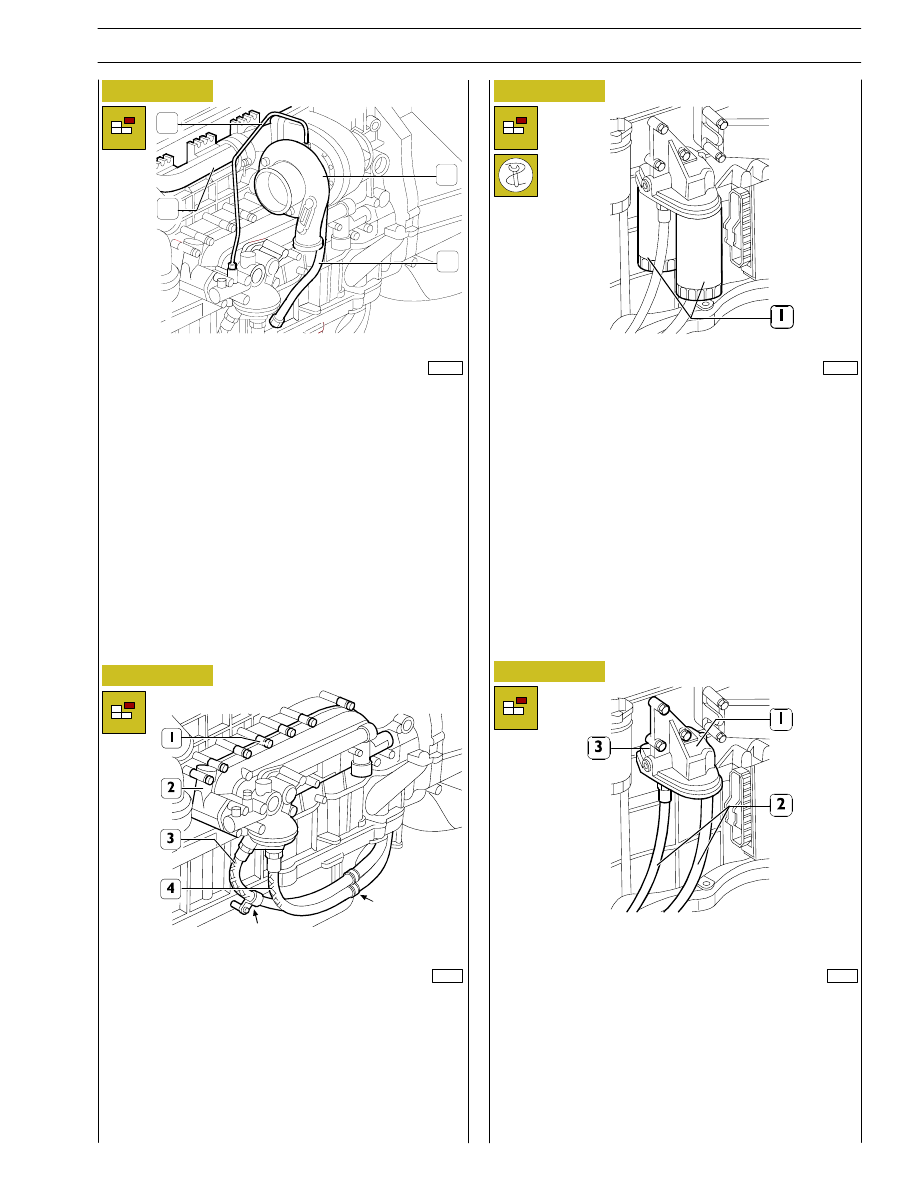

On the engine exhaust side, remove the following parts:

oil delivery pipe (1);

oil return pipe (4);

turbocharger (3);

exhaust manifold (2).

Only for type F3AE0684P*E904

disconnect the oil pipes (3) and (4) and disengage them
from the clamps (

←);

take out the fixing screws (1) and remove the cooler (2);

Disconnect the pipes (2) from the support (1) disengaging
them from the clamps and remove them.

Take out the screws (3) and remove the supports (1).

Figure 10

Figure 11

Figure 12

using tool 99360314 unscrew the oil filters (1).

104252

99258

101960

Figure 13

99362

SECTION 3 - INDUSTRIAL APPLICATION

CURSOR ENGINES F3A

Base - May 2007

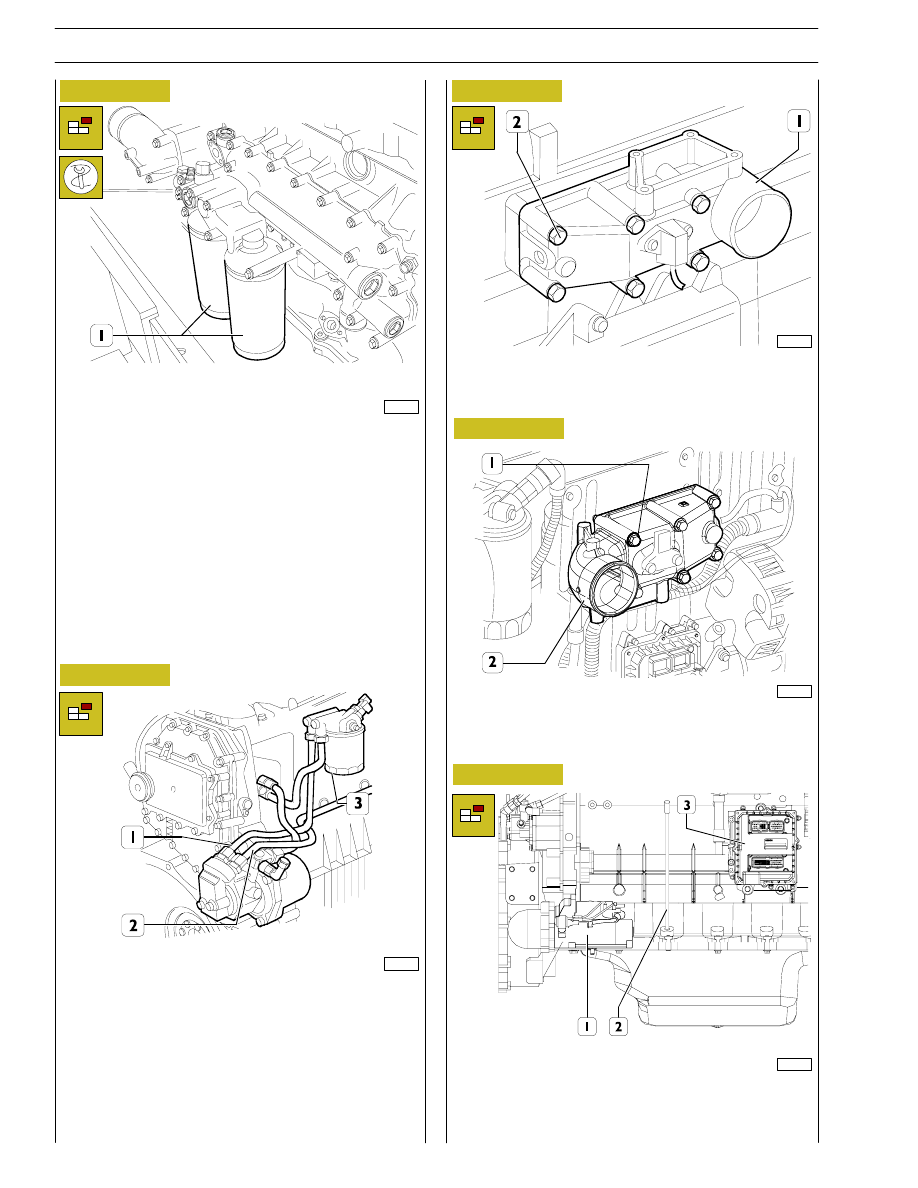

For all types excluding F3AE0684P*E904 only, using tool
99360314 (2), unscrew the oil filters (1).

Disconnect the fuel pipes (1) from the fuel pump (2).

Remove:

the fuel pump (2);

the fuel filter unit (3) and pipes (1).

For all types except F3AE0684N*E907.

Take out the screws (2) and remove the intake manifold (1).

Remove:

the starter motor (1);

the control unit (2) and its support;

the oil dipstick (3) from the crankcase.

Figure 14

Figure 15

Figure 16

Figure 17

104306

104253

104254

104255

Figure 18

104763

Only for type F3AE0684N*E907

Loosen the screws (1) and remove the intake manifold (2).

SECTION 3 - INDUSTRIAL APPLICATION

CURSOR ENGINES F3A

Base - May 2007

104256

85480

60496

60497

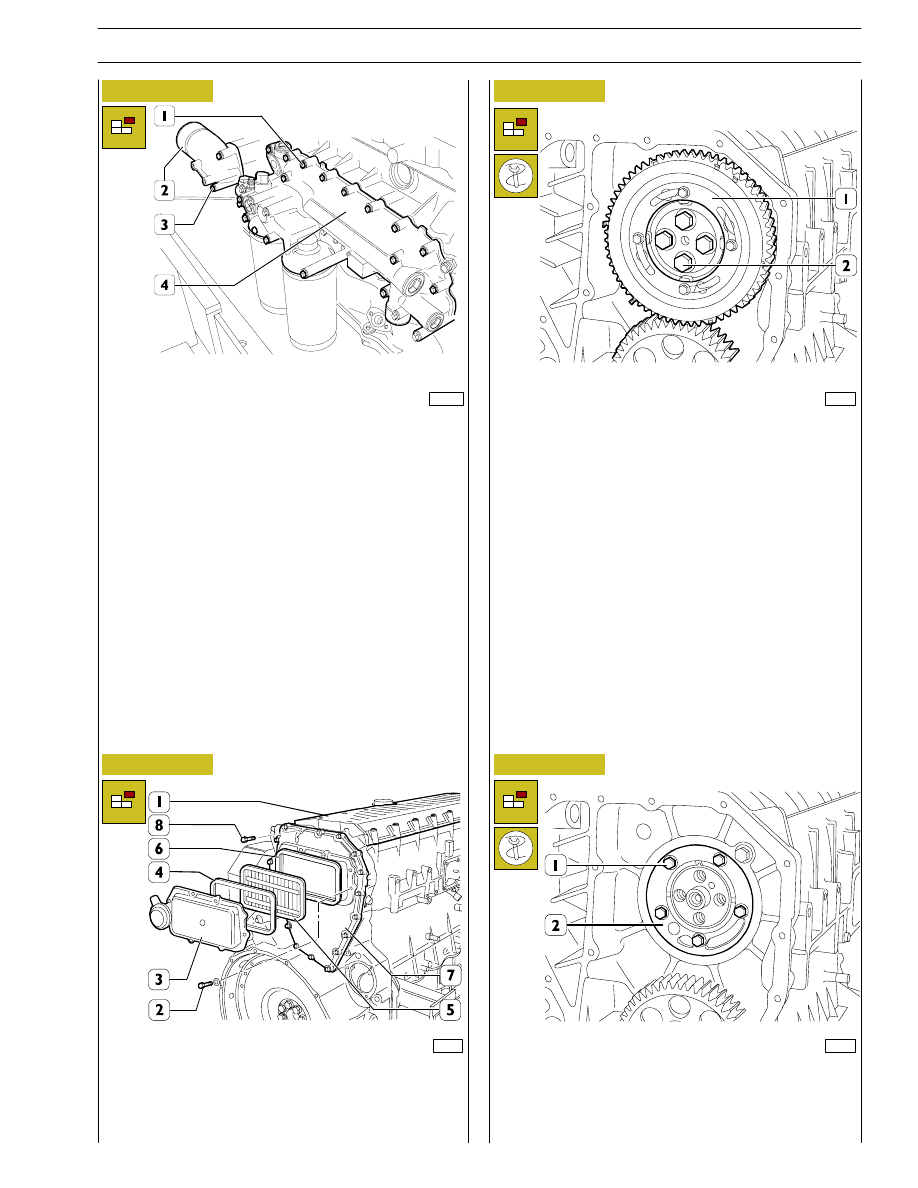

Unscrew the screws (1) and remove the heat exchanger (4);

unscrew the screws (2) and remove the water line (3).

Unscrew the screws (2) and remove the gear (1) fitted
with phonic wheel.

Unscrew the screws (1); tighten one screw in a reaction
hole and remove the shoulder plate (2), remove the sheet
gasket.

Figure 19

Figure 20

Figure 21

Remove the rocker arm cover (1), take off the screws (2) and
remove: the cover (3), the filter (5) and the gaskets (4 and 6).
Take off the screws (8) and remove the blow-by case (7).

Figure 22

SECTION 3 - INDUSTRIAL APPLICATION

CURSOR ENGINES F3A

Base - May 2007

Content .. 9 10 11 12 ..

Engines Iveco C10,C13, Cursor 10, Cursor 13. Manual - part 11
