BRAKES  5-63

  INSPECTION AND REPAIR

Make necessary adjustments, repairs, and parts replacements if wear, damage or other problems are discovered
during inspection.

Refer to "SERVICING" in this section for

adjustment procedure of parking brake.

Adjustment Procedure of Parking Brake

•

Parking brake

5-64  BRAKES

PARKING BRAKE (FLOOR MOUNT TYPE)



  REMOVAL AND INSTALLATION

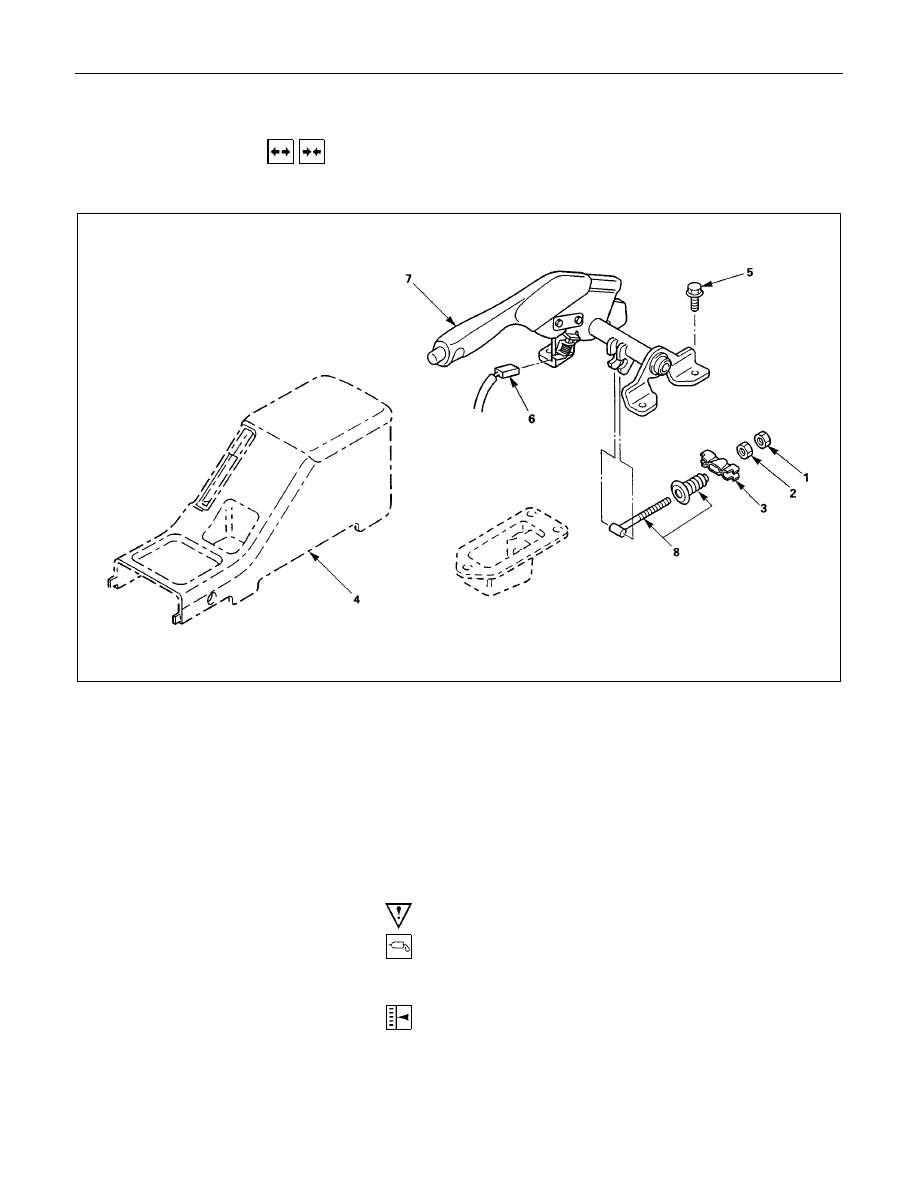

PARKING BRAKE LEVER AND FRONT CABLE ASSEMBLY

Removal Steps

1. Lock nut
2. Adjust nut
3. Equalizer
4. Center console
5. Bolt
6. Switch connector
7. Parking brake lever
8. Parking brake front cable

Installation Steps

▲

8. Parking brake front cable
7. Parking brake lever
6. Switch connector

▲

5. Bolt
4. Center console
3. Equalizer
2. Adjust nut
1. Lock nut

Important Operation - Installation

8. Parking Brake Front Cable
Apply grease (BESCO L-2 or equivalent) to the front cable
before installation.

•

After installation, be sure to adjust the parking brake.

Refer to "SERVICING" of this section.

BRAKES  5-65

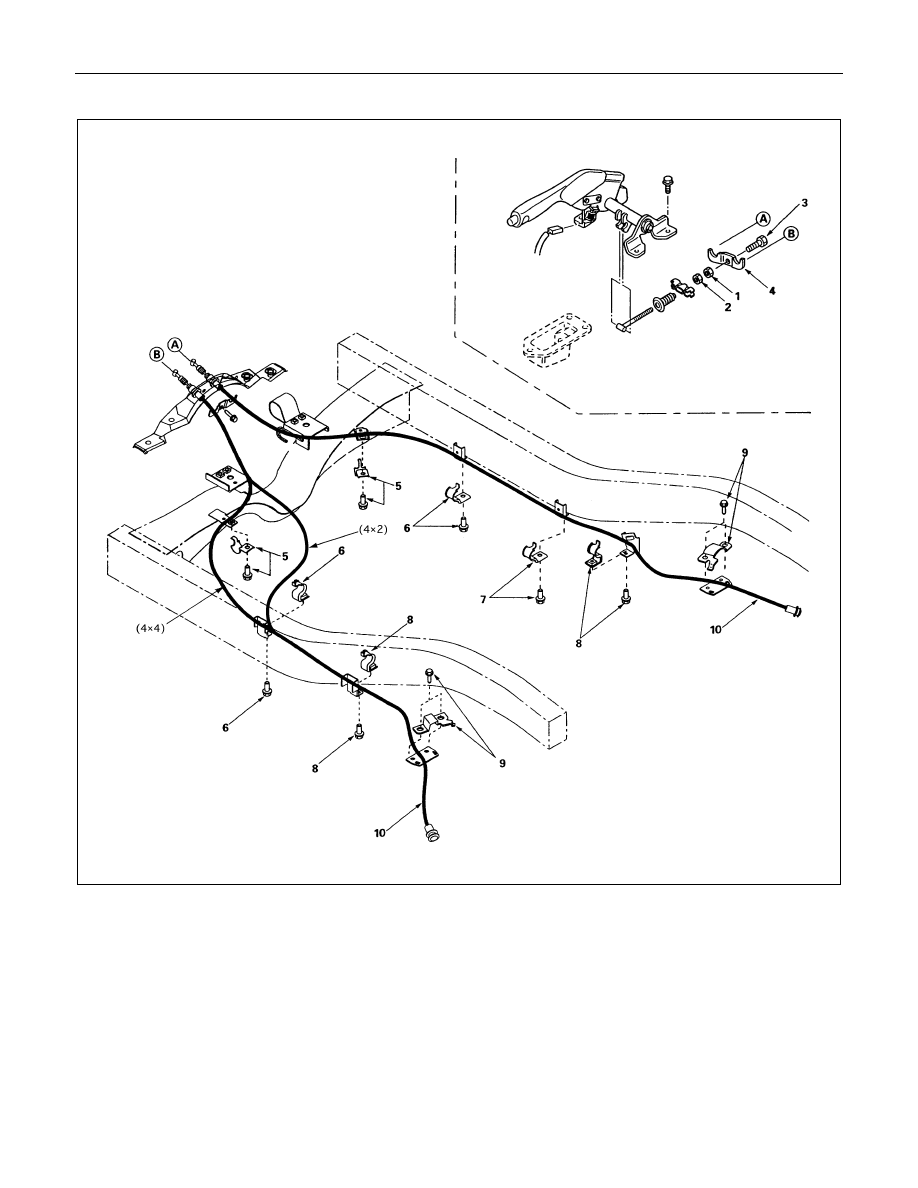

REAR CABLE ASSEMBLY

Removal Steps

▲

1. Lock nut

▲

2. Adjusting nut

▲

3. Bolt

▲

4. Retainer
5. Clip and bolt ; crossmember
6. Clip and bolt ; side member
7. Clip and bolt ; side member
8. Clip and bolt ; spring eye
9. Clip and bolt ; leaf spring

10. Hand brake rear cable

Installation Steps

▲

10. Hand brake rear cable

▲

9. Clip and bolt ; leaf spring

▲

8. Clip and bolt ; spring eye

▲

7. Clip and bolt ; side member

▲

6. Clip and bolt ; side member

▲

5. Clip and bolt ; crossmember

▲

4. Retainer

▲

3. Bolt

▲

2. Adjusting nut

▲

1. Lock nut

5-66  BRAKES

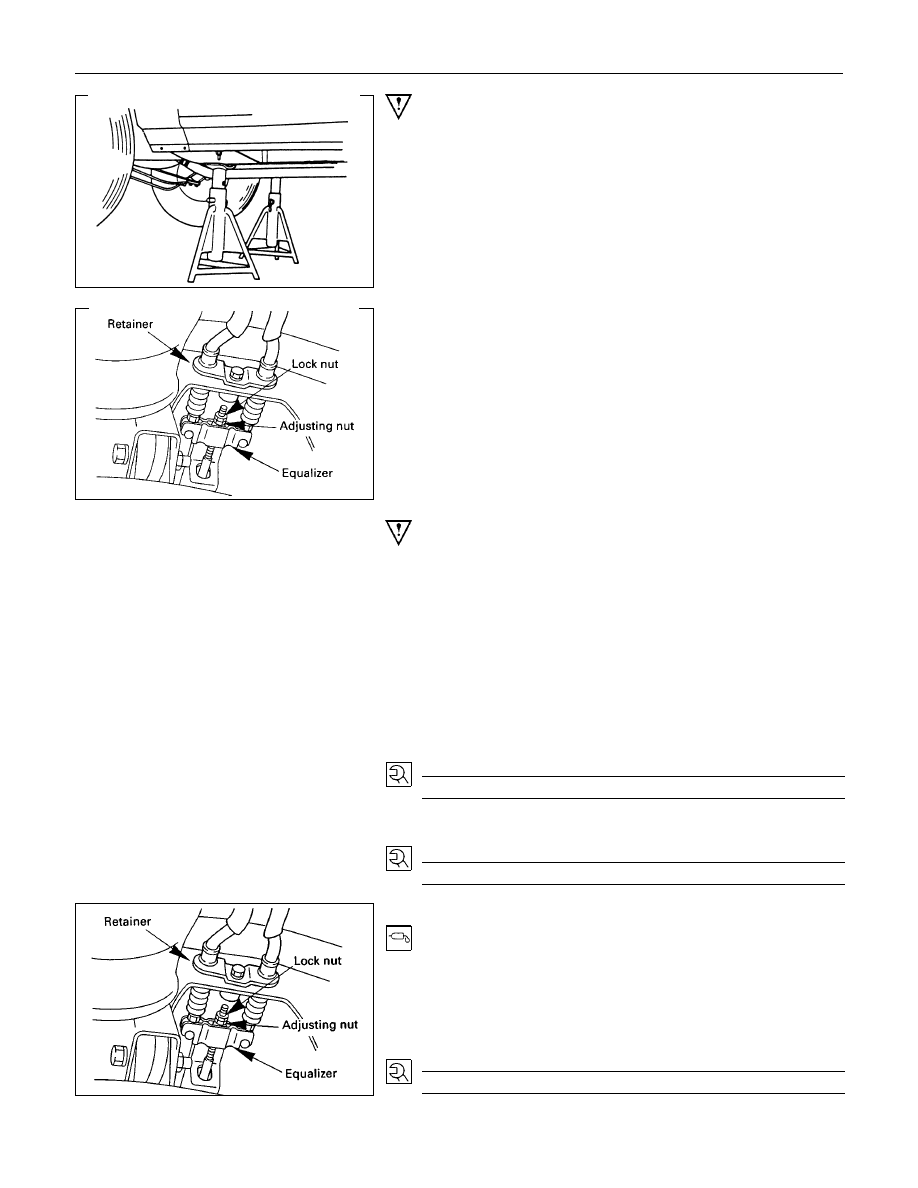

Important Operations - Removal

Preparation

•

Raise vehicle to the working level.

Support the axle assembly with the proper jack and chassis

stands.

•

Remove the tire and wheel.

•

Remove the brake drum.

1. Lock Nut

2. Adjusting Nut

3. Bolt

4. Retainer

•

Loosen lock nut and adjusting nut, then disconnect rear

cable from the equalizer.

•

Remove bolt and retainer.

Important Operations - Installation

10.Hand Brake Rear Cable

•

Apply grease (BESCO L-2 or equivalent) to the

circumference of the pin and joint.

•

Apply grease (BESCO L-2 or equivalent) to the equalizer

joint portion.

9. Clip and Bolt; Leaf Spring

8. Clip and Bolt; Spring Eye

7. Clip and Bolt; Side Member

6. Clip and Bolt; Side Member

5. Clip and Bolt; Crossmember

Torque

N

⋅

m (kgf

⋅

m/lb

⋅

ft)

6 (0.6 / 4.3)

4. Retainer

3. Bolt

Torque

N

⋅

m(kgf

⋅

m/lb

⋅

ft)

16 (0.6 / 4.3)

2. Adjusting Nut

1. Lock Nut

•

Apply grease (BESCO L-2 or equivalent) to the front cable

contact portion.

•

Connect rear cable to the equalizer, then adjust the parking

brake. Refer to "SERVICING".

•

Tighten lock nut to the specified torque.

Torque

N

⋅

m(kgf

⋅

m/lb

⋅

ft)

16 (0.6 / 4.3)
