BRAKES  5-55

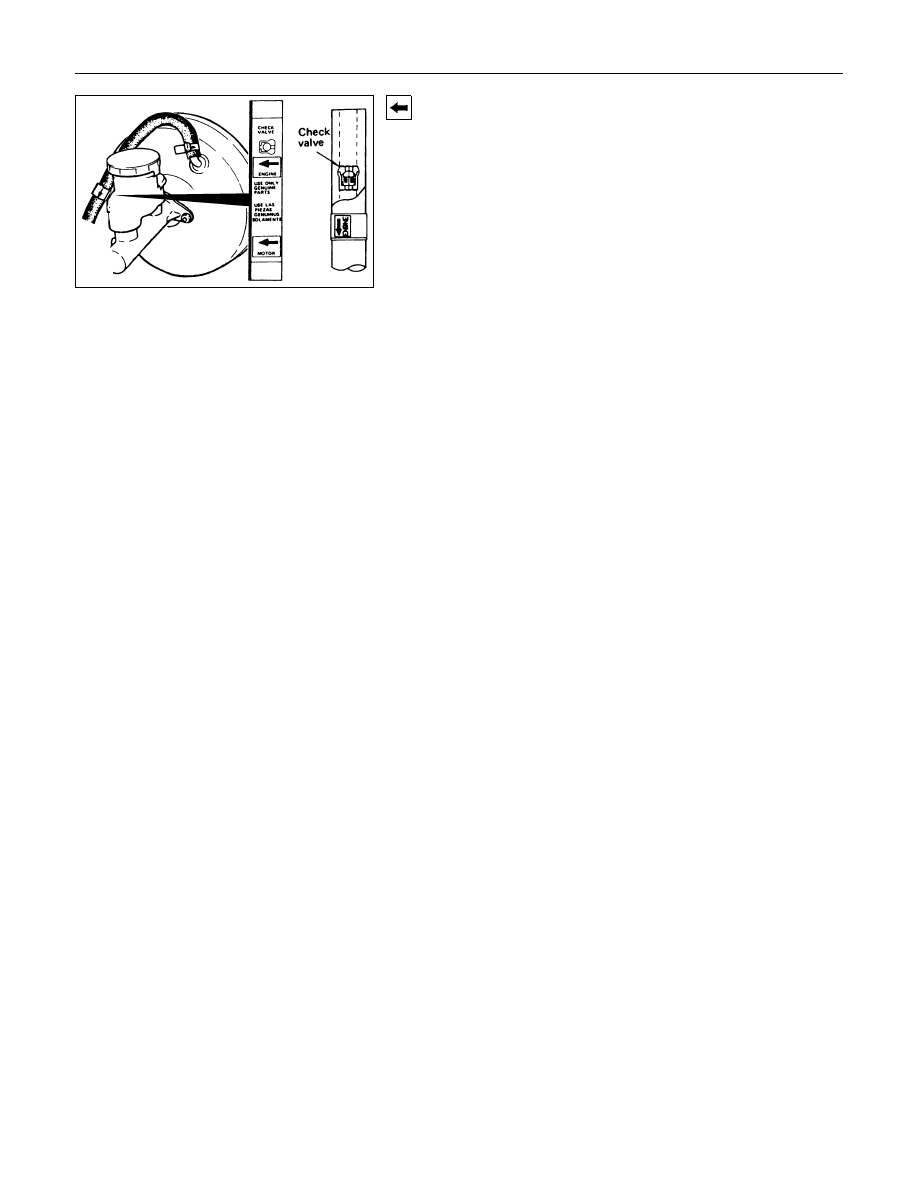

2. Vacuum Hose

1) When removing or replacing the vacuum hose make sure

that the arrow on the label of the hose is facing the engine.

2) Also confirm that the check valve is facing the engine.

5-56  BRAKES

PARKING BRAKE (STEM TYPE)



  REMOVAL AND INSTALLATION

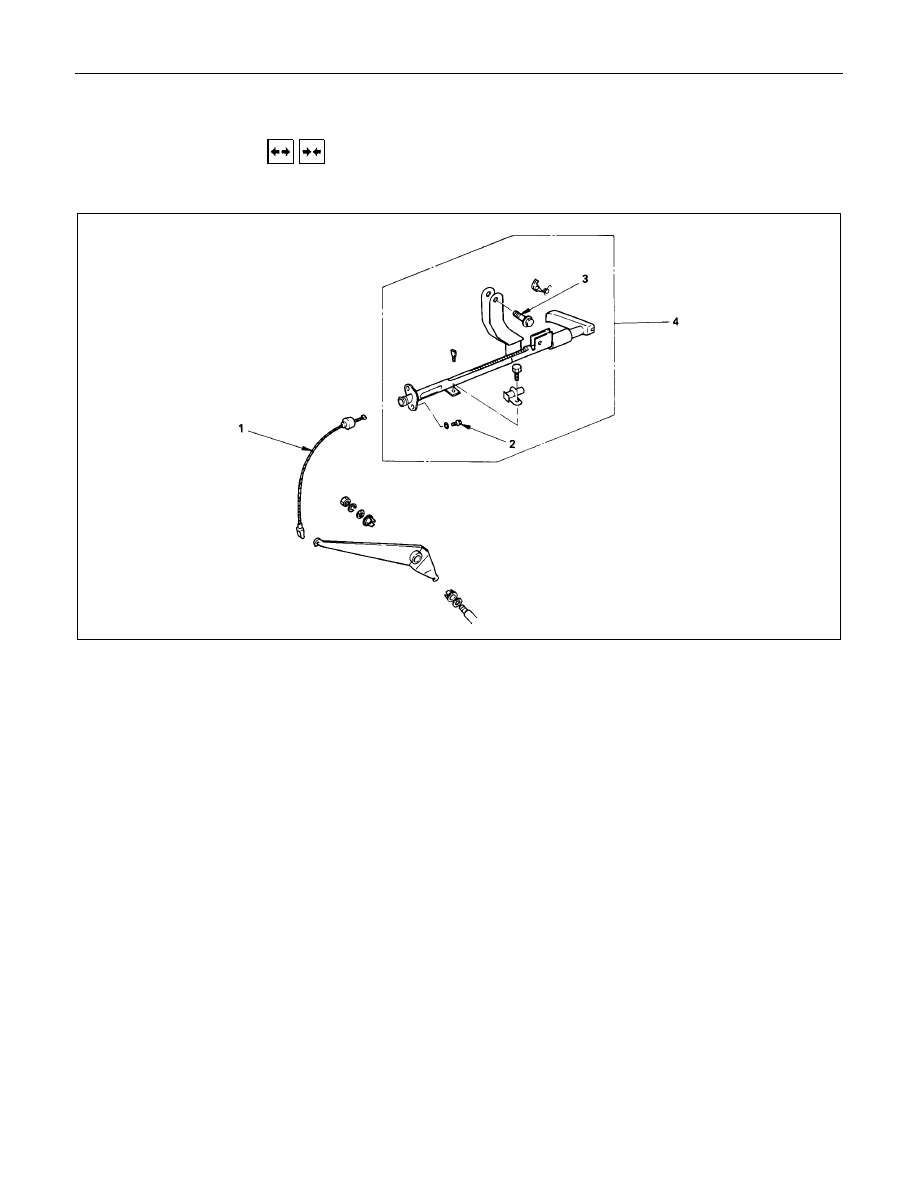

PARKING BRAKE STEM ASSEMBLY (LEFT HAND DRIVE MODEL)

Removal Steps

1. Cable front, relay lever side
2. Bolt ; bracket to dash
3. Bolt ; bracket to cross beam
4. Parking brake stem assembly

Installation Steps

To install, follow the removal procedure in
reverse order.

BRAKES  5-57

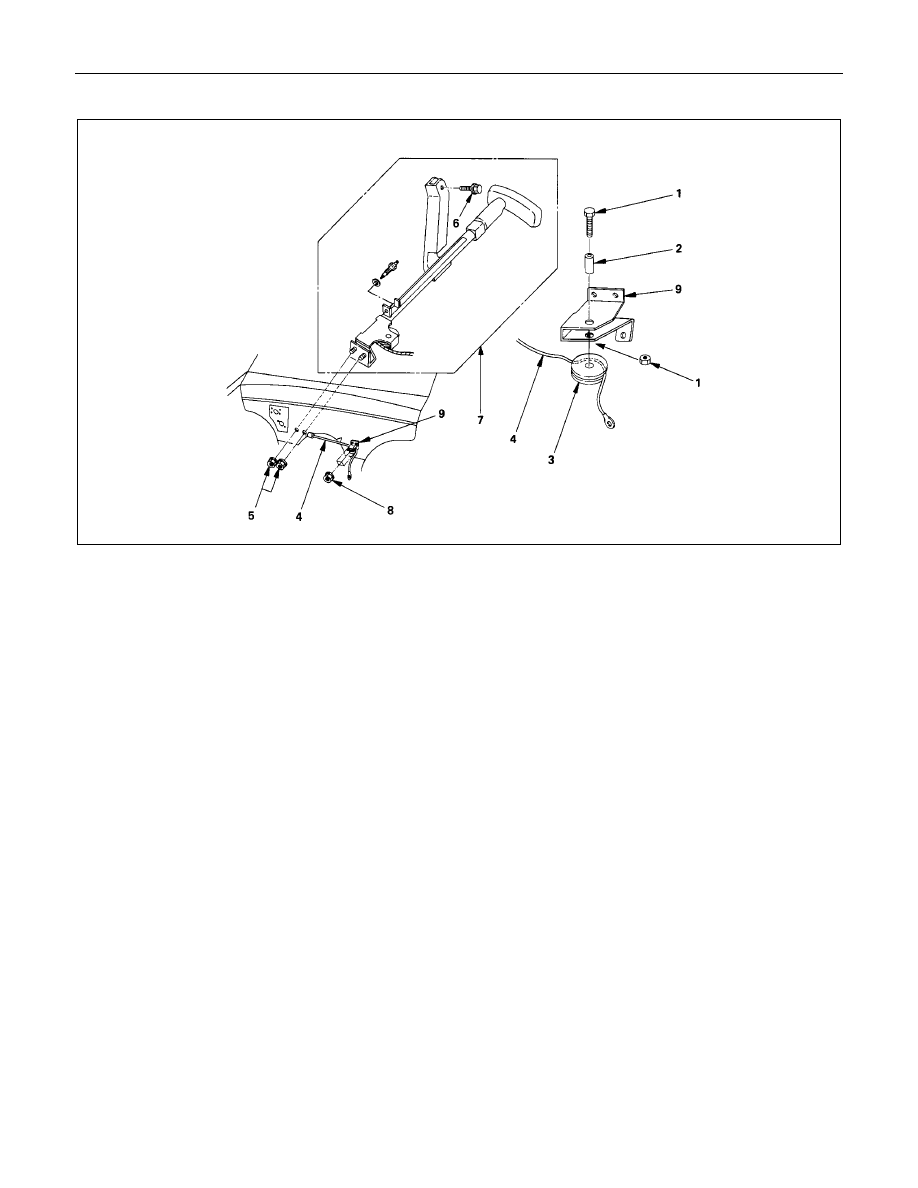

PARKING BRAKE STEM ASSEMBLY (RIGHT HAND DRIVE MODEL)

Removal Steps

1. Bolt and nut
2. Collar
3. Roller
4. Cable front, relay lever side
5. Nuts ; bracket to dash
6. Bolt ; bracket to cross beam
7. Parking brake stem assembly
8. Nuts
9. Bracket ; roller

Installation Steps

To install, follow the removal procedure in
reverse order.
Before installation, apply chassis grease to the
roller (3)'s contact  surface to the collar (2) and
cable (4).

5-58  BRAKES

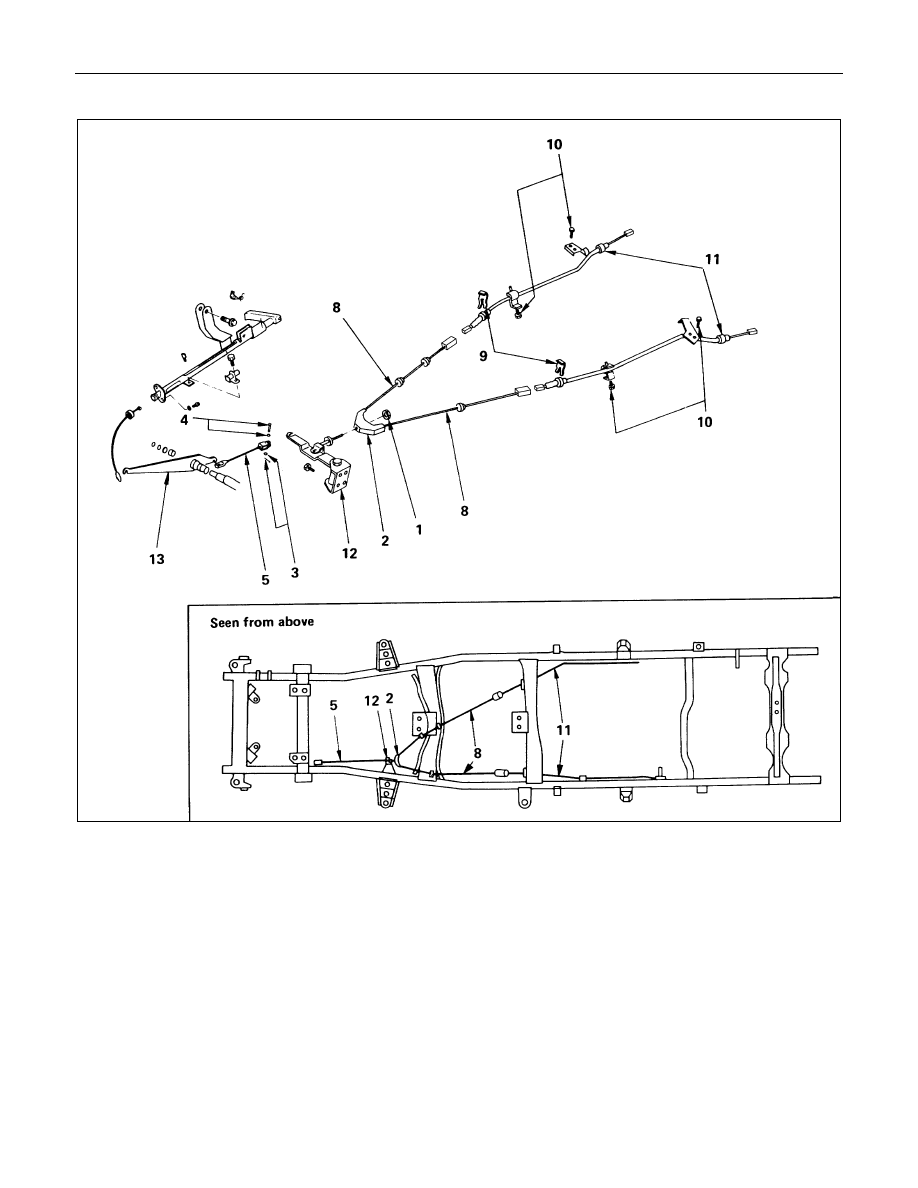

FRONT AND REAR CABLE ASSEMBLY

Removal Steps

1. Nut
2. Equalizer bracket
3. Snap pin, with plan washer
4. Pin with curved washer
5. Cable ; front lower
6. Pin with curved washer
7. Parking brake stem assembly
8. Nuts
9. Clip

10. Clip ; fixing bracket

▲

11. Cable assembly ; rear
12. 2nd relay lever assembly with return

spring

13. 1st relay lever assembly

Installation Steps

▲

13. 1st relay lever assembly

▲

12. 2nd relay lever assembly with return

spring

11. Cable assembly ; rear
10. Clip ; fixing bracket

9. Clip

▲

8. Nuts

▲

7. Parking brake stem assembly

▲

6. Pin with curved washer
5. Cable ; front lower
4. Pin with curved washer

▲

3. Snap pin, with plan washer
2. Equalizer bracket
1. Nut
