BRAKES  5-7

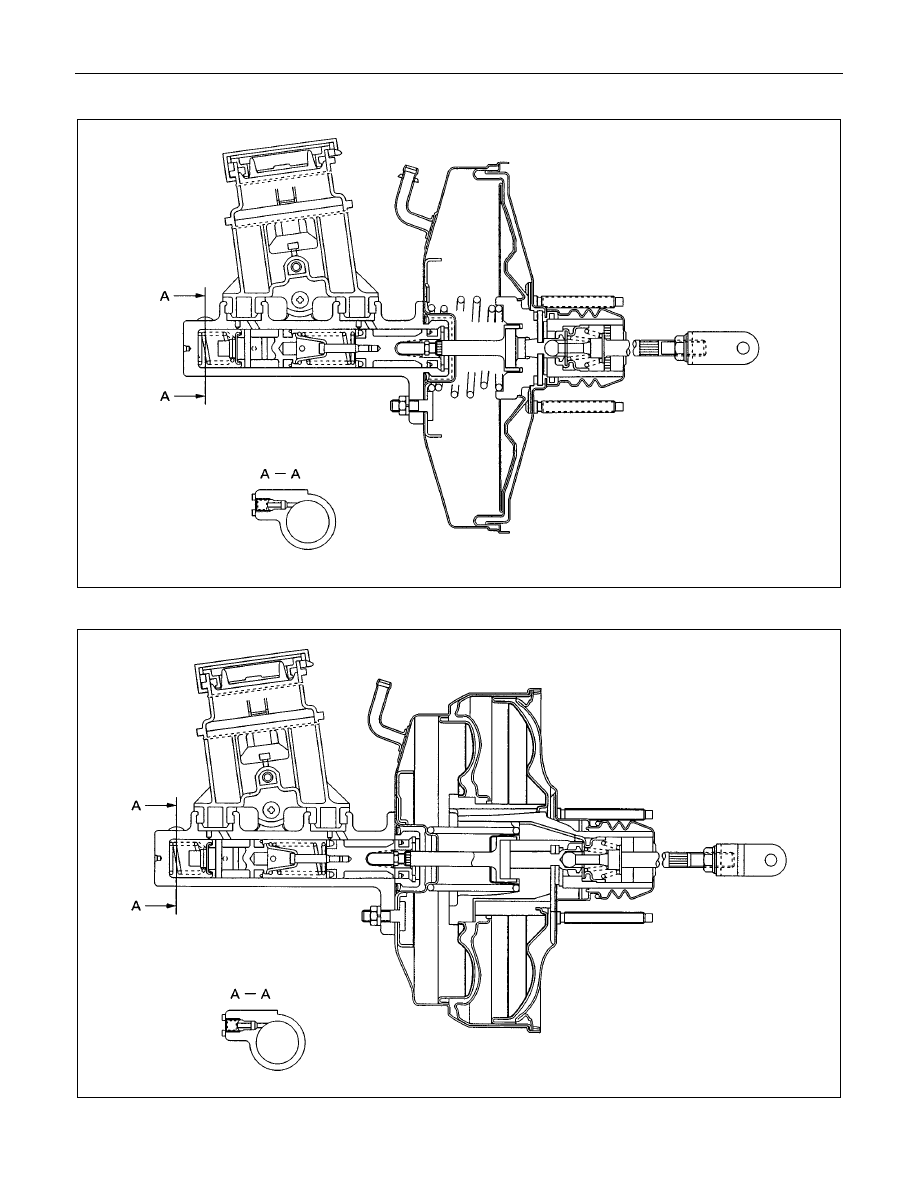

VACUUM SERVO WITH MASTER CYLINDER (Except Australia)

VACUUM SERVO WITH MASTER CYLINDER (For Australia)

5-8  BRAKES

MAIN DATA AND SPECIFICATIONS

FRONT DISC BRAKE

mm(in.)

Caliper type

Pin slide

Disc outside diameter

257 (10.118)

Disc thickness

22 (0.866)

Piston diameter

60.33 (2.375)

Adjustment method

Self-adjusting

REAR DRUM BRAKE

mm(in.)

4

×



2

4

×

 4

Type

Leading and Trailing

Drum inside diameter

254(10.008)

295 (11.614)

Brake lining dimension

221

×

 50

×

 5

283

×

 45

×

 4

(Length

×

 Width

×

 Thickness)

(8.71

×

 1.97

×

 0.20)

(11.14

×

 1.77

×

 0.16)

Adjustment method

Self-adjusting

WHEEL CYLINDER

mm(in.)

Inside diameter : rear

Europe and South Africa

25.40 (1.000)

Others

22.22 (0.875)

MASTER CYLINDER

mm(in.)

Type

Split

Bore diameter

23.81 (0.938)

Piston stroke (Primary + Secondary)

19 + 12 (0.75 + 0.47)

VACUUM SERVO

mm(in.)

Diaphragm diameter

Except Australia

230 (9.055)

For Australia

180 (7.087) + 205 (8.077)

Power cylinder stroke

32.5 (1.281)

PEDAL RATIO

4.04

BALANCE

Type

Blend proportioning valve/Load sensing proportioning

valve

BRAKES  5-9

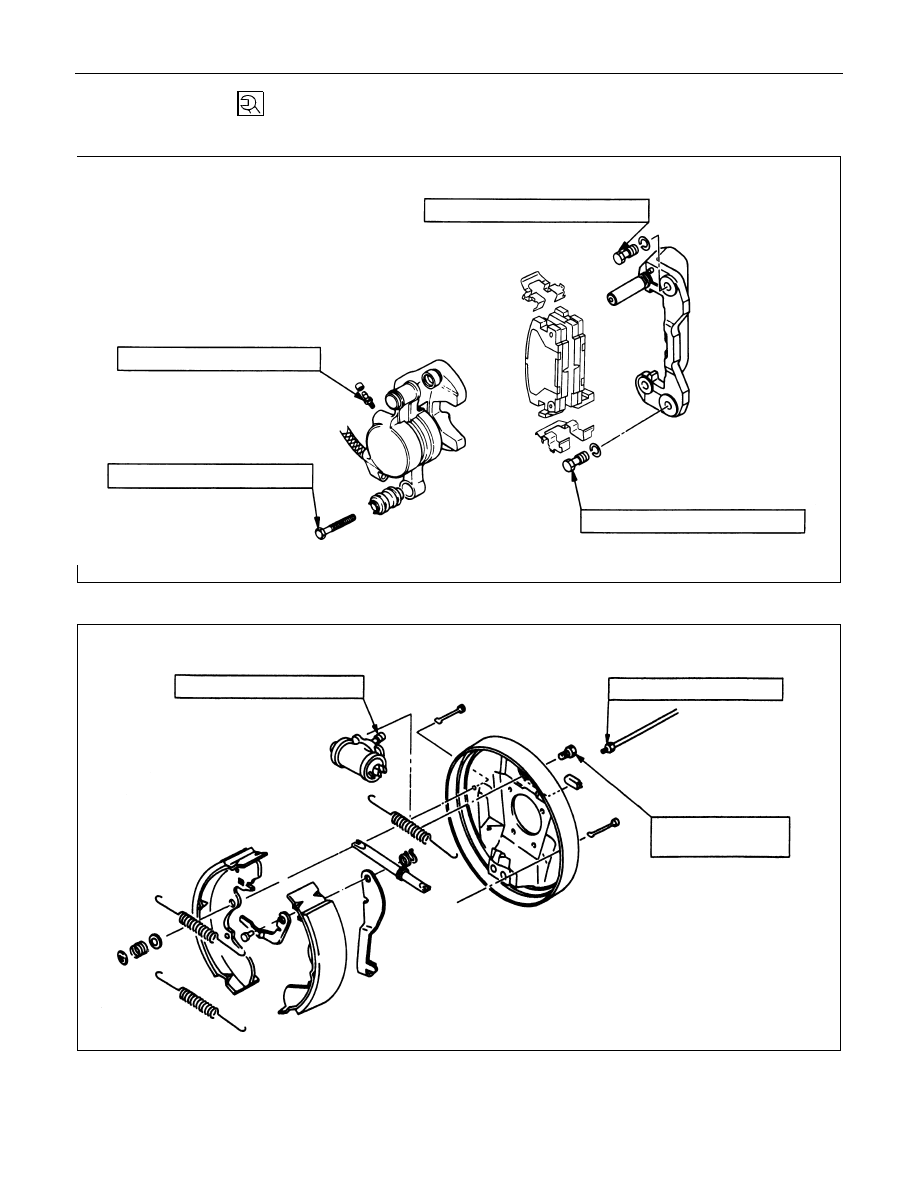

  SPECIAL PARTS FIXING NUT AND BOLT

FRONT WHEEL BRAKE

N

⋅

m(kgf

⋅

m/lb

⋅

ft)

27-37 (2.8-3.8/20-27)

139-171 (14.2-17.4/103-126)

139-171 (14.2-17.4/103-126)

5.9-8.8 (0.6-0.9/4.3-6.5)

REAR WHEEL DRUM BRAKE

N

⋅

m(kgf

⋅

m/lb

⋅

ft)

11-15
(1.1-1.5/8-11)

13-19 (1.3-1.9/9-14)

6.9-11.8 (0.7-1.2/5.1-8.7)

5-10  BRAKES

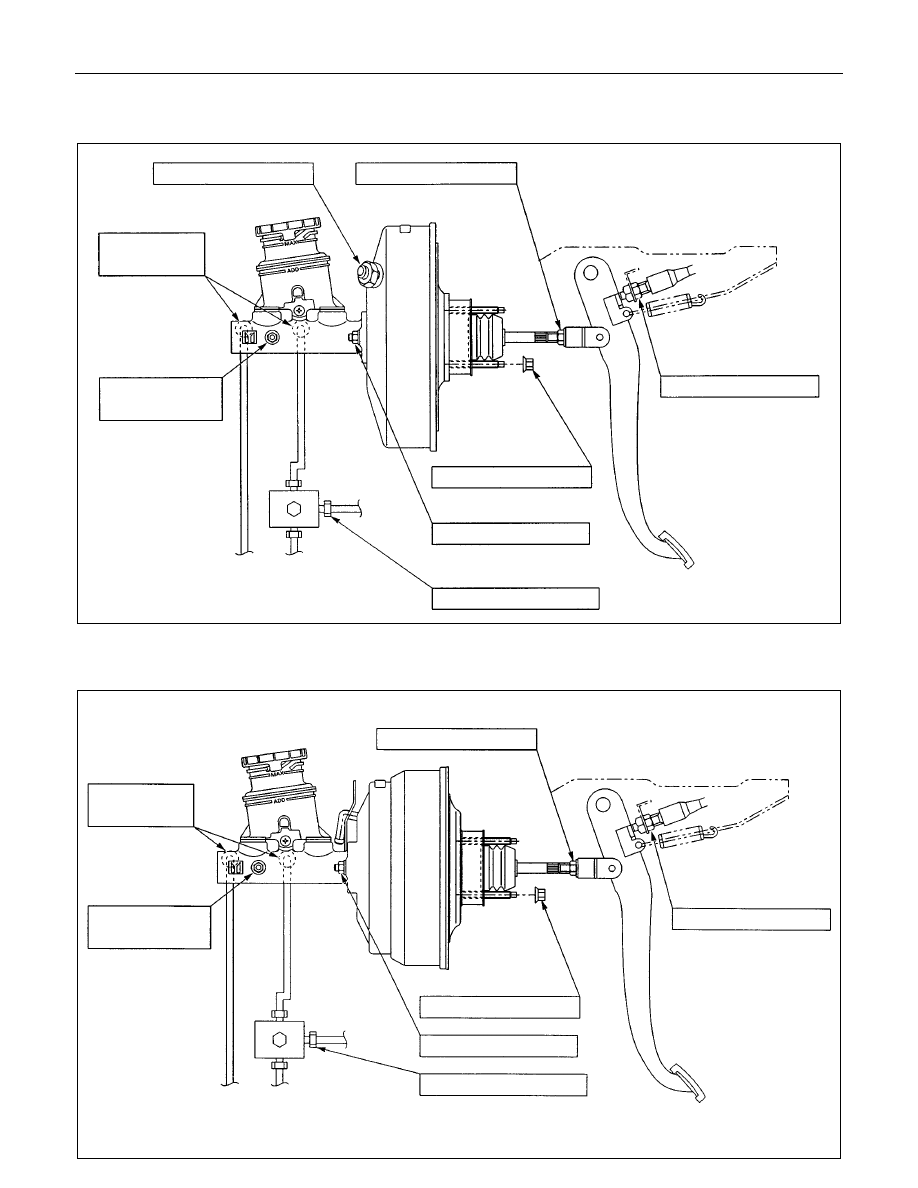

VACUUM SERVO WITH MASTER CYLINDER AND BRAKE PEDAL
(Except Australia)

N

⋅

m(kgf

⋅

m/lb

⋅

ft)

6.9-8.8
(0.7-0.9 / 5.1-6.5)

15-25 (1.5-2.5 / 11-18)

13-19 (1.3-1.9 / 9.4-14)

9.8-16 (1.0-1.6 / 7-12)

18-24 (1.8-2.4 / 13-17)

15-25 (1.5-2.5 / 11-18)

20-25 (2.0-2.5 / 14-18)

9-15
(0.9-1.5 / 6.5-11)

VACUUM SERVO WITH MASTER CYLINDER AND BRAKE PEDAL
(For Australia only)

N

⋅

m(kgf

⋅

m/lb

⋅

ft)

6.9-8.8
(0.7-0.9 / 5.1-6.5)

9-15
(0.9-1.5 / 6.5-11)

13-19 (1.3-1.9 / 9.4-14)

9.8-16 (1.0-1.6 / 7-12)

18-24 (1.8-2.4 / 13-17)

15-25 (1.5-2.5 / 11-18)

15-25 (1.5-2.5 / 11-18)
