Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 985

BRAKES  5-11

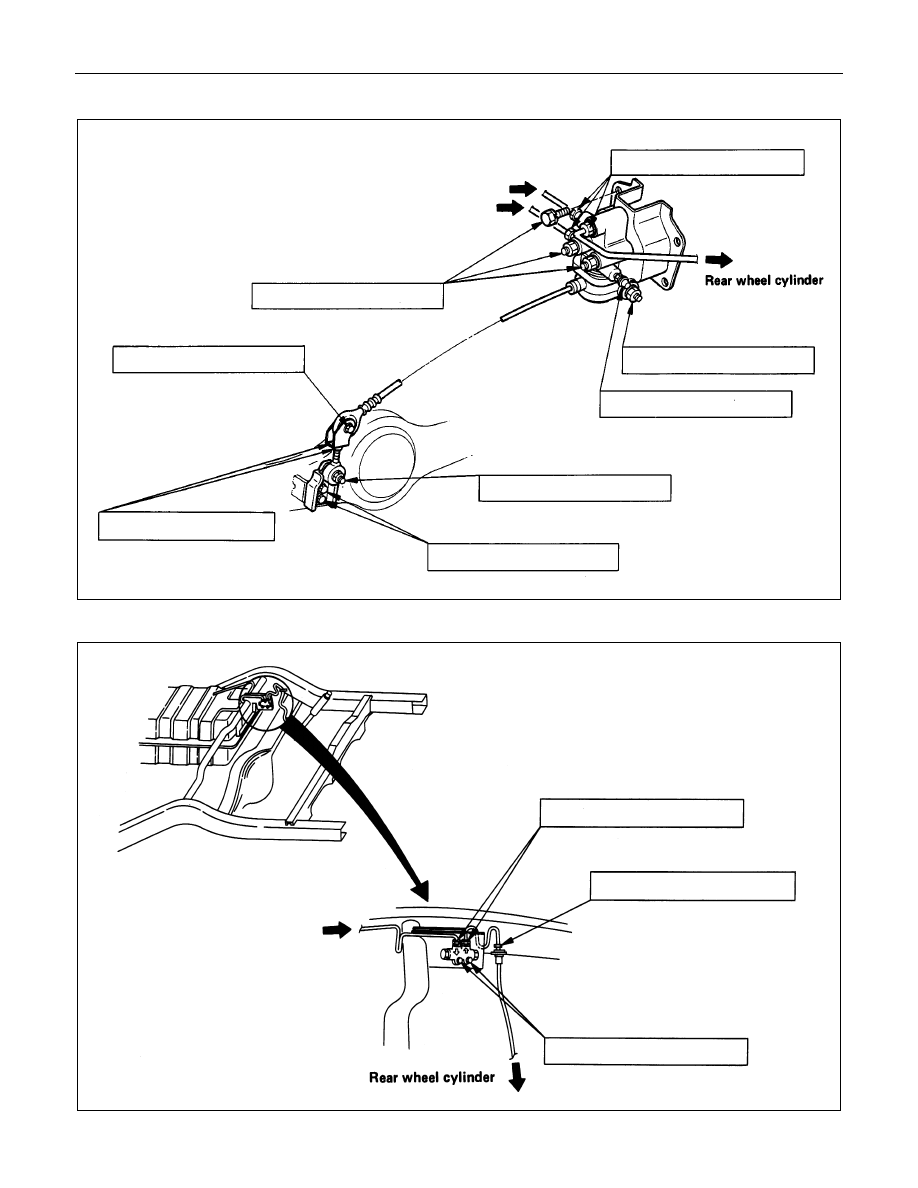

LOAD SENSING PROPORTIONING VALVE

N

⋅

m(kgf

⋅

m/lb

⋅

ft)

Primary Master Cylinder

Secondary Master Cylinder

19-30 (1.9-3.1/14-22)

14-24 (1.4-2.4/10-17)

10-16 (1.0-1.6/7-12)

7-10 (0.7-1.0/5-7)

15-22 (1.5-2.2/11-16)

13-19 (1.3-1.9/9.4-14)

15-22 (1.5-2.2/11-16)

14-24 (1.4-2.4/10-17)

BLEND PROPORTIONING VALVE

N

⋅

m(kgf

⋅

m/lb

⋅

ft)

14-24 (1.4-2.4/10-17)

13-19 (1.3-1.9/9.4-14)

13-19 (1.3-1.9/9.4-14)

Secondary master cylinder

5-12  BRAKES

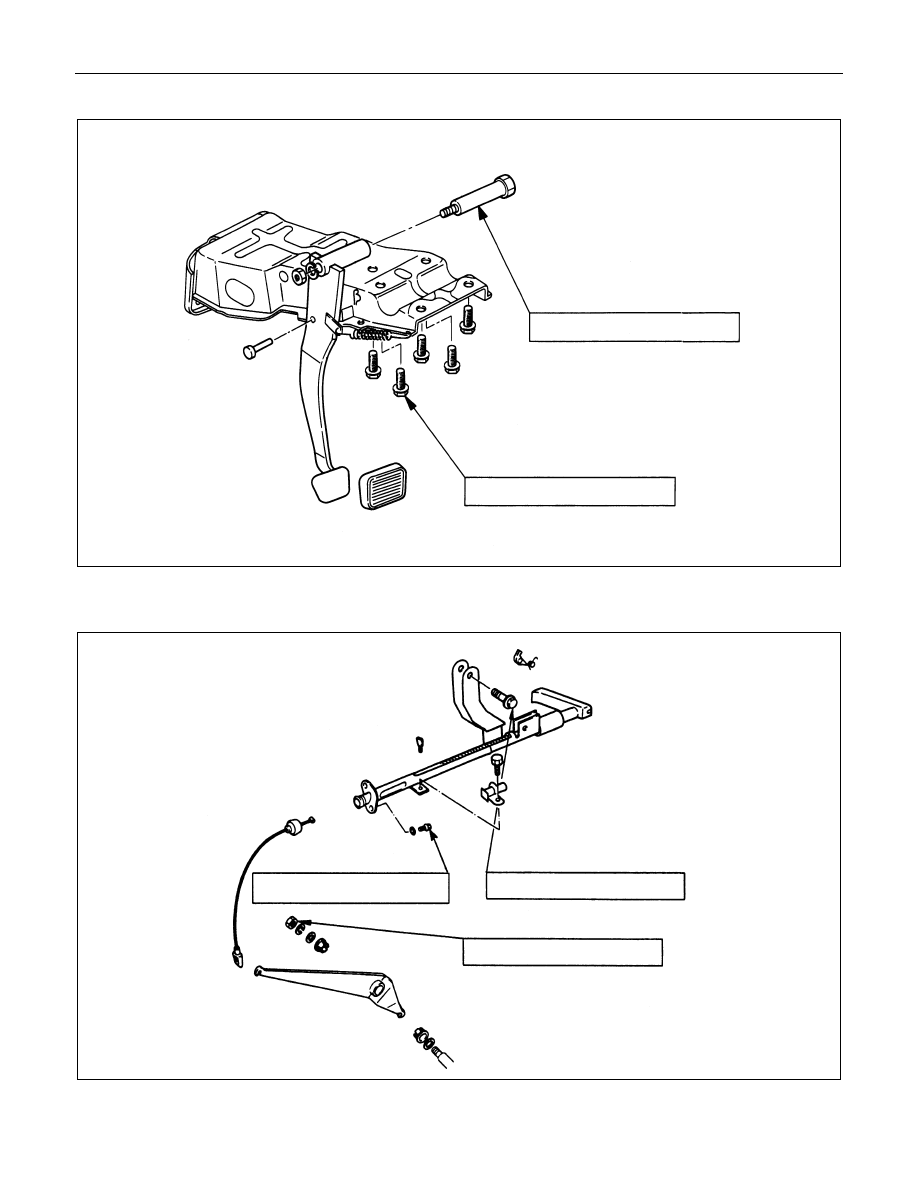

BRAKE PEDAL ASSEMBLY

N

⋅

m(kgf

⋅

m/lb

⋅

ft)

This illustration is besed on the LHD model

11-20 (1.1-2.0/8-14

29-39 (3.0-4.0/22-29)

PARKING BRAKE STEM ASSEMBLY
(STEM TYPE, LEFT HAND DRIVE MODEL)

N

⋅

m(kgf

⋅

m/lb

⋅

ft)

21-34 (2.1-3.5/15-25)

11-20 (1.1-2.0/8-14)

14-25 (1.4-2.5/10-18)

BRAKES  5-13

PARKING BRAKE STEM ASSEMBLY
(STEM TYPE, RIGHT HAND DRIVE MODEL)

N

⋅

m(kgf

⋅

m/lb

⋅

ft)

18-24 (1.8-2.4/13-17)

11-20 (1.1-2.0/8-14)

14-25 (1.4-2.5/10-18)

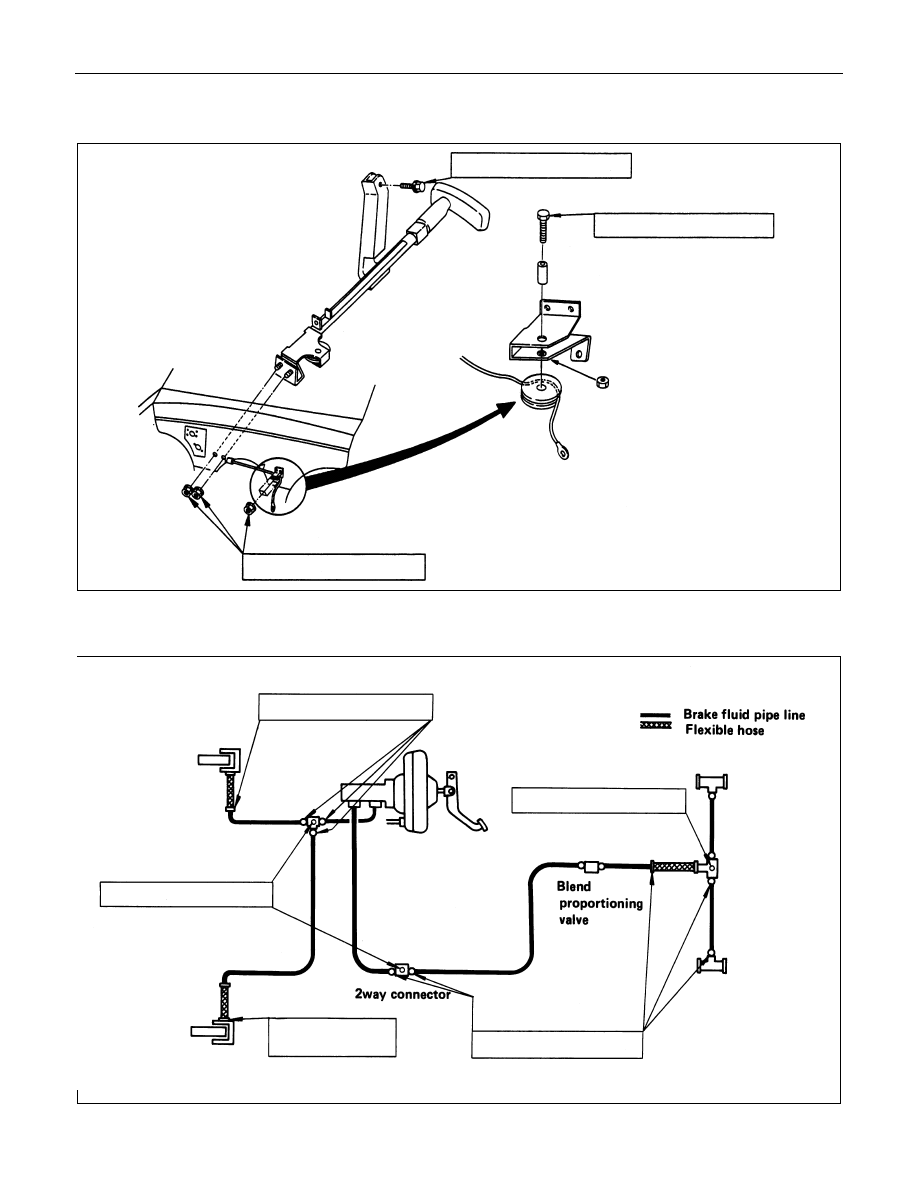

BRAKE LINES (HOSES AND PIPES)
(MODEL WITH BLEND PROPORTIONING VALVE)

N

⋅

m(kgf

⋅

m/lb

⋅

ft)

29-39

(3.0-4.0/22-29)

13-19 (1.3-1.9/9.4-14)

11-20 (1.1-2.2/8-14)

7.8-18 (0.8-1.8/5.8-13)

13-19 (1.3-1.9/9.4-14)

5-14  BRAKES

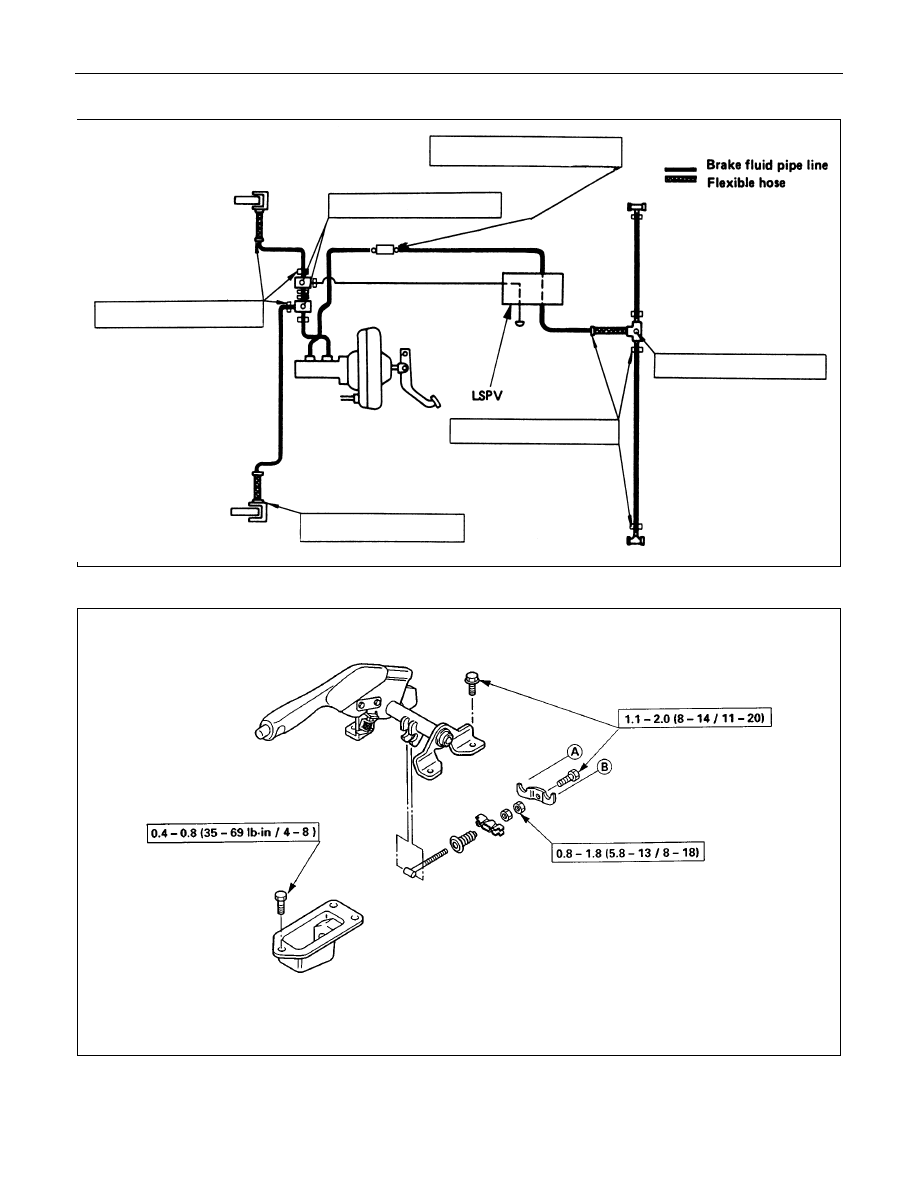

BRAKE LINES (HOSES AND PIPES) (MODEL WITH LSPV)

N

⋅

m(kgf

⋅

m/lb

⋅

ft)

29-39 (3.0-4.0/22-29)

13-19 (1.3-1.9/9.4-14)

11-20 (1.1-2.0/8-14)

13-19 (1.3-1.9/9.4-14)

7.8-18 (0.8-1.8/5.8-13)

13-19 (1.3-1.9/9.4-14)

PARKING BRAKE LEVER ASSEMBLY (FLOOR MOUNT TYPE)

N

⋅

m(kgf

⋅

m/lb

⋅

ft)
