6F-16  ENGINE EXHAUST

Exhaust Silencer

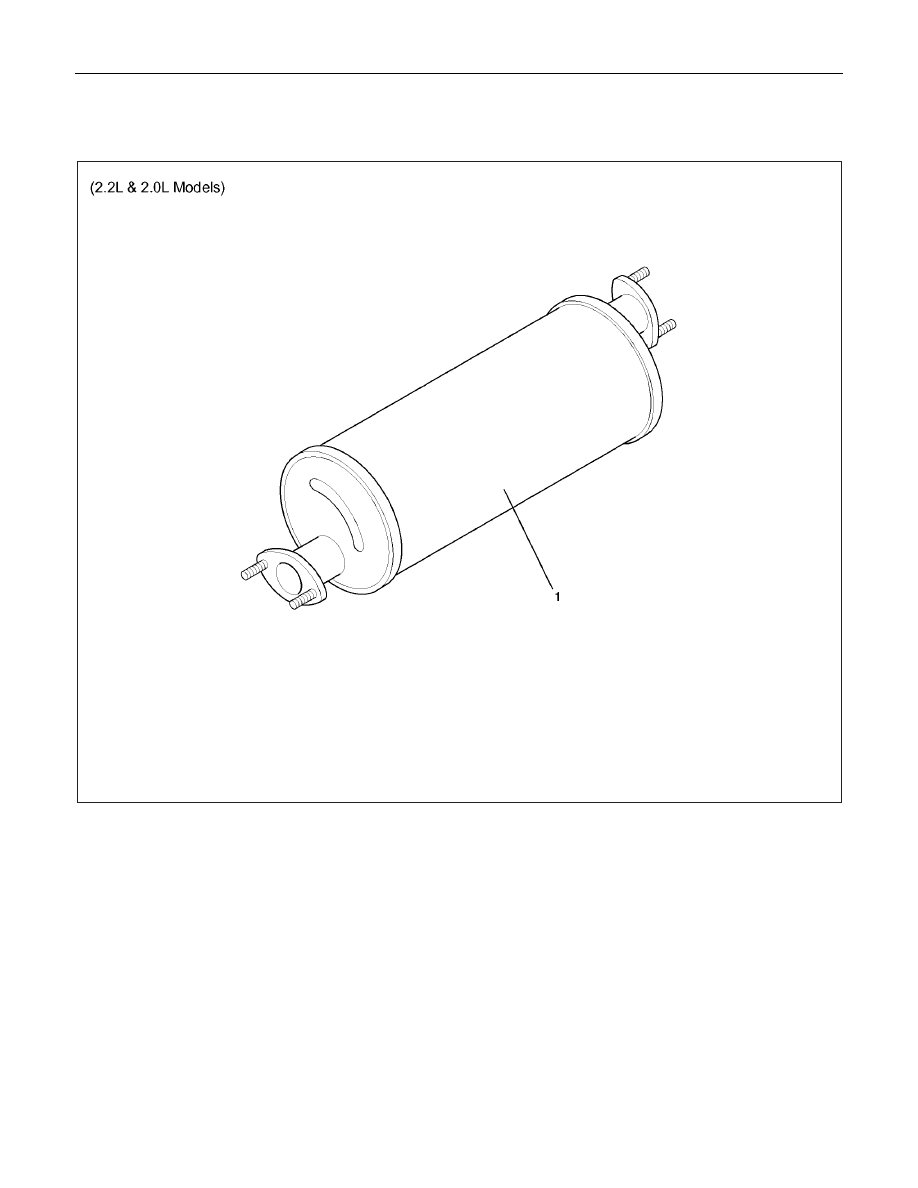

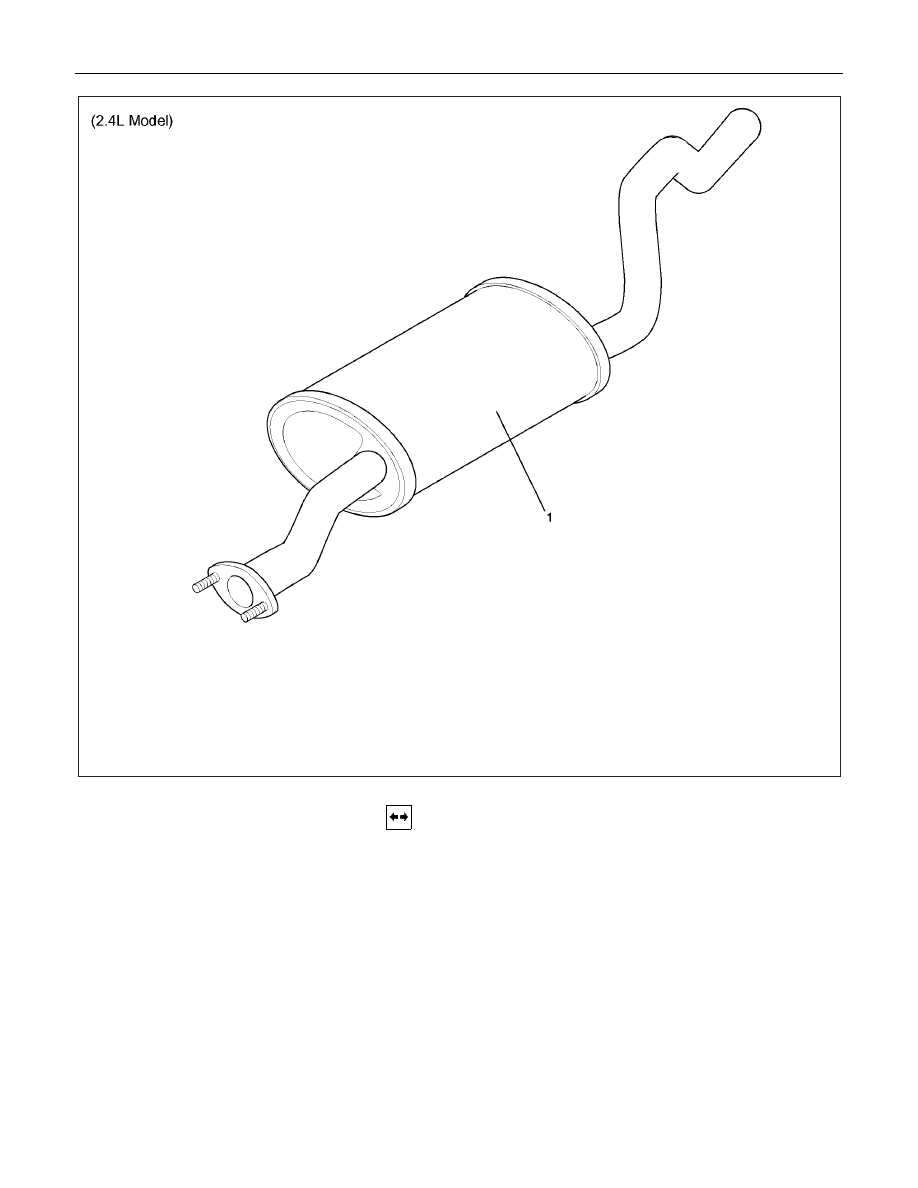

Exhaust Silencer and Associated Parts

Legend

1. Exhaust Silencer

ENGINE EXHAUST  6F-17

Legend

1. Exhaust Silencer

Removal

(2.2L & 2.0L)

1. Disconnect battery ground cable.

2. Raise the vehicle and support with suitable safety stands.

3. Remove  four  exhaust  silencer  fixing  bolts  and  two  rear

exhaust  pipe  fixing  bolts  and  nuts  then  disconnect  rear

exhaust silencer from rear exhaust pipe

4. Remove  exhaust  silencer  mounting  rubbers  from  chassis

side then remove exhaust silencer.

(2.4L)

1. Disconnect battery ground cable.

2. Raise the vehicle and support with suitable safety stands.

3. Remove the damper rubber and nut.

4. Remove exhaust silencer.

6F-18  ENGINE EXHAUST

Installation

(2.2L & 2.0L)

1. Install  the  exhaust  silencer  and  tighten  two  bolts  and  nuts

on  rear  exhaust  pipe  to  specified  torque  then  tighten  four

bolts on Catalytic Converter to specified torque.

(2.4L)

1. Install the exhaust silencer and tighten two bolts and nuts.

Torque:

Bolts: 43 N

⋅⋅⋅⋅m (4.4 kgf⋅⋅⋅⋅m)

ENGINE EXHAUST  6F-19

Rear Exhaust pipe

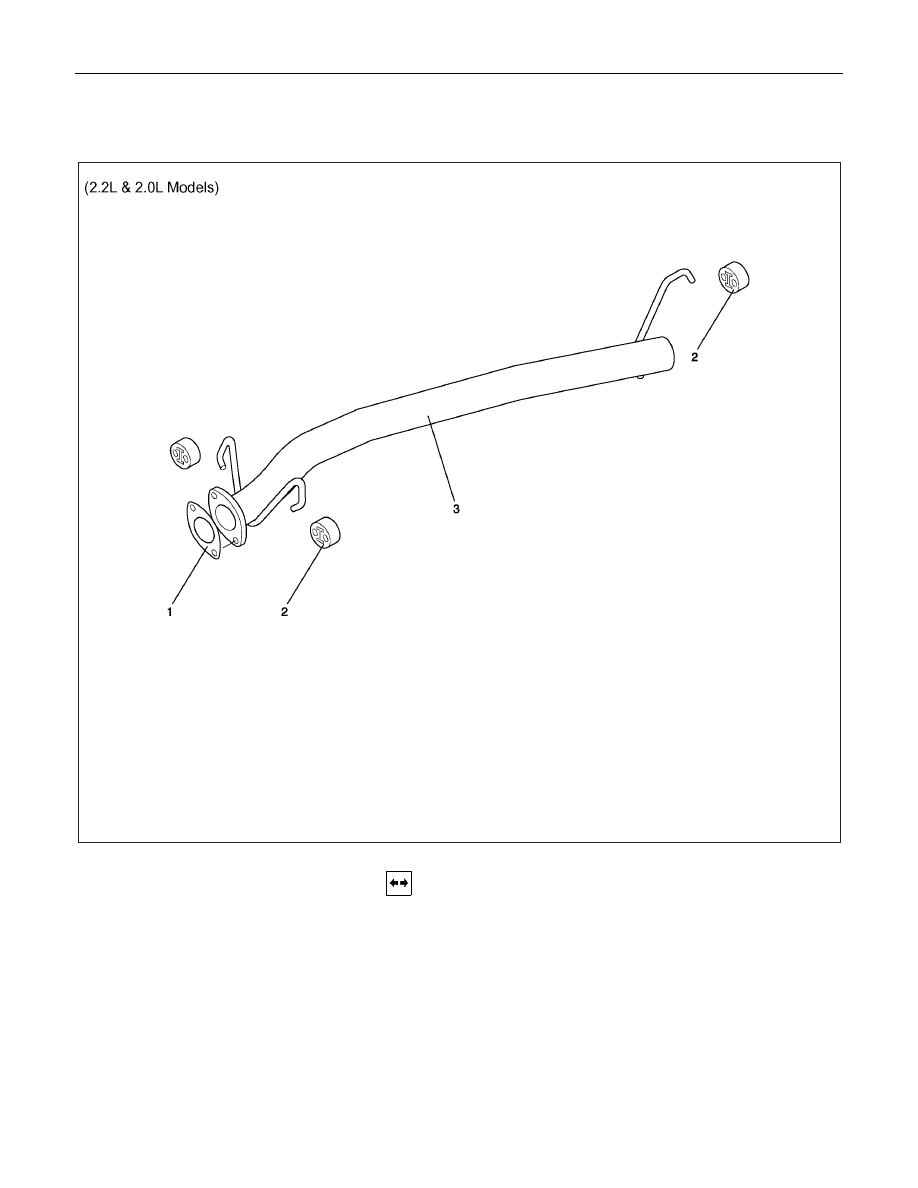

Rear Exhaust pipe and Associated Parts

Legend

1 Gasket

2 Mounting Rubber

3 Rear Exhaust Pipe

Removal

(2.2L & 2.0L)

1. Disconnect battery ground cable

2. Raise the vehicle and support with suitable safety stands.

3. Remove  rear  exhaust  pipe  fixing  bolts  and  nuts,  then

disconnect rear exhaust pipe from exhaust silencer.

4. Remove mounting rubber.

5. Remove rear exhaust pipe.
