6F-20  ENGINE EXHAUST

Installation

1. Install the mounting rubber.

2. Install  the  exhaust  pipe  and  tighten  two  bolts  and  nuts  on

exhaust silencer to specified torque.

Torque:

Nuts: 43 N.m (4.4 kgf

⋅⋅⋅⋅m)

Main Data and Specifications

Exhaust system

Pipe outside diameter ✕ thickness

Front pipe

mm(in)

2.2L & 2.0L

2.4L

42.7 ✕ 1.5 (1.68✕0.059)

<Flange>

44.5 ✕ 1.5 (1.75✕0.059)

<Flange>

54.0 ✕ 1.5 (2.13 ✕ 0.059)

50.8 ✕ 1.5 (2.00 ✕ 0.059)

Middle pipe

mm(in)

Rear pipe

mm(in)

50.8 ✕ 1.5 (2.0 ✕ 0.059)

Silencer

Type

Circular section-shell construction

of triple (for 2.4L & 2.0L); double (for 2.4L) skin and

end plates, internal construction of baffles

and perforated tubes.

2.2L & 2.0L

2.4L

Inside diameter

mm (in)

Approximately 180 (7.09)

–

Length

mm (in)

Approximately 525 (20.67)

–

Mounting

Number of suspension points
Type
Catalytic converter type

4

Rubber

Three way Catalytic Converter

ENGINE EXHAUST  6F-21

Main Data and Specifications

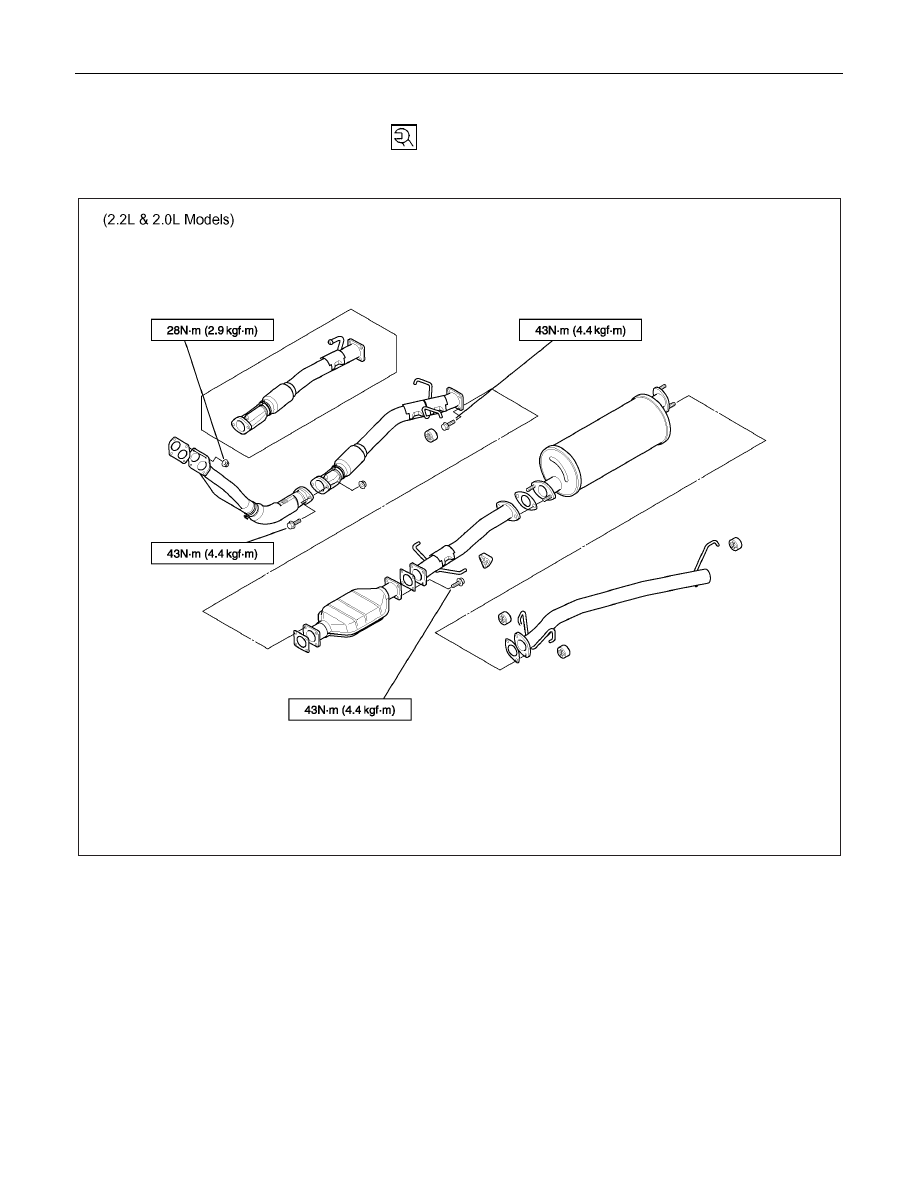

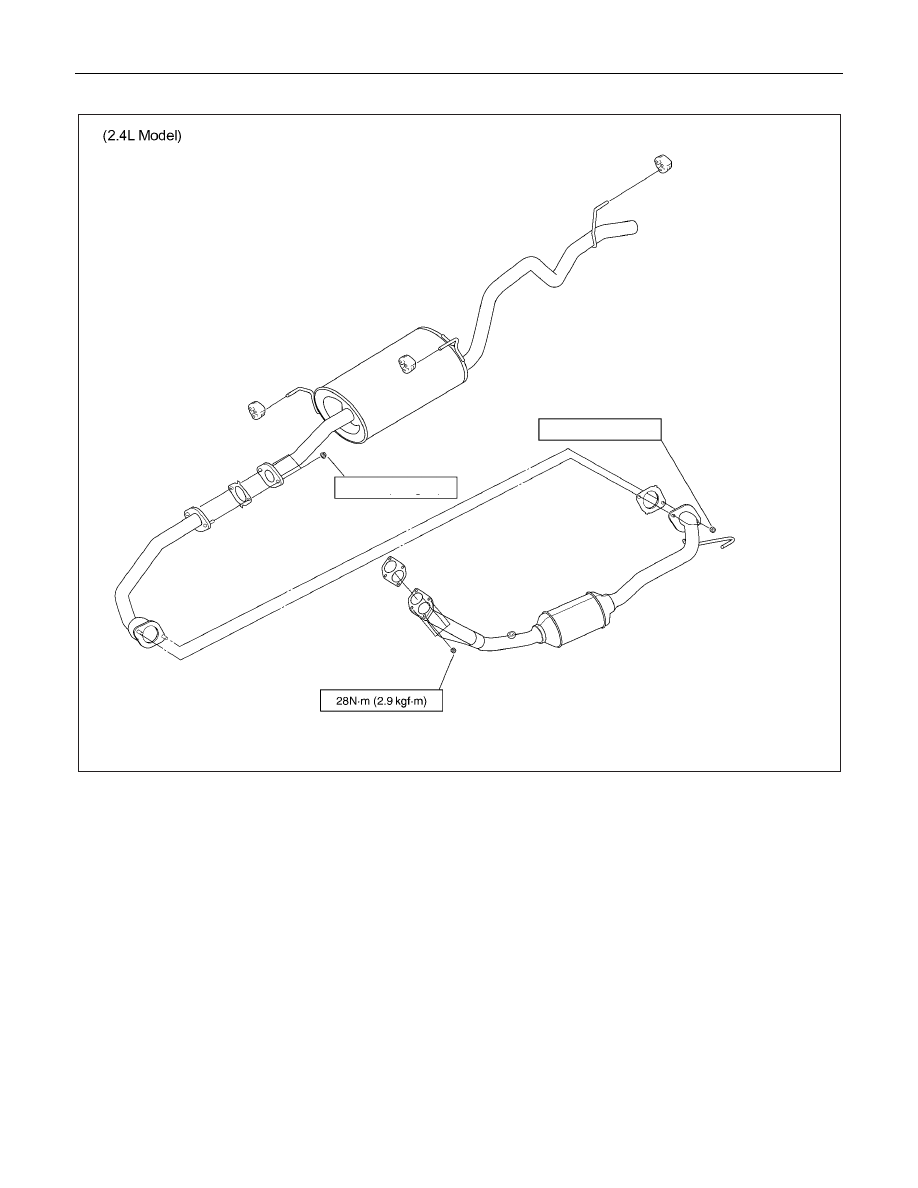

Torque Specification

N

!m (kgf!m)

6F-22  ENGINE EXHAUST

N

!m (kgf!m)

43N

⋅m (4.4 kgf⋅m)

43N

⋅m (4.4 kgf⋅m)
