2B-2  SHEET METAL

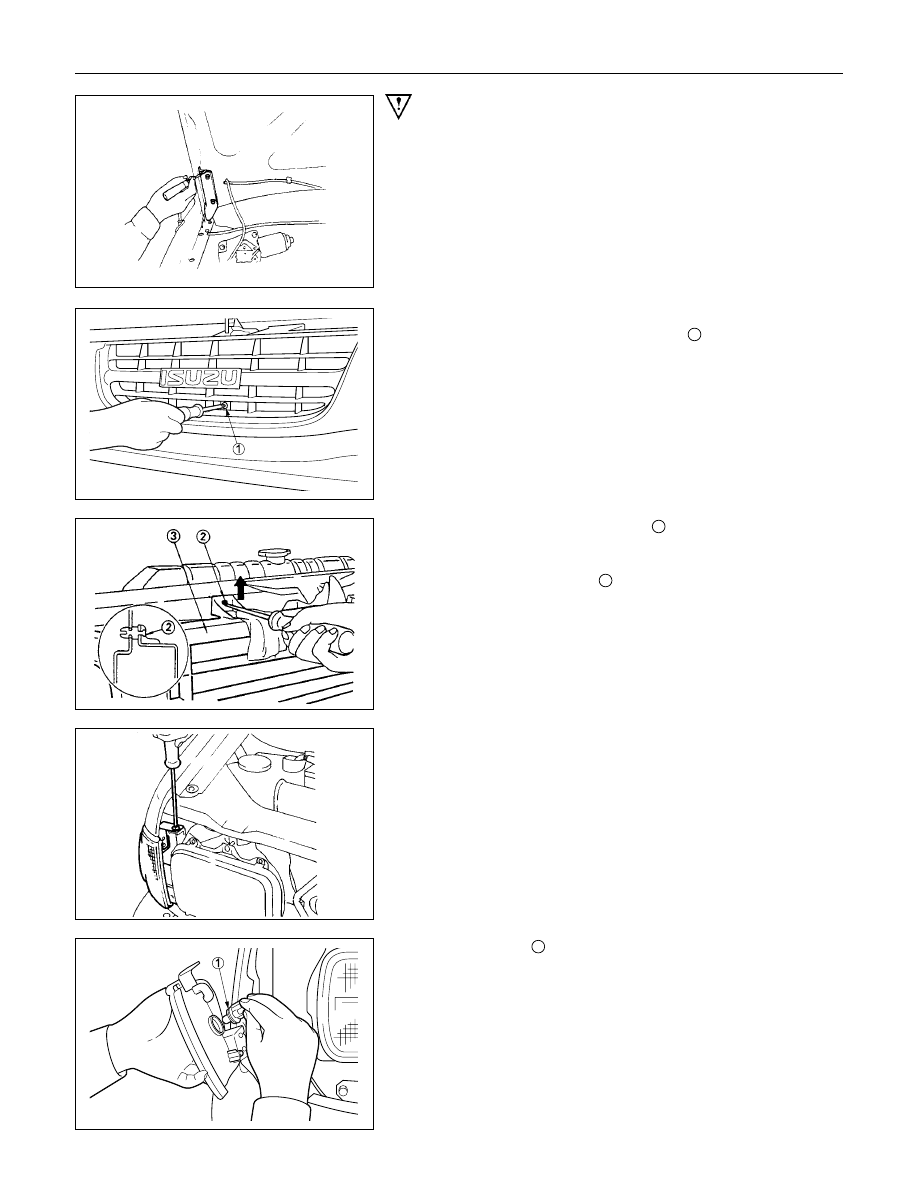

Important Operations - Removal

1. Bolt
Before removing the hinges from the engine hood, scribe a
mark showing location of the hinges to facilitate installation in
the original position.

4. Radiator Grille
Remove the radiator grille center screw

1

.

(ONE POINT)

Use a screwdriver to raise the clip

2

 and release the lock.

Place a clean rag beneath the screwdriver tip to protect the
body painted surfaces. (EIGHT POINTS)
Remove the radiator grille

3

.

6. Combination Lamp
Remove the combination lamp fixing screws.

Turn the socket

1

 counterclockwise to disconnect it from the

marker light housing.
Pull the bulb from the socket.

SHEET METAL  2B-3

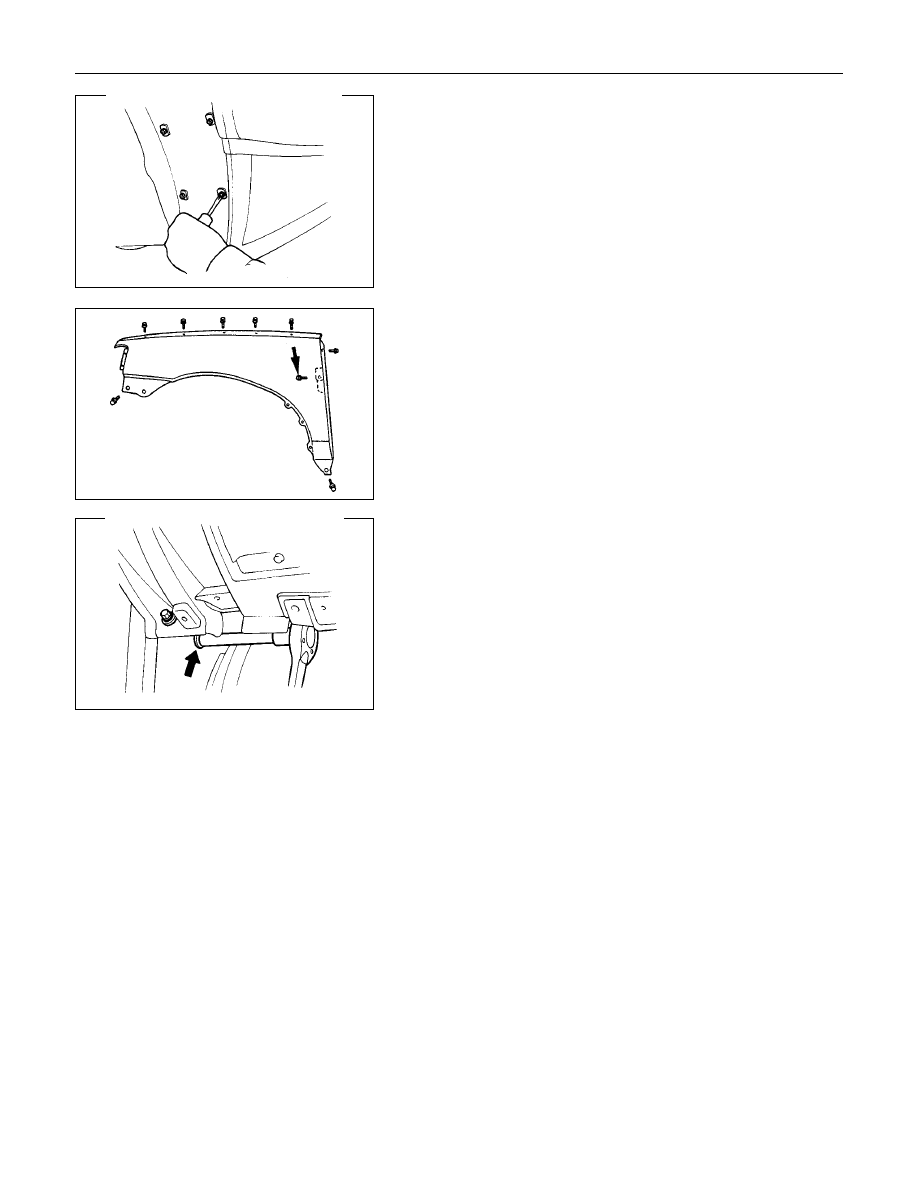

 7. Inner Liner
Remove the inner liner fixing screws.

11. Fender
First, remove the bolt (See illustration arrow mark) from the
inside of the car.

2B-4  SHEET METAL

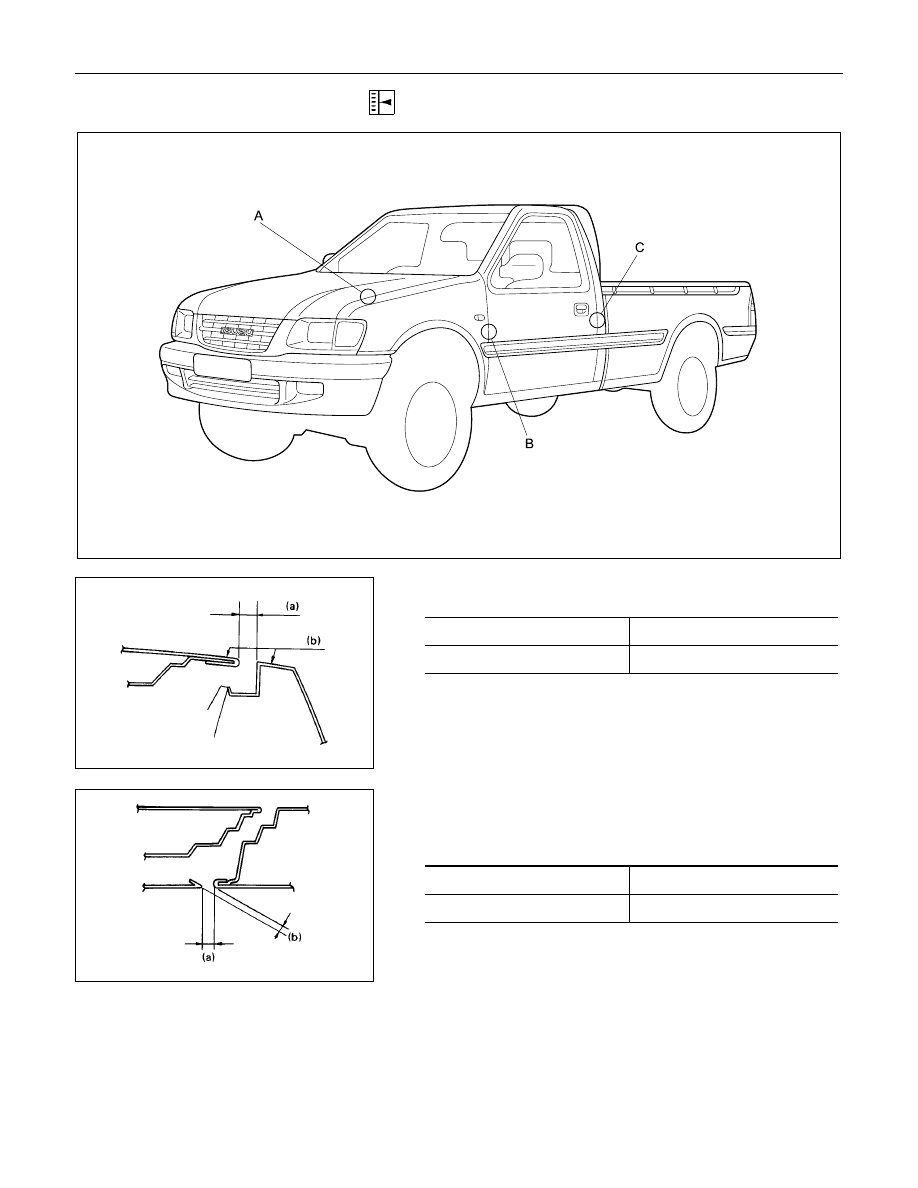

  ADJUSTMENT

A. Check the Engine Hood and Fender

mm (in.)

Clearance (a)

4 (0.157)

Height (b)

Flush

Adjust the clearance (a) with the hinges on the engine hood.
Adjust the step (b) with the hood rests.

B. Check the Fender and Door
C. Check the Door and Body
D. Check the Front Door and Rear Door

mm (in.)

Clearance (a)

5.5 (0.217)

Height (b)

Flush

Adjust clearance (a) with door hinges.
Adjust the step (b) by tapping on the fender lightly with a rubber
hammer.
