Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 1603

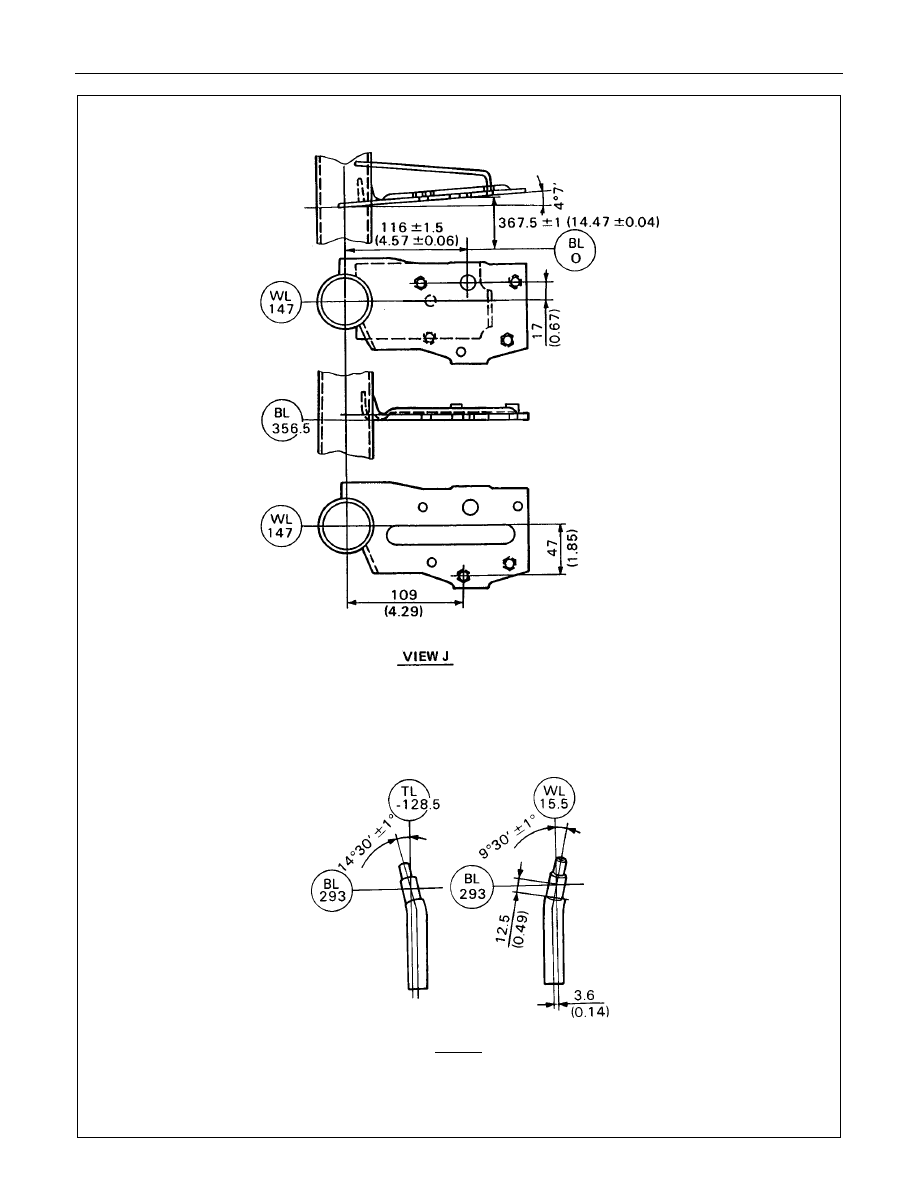

FRAME AND BUMPER  2A-31

VIEW E

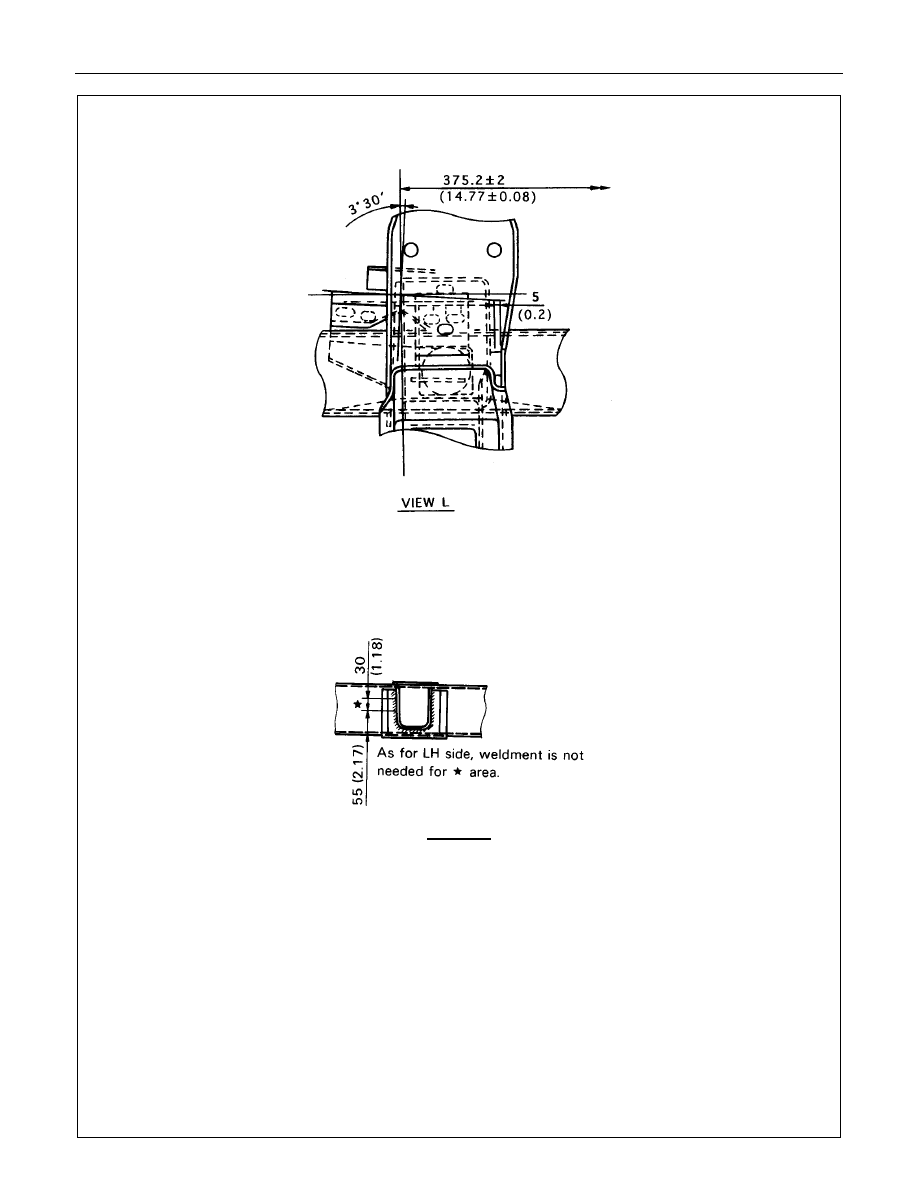

2A-32  FRAME AND BUMPER

SECT K-K

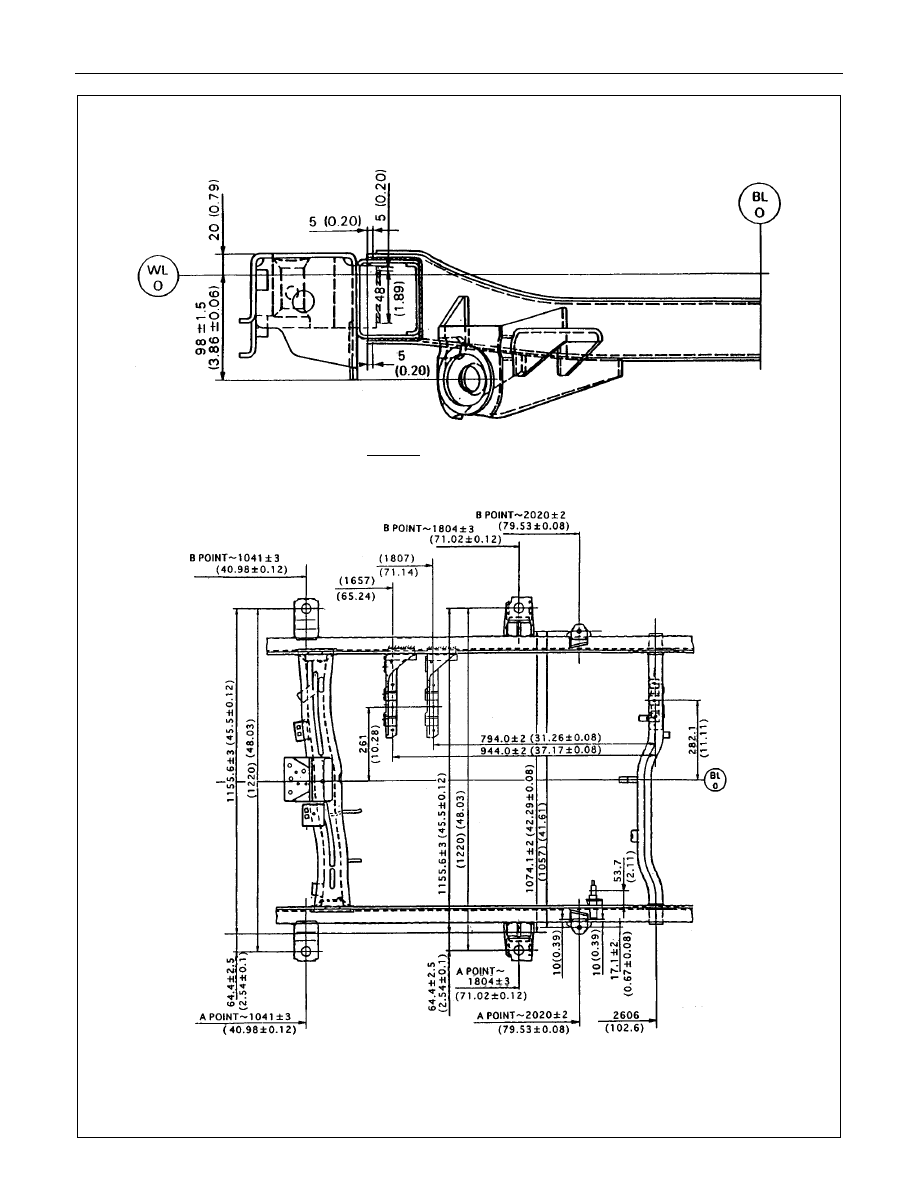

FRAME AND BUMPER  2A-33

VIEW A (Except Australia)

For Crew Cab

SHEET METAL  2B-1

SECTION 2B

SHEET METAL

TABLE OF CONTENTS

PAGE

Removal and installation................................................................................................... 2B- 1

Adjustment .................................................................................................................... 2B- 4



  REMOVAL AND INSTALLATION

Removal Steps

Installation Steps

Engine Hood

Fender

▲

1. Bolt

11. Fender

2. Engine hood assembly

10. ECM box (Driver side)

Fender

9. Antenna cable (Passenger side)

3. Combination lamp connector

8. Steering lower cover or speaker grille

▲

4. Radiator grille

7. Inner liner

5. Bumper assembly

6. Combination lamp

▲

6. Combination lamp

5. Bumper assembly

▲

7. Inner liner

4. Radiator grille

8. Steering lower cover or speaker grille

3. Combination lamp connector

9. Antenna cable (Passenger side)

Engine Hood

10. ECM box (Driver side)

2. Engine hood assembly

▲

11. Fender

1. Bolt
