Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 1602

2A-26  FRAME AND BUMPER

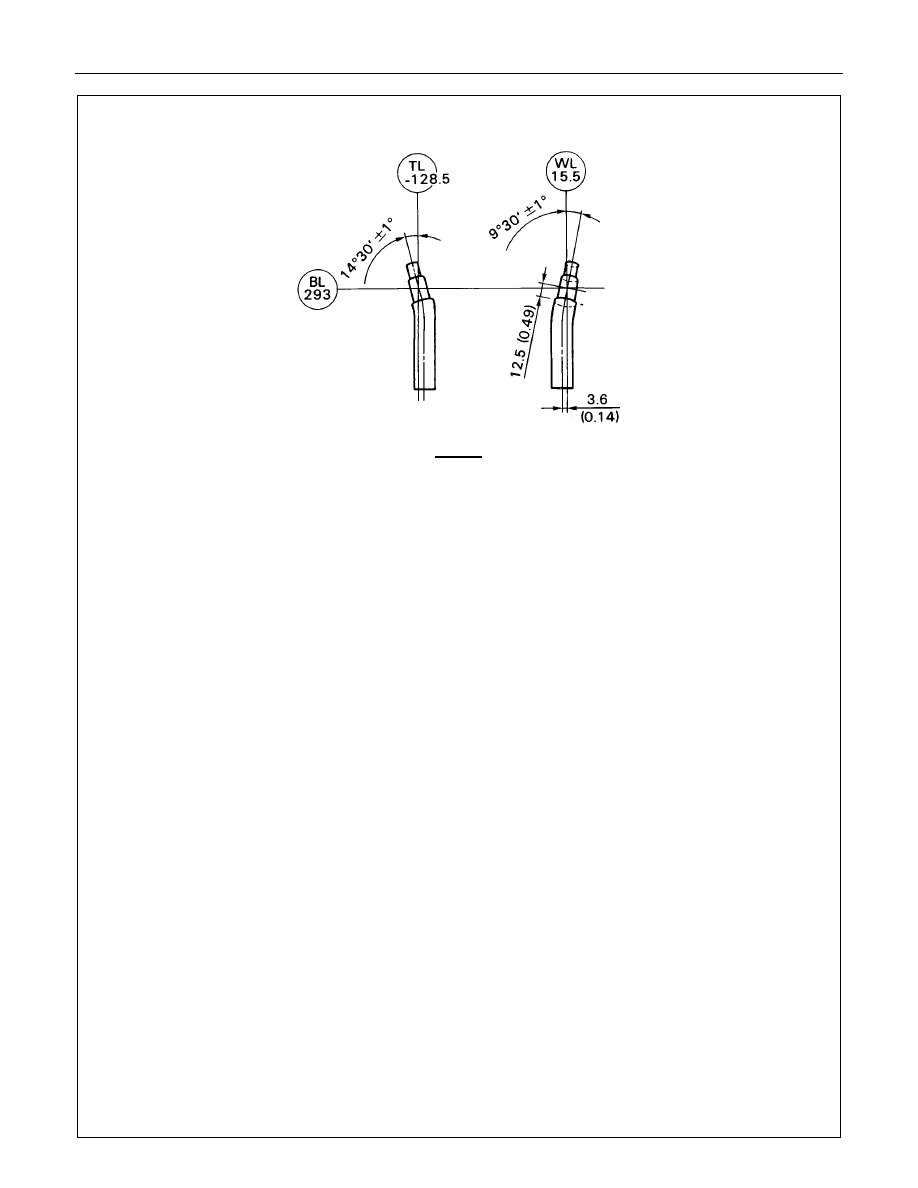

VIEW E

FRAME AND BUMPER  2A-27

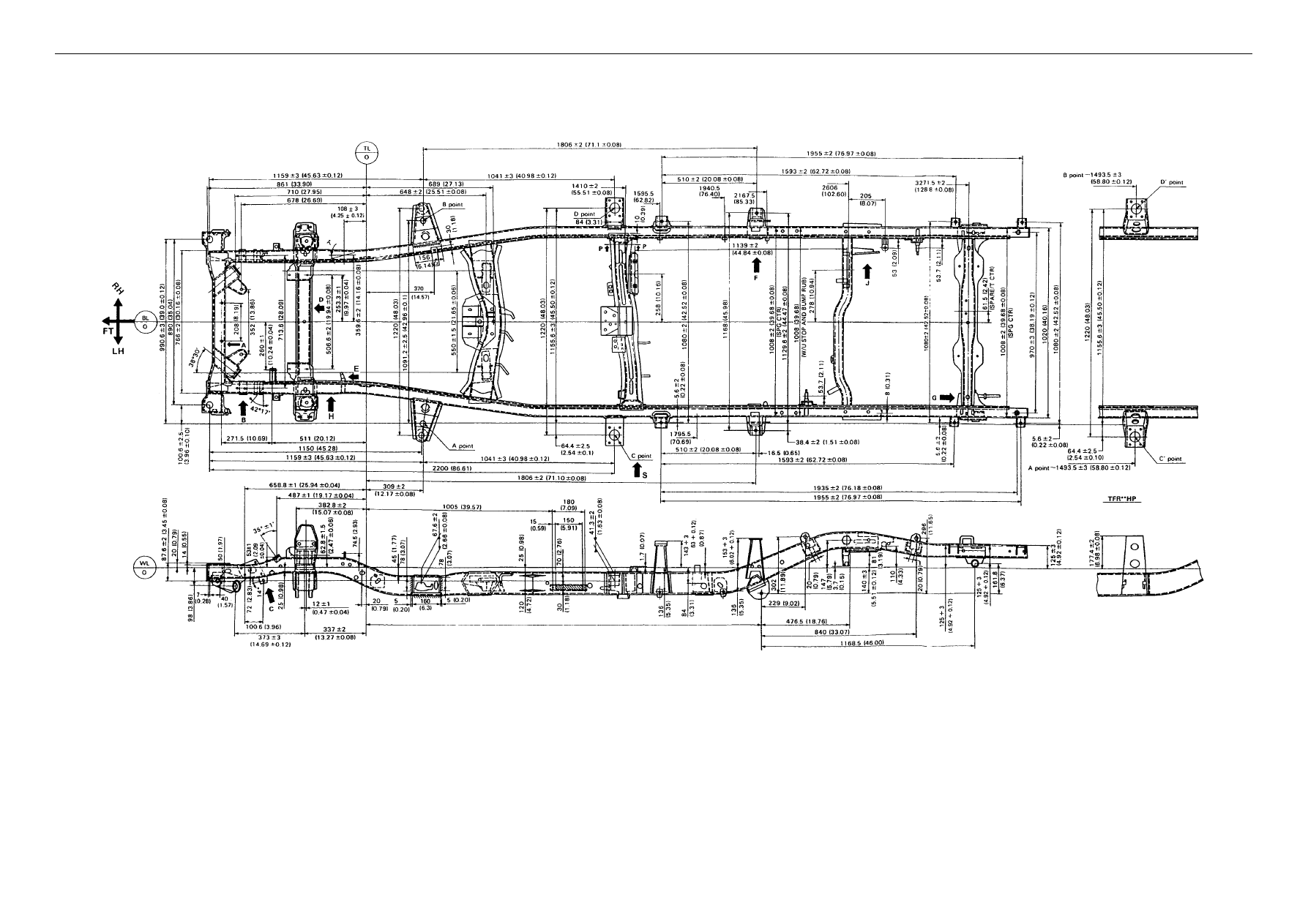

FRAME DIMENSIONS

(4

×

2, LONG WHEEL BASE MODEL)

FRAME AND BUMPER  2A-29

VIEW A (For Australia only)

2A-30  FRAME AND BUMPER
