8-308  ELECTRICAL-BODY AND CHASSIS

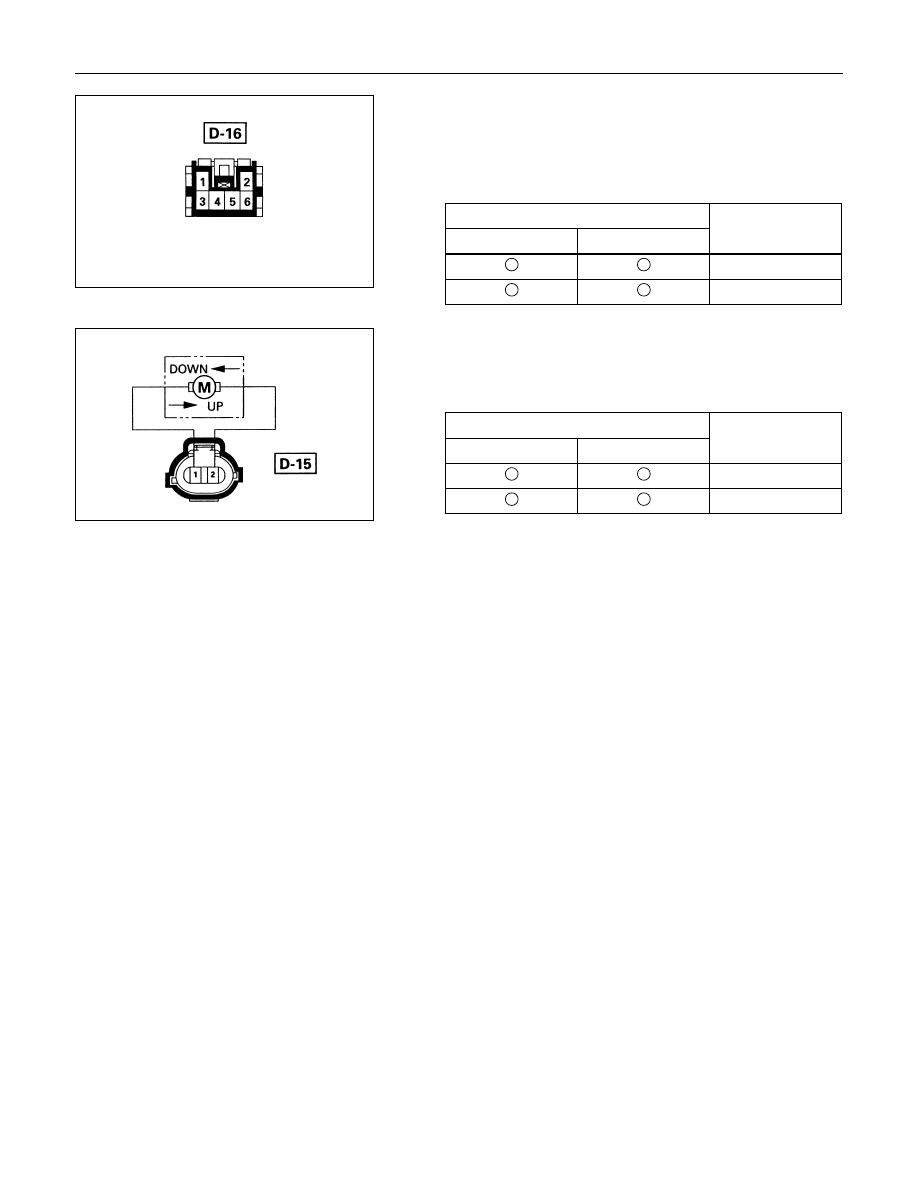

Harness side

Rear Power Window Motor-RH

1.Rear Power Window Switch-RH Connector Circuit

Disconnect  the  motor  connector,  apply  the  battery  voltage

(12V)  to  the  harness  side  connector  terminals  and  check

operation.

Connecting terminals

Operation

5 (L/R)

6 (BR/W)

direction

-

+

DOWN

+

-

UP

2.Rear Power Window Motor-RH Connector Circuit

Disconnect  the  switch  connector,  apply  the  battery  voltage

(12V)  to  the  motor  side  connector  terminals  and  check

operation.

Connecting terminals

Operation

1

2

direction

+

-

DOWN

-

+

UP

ELECTRICAL-BODY AND CHASSIS  8-309

AUDIO, CLOCK AND CIGARETTE LIGHTER

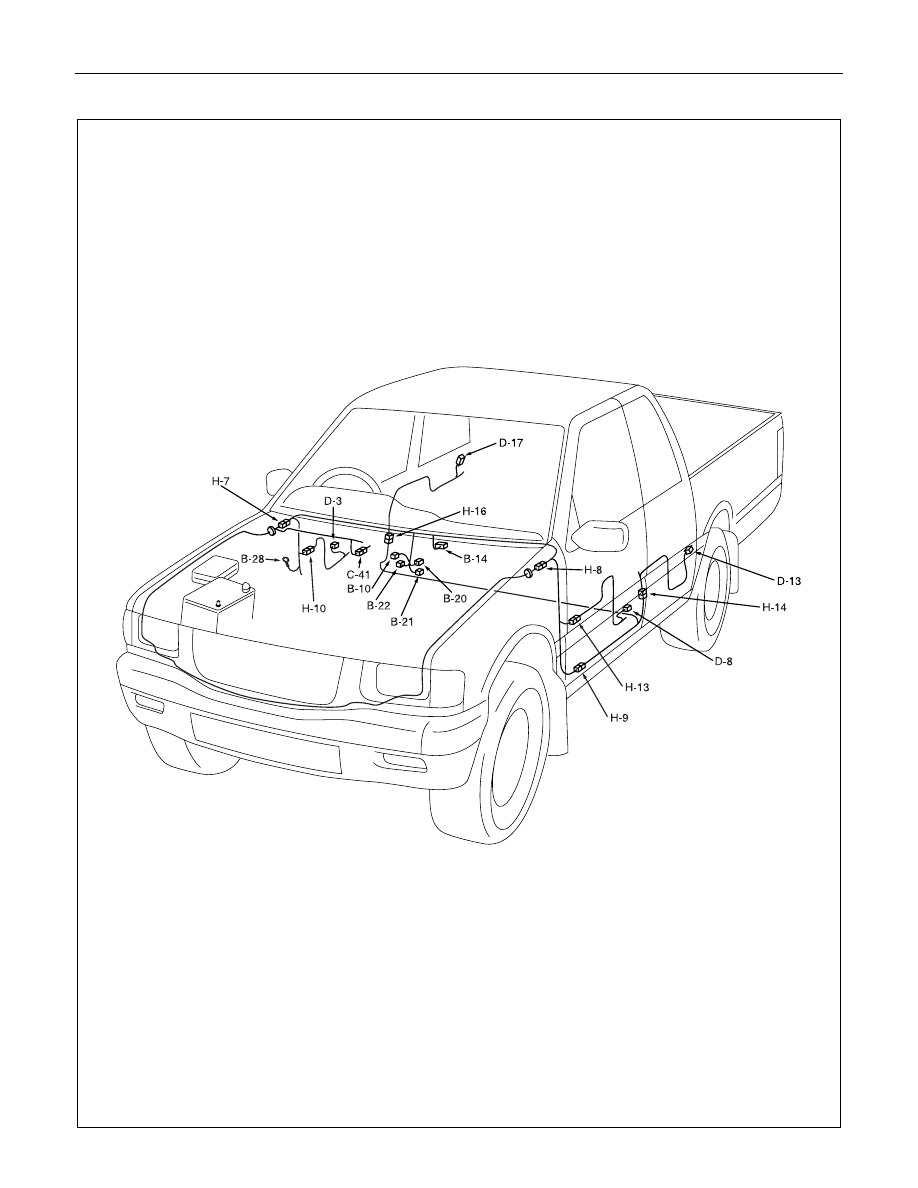

PARTS LOCATION (LHD)

8-310  ELECTRICAL-BODY AND CHASSIS

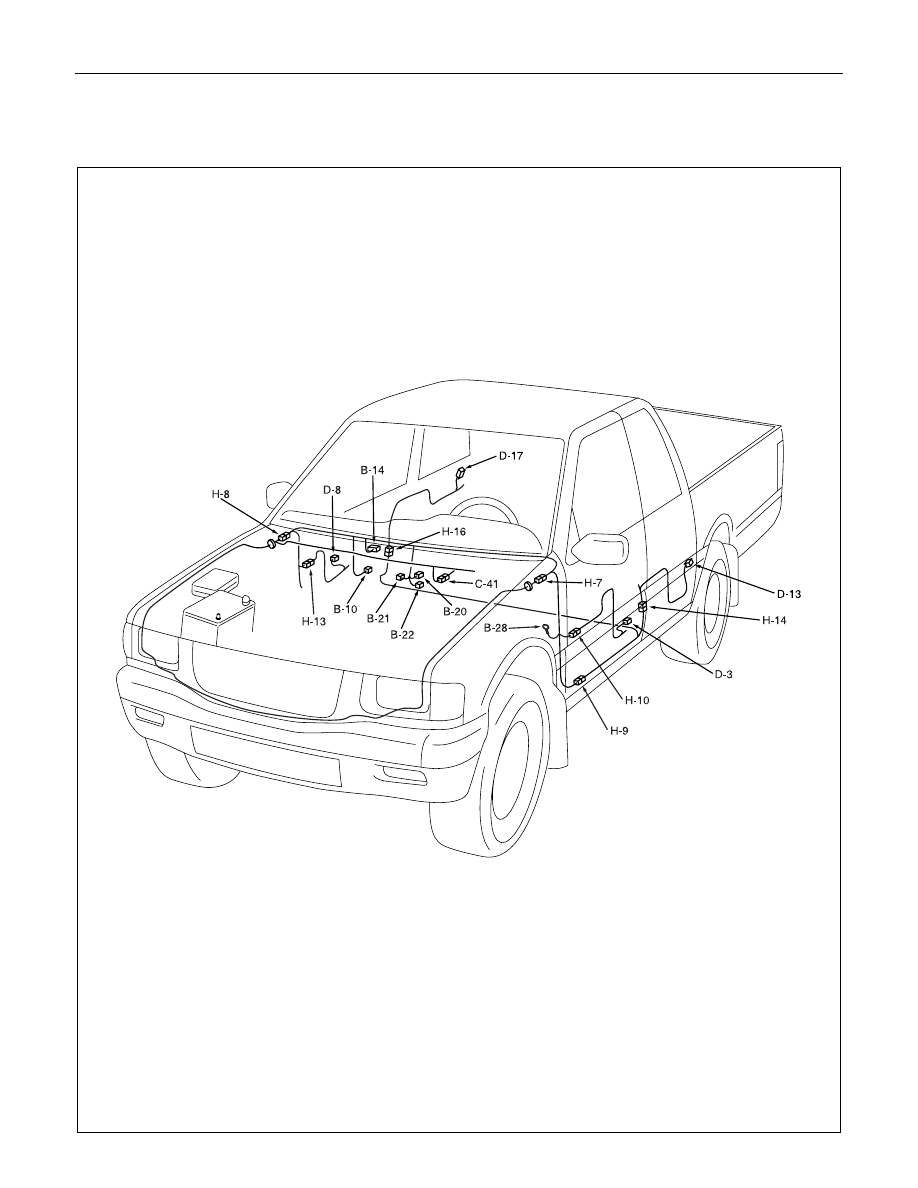

PARTS LOCATION (RHD)

ELECTRICAL-BODY AND CHASSIS  8-311

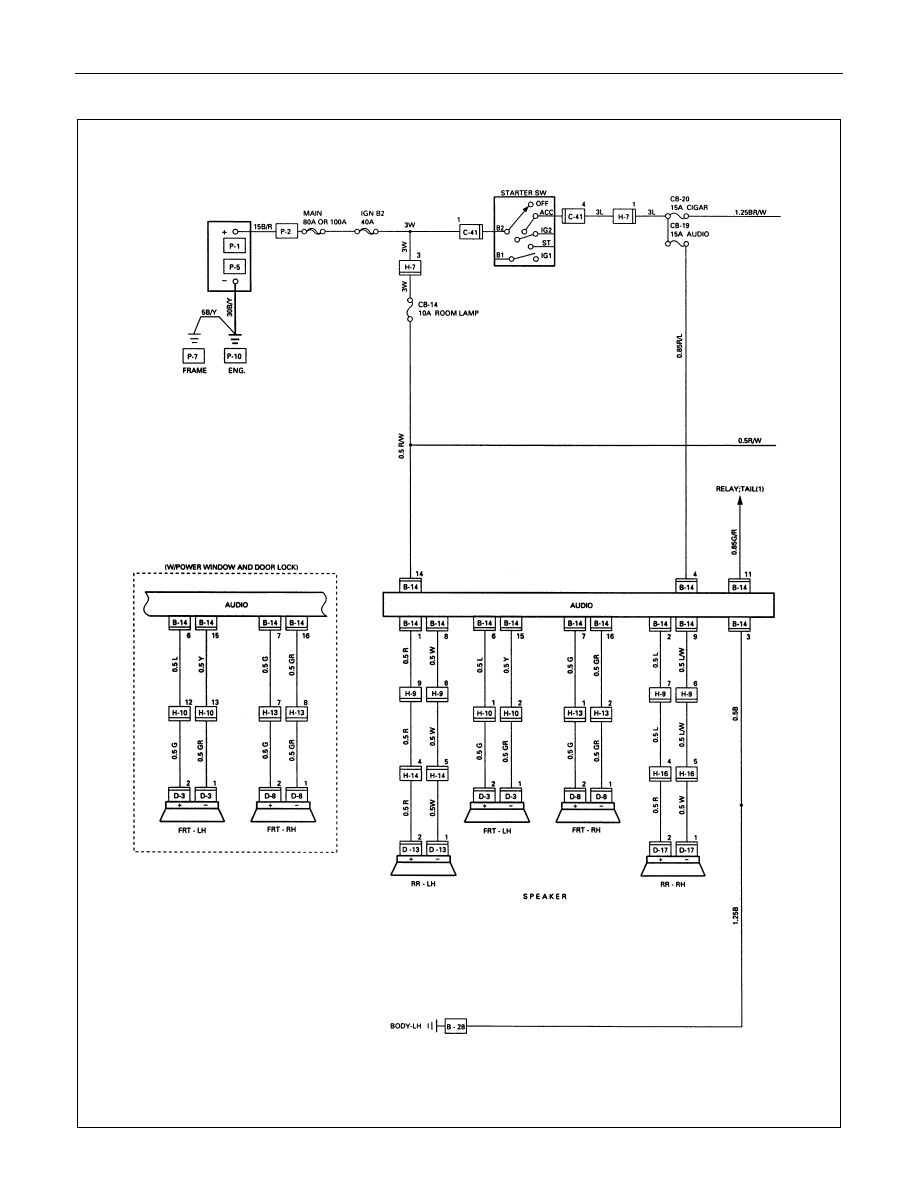

CIRCUIT DIAGRAM (LHD)
