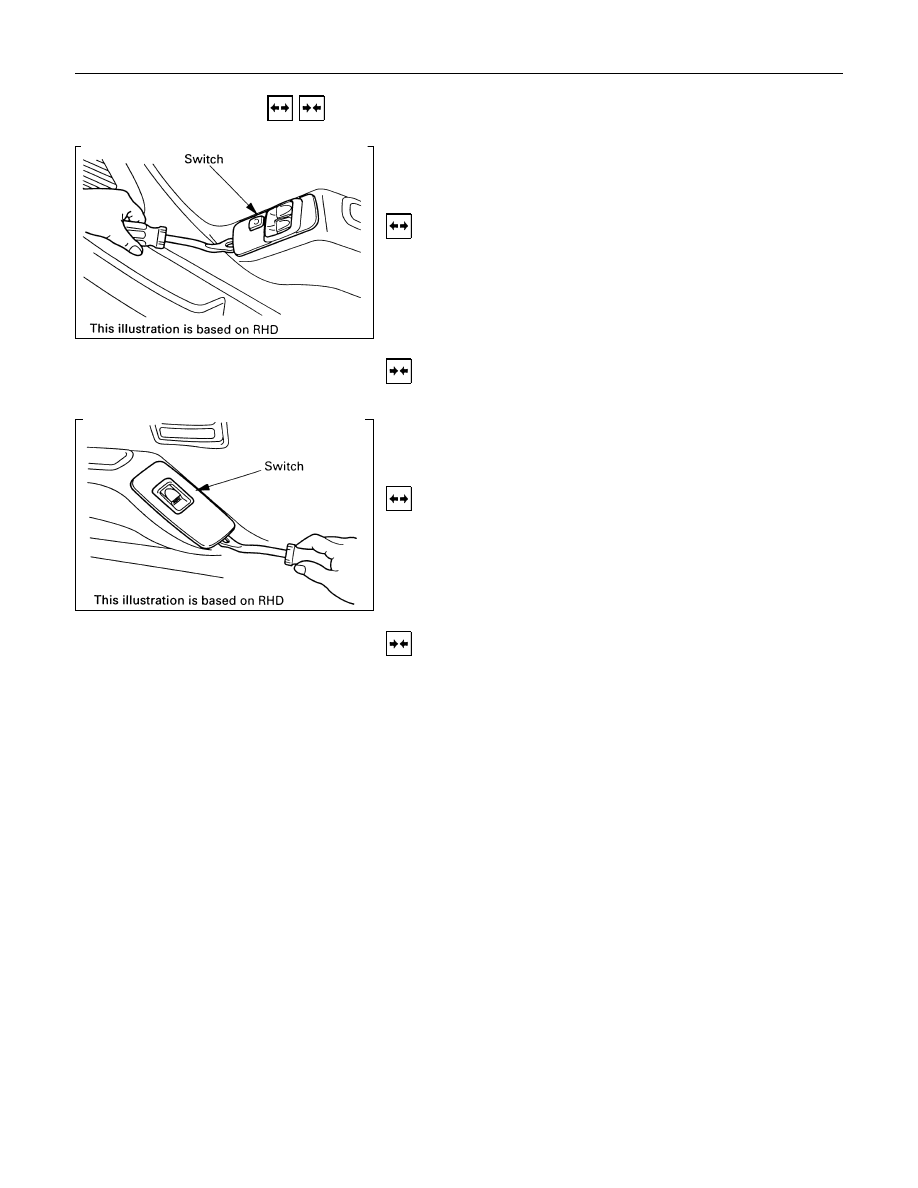

8-300  ELECTRICAL-BODY AND CHASSIS



  REMOVAL AND INSTALLATION

DRIVER SEAT SIDE POWER WINDOW &

DOOR LOCK SWITCH
(2 DOORS MODEL)

Removal

1. Remove  the  switch  by  pushing  the  spring  with  the  tip  of  a

screwdriver.

2. Disconnect the connector.

Installation

To install, follow the removal steps in the reverse order.

FRONT PASSENGER’S POWER WINDOW

& DOOR LOCK SWITCH
(2 DOORS MODEL)

Removal

1. Remove  the  switch  by  pushing  the  spring  with  the  tip  of  a

screwdriver.

2. Disconnect the connector.

Installation

To install, follow the removal steps in the reverse order.

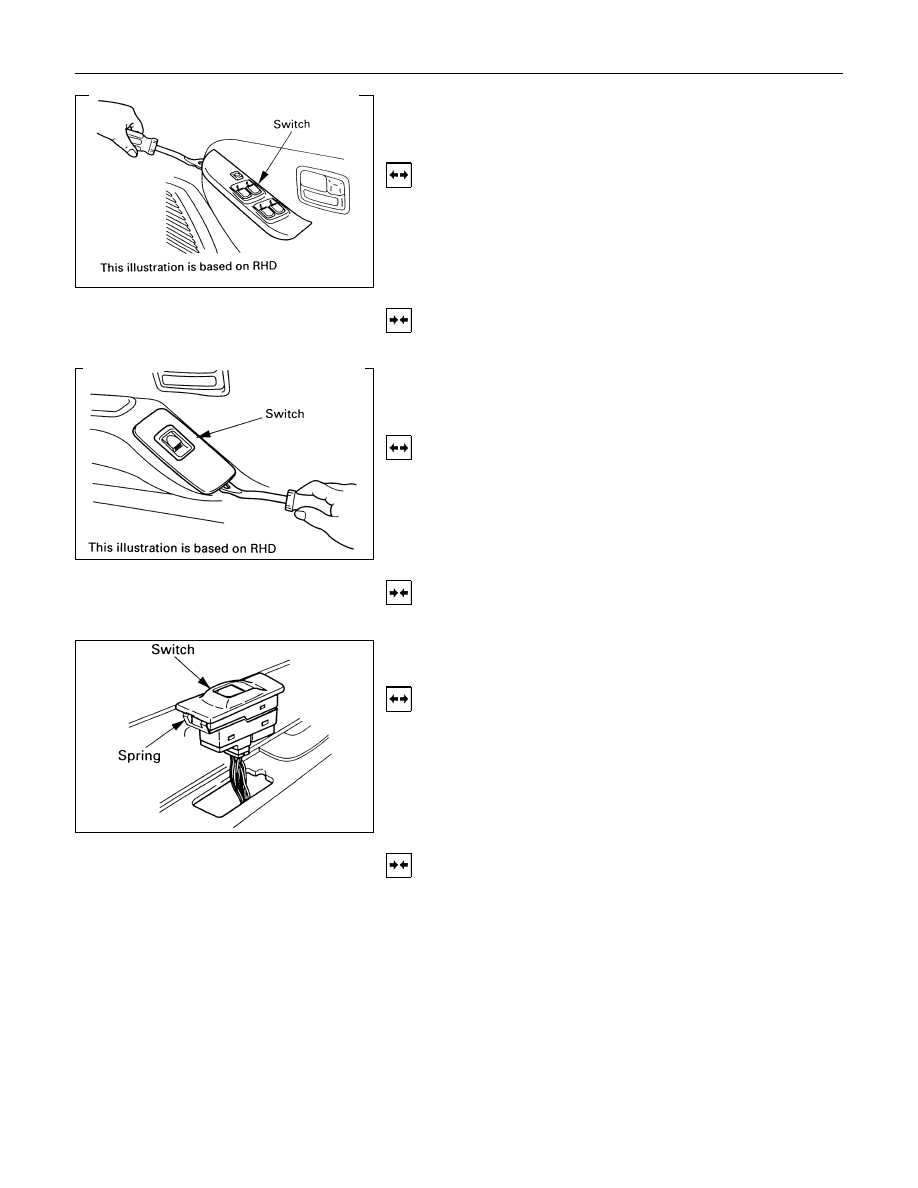

ELECTRICAL-BODY AND CHASSIS  8-301

DRIVER SEAT SIDE POWER WINDOW &

DOOR LOCK SWITCH
(4 DOORS MODEL)

Removal

1. Remove  the  switch  by  pushing  the  spring  with  the  tip  of  a

screwdriver.

2. Disconnect the connector.

Installation

To install, follow the removal steps in the reverse order.

FRONT PASSENGER’S POWER WINDOW

& DOOR LOCK SWITCH
(4 DOORS MODEL)

Removal

1. Remove  the  switch  by  pushing  the  spring  with  the  tip  of  a

screwdriver.

2. Disconnect the connector.

Installation

To install, follow the removal steps in the reverse order.

REAR POWER WINDOW & DOOR LOCK

SWITCH-LH & RH

Removal

1. Remove  the  switch  by  pushing  the  spring  with  the  tip  of  a

screwdriver.

2. Disconnect the connector.

Installation

To install, follow the removal steps in the reverse order.

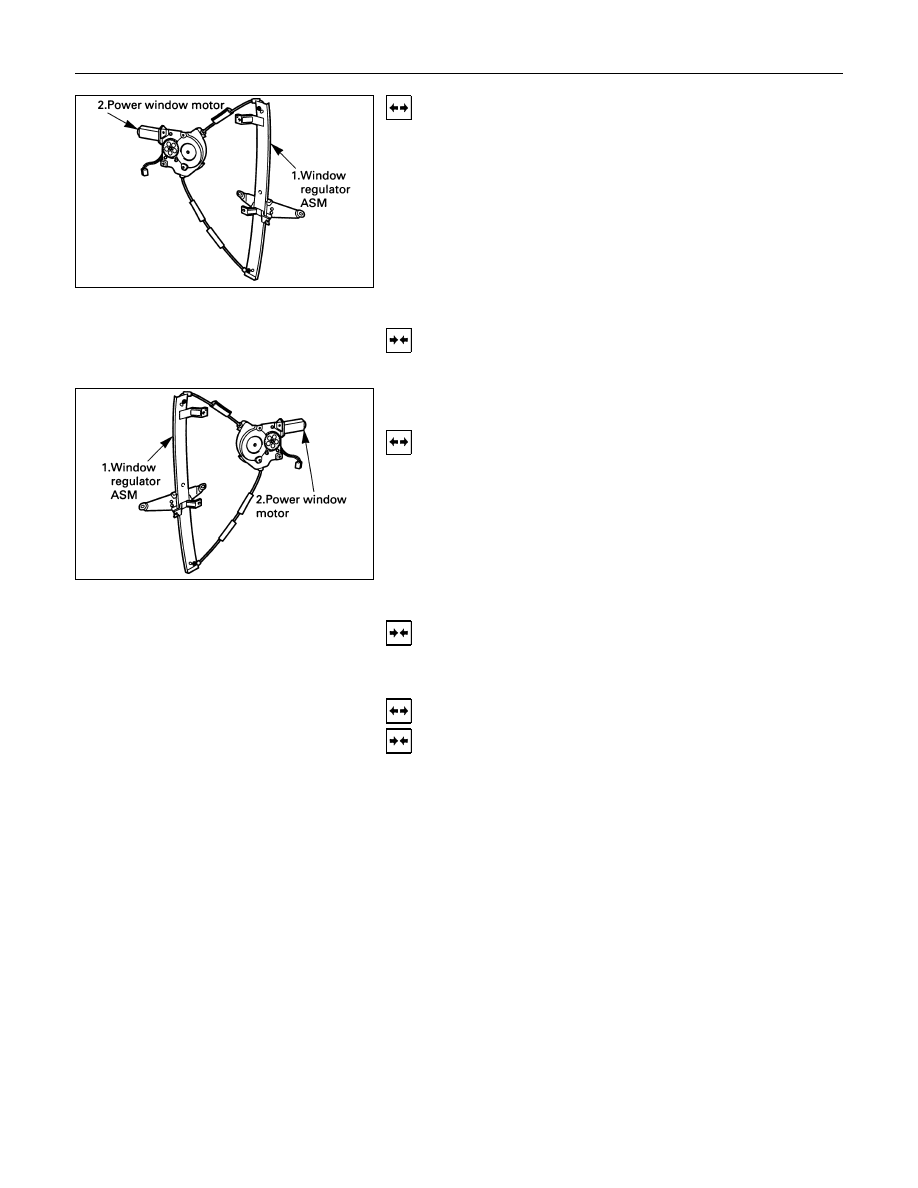

8-302  ELECTRICAL-BODY AND CHASSIS

DRIVER SEAT SIDE POWER WINDOW

MOTOR

Removal

1.Window Regulator ASM

• Refer  to  the  removal  steps  of  the  WINDOW

REGULATOR/POWER  WINDOW  MOTOR  in  Section

10 “BODY”.

2.Power Window Motor

• Loosen  the  fixing  bolts  to  remove  the  power  window

motor from the regulator.

Installation

To install, follow the removal steps in the reverse order.

FRONT PASSENGER’S POWER WINDOW

MOTOR

Removal

1. Window Regulator ASM

• Refer  to  the  removal  steps  of  the  WINDOW

REGULATOR/POWER  WINDOW  MOTOR  in  Section

10 “BODY”.

2. Power Window Motor

• Loosen  the  fixing  bolts  to  remove  the  power  window

motor from the regulator.

Installation

To install, follow the removal steps in the reverse order.

REAR POWER WINDOW MOTOR-LH & RH

Removal and Installation

Refer to the “DRIVER SEAT SIDE POWER WINDOW
MOTOR” removal and installation steps in this section.

ELECTRICAL-BODY AND CHASSIS  8-303

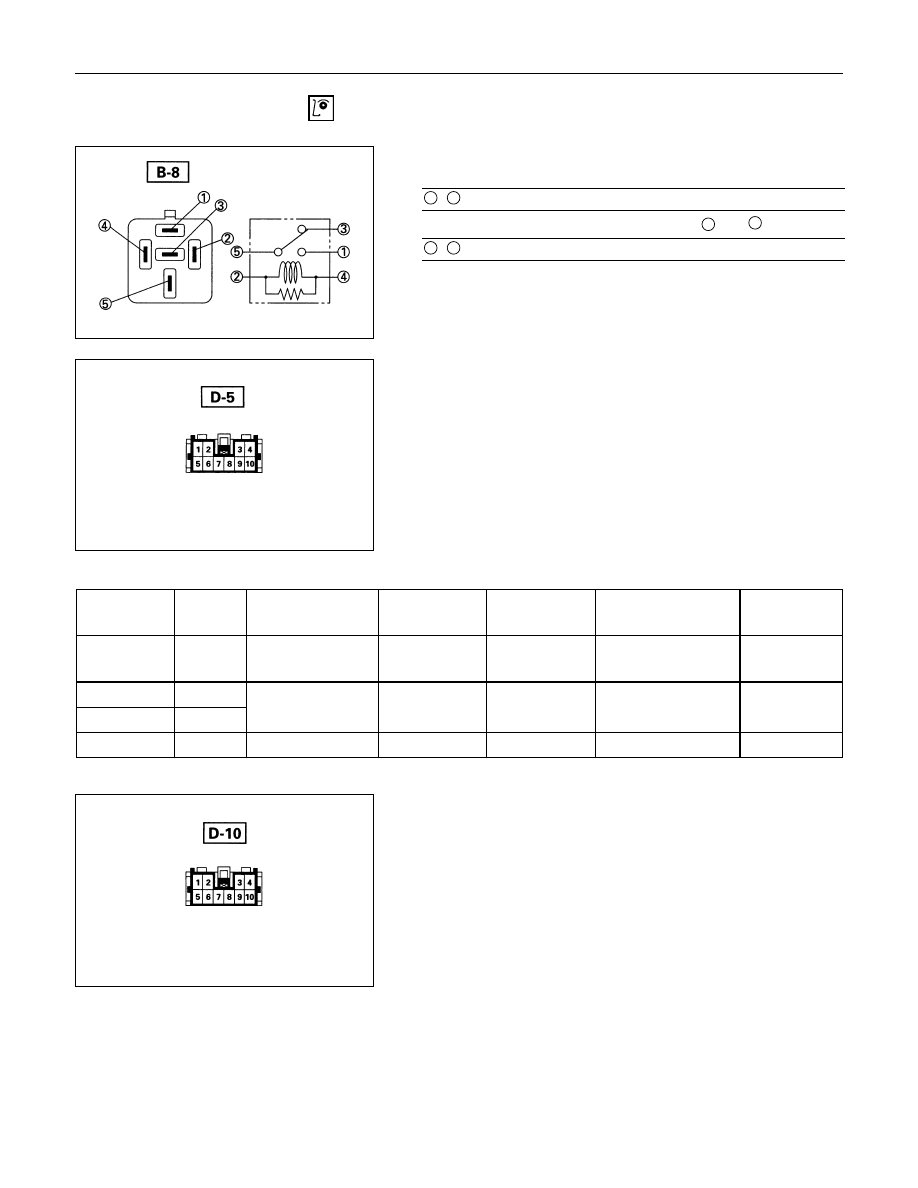

  INSPECTION AND REPAIR

Power Window Relay

Check continuity between the relay terminals.

1

-

5

........................ No continuity

(When battery voltage is applied between

2

 and

4

)

1

-

5

........................ Continuity

Harness side

Driver Seat Side Power Window & Door Lock
Switch

1.Harness Side Connector Circuit

Disconnect  the  switch  connector,  and  check  voltage  and

continuity between the harness side connector terminals as

shown in the following table.

Terminal

No.

Wire

color

Connecting to

Check item

Connecting

terminal

Check condition

Standard

2

G/R

Power window

relay

Voltage

2-Ground

Starter SW “ON”

Approx.

12V

1

L/R

Power window

10

L/W

motor

5

B

Ground

Continuity

5-Ground

-

Continuity

Harness side

Front Passenger’s Power Window & Door Lock
Switch

1.Harness Side Connector Circuit

Disconnect  the  switch  connector,  and  check  voltage  and

continuity between the harness side connector terminals as

shown in the following table.

Continuity

-

1-10

Continuity
