8-28  ELECTRICAL-BODY AND CHASSIS

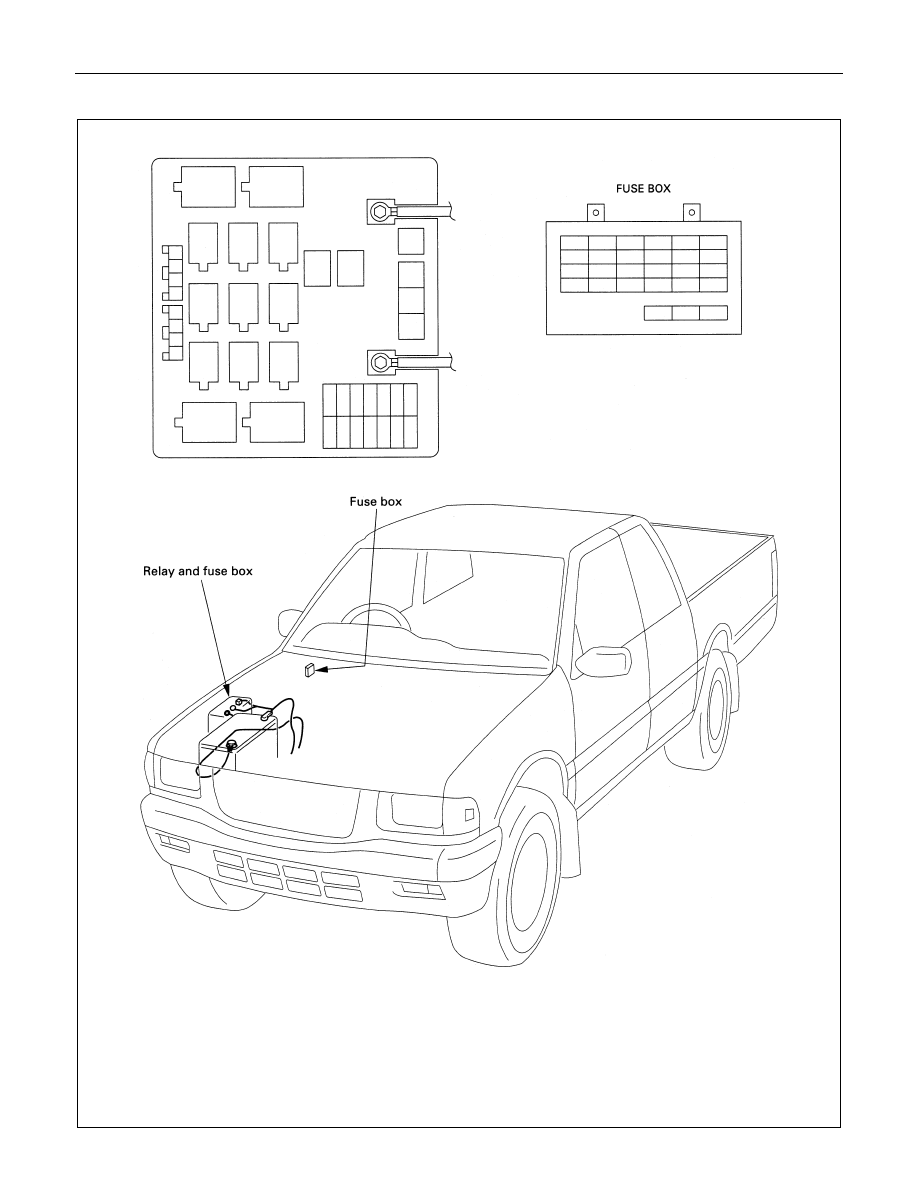

RHD (6VD1)

ELECTRICAL-BODY AND CHASSIS  8-29

RELAY LOCATION-1 (RELAY AND FUSE BOX)

RELAY & FUSE BOX

X-17

RELAY

Engine

model

NO.

HEC Engine Series

4J Engine Series

6VD1

X-1

RELAY;HEAD LIGHT RELAY;HEAD LIGHT RELAY;HEAD LIGHT

X-2

RELAY;TAIL LIGHT

RELAY;TAIL LIGHT

RELAY;TAIL LIGHT

X-3

RELAY;HEATER

RELAY;HEATER

RELAY;HEATER

X-4

RELAY;HORN

RELAY;HORN

RELAY;HORN

X-6

RELAY;STARTER

RELAY;QWS

RELAY;STARTER

X-7

(RELAY;THERMO)

RELAY;THERMO

RELAY;THERMO

X-9

RELAY;FUEL PUMP

RELAY;DIMMER

RELAY;FUEL PUMP

X-15

(RELAY;A/C COMP)

RELAY;CHARGE

RELAY;A/C COMP

X-16

(RELAY;COND.FAN)

RELAY;RR FOG

RELAY;COND.FAN

X-17

−

RELAY;STARTER

−

ECM

MEIN

8-30  ELECTRICAL-BODY AND CHASSIS

RELAY LOCATION-2 (HEC ENGINE MODEL)

(LHD)

(RHD)

RELAY

Connector No.

C-3

C-45

B-5

B-7

B-8

HEC Engine Series

WINDSHIELD

INTERMITTENT

FLASHER UNIT KEY, LIGHT AND

SEAT BELT

REMIND BUZZER

(For Gulf only)

REAR

DEFOGGER

(Except South

Africa & Chile)

POWER

WINDOW

ELECTRICAL-BODY AND CHASSIS  8-31

RELAY LOCATION-3 (4J ENGINE MODEL)

(LHD)

Relay;Intermittent

Relay;Glow-1

Relay;Glow-2

Flasher unit

C-50

C-3

C-45

Key,light and seat belt

remind buzzer

B-5

Relay;Rear defogger

B-7

Relay;Power window

B-8

C-49

(RHD)

C-45

C-3

Flasher unit

B-5

Key, light and seat belt

remind buzzer

Relay;Intermittent

Relay;Glow-1

Relay;Glow-2

C-49

C-50

Relay;Rear defogger

B-7

Relay;Power window

B-8

RELAY

Connector No.

C-3

C-45

B-5

B-7

B-8

4J Engine Series

WINDSHIELD

INTERMITTENT

FLASHER UNIT KEY, LIGHT AND

SEAT BELT

REMIND BUZZER

REAR

DEFOGGER

POWER

WINDOW
