8-24  ELECTRICAL-BODY AND CHASSIS

Light Name

Bulb No.

Rated Power

V-W

Number

of Bulbs

Lens

Color

Remarks

Charging

system

Gasoline engine

-

14-3.0

1

Red

Check engine

74

14-1.4

1

Red

Gasoline engine

Turn

W/O Tachometer

158

14-3.4

2

signal

W/Tachometer

74

14-1.4

2

High

W/O Tachometer

158

14-3.4

1

beam

W/Tachometer

74

14-1.4

1

Low

W/O Tachometer

-

14-3.0

1

fuel

W/Tachometer

74

14-1.4

1

Indicator/

Oil pressure

74

14-1.4

1

Red

Warning

Brake system

74

14-1.4

1

Red

light

W/O Tachometer

158

14-3.4

1

W/Tachometer

74

14-1.4

1

Seat belt

-

14-2.0

1

Red

Gulf

Oil temperature

74

14-1.4

1

Red

Diff. lock

74

14-1.4

1

Green

South Africa

Green

Blue

Amber

4WD

Green

ELECTRICAL-BODY AND CHASSIS  8-25

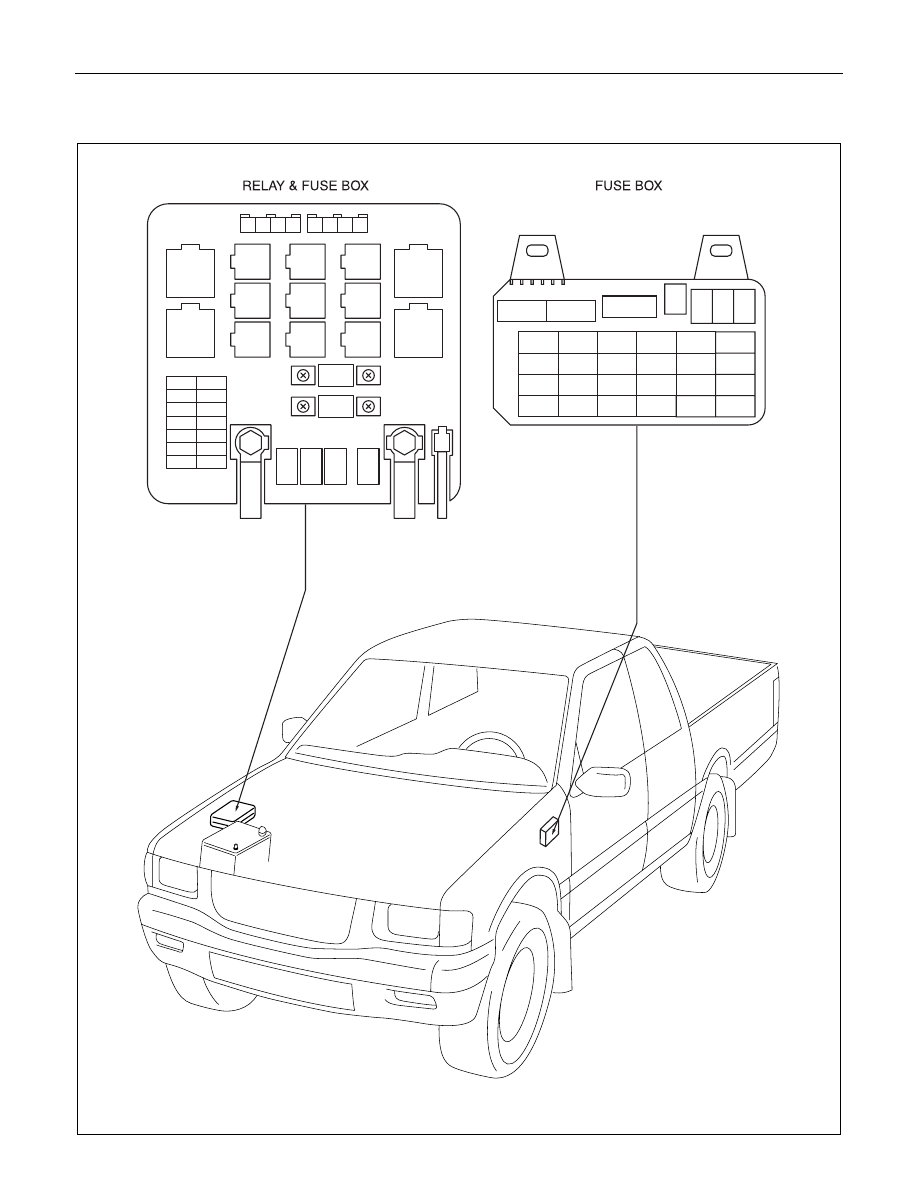

RELAY AND FUSE BOX LOCATION

LHD

8-26  ELECTRICAL-BODY AND CHASSIS

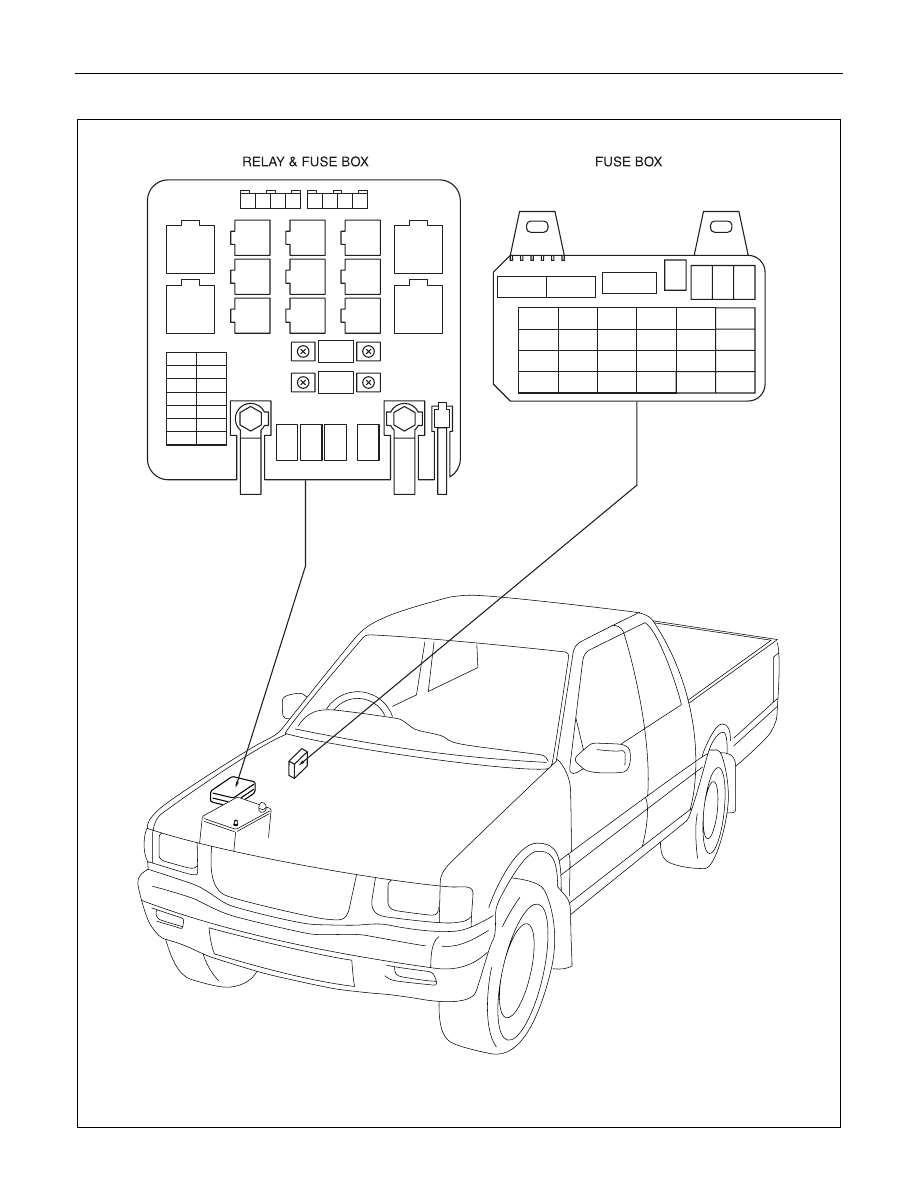

RHD

ELECTRICAL-BODY AND CHASSIS  8-27

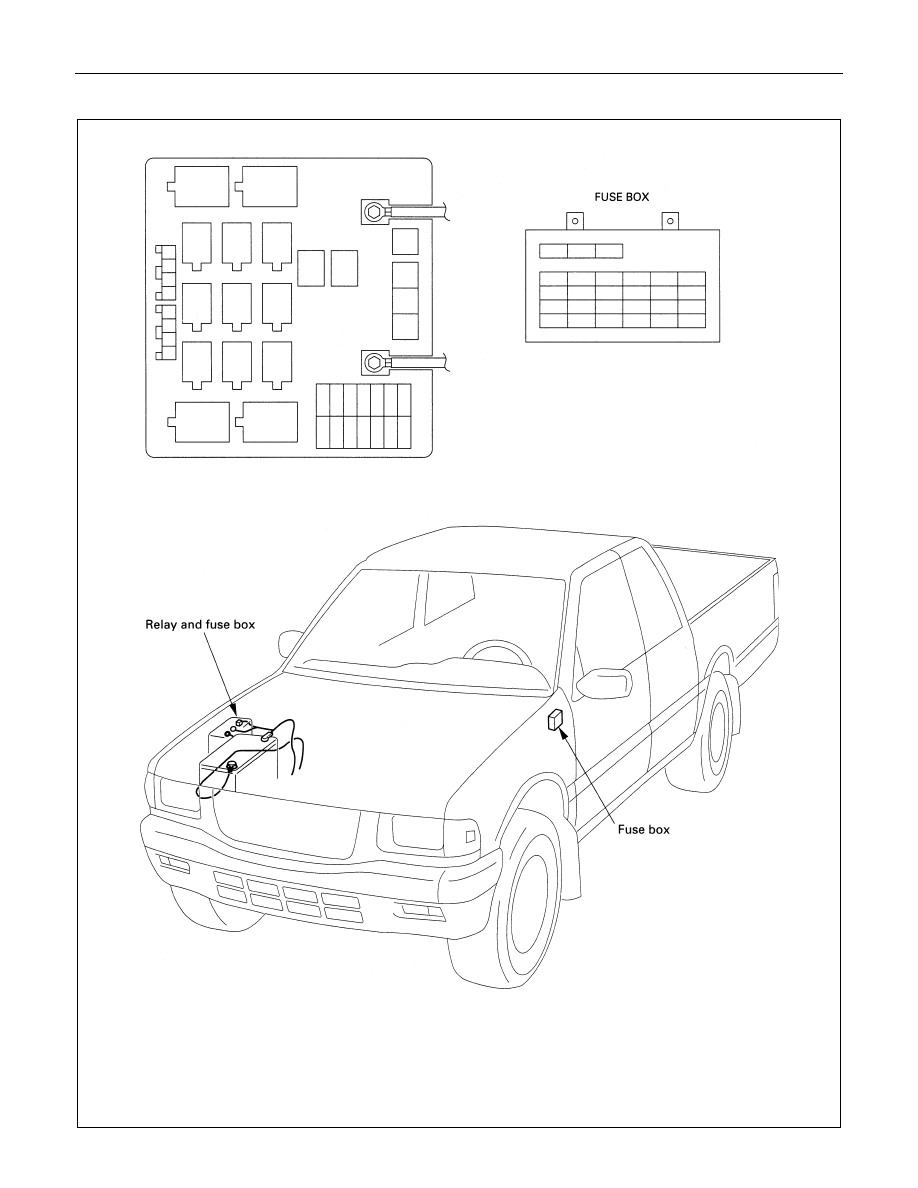

LHD (6VD1)
