8-20  ELECTRICAL-BODY AND CHASSIS

Caution:
Do not attach the booster cable to the discharged battery
negative terminal.

11.Start the engine of the vehicle with the booster battery.

Check that all unnecessary electrical accessories are off.

12.Start the engine of the vehicle with the discharged battery.

13.Remove  the  jumper  cables  in  the  reverse  order  to  which

they were attached.

Caution:
Be absolutely sure to remove the negative jumper cable
from the vehicle with the discharged battery first.

ELECTRICAL-BODY AND CHASSIS  8-21

READING THE CIRCUIT DIAGRAM

In this manual, each system has its own parts location illustration and circuit diagram.
And connector configurations used in the circuit diagram are shown at the end of this manual.

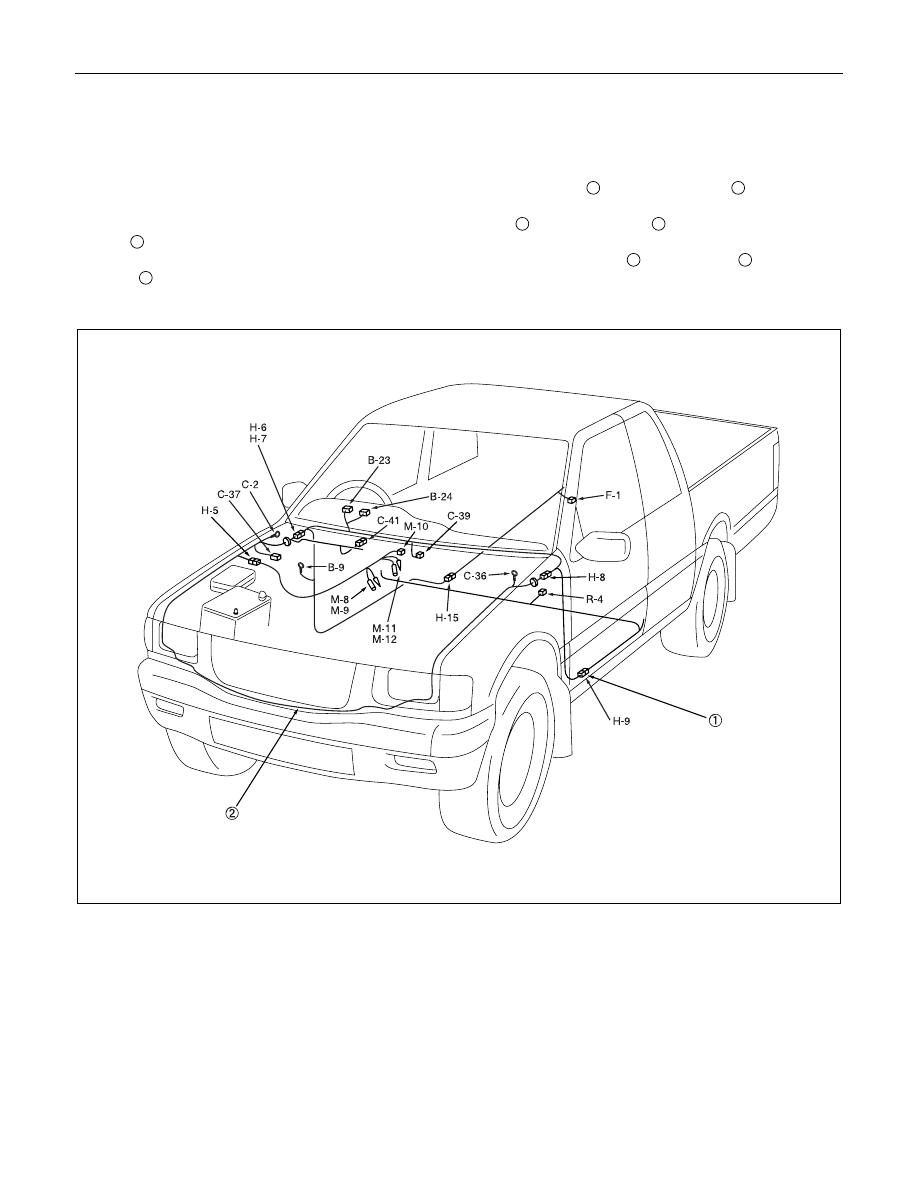

PARTS LOCATION: The parts location shows the location of the connectors

1

 and the harnesses

2

 used in the

each system.

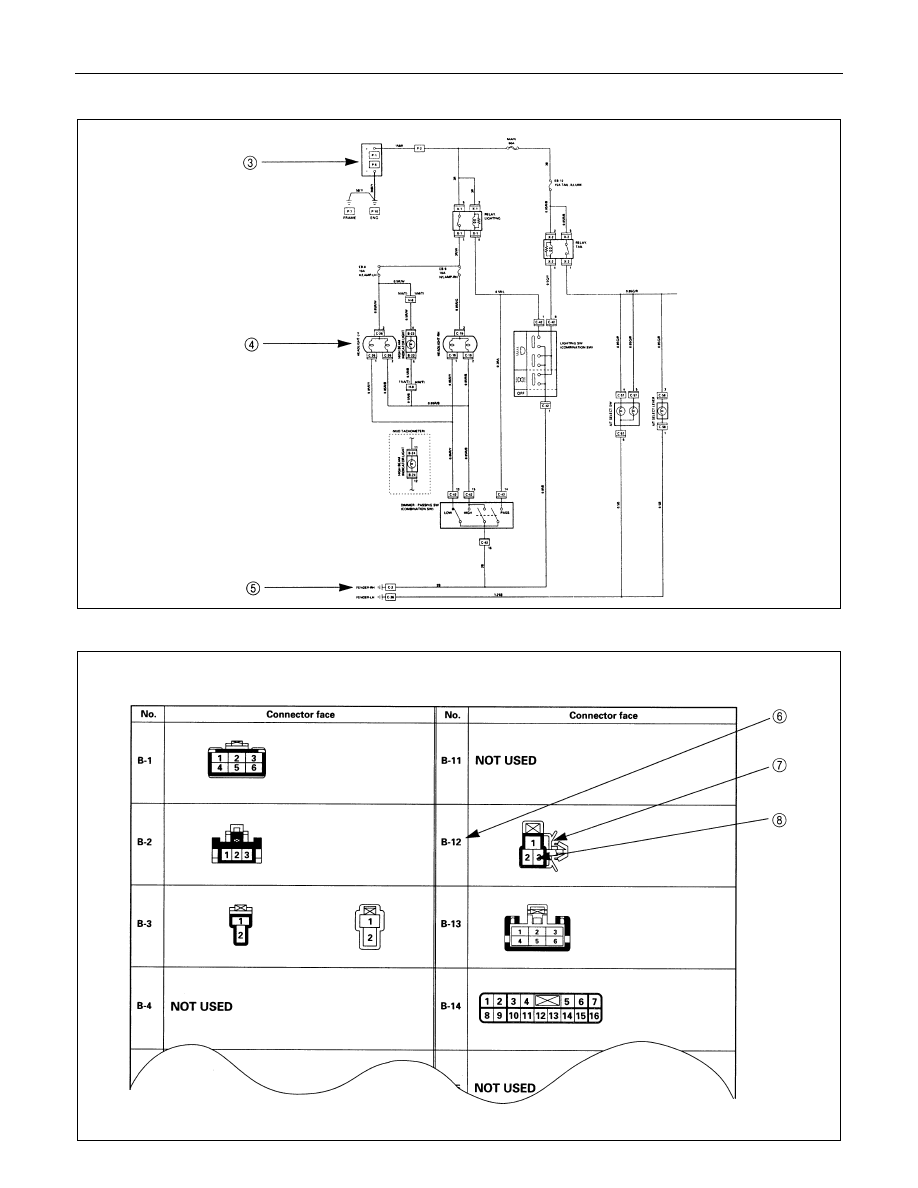

CIRCUIT DIAGRAM: The circuit diagram shows the power supply

3

, the load or loads

4

 and the grounding

point(s)

5

.

CONNECTOR LIST: The connector configuration shows each connector's number

6

, configuration

7

 and the pin

numbers

8

.

PARTS LOCATION

8-22  ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM

CONNECTOR LIST

CONNECTOR LIST

ELECTRICAL-BODY AND CHASSIS  8-23

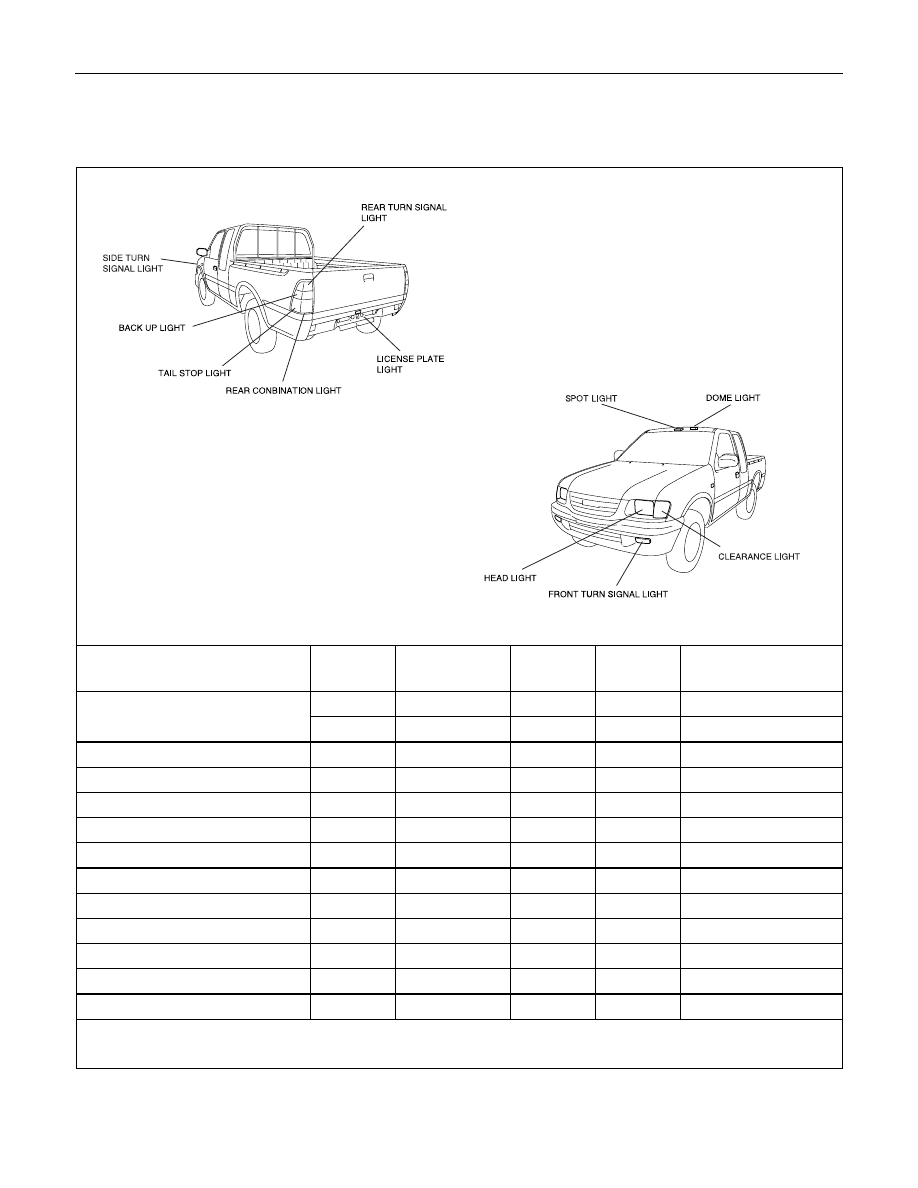

MAIN DATA AND SPECIFICATIONS

BULB SPECIFICATIONS

This illustration based on LHD

Light Name

Bulb No.

Rated Power

V-W

Number

of Bulbs

Lens

Color

Remarks

H4

12-60/55

2

White

Halogen

R2

12-45/40

2

White

Front turn signal light

-

12-23

2

Amber

Side turn signal light

W5W

12-5

2

Amber

Rear turn signal light

P21W

12-21

2

Amber

Tail and stop light

P21/5W

12-21/5

2

Red

Back up light

P21W

12-21

2

White

License plate light

W5W

12-5

1 or 2

White

Clearance light

W5W

12-5

2

White

A/C-Heater control light

-

12-0.7

1

-

Dome light

-

12-10

1

White

Spot light

-

12-5

2

White

Inspection light

-

12-5

1

White

Headlight
