ELECTRICAL-BODY AND CHASSIS  8-81

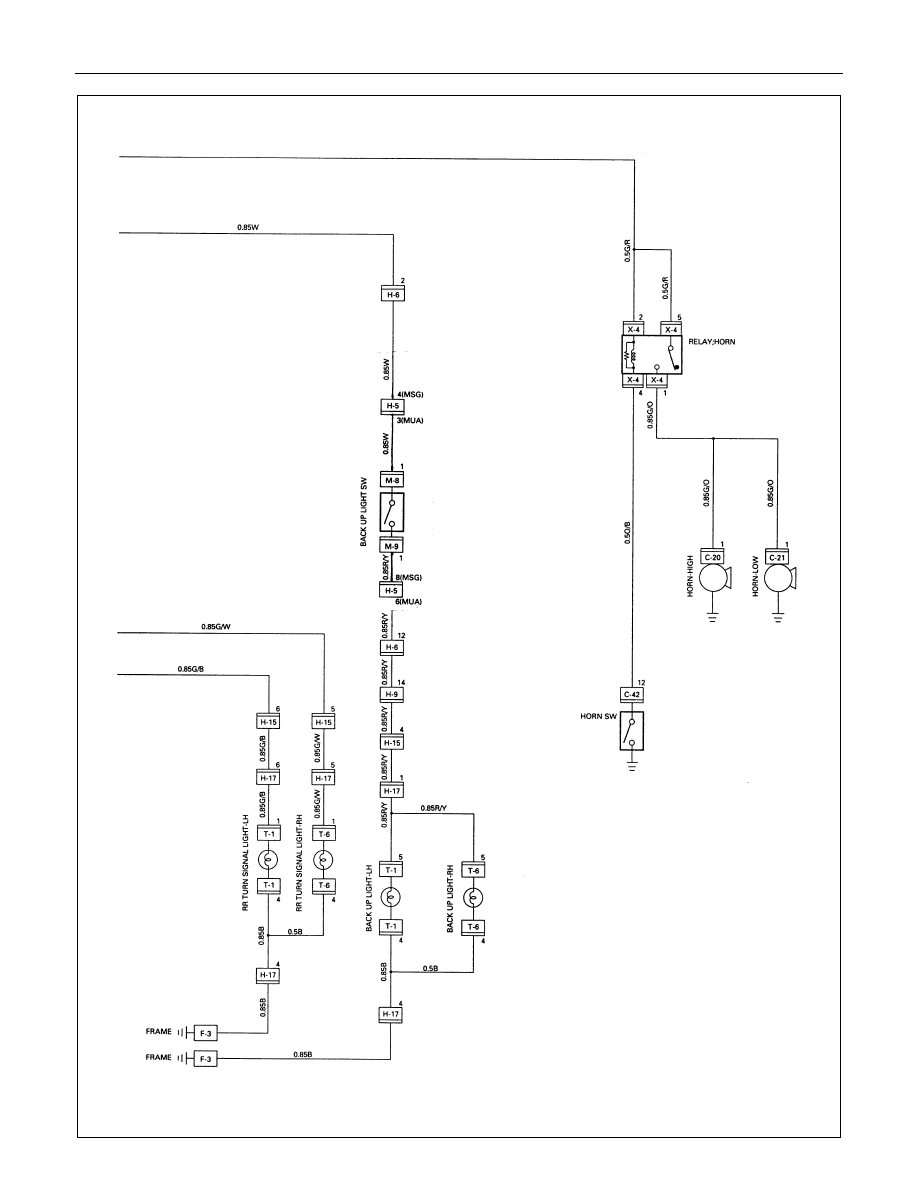

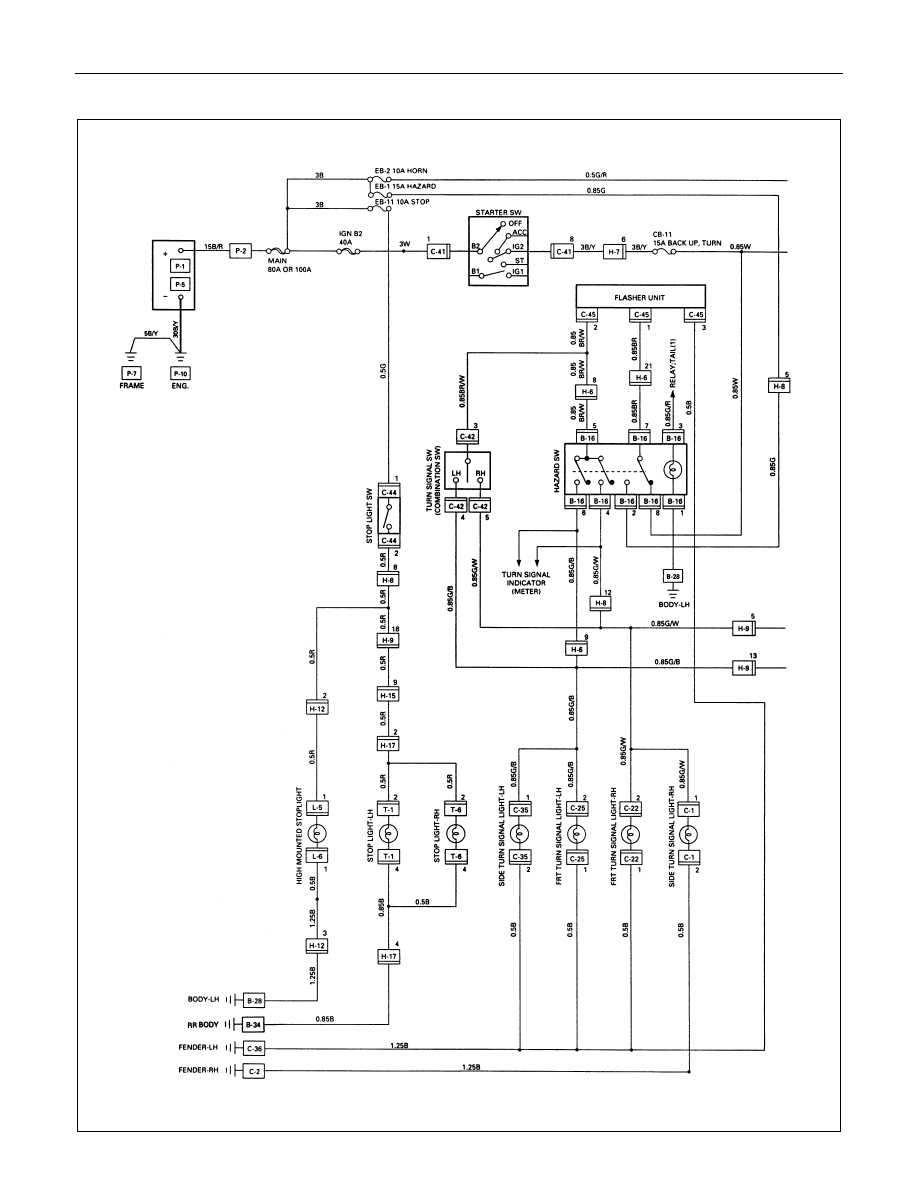

CIRCUIT DIAGRAM (LHD)

8-82  ELECTRICAL-BODY AND CHASSIS

ELECTRICAL-BODY AND CHASSIS  8-83

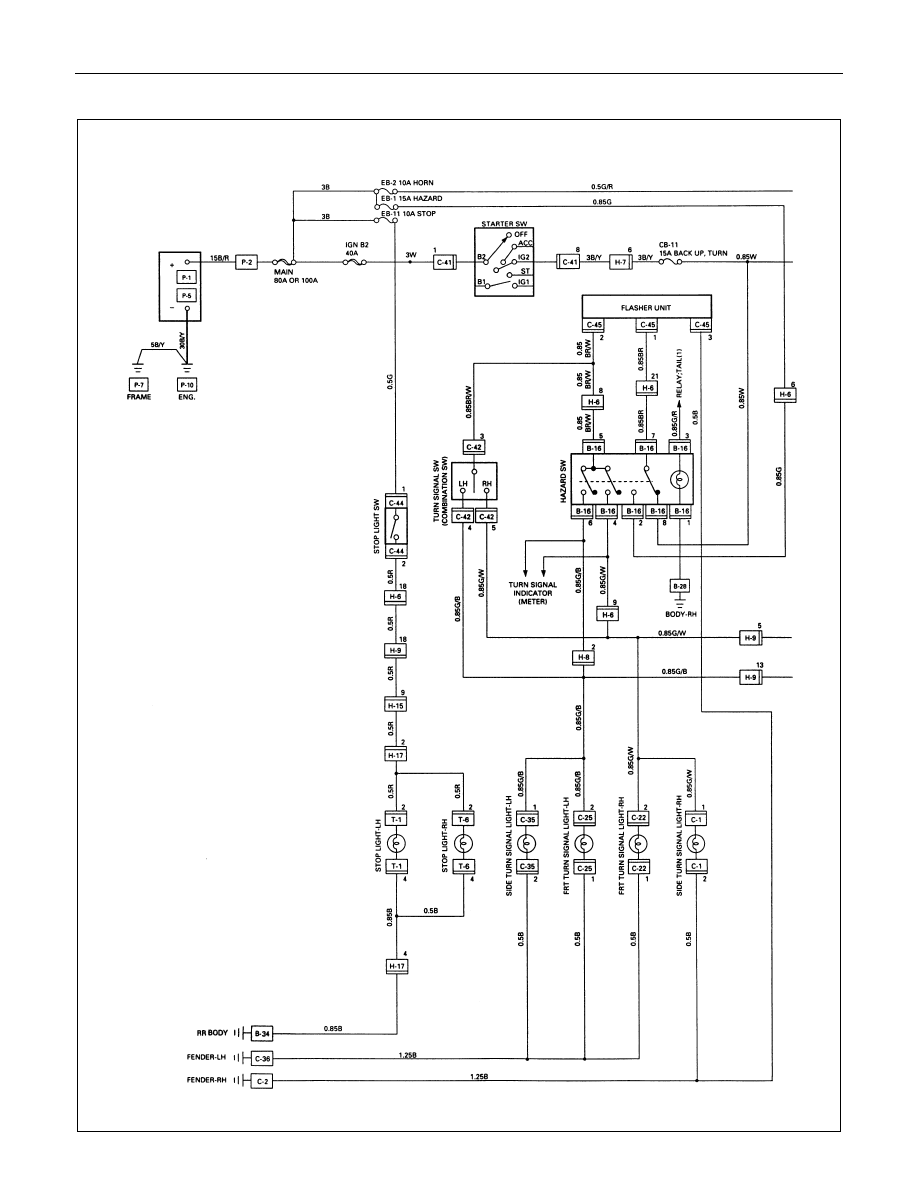

CIRCUIT DIAGRAM (RHD)

8-84  ELECTRICAL-BODY AND CHASSIS
