ELECTRICAL-BODY AND CHASSIS  8-77

  INSPECTION AND REPAIR

Switch side

LIGHTING SWITCH

Lighting Switch Connections

Terminal

SW

No.

position

1

7

8

OFF

Tail

Headlight

Switch side

HEADLIGHT BEAM SWITCH

Headlight Beam and Passing Switch
Connections

Terminal NO.

SW position

16

13

15

14

HI

LO

At “Passing” Position

At “Dimmer” position

8-78  ELECTRICAL-BODY AND CHASSIS

LIGHTING RELAY, TAIL RELAY

Check continuity between the relay terminals.

1

 -

5

............................ No continuity

(When battery voltage is applied between

2

 and

4

)

1

 -

5

............................ Continuity

ILLUMINATION CONTROLLER

Controller Inspection

Check the illumination controller function.

ELECTRICAL-BODY AND CHASSIS  8-79

HAZARD WARNING FLASHER, TURN SIGNAL LIGHT, BACK UP

LIGHT, HORN AND STOP LIGHT

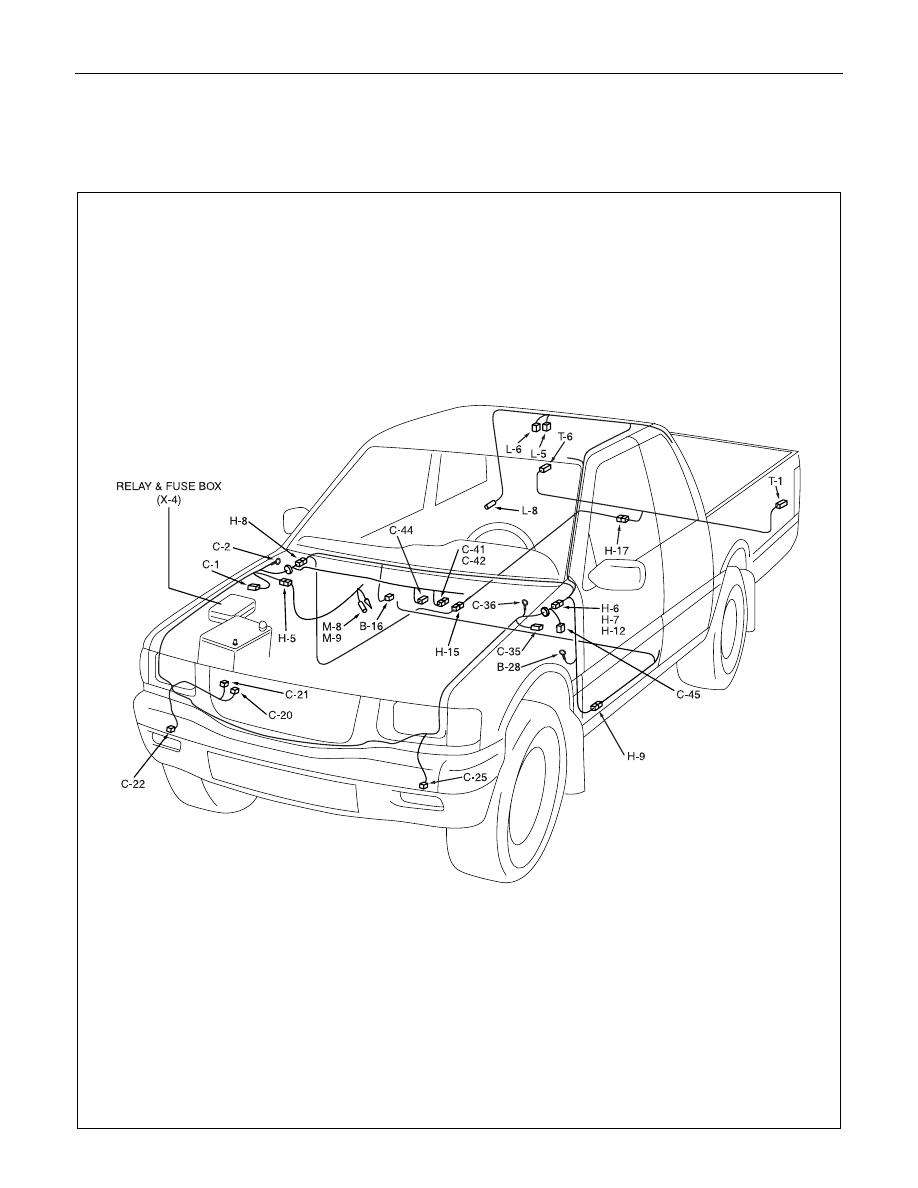

PARTS LOCATION (LHD)

8-80  ELECTRICAL-BODY AND CHASSIS

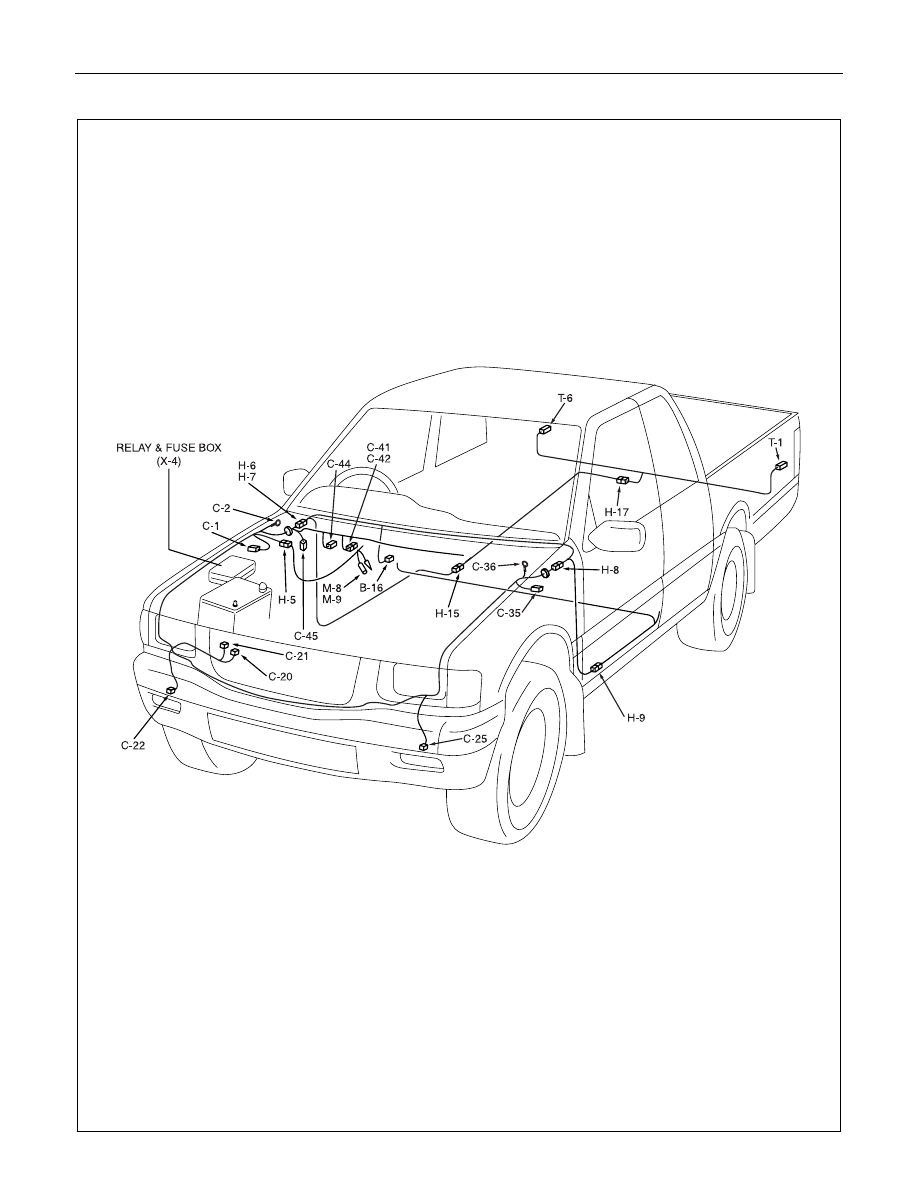

PARTS LOCATION (RHD)
