ELECTRICAL-BODY AND CHASSIS  8-73

Installation

Follow the removal procedure in the reverse order to install the
clearance light.
Pay close attention to the important points mentioned in the
following paragraphs.

Connector

Be absolutely sure that the clearance light connector is
securely connected.
This will prevent a poor contact and an open circuit.

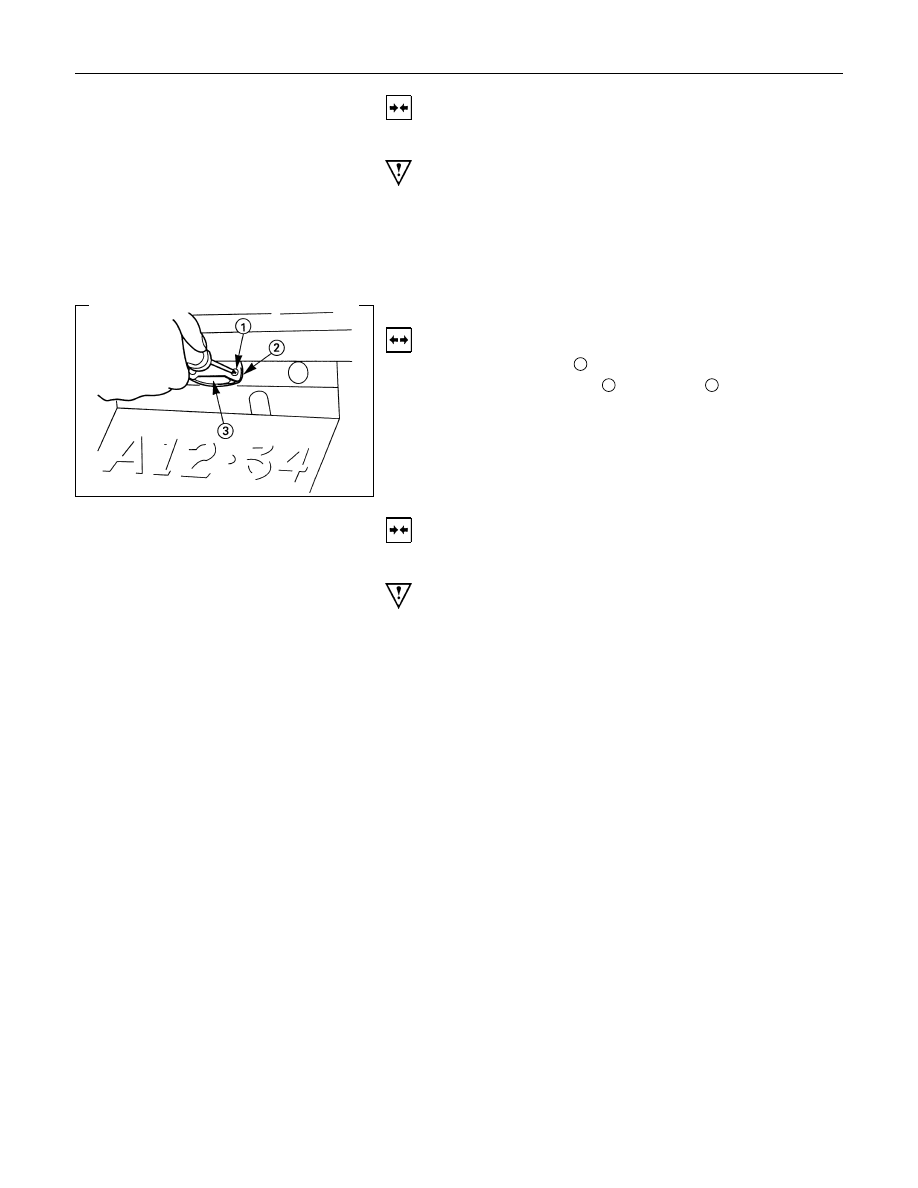

LICENSE PLATE LIGHT

Removal

1. Loosen the screws

1

.

2. Remove the lens cover

2

 and the lens

3

.

3. Pull the bulb to remove it.

Installation

Follow the removal procedure in the reverse order to install the
license plate light.
Pay close attention to the important points mentioned in the
following paragraphs.

Bulb

Be absolutely sure that the license plate light bulb is correctly
installed.
This will prevent a poor contact and open circuit.

8-74  ELECTRICAL-BODY AND CHASSIS

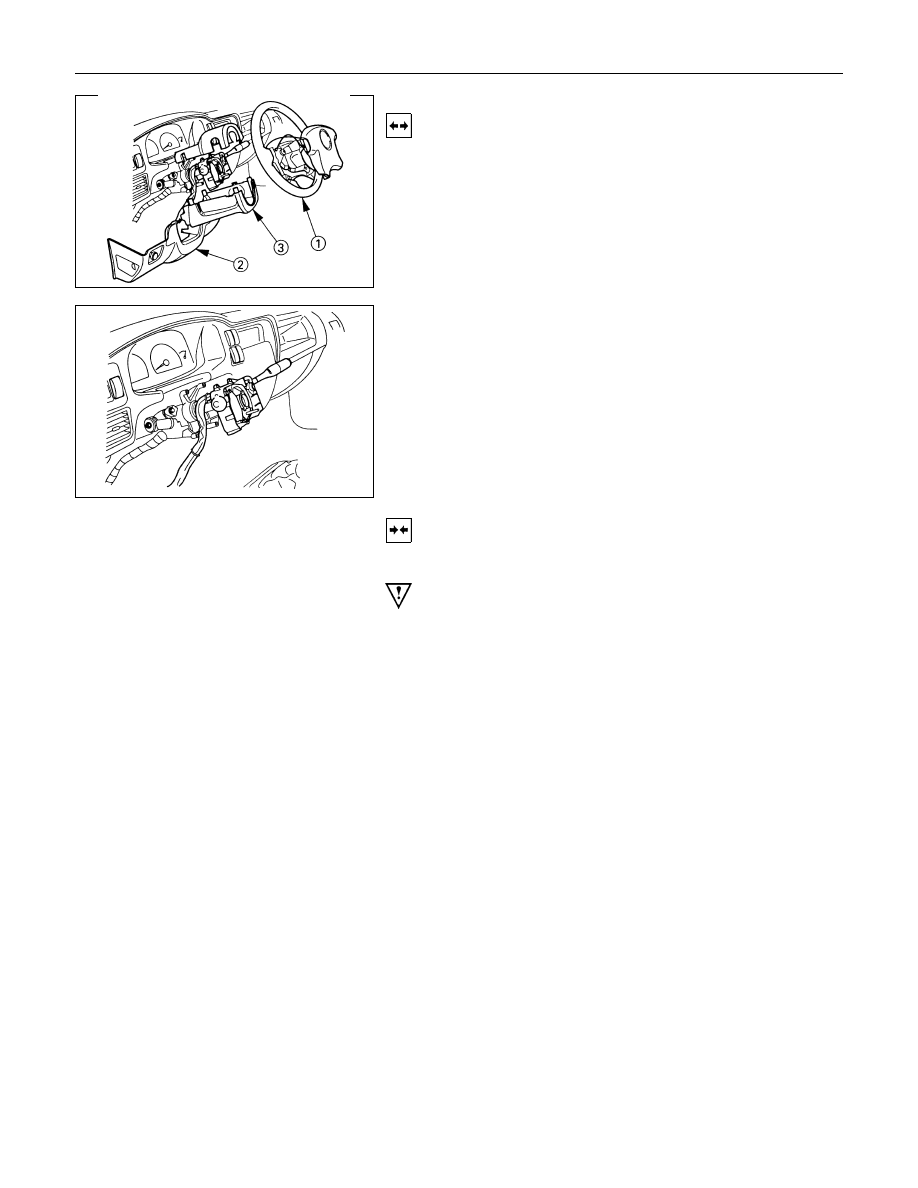

HEADLIGHT BEAM SWITCH

(COMBINATION SWITCH)

Removal

1. Remove the screws on the lower part of the steering wheel.

2. Remove the horn pad.

3. Remove the wiring connector.

4. Remove the steering wheel fixing nuts.

5. Remove the steering wheel.

Refer to the "STEERING" Section of this manual.

6. Remove the Instrument panel lower cover.

7. Remove the steering column cover.

8. Disconnect the connector.

9. Remove the headlight beam switch (lever) from the steering

shaft (combination switch).

Installation

Follow the removal procedure in the reverse order to install the
headlight beam switch(lever).
Pay close attention to the important points mentioned in the
following paragraphs.

Connector

Be absolutely sure that the headlight beam switch connector is
securely connected.
This will prevent a poor contact and an open circuit.

Wire Harness

Do not pinch the wire harnesses between the cluster and the
meter hood during the cluster installation procedure.
Wire damage will result.

ELECTRICAL-BODY AND CHASSIS  8-75

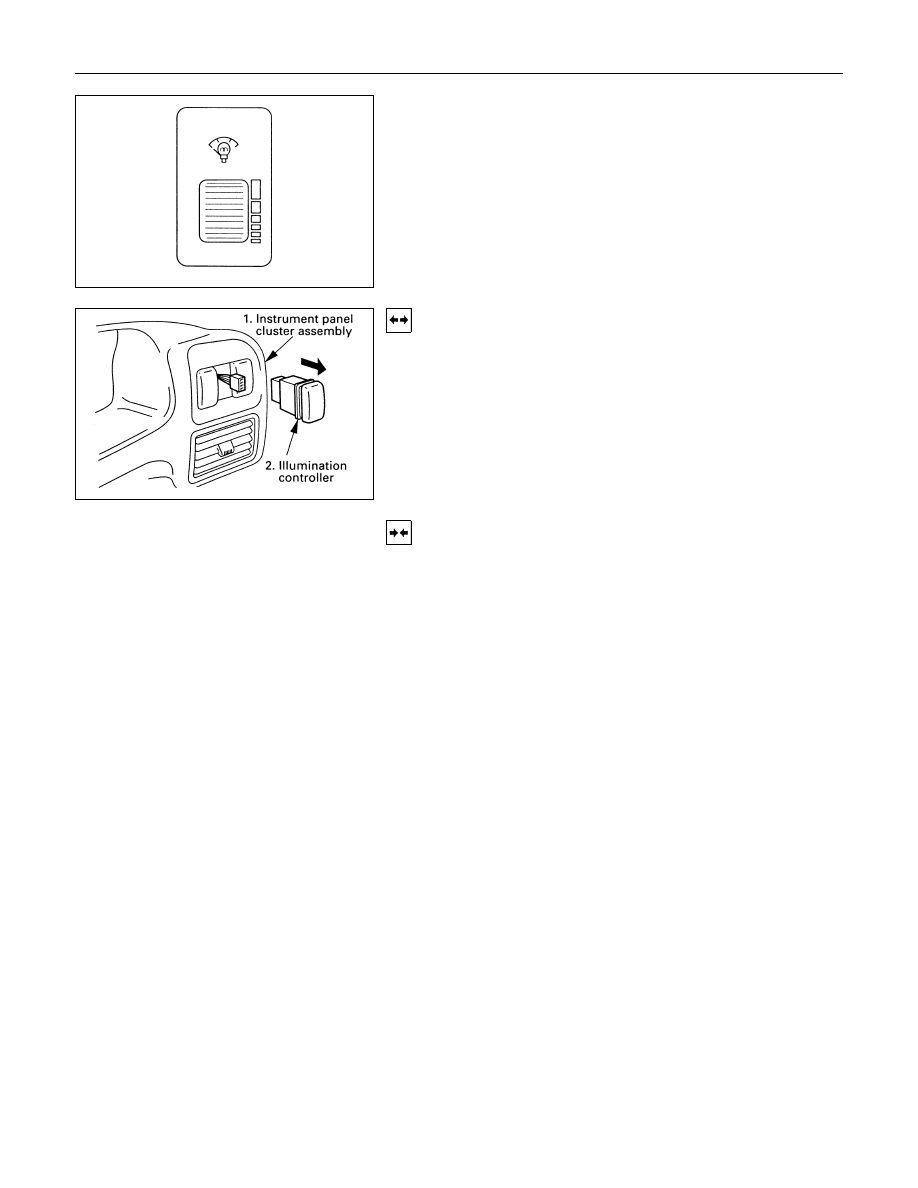

ILLUMINATION CONTROLLER

Turning the illumination controller knob upward increases the
brightness of each illumination light, turning it downward
decreases its brightness.

Removal

1. Instrument Panel Cluster Assembly

• Refer to Section 10 “BODY” for instrument panel cluster

assembly removal steps.

2. Illumination Controller

• Disconnect the switch connector.
• To remove the switch, push the lock from the back side

of the cluster assembly.

Installation

To install, follow the removal procedure in the reverse order.

Connector

Be absolutely sure that the illumination controller connector is
securely connected.
This will prevent a poor contact and an open circuit.

8-76  ELECTRICAL-BODY AND CHASSIS

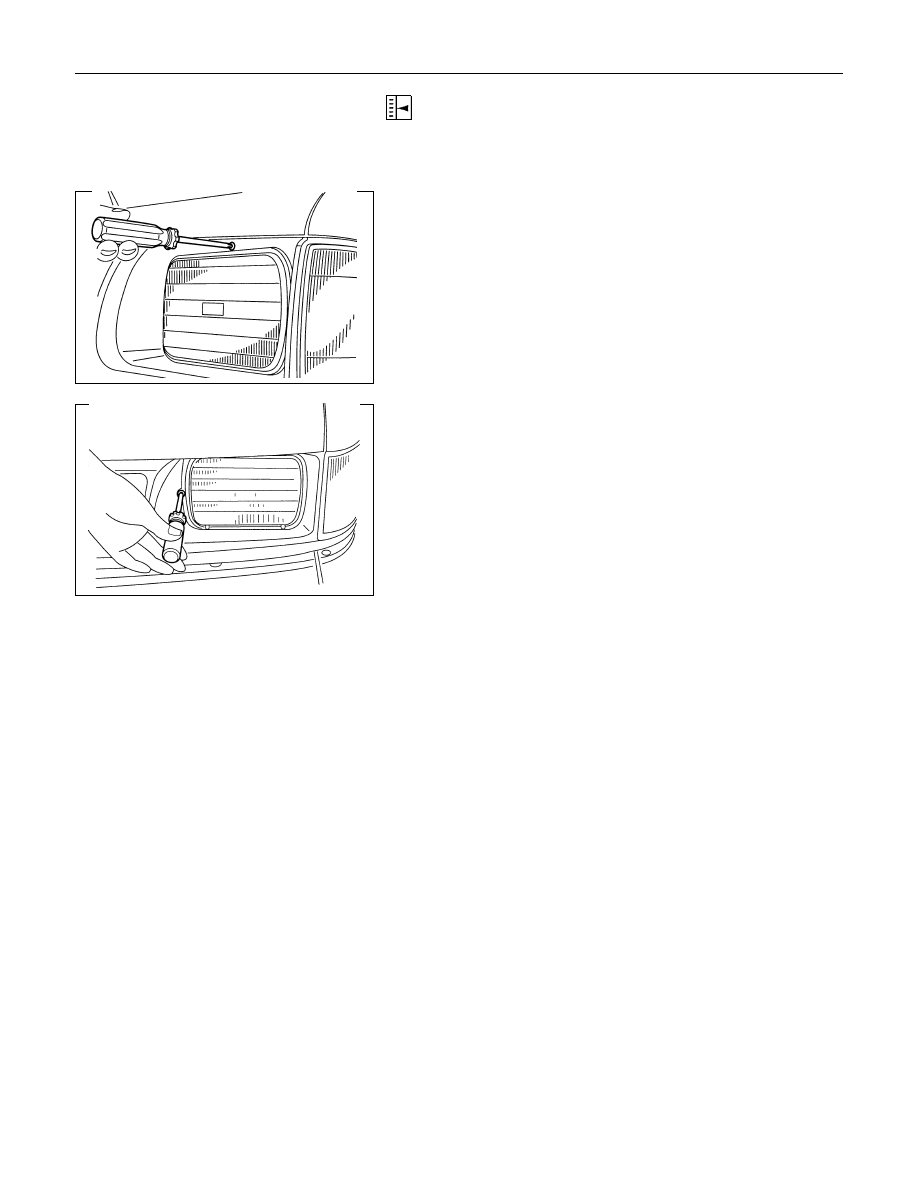

AIMING OF HEADLIGHT

check and adjust the inflation pressures, clean the headlight,
park the vehicle on a level surface and insure that vehicle is at
curb weight.

VERTICAL ADJUSTMENT

Use a screwdriver for vertical adjustment.

HORIZONTAL ADJUSTMENT

Use a screwdriver horizontal adjustment.
