ELECTRICAL-BODY AND CHASSIS  8-37

GROUNDING POINT

REFERENCE TABLE
(LHD)

Connector No.

Cable harness

Location

Parts (Load)

B-9

Body-RH

Fan SW, FRT power window & door lock SW-

passenger side, Key light & seat belt remind buzzer

B-28

Body harness

Body-LH

Turn signal indicator light, Illumination light (Meter,

Heater & A/C control panel, Cigarette lighter, RR

defogger SW, Audio, Hazard SW), FRT power window

& door lock SW-driver side, RR power window SW,

Power window relay, Door mirror control SW, RR

defogger, RR defogger SW, Door lock SW-driver side,

Audio, Clock, Cigarette lighter, High mounted stop light,

Seat belt SW (For Gulf only)

B-34

RR Body-RH

Tail light, license plate light, Backup light, RR turn

signal light, stop light, Fuel pump, Fuel tark unit

C-2

Fender-RH

Heater relay, Dimmer

⋅passing SW, Lighting SW,

Condenser fan relay, O

2

 Sensor, Starter relay, Radiator

level sensor, Radiator level control unit, Windshield

intermittent relay, Windshield wiper motor, Side turn

signal light-RH, 4WD SW

C-36

Engine room

harness

Fender-LH

Vehicle speed sensor, Speed warning buzzer (Gulf),

Speedometer, Fuel tank unit, Brake fluid level SW,

Tachometer (W/Tachometer), Fuel gauge, Clearance

light, Seat belt SW (Gulf), Windshield washer motor,

Flasher unit, Side turn signal light-LH, FRT turn signal

light, Engine coolant temperature gauge

(W/Tachometer)

C-95

Engine-RH

Condenser fan

C-94

Engine-LH

Speed warning buzzer (Gulf), Speedometer,

Tachometer (W/Tachometer), Fuel gauge, Engine

coolant temperature gauge (W/Tachometer)

E-10

Under the Intake manifold

E-16

Head of Cylinder head

P-7

Body-RH

Right side of body

P-10

Body-RH

Right side of engine

Battery harness

Engine harness

Engine

8-38  ELECTRICAL-BODY AND CHASSIS

GROUNDING POINT

REFERENCE TABLE
(RHD)

Connector No.

Cable harness

Location

Parts (Load)

B-9

Body-LH

Fan SW, FRT power window & door lock SW-

passenger side, RR power window SW, Key, light &

seat belt remind buzzer (SOUTH AFRICA)

B-28

Body harness

Body-RH

Illumination light (meter, Heater & A/C control panel,

Cigarette lighter, Ashtray, RR defogger SW, Audio,

Hazard SW), Turn signal indicator light, FRT power

window & door lock SW-driver side, Power window

relay, Door mirror control SW, RR defogger, RR

defogger SW, Door lock SW-driver side, Audio, Clock,

Cigarette lighter

B-34

RR Body-RH

Fuel tank unit, Tail light, License plate light, Fuel pump,

Stop light, RR turn signal light, Back up light

C-2

Fender-RH

Vehicle speed sensor, 4WD SW, Brake fluid level SW,

Heater relay, Dimmer

⋅passing SW, Lighter SW, Starter

relay, Windshield intermittent relay, Windshield wiper

motor, Flasher unit, Side turn signal light-RH,

Condenser fan relay

C-36

Engine room

harness

Fender-LH

Clearance light, Seat belt SW (SOUTH AFRICA),

Windshield washer motor, Side turn signal light-LH,

FRT turn signal light

C-95

Engine-RH

Condenser fan

C-94

Engine-LH

Speedometer, Tachometor (W/Tachometer), Engine

coolant temperature gauge (W/Tachometer), Fuel

gauge

E-10

Under the Intake manifold

E-16

Head of cylinder head

P-7

Body-RH

Right side of body

P-10

Body-RH

Right side of Engine

Battery harness

Engine harness

Engine

ELECTRICAL-BODY AND CHASSIS  8-39

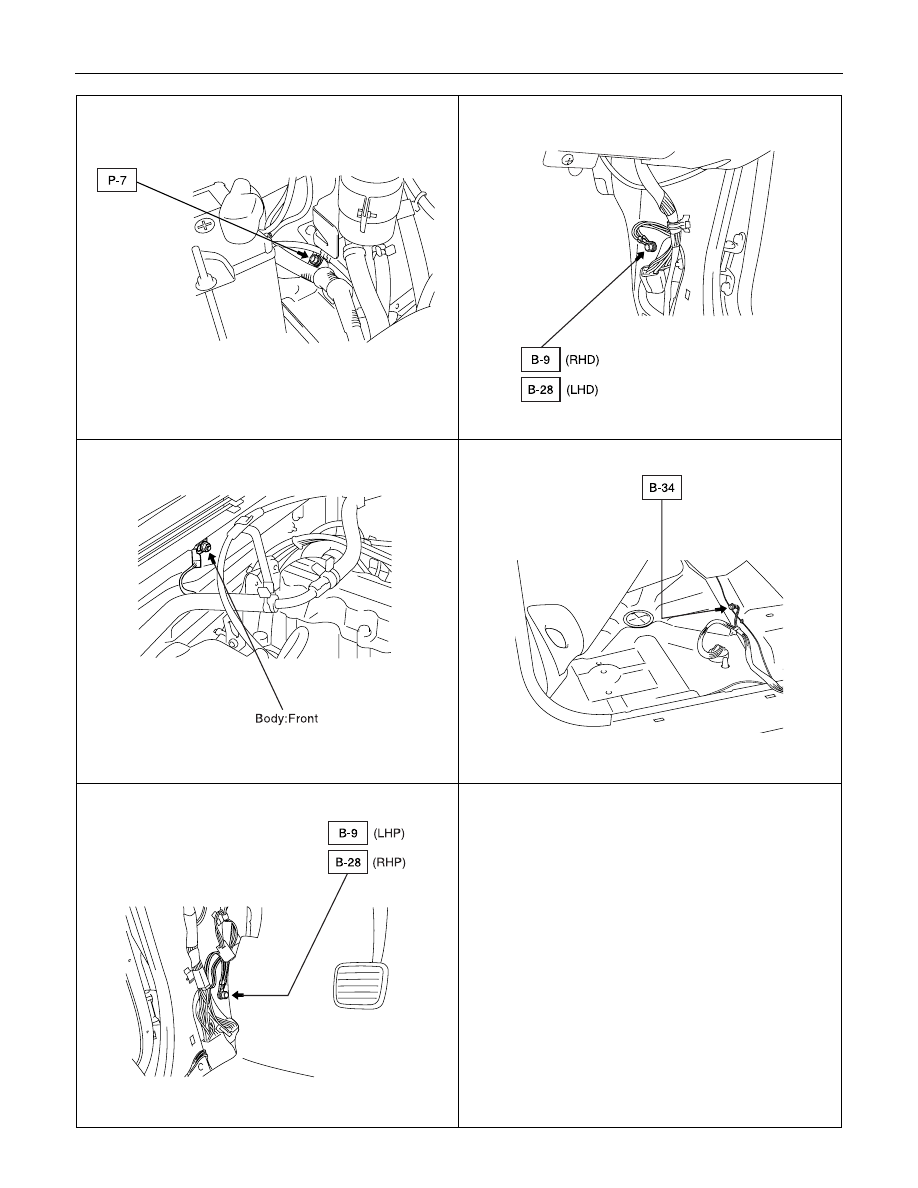

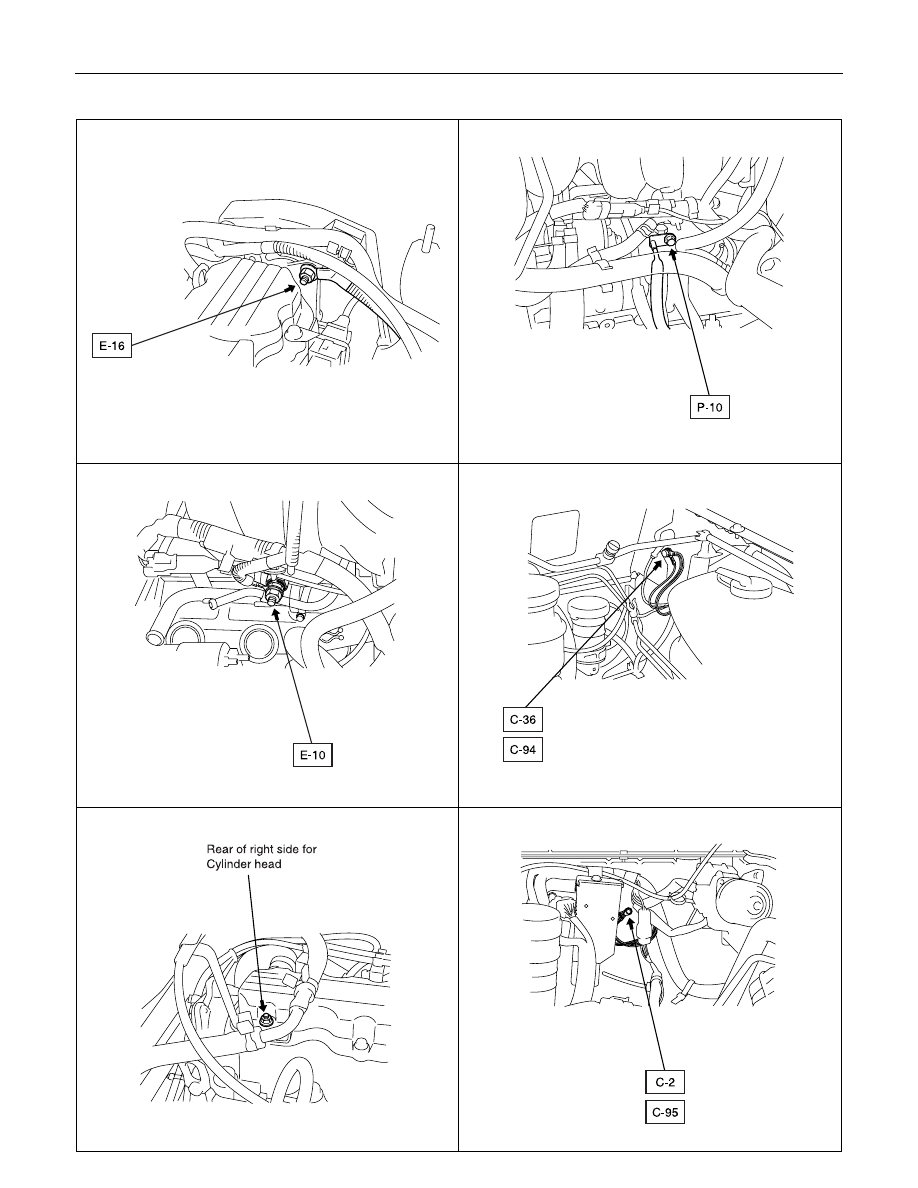

LOCATION
