ELECTRICAL-BODY AND CHASSIS  8-33

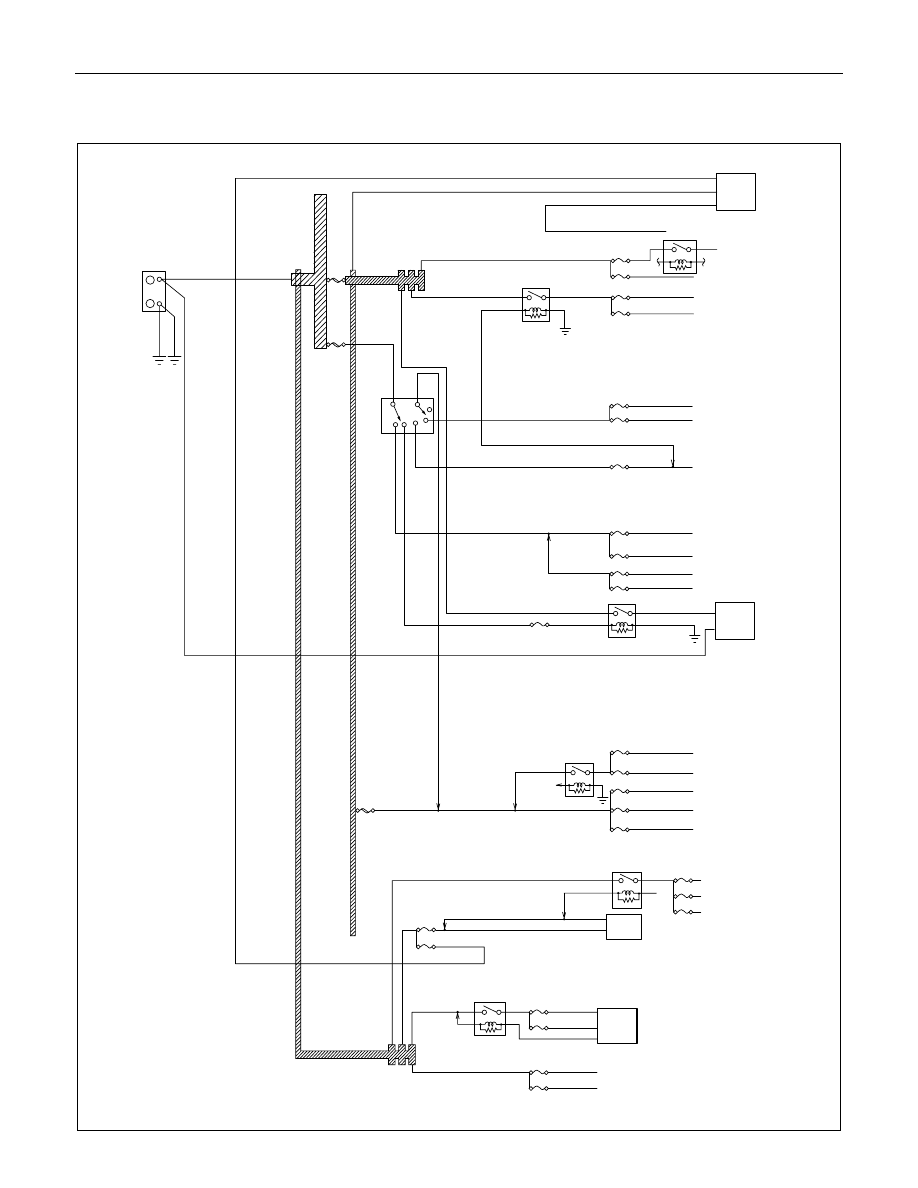

FUSE BLOCK CIRCUIT
HEC GASOLINE ENGINE

OFF

20B/Y

2B

20B/R

8B/R

+

-

ENG

BODY

IGN

40A

IGN B-2

40A

MAIN

80A

BUSBAR-4

BUSBAR-1

BUSBAR-3

ACC

IG2

B1

3W/B

3W

B2

ST

IG1

ACG

10A

ECM

15A

3W

10A

10A

3W

3R

3R/W

10A

15A

20A

AA

AA

15A

10A

JA

DA

AA

HAZARD

HORN

HEAD

LAMP

2W

3W

ECM

RELAY;FUEL

RELAY;H/LAMP

O

2

SENSOR

10A

DOOM LIGHT

AUDIO(B)

15A

RR DEFOG

20A

DOOR LOCK

FUEL PUMP

INJECTOR

JOINT TO
KA01

TA

20A

P/WINDOW FT

UA

20A

P/WINDOW RR

IA

VA

1.25B/W

8W

0.85W/L

S

B

L

CHARGE WARNING LIGHT

TAIL LAMP

ACG

RELAY;HEATER

RELAY;TAIL

RELAY;P/WINDOW

3W

3W

BACK UP,TURN

ENGINE

10A

15A

(IG.COIL)

15A

METER.WARNING

15A

FT WIPER&WASHER

20A

10A

AUDIO,MIRROR

15A

CIGAR LIGHTER

15A

KA

SA

RA,VA

3B/Y

3L

15A

10A

STOP LAMP

20A

10A

A/C

0.85R/W

3B

3B

RELAY;STARTER

HA

BLOWER MOTOR

HA

3L/R

3B/W

3B

C

B

STARTER

0.5B/W

2W/L

EA

3B/R

FA

0.85Y

3B/R

8-34  ELECTRICAL-BODY AND CHASSIS

REFERENCE TABLE OF FUSE, FUSIBLE LINK AND CIRCUIT BREAKER

FUSE
(Relay and fuse box)

Fuse No.

Capacity

Indication on lable

Parts(Load)

EB-1

15A

HAZARD

Hazard SW, Flasher unit

EB-2

10A

HORN

Horn relay, Horn SW, Horn

EB-3

20A

BLOWER

Blower motor, Control lever, Blower resistor

EB-4

10A

A/C

Pressure SW, A/C SW, Electronic thermostat, Fan SW,

Magnetic clutch, A/C thermo relay, A/C relay

EB-5

20A

INJECTOR.

Fuel rail, Injector, ECM

EB-6

15A

FUEL

Fuel pump

EB-7

10A

O

2

 SENSOR

Oxygen sensor

EB-8

10A

HEADLIGHT LH

Headlight-LH, High beam, Indicator light,

Dimmer

⋅passing SW

EB-9

10A

HEADLIGHT RH

Headlight-RH, Dimmer

⋅passing SW

EB-10

10A

STOP LIGHT

Stop light SW, Stop light, Highmount Stop light

EB-11

10A

TAIL LIGHT

Tail relay, Clearance light, Tail light, License plate light,

Illumination lights, Lighting SW, Meter Panel

EB-12

-

-

-

EB-13

10A

ALTERNATOR

ACG

EB-14

15A

ECM

Relay fuel pump, ECM

(   )...... IF EQUIPPED

EB15

40A

IGN-B1

-

EB16

100A

MAIN

-

EB17

40A

IGN-B2

-

EB18

-

-

-

EB19

30A

CONDENSER FAN

-

EB20

-

-

-

ELECTRICAL-BODY AND CHASSIS  8-35

FUSE
(Fuse Box)

Fuse No.

Capacity

Indication on lable

Parts(Load)

CB-1

10A

STARTER

Starter relay, Starter

CB-2

-

-

-

CB-3

15A

ENGINE-1

Ignition SW, Coil Module, ECM

CB-4

10A

ENGINE-2

ECM

CB-5

15A

RHD

METER

Meter gauges. Indicator and warning lights, ECM

CB-6

20A

RHD

FRONT WIPER

Windshield wiper&washer SW, Windshield wiper

motor, Windshield washer motor, Windshield

intermittent relay

CB-7

15A

LHD

METER

Meter gauges. Indicator and warning lights, ECM

CB-8

20A

LHD

FRONT WIPER

Windshield wiper&washer SW, Windshield wiper

motor, Windshield washer motor, Windshield

intermittent relay

CB-9

-

-

-

CB-10

-

-

-

CB-11

15A

BACK UP, TURN

Control unit, Hazard SW, Back up light

SW(M/T),Back up light

CB-12

10A

LHD

(SEAT HEATER)

-

CB-13

15A

(RR DEFOG.)

RR defogger relay, RR defogger SW, RR defogger

CB-14

10A

DOME LIGHT

Dome light, Spot light, Door SW, Audio Clock

CB-15

20A

(DOOR LOCK)

FRT power window&door lock SW-driver side,

Door lock SW-driver side, Door lock actuator

CB-16

-

-

-

CB-17

-

-

-

CB-18

-

-

-

CB-19

15A

AUDIO

Audio

CB-20

15A

CIGAR

Cigaretter lighter, Clock

CB-21

-

-

-

CB-22

-

-

-

CB-23

-

-

-

CB-24

-

-

-

8-36  ELECTRICAL-BODY AND CHASSIS

FUSIBLE LINK
(Relay and fuse box)

Fusible link No.

Capacity

Indication on label

Remarks

EB-15

40A

IGN-B1

-

EB-16

80A

MAIN

Except

100A

MAIN

-

EB-17

40A

IGN-B2

-

EB-18

-

-

-

EB-19

30A

CONDENSER FAN

-

EB-20

-

-

-

CIRCUIT BREAKER
(Fuse box)

Circuit breaker No.

Capacity

Indication on label

Parts(Load)

B-31

30A

(POWER WINDOW)

Power window & door lock SW, Power

window motor, Power window relay
