ELECTRICAL-BODY AND CHASSIS  8-25

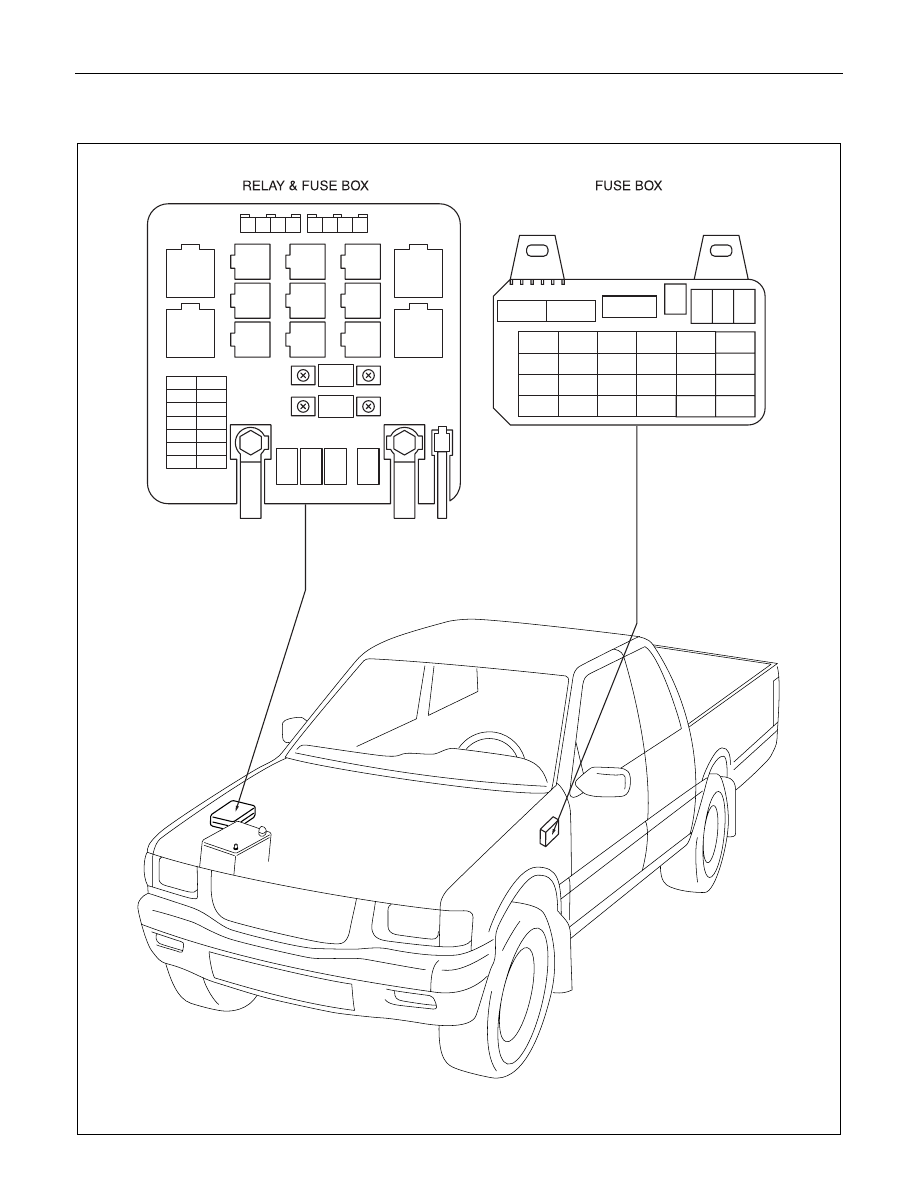

RELAY AND FUSE BOX LOCATION

LHD

8-26  ELECTRICAL-BODY AND CHASSIS

RHD

ELECTRICAL-BODY AND CHASSIS  8-27

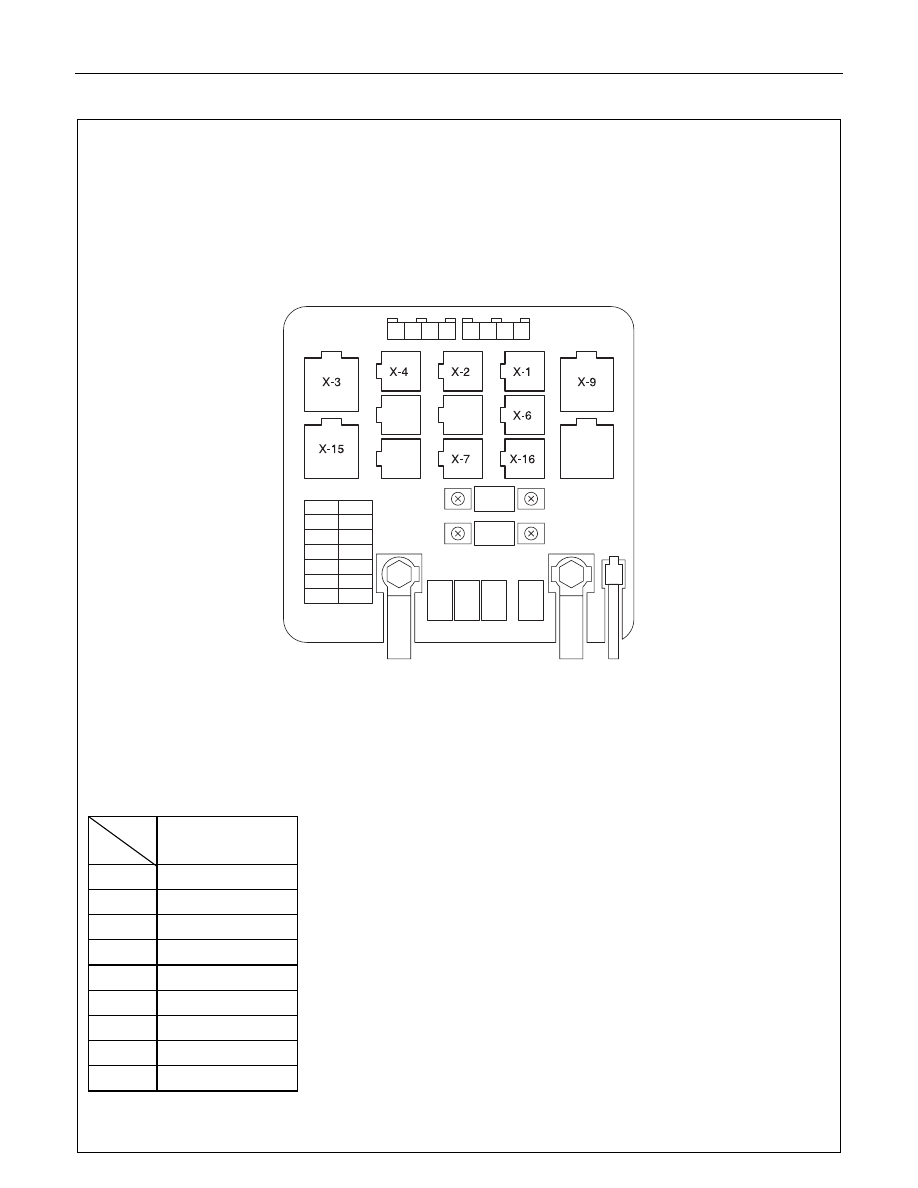

RELAY LOCATION-1 (RELAY AND FUSE BOX)

RELAY & FUSE BOX

RELAY

Engine

model

NO.

HEC Engine Series

X-1

RELAY;HEAD LIGHT

X-2

RELAY;TAIL LIGHT

X-3

RELAY;HEATER

X-4

RELAY;HORN

X-6

RELAY;STARTER

X-7

(RELAY;THERMO)

X-9

RELAY;FUEL PUMP

X-15

(RELAY;A/C COMP)

X-16

(RELAY;COND.FAN)

(   ) ....IF EQUIPPED

8-28  ELECTRICAL-BODY AND CHASSIS

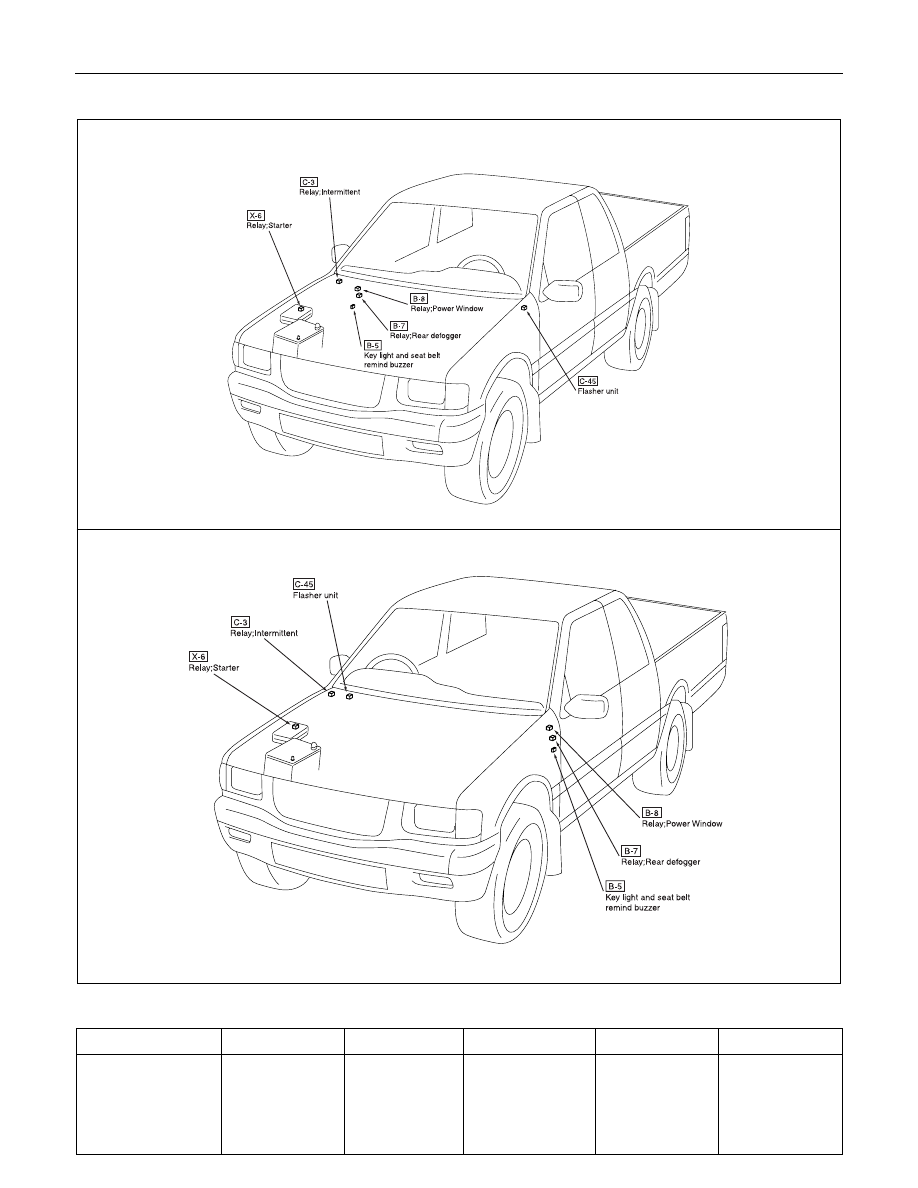

RELAY LOCATION-2

(LHD)

(RHD)

RELAY

Connector No.

C-3

C-45

B-5

B-7

B-8

HEC Engine Series

WIND SHIELD

INTERMITTENT

FLASHER UNIT KEY LIGHT AND

SEAT BELT

REMIND BUZZER

(For Gulf only)

REAR

DEFFOGER

(Except South

Africa & Chile)

POWER

WINDOW
