Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 1310

8–160 ELECTRICAL-BODY AND CHASSIS

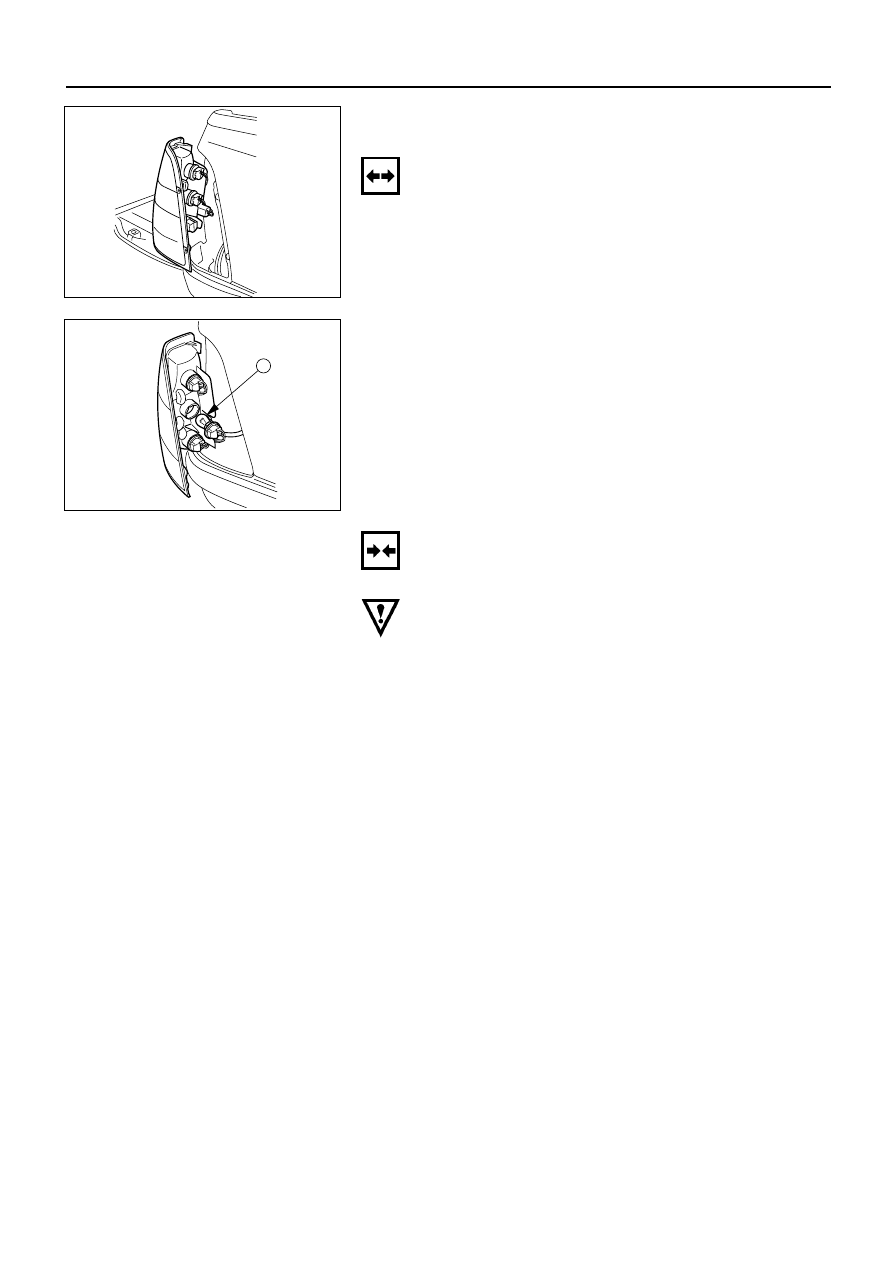

REAR COMBINATION LIGHT

Back Up Light

Removal

1. Open the rear gate.

2. Remove the screws.

3. Remove the rear combination light assembly.

D08RV751

4. Turn the bulb 3 counterclockwise to remove it.

3

D08RV886

Installation

Follow the removal procedure in the reverse order to
install the rear combination light.

Pay close attention to the important points mentioned in
the following paragraphs.

Bulbs

Be absolutely sure that each bulb is correctly installed.

This will prevent a poor contact and an open circuit.

ELECTRICAL-BODY AND CHASSIS 8–161

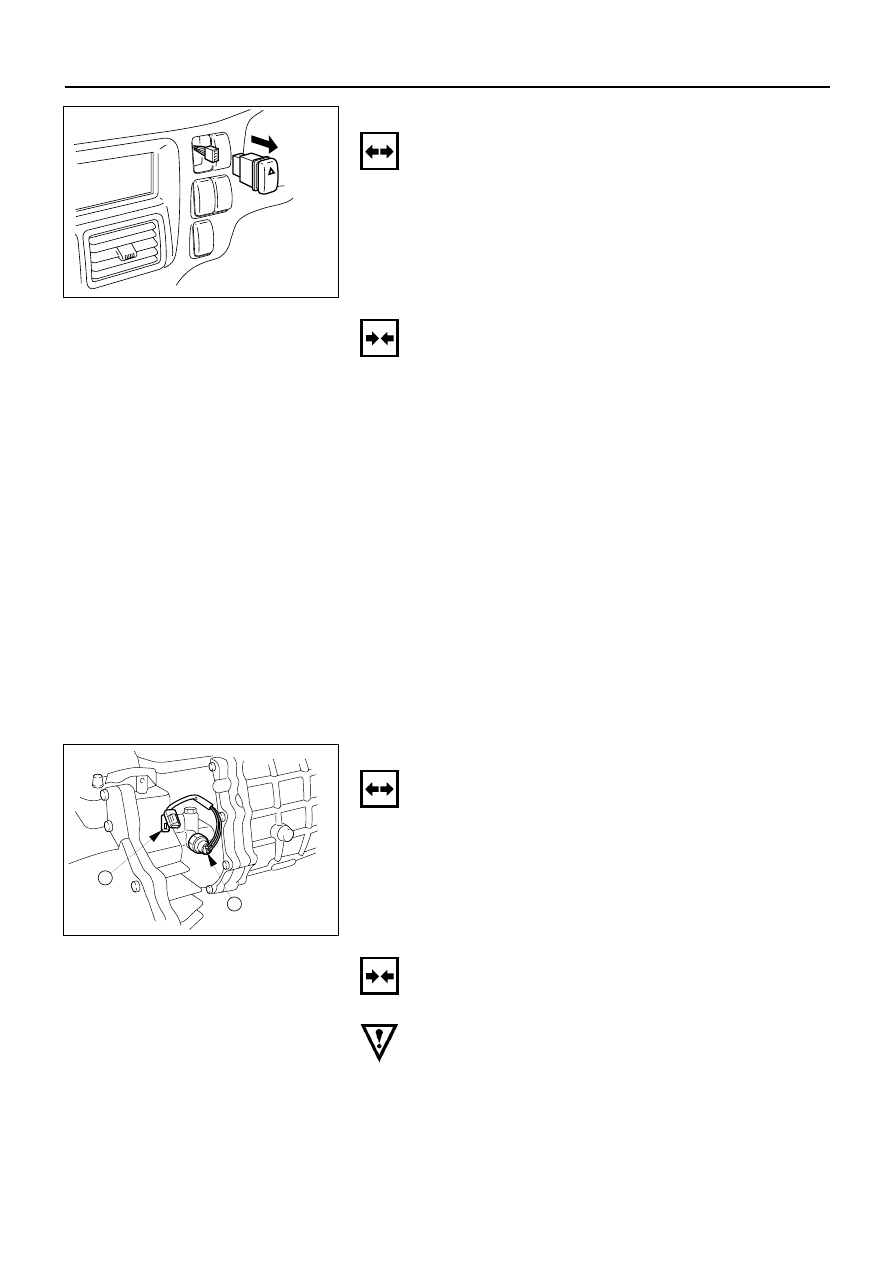

HAZARD WARNING FLASHER SWITCH

Removal

1. Instrument Panel Cluster Assembly

•

Refer to Section 10 “BODY” for instrument panel
cluster assembly removal steps.

2. Hazard Warning Switch

•

Disconnect the switch connector.

•

To remove the switch, push the lock from the back
side of the cluster assembly.

D08RV893

Installation

To install, follow the removal procedure in the reverse
order.

Connector

Be absolutely sure that the hazard warning flasher switch
connector is securely connected.

This will prevent a poor contact and an open circuit.

BACK UP LIGHT SWITCH

Removal

1. Disconnect the connector 1.

2. Remove the back up light switch from the

transmission

2.

1

2

D08RV867

Installation

Follow the removal procedure in the reverse order to
install the back up light switch.

Pay close attention to the important points mentioned in
the following paragraphs.

8–162 ELECTRICAL-BODY AND CHASSIS

Connector

Be absolutely sure that the back up light connector is
securely connected.

This will prevent a poor contact and an open circuit.

Back up Light Switch Threads

Apply liquid gasket to the threaded portion and install the
back up light switch.

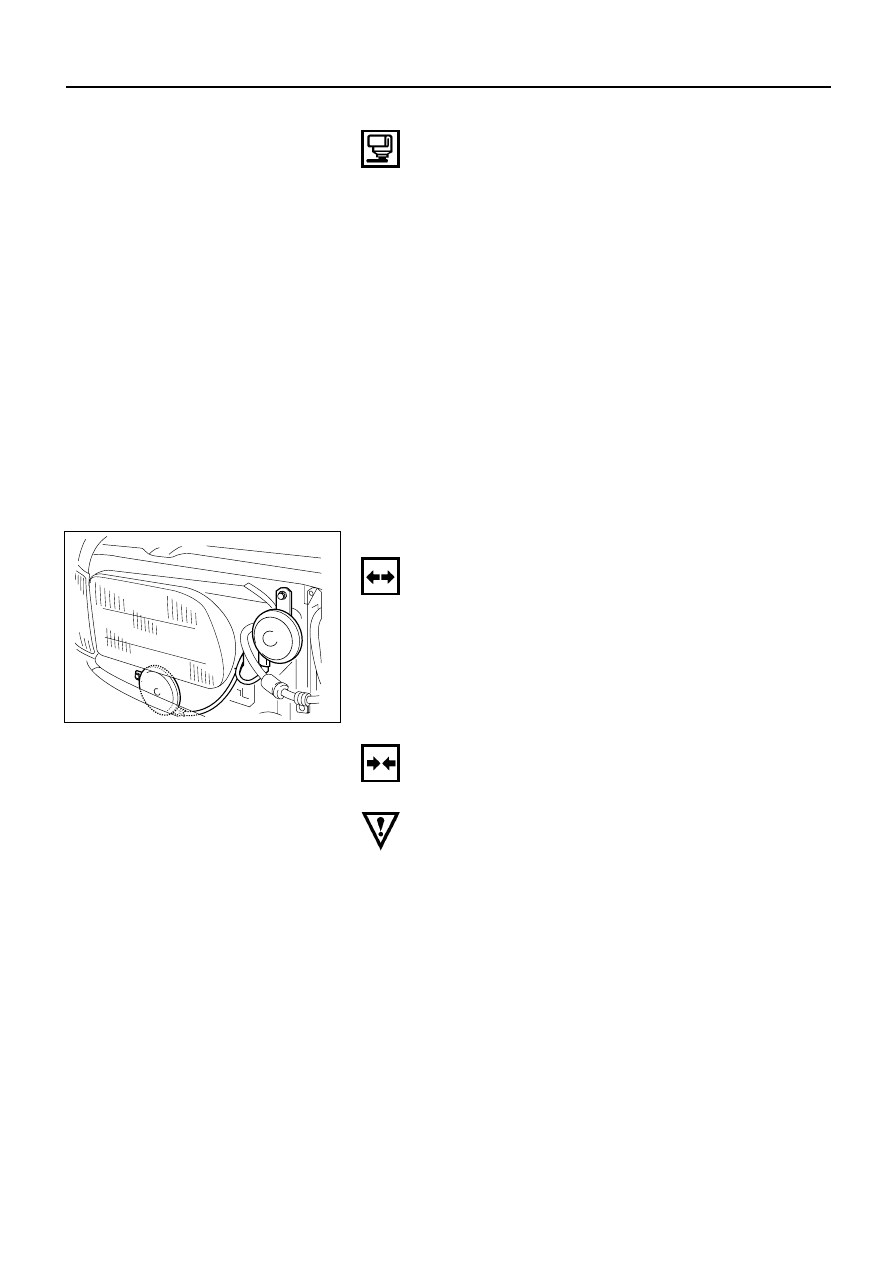

HORN

Removal

1. Remove the radiator grille.

Refer to the “HEADLIGHT” removal procedure.

2. Loosen the horn bolt.

3. Disconnect the horn connector.

D08RV878

Installation

Follow the removal procedure in the reverse order to
install the horn.

Pay close attention to the important points mentioned in
the following paragraphs.

Connector

Be absolutely sure that the horn connector is securely
connected.

This will prevent a poor contact and an open circuit.

ELECTRICAL-BODY AND CHASSIS 8–163

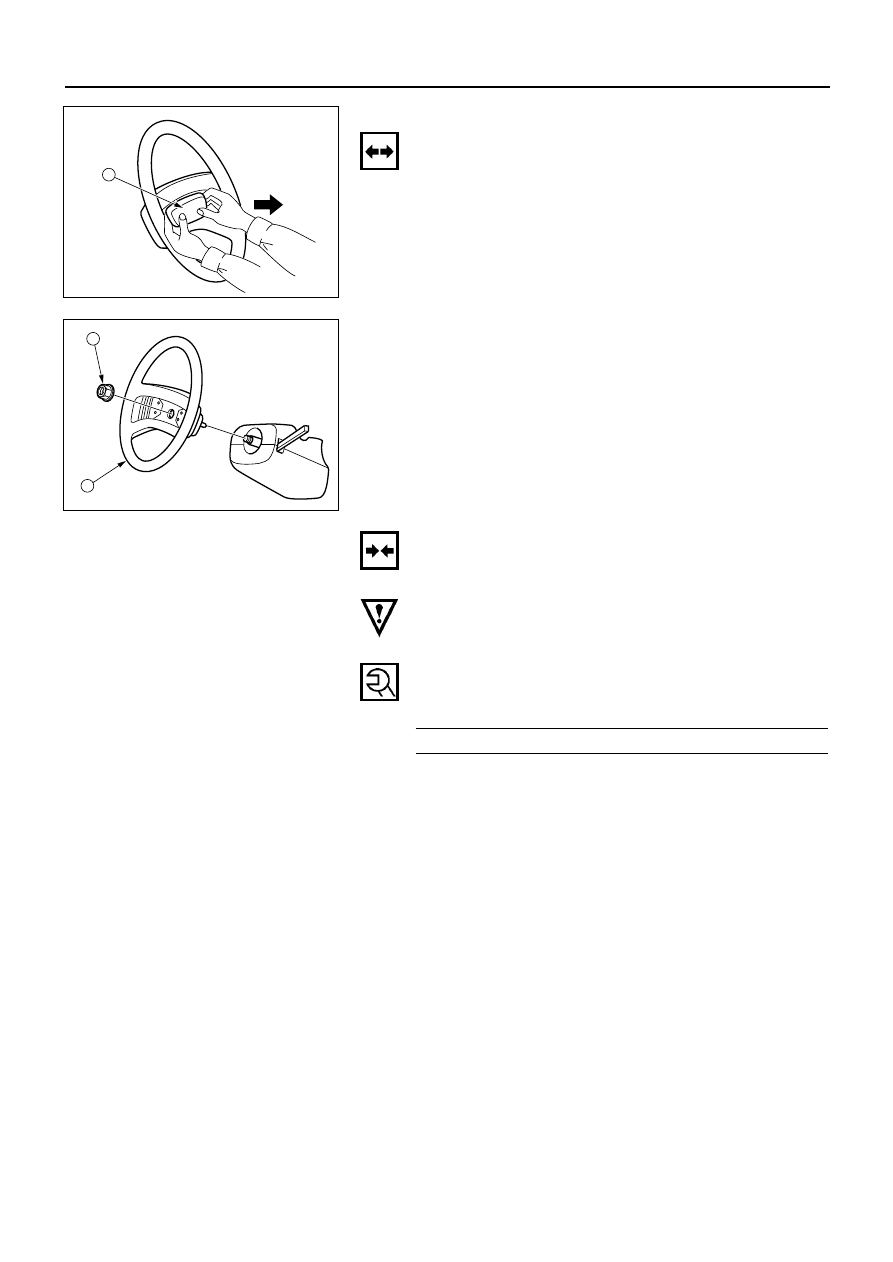

HORN SWITCH

Removal

1. Remove the horn pad 1.

1

D08RV870

2. Remove the steering wheel nut 2.

3. Remove the steering wheel 3.

4. Remove the horn switch.

2

3

D08RV871

Installation

Follow the removal procedure in the reverse order to
install the horn switch.

Pay close attention to the important points mentioned in
the following paragraphs.

Steering Wheel Nut (2)

Tighten the nut to the specified torque.

Steering Wheel Nut Torque

kg·m (lb·ft/N·m)

3.5 ± 0.5 (25.3 ± 3.6/34.3 ± 4.9)
