8–156 ELECTRICAL-BODY AND CHASSIS

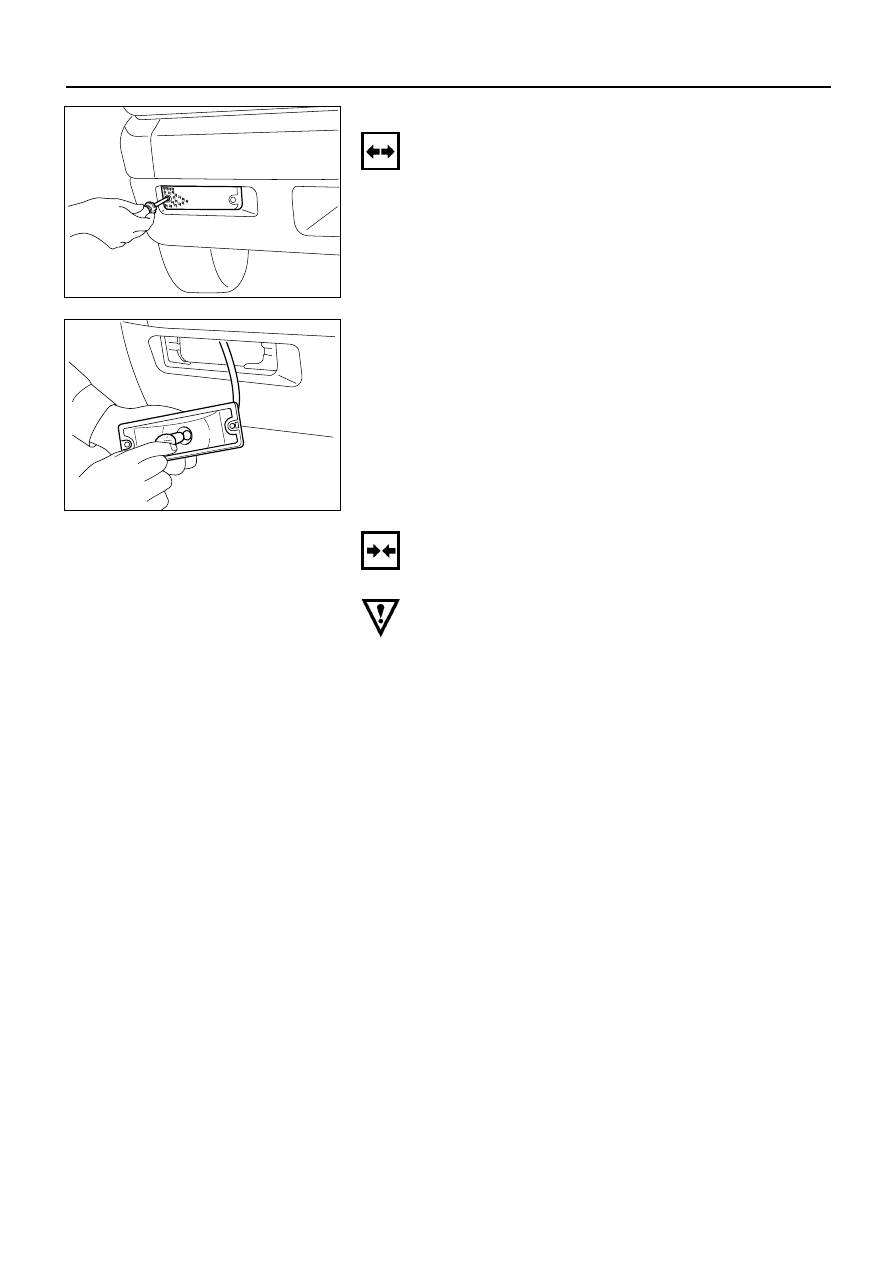

FRONT TURN LIGHT

Removal

1. Remove the front turn light lens.

2. Pull the light housing free.

D08RV862

3. Push the bulb in and turn it counterclockwise to

remove it from the light housing.

D08RV863

Installation

Follow the removal procedure in the reverse order to
install the front turn light.

Pay close attention to the important points mentioned in
the following paragraphs.

Bulb

Be absolutely sure that the front turn light bulb is
correctly installed.

This will prevent a poor contact and an open circuit.

ELECTRICAL-BODY AND CHASSIS 8–157

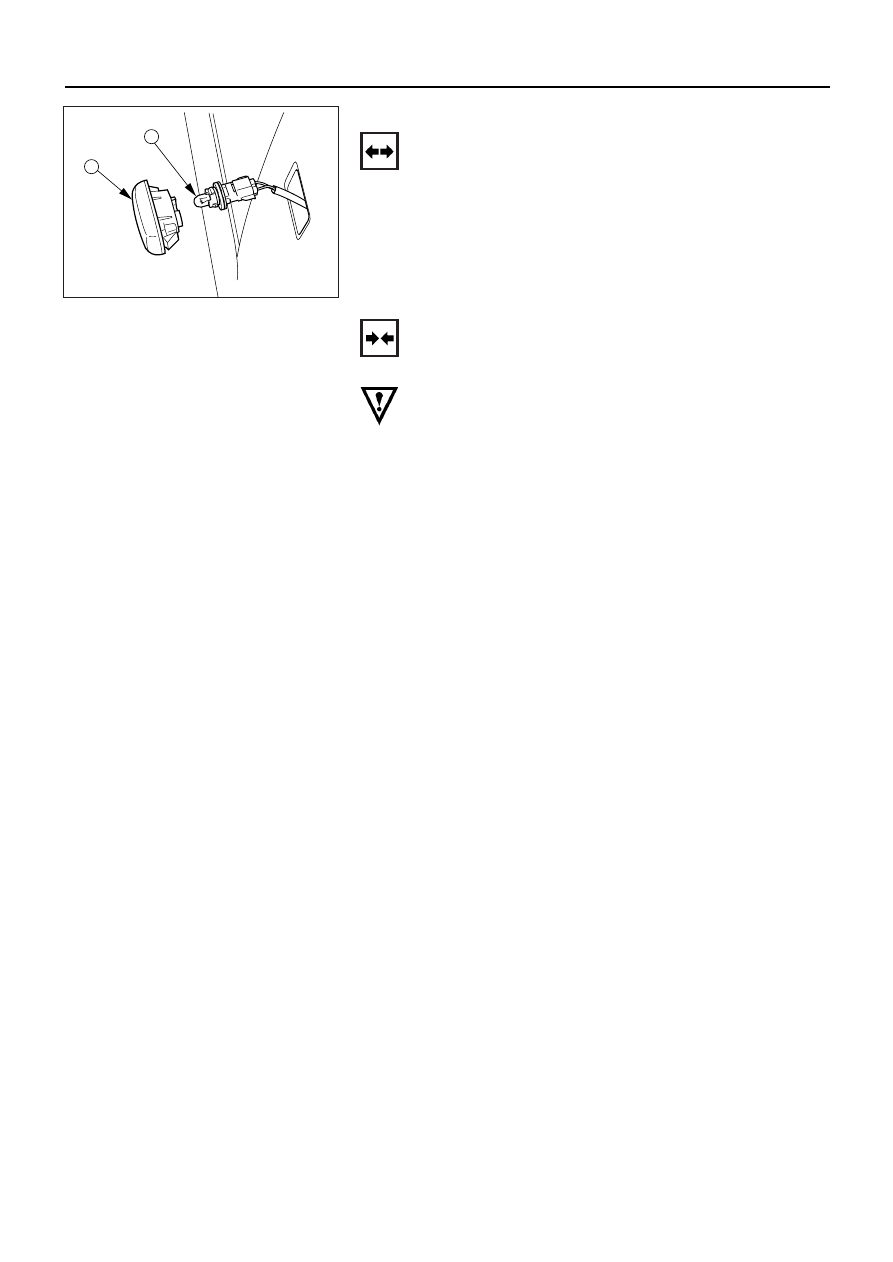

SIDE TURN LIGHT

Removal

1. Remove the lens 1.

•

Pull the light/bulb toward you while pushing the
light housing in the rear direction of the vehicle to
release its lock.

•

Remove the socket by turning it counterclockwise.

2. Pull the bulb 2 to remove it.

2

1

D08RV750

Installation

Follow the removal procedure in the reverse order to
install the side turn light.

Pay close attention to the important points mentioned in
the following paragraphs.

Bulb

Be absolutely sure that the side turn light bulb is correctly
installed.

This will prevent a poor contact and an open circuit.

8–158 ELECTRICAL-BODY AND CHASSIS

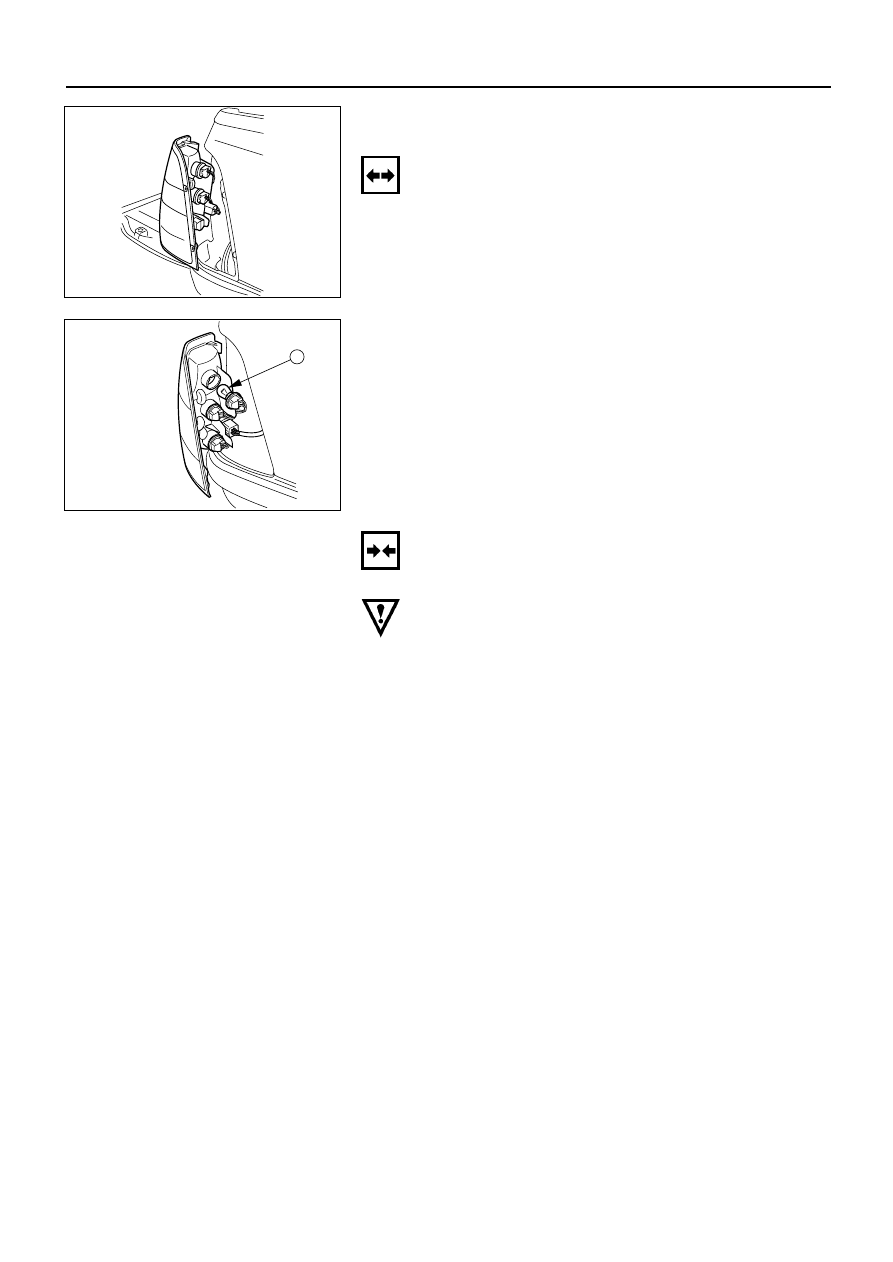

REAR COMBINATION LIGHT

Turn Signal Light

Removal

1. Open the rear gate.

2. Remove the screws.

3. Remove the rear combination light assembly.

D08RV751

4. Turn the bulb 1 counterclockwise to remove it.

1

D08RV752

Installation

Follow the removal procedure in the reverse order to
install the rear combination light.

Pay close attention to the important points mentioned in
the following paragraphs.

Bulb

Be absolutely sure that the rear combination light bulb is
correctly installed.

This will prevent a poor contact and an open circuit.

ELECTRICAL-BODY AND CHASSIS 8–159

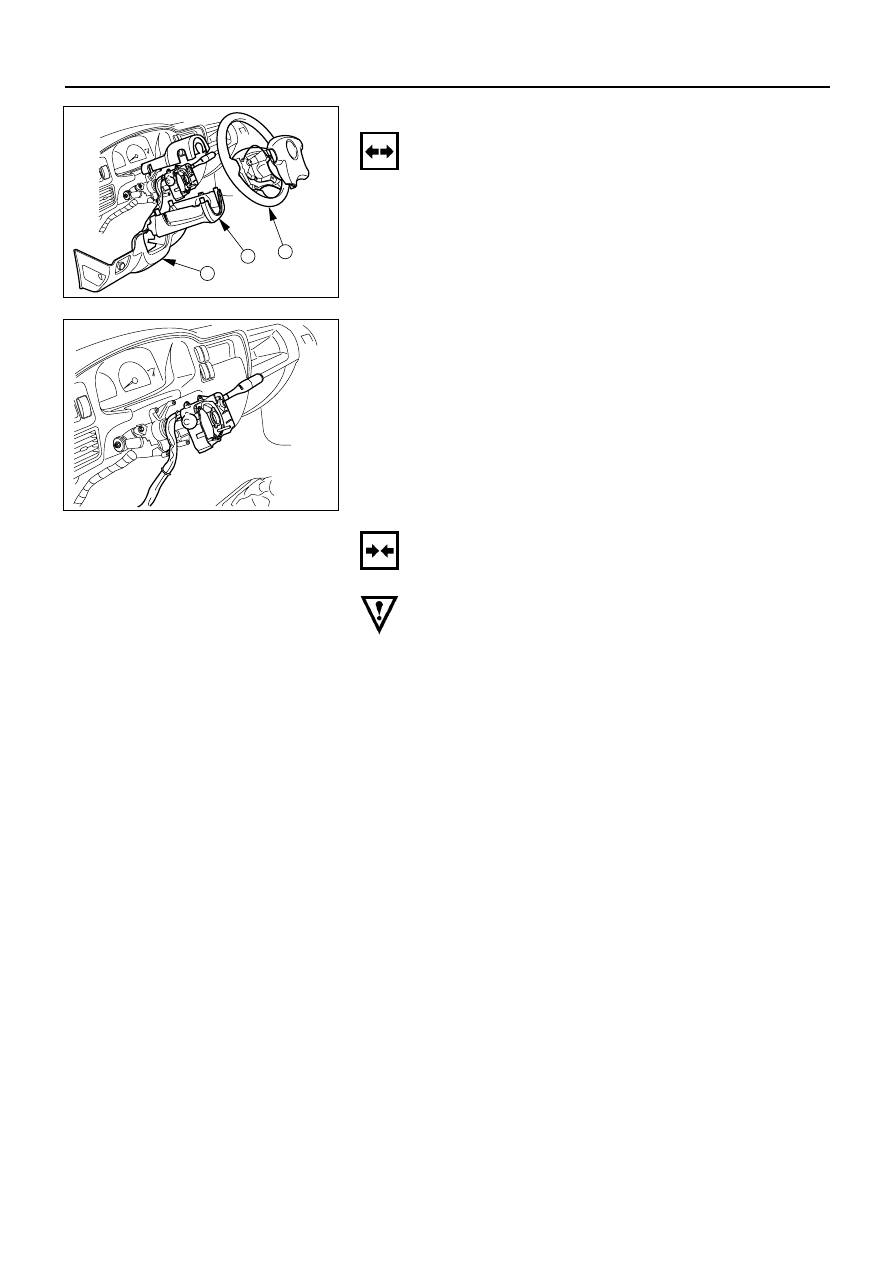

TURN SIGNAL SWITCH

Removal

1. Remove the steering wheel 1.

Refer to the “STEERING” Section of this Manual.

2. Remove the instruments panel lower cover 2.

3. Remove the steering column cover 3.

1

3

2

D08RV888

4. Disconnect the connector.

5. Remove the turn signal switch from the steering

shaft.

D08RV747

Installation

Follow the removal procedure in the reverse order to
install the turn signal switch (lever).

Pay close attention to the important points mentioned in
the following paragraphs.

Connector

Be absolutely sure that the turn signal switch connector is
securely connected.

This will prevent a poor contact and at an open circuit.
