8–136 ELECTRICAL-BODY AND CHASSIS

1

3

2

5

5

2

1

3

D08RW599

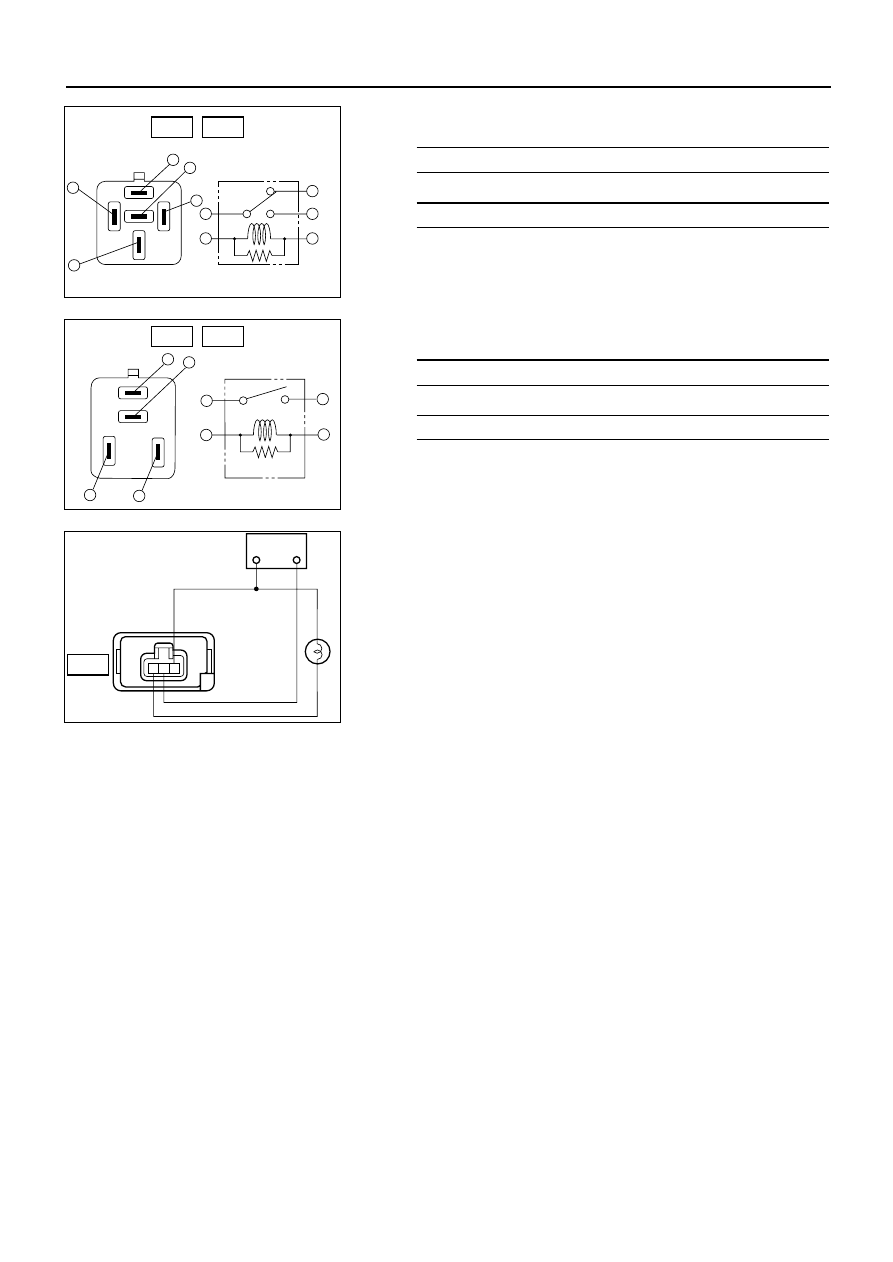

LIGHTING RELAY, TAIL RELAY (6VD1)

Check continuity between the relay terminals.

1 – 2  . . . . . . . . . . . . . . No continuity

(When battery voltage is applied between 3 and 5)

1 – 2  . . . . . . . . . . . . . . Continuity

+

–

3 2 1

Illumination
controller

825RV107

ILLUMINATION CONTROLLER
Controller Inspection

Check the illumination controller function.

B-33

LIGHTING RELAY, TAIL RELAY

Check continuity between the relay terminals.

1 – 5  . . . . . . . . . . . . . . No continuity

(When battery voltage is applied between 2 and 4)

1 – 5  . . . . . . . . . . . . . . Continuity

4

1

3

2

5

2

1

3

4

5

060RV005

X-1

X-2

X-20

X-23

ELECTRICAL-BODY AND CHASSIS 8–137

MEMO

8–138 ELECTRICAL-BODY AND CHASSIS

HAZARD WARNING FLASHER, TURN SIGNAL LIGHT,

BACK UP LIGHT, HORN AND STOP LIGHT

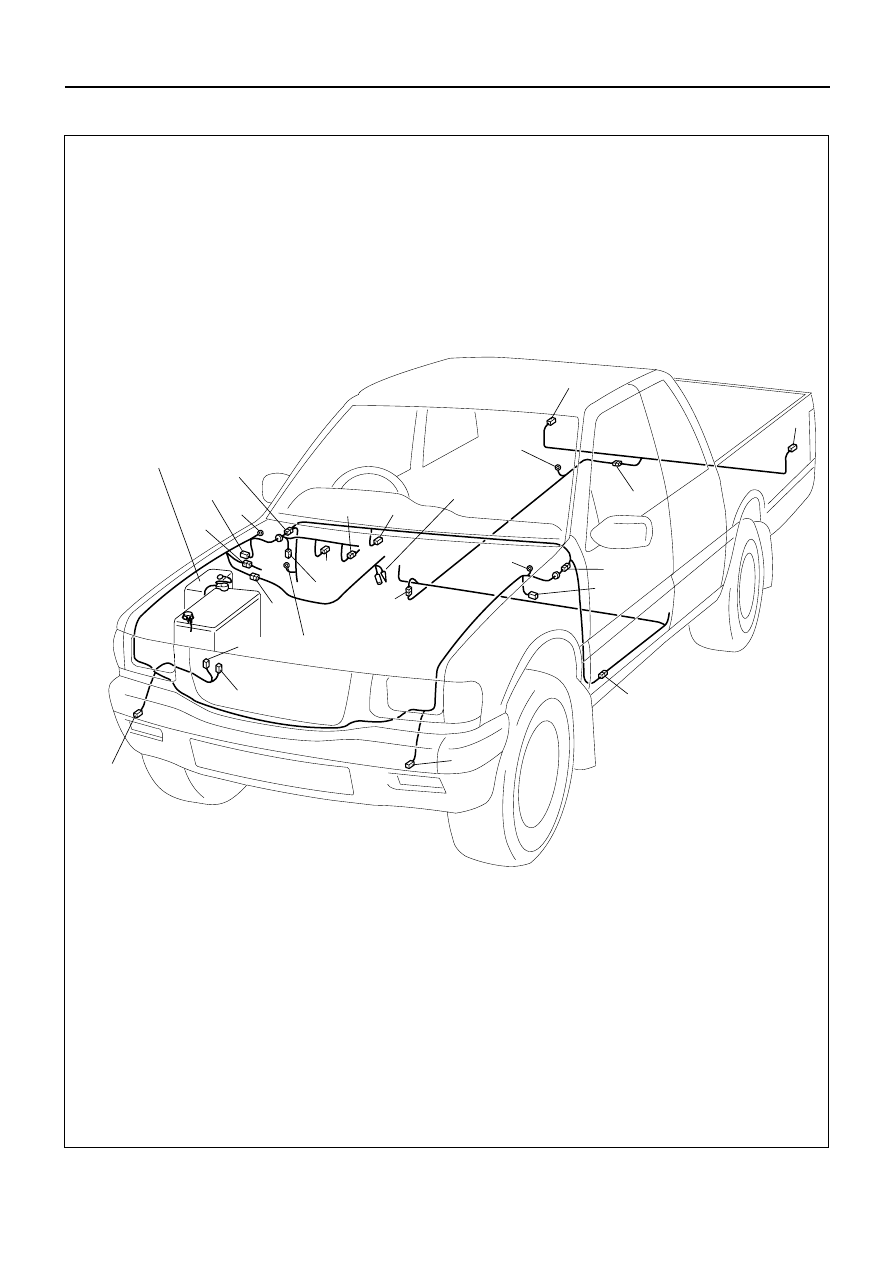

PARTS LOCATION (LHD)

C-25

C-22

C-21

C-20

H-8

RELAY & FUSE BOX

(X-4)

C-35

C-45

E-42(M-8)
E-43(M-9)

C-1

C-44

C-41
C-42

B-16

H-9

C-36

C-2

H-4(H-5)

H-6
H-7
H-12

B-28

T-6

T-1

H-15

H-17

F-3

D08RW00005

ELECTRICAL-BODY AND CHASSIS 8–139

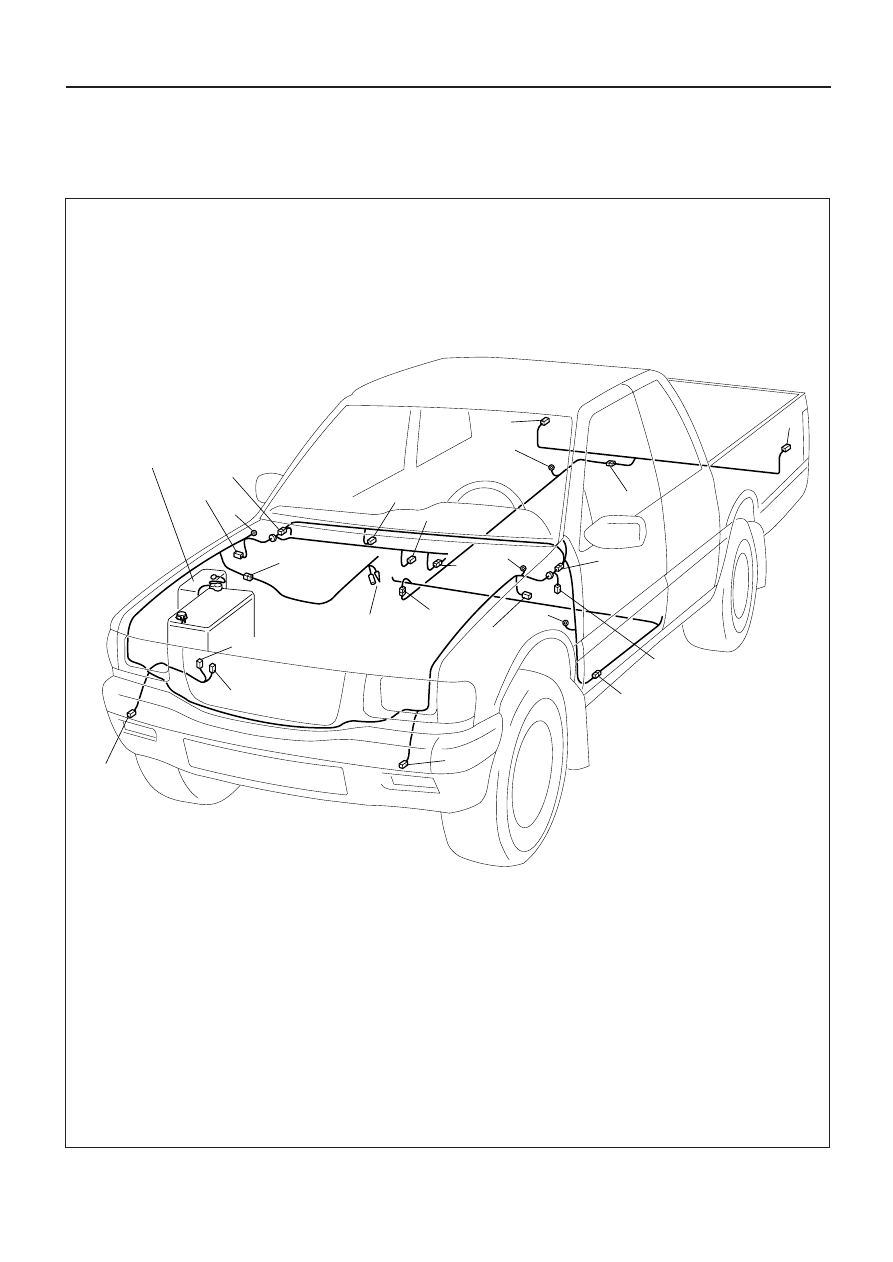

PARTS LOCATION (RHD)

RELAY & FUSE BOX

(X-4)

C-44

C-41
C-42

H-9

H-8

C-35

C-36

B-28

H-4

(H-5)

B-16

E-42(M-8)
E-43(M-9)

C-2

C-1

H-6
H-7

C-45

C-25

C-22

C-21

C-20

C-80

T-6

T-1

H-15

F-3

H-17

D08RVA29
