8–132 ELECTRICAL-BODY AND CHASSIS

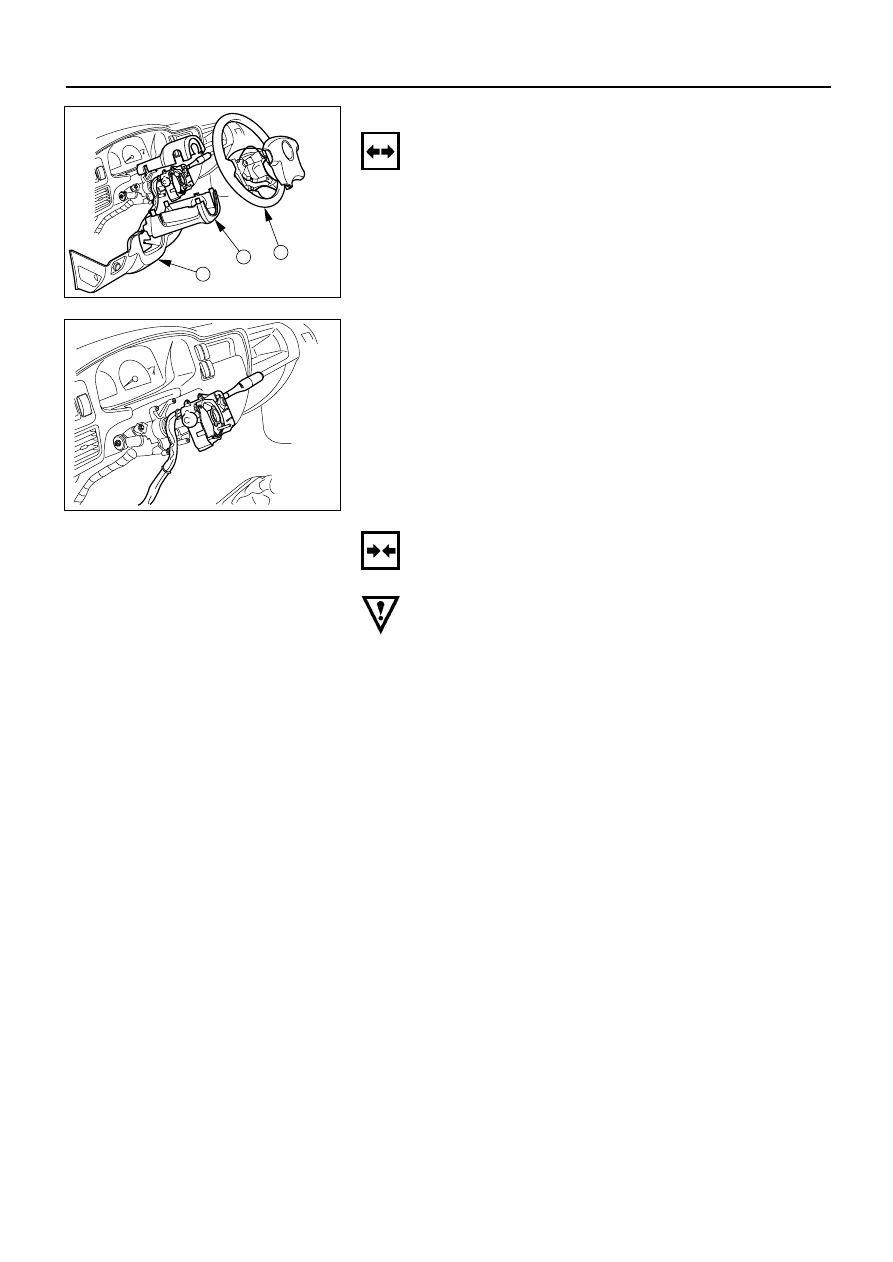

HEADLIGHT BEAM SWITCH

Removal

1. Remove the steering wheel 1.

Refer to the “STEERING” Section of this manual.

2. Remove the Instrument panel lower cover 2.

3. Remove the steering column cover 3.

1

3

2

D08RV888

4. Disconnect the connector.

5. Remove the headlight beam switch (lever) from the

steering shaft.

D08RV747

Installation

Follow the removal procedure in the reverse order to
install the headlight beam switch (lever).

Pay close attention to the important points mentioned in
the following paragraphs.

Connector

Be absolutely sure that the headlight beam switch
connector is securely connected.

This will prevent a poor contact and an open circuit.

Wire Harness

Do not pinch the wire harnesses between the cluster and
the meter hood during the cluster installation procedure.

Wire damage will result.

ELECTRICAL-BODY AND CHASSIS 8–133

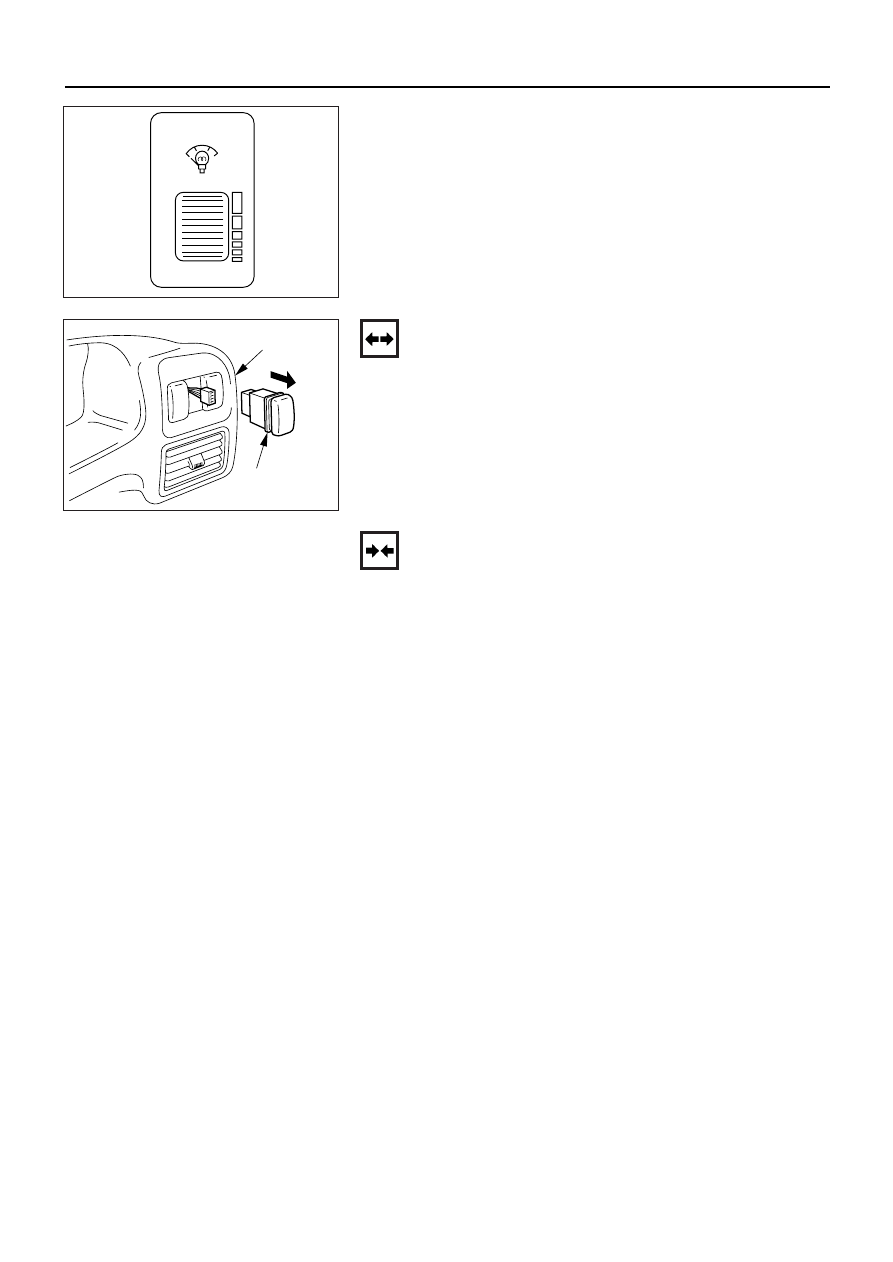

ILLUMINATION CONTROLLER

Turning the illumination controller knob upward increases
the brightness of each illumination light, turning it
downward decreases its brightness.

825RS032

Removal

1. Instrument Panel Cluster Assembly

•

Refer to Section 10 “BODY” for instrument panel
cluster assembly removal steps.

2. Illumination Controller

•

Disconnect the switch connector.

•

To remove the switch, push the lock from the back
side of the cluster assembly.

2. Illumination
    controller

1. Instrument panel
    cluster assembly

825RV104

Installation

To install, follow the removal procedure in the reverse
order.

Connector

Be absolutely sure that the illumination controller
connector is securely connected.

This will prevent a poor contact and an open circuit.

8–134 ELECTRICAL-BODY AND CHASSIS

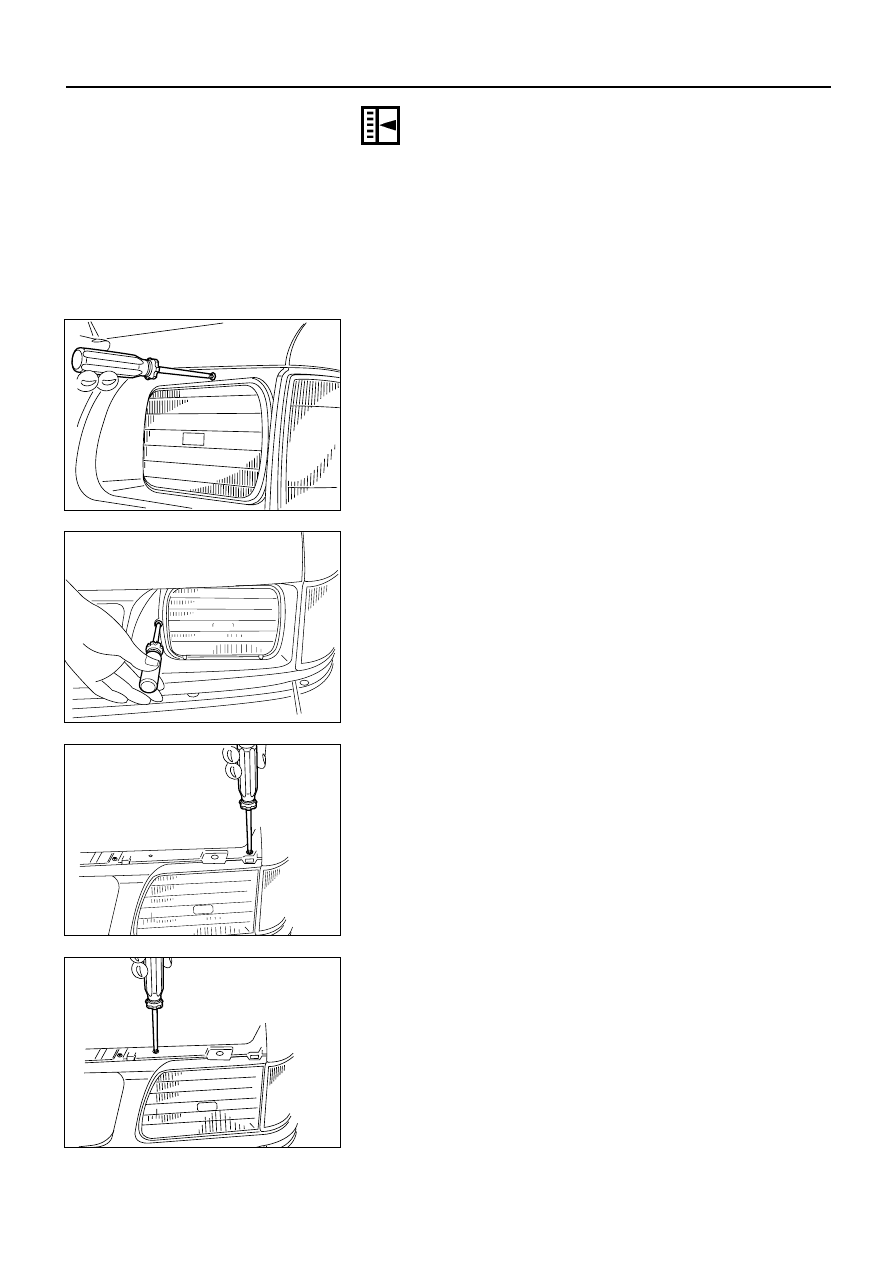

AIMING OF HEADLIGHT

Check and adjust the inflation pressures, clean the
headlight lenses, park the vehicle on a level surface and
insure that vehicle is at curb weight.

VERTICAL ADJUSTMENT

Use a screwdriver for vertical adjustment.

D08RV869

HORIZONTAL ADJUSTMENT

Use a screwdriver horizontal adjustment.

D08RV868

VERTICAL ADJUSTMENT

Use a screwdriver for vertical adjustment.

D08RW433

HORIZONTAL ADJUSTMENT

Use a screwdriver horizontal adjustment.

D08RW434

ELECTRICAL-BODY AND CHASSIS 8–135

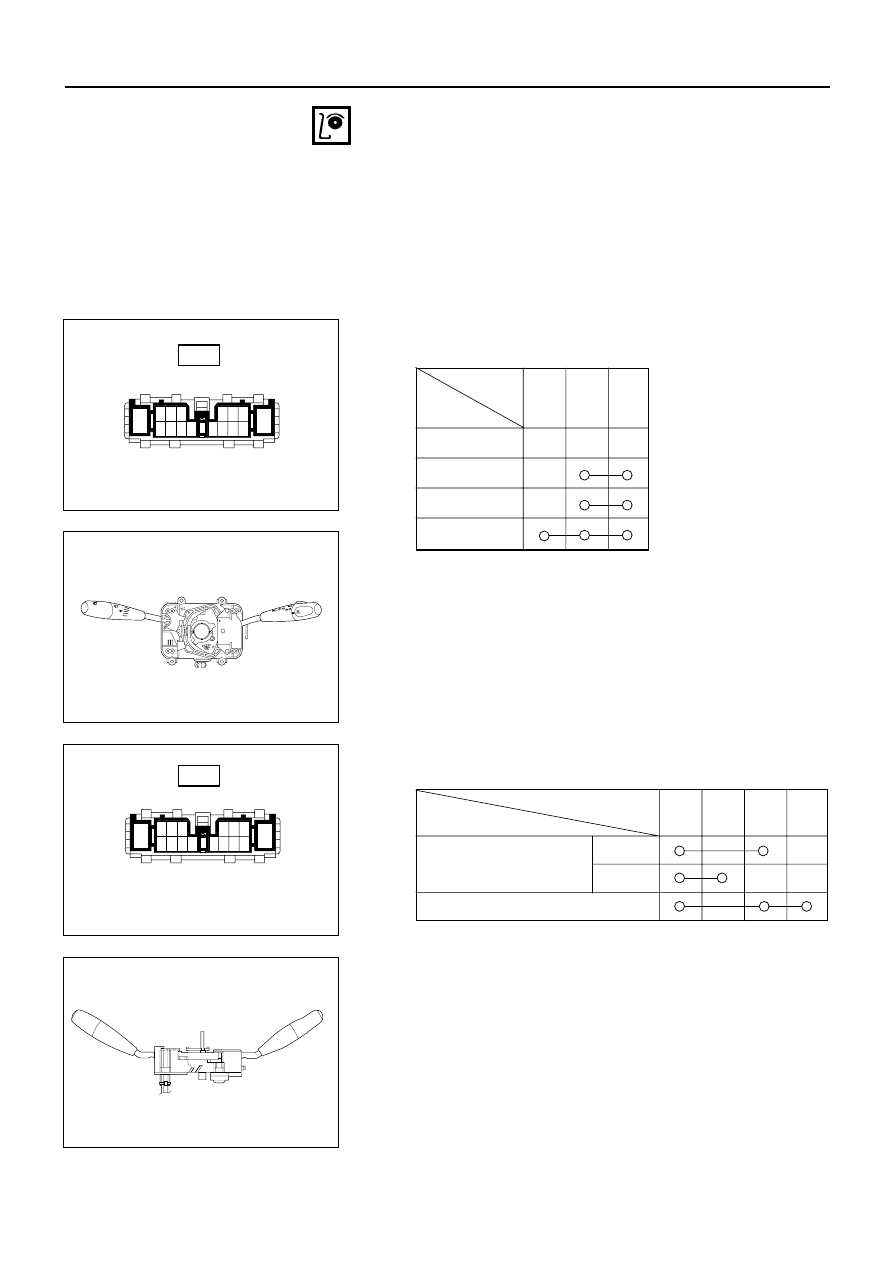

LIGHTING SWITCH

Lighting Switch Connections

15

1 2 3

7 8 9 10

16

4 5 6

12 13 14

11

OFF

PULL

MIST

OFF

HI

LO

825RV068

Terminal

SW

No.

1

7

8

position

OFF

Tail

Headlight

↔

INSPECTION AND REPAIR

Headlight Beam and Passing Switch Connections

HEADLIGHT BEAM SWITCH

15

1 2 3

7 8 9 10

16

4 5 6

12 13 14

11

825RV067

Terminal No.

16

13

15

14

SW position

At “Dimmer” position

HI

LO

At “Passing” position

C-42

Switch side

C-42

Switch side
