8–128 ELECTRICAL-BODY AND CHASSIS

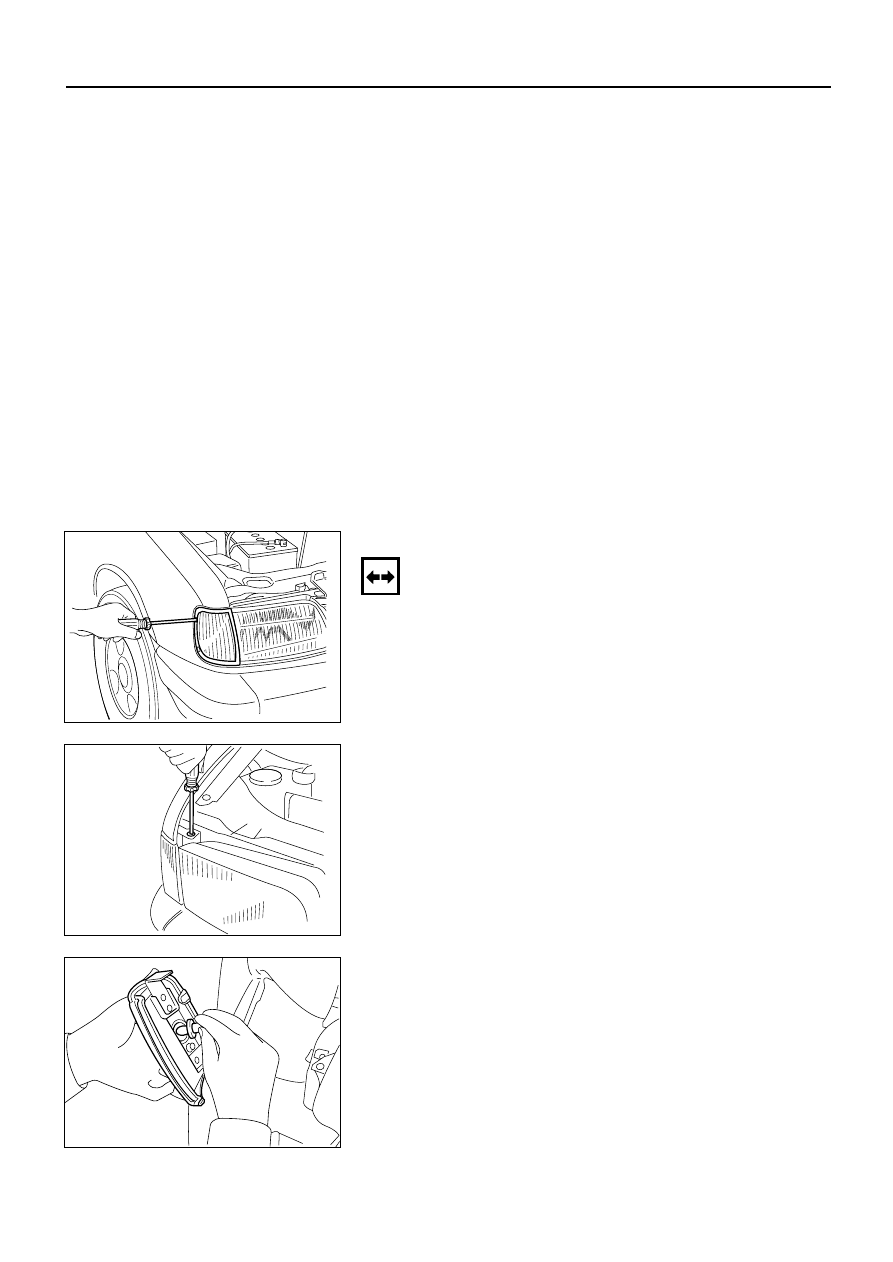

6. Remove the clearance light.

D08RW563

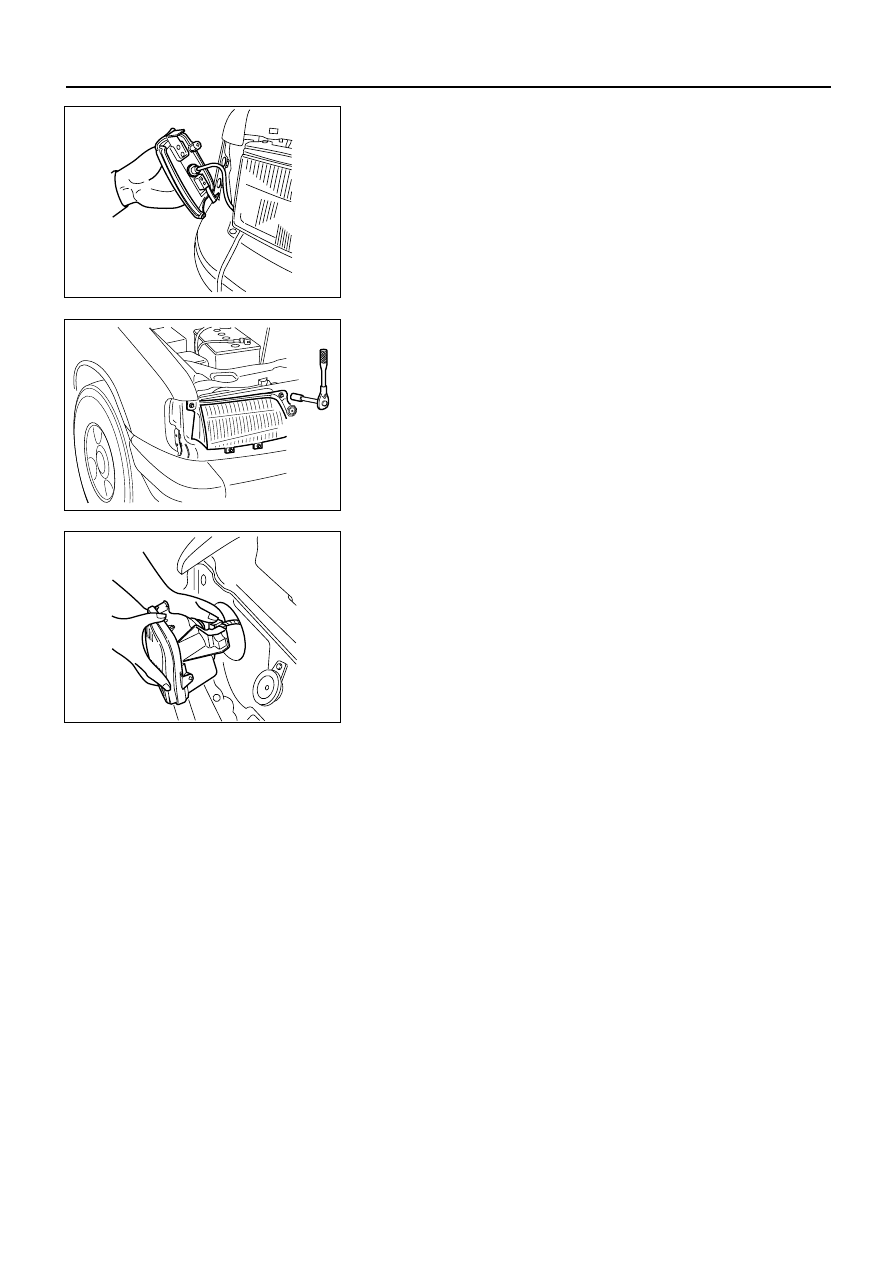

7. Remove the headlight screws.

D08RW557

8. Disconnect the headlight connector.

9. Remove the headlight.

D08RW564

ELECTRICAL-BODY AND CHASSIS 8–129

LIGHTING SWITCH

Removal

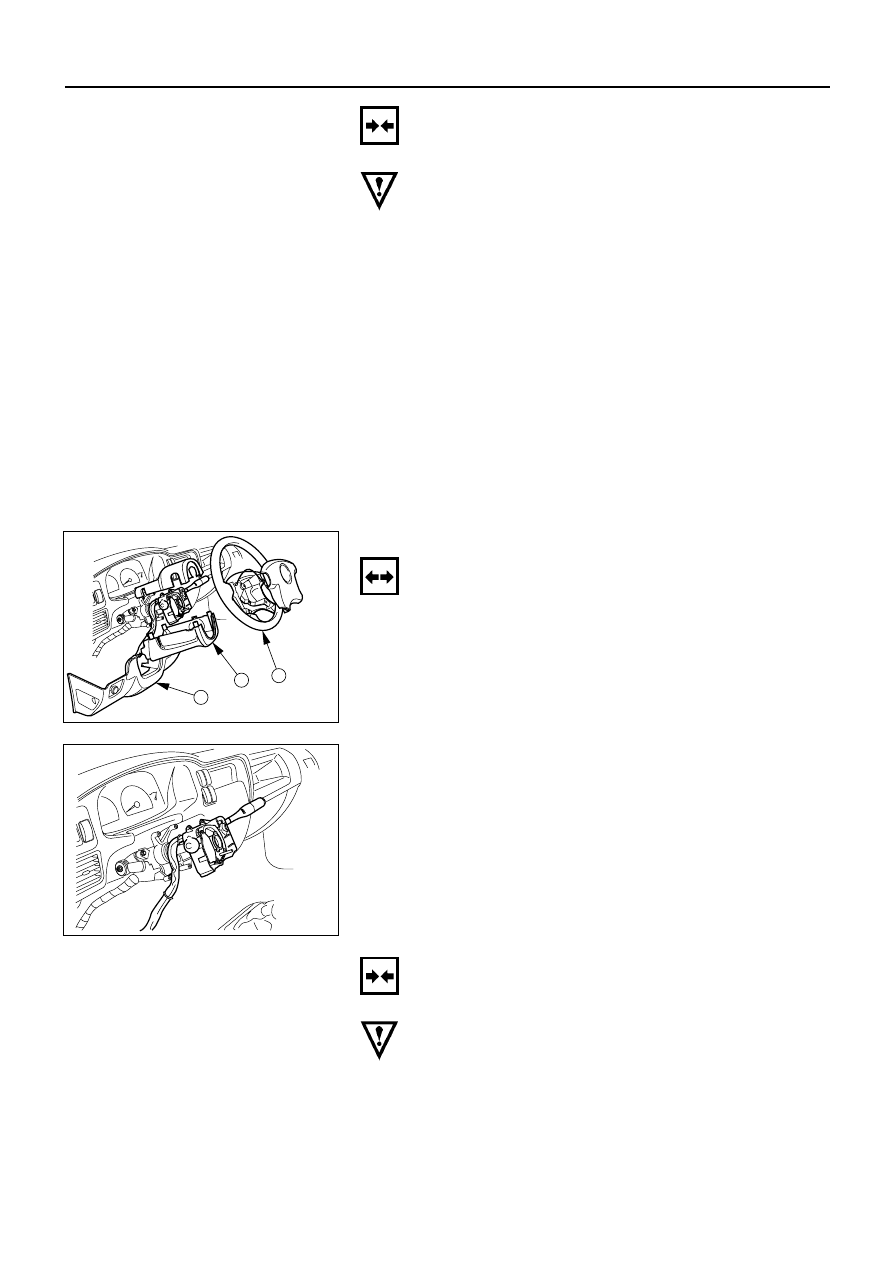

1. Remove the steering wheel 1.

Refer to the “STEERING” Section of this manual.

2. Remove the Instrument panel lower cover 2.

3. Remove the steering column cover 3.

1

3

2

D08RV888

4. Disconnect the connector.

5. Remove the lighting switch from the steering shaft.

D08RV747

Installation

Follow the removal procedure in the reverse order to
install the lighting switch.

Pay close attention to the important points mentioned in
the following paragraphs.

Installation

Follow the removal procedure in the reverse order to
install the headlight.

Pay close attention to the important points mentioned in
the following paragraphs.

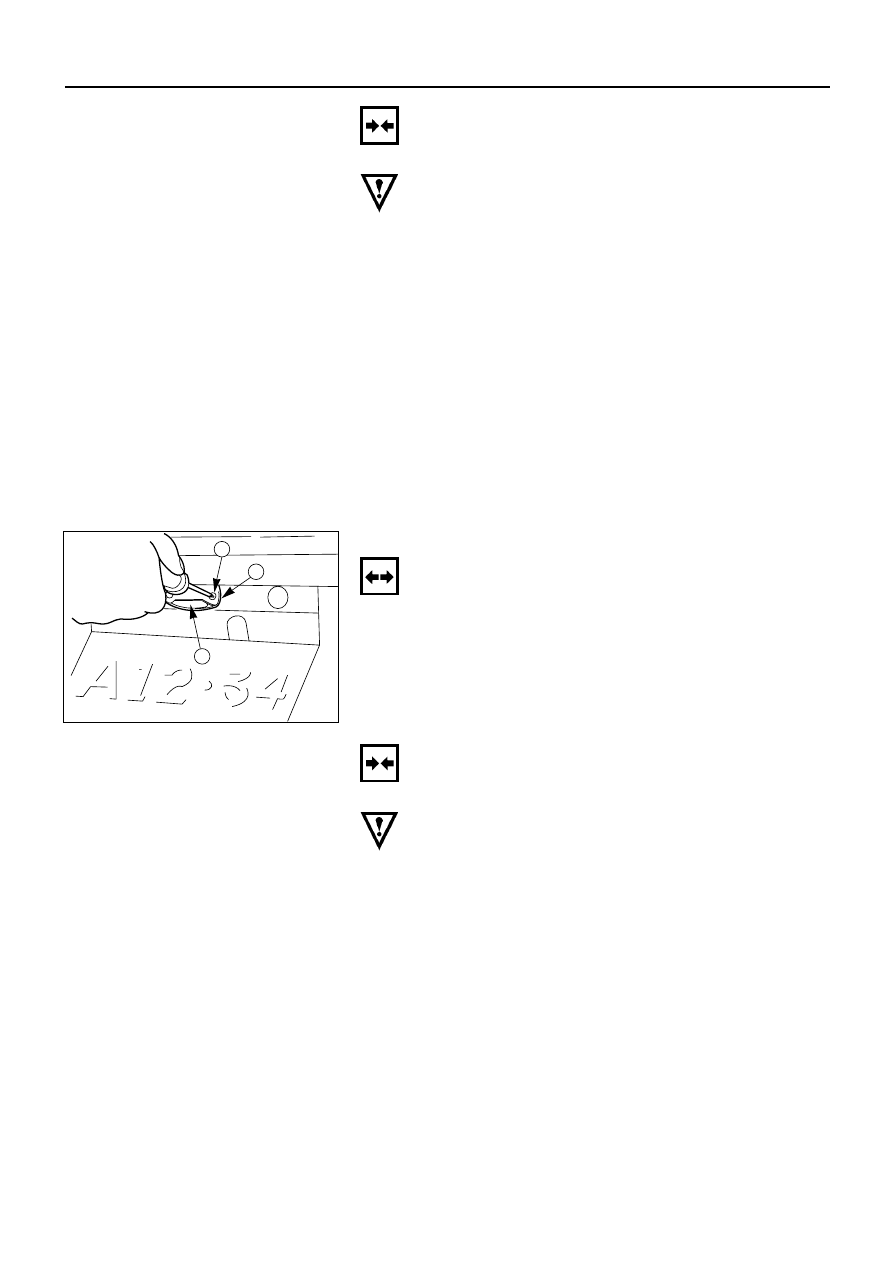

Connector

Be absolutely sure that the headlight connector is
securely connected.

This will prevent a contact and an open circuit.

8–130 ELECTRICAL-BODY AND CHASSIS

Connector

Be absolutely sure that the lighting switch connector is
securely connected.

This will prevent a poor contact and an open circuit.

Wire Harness

Do not pinch the wire harnesses between the cluster and
the meter hood during the cluster installation procedure.

Wire damage will result.

CLEARANCE LIGHT

Removal

1. Remove the radiator grille.  (Refer to headlight

removal procedure.)

2. Remove the side screws.

D08RV859

3. Remove the top screw.

D08RV860

4. Turn the socket counterclockwise to disconnect it

from the clearance light housing.

5. Pull the bulb from the socket.

D08RV861

ELECTRICAL-BODY AND CHASSIS 8–131

Installation

Follow the removal procedure in the reverse order to
install the clearance light.

Pay close attention to the important points mentioned in
the following paragraphs.

Connector

Be absolutely sure that the clearance light connector is
securely connected.

This will prevent a poor contact and an open circuit.

LICENSE PLATE LIGHT

Removal

1. Loosen the screws 1.

2. Remove the lens cover 2 and the lens 3.

3. Pull the bulb to remove it.

2

3

1

D08RV834

Installation

Follow the removal procedure in the reverse order to
install the license plate light.

Pay close attention to the important points mentioned in
the following paragraphs.

Bulb

Be absolutely sure that the license plate light bulb is
correctly installed.

This will prevent a poor contact and an open circuit.
