Rear Passenger’s Power Window Motor-LH

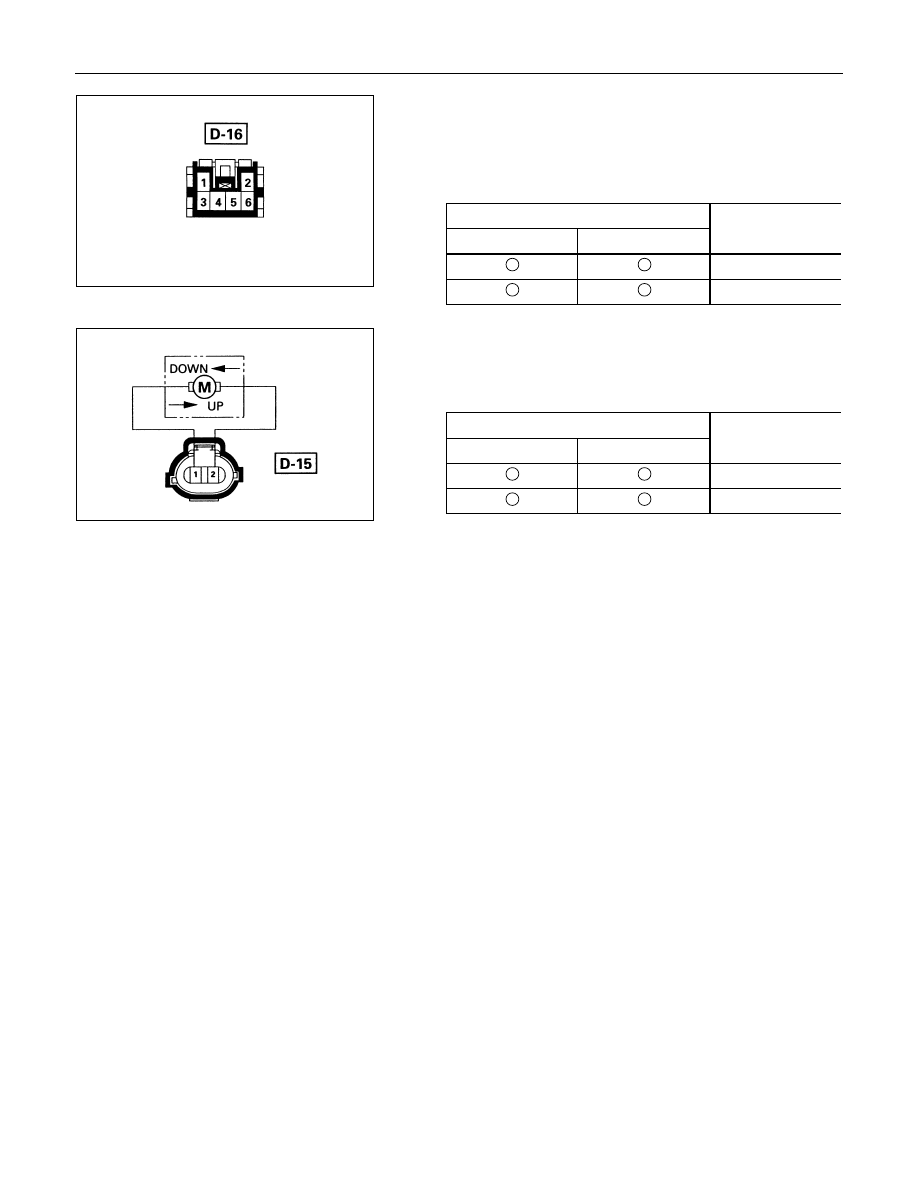

1.  Rear Power Window Switch-LH Connector Circuit
  Disconnect the motor connector, apply the battery voltage

(12V) to the harness side connector terminals and check
operation.

Connecting terminals

Operation

5 (L/R)

6 (BR/W)

direction

-

+

DOWN

+

-

UP






2.  Rear Power Window Motor-LH Connector Circuit
  Disconnect the switch connector, apply the battery voltage

(12V) to the motor side connector terminals and check
operation.

Connecting terminals

Operation

1

2

direction

+

-

DOWN

-

+

UP



8-308  ELECTRICAL-BODY AND CHASSIS

Harness side



Rear Power Window Motor-RH

1.  Rear Power Window Switch-RH Connector Circuit
  Disconnect the motor connector, apply the battery voltage

(12V) to the harness side connector terminals and check
operation.

Connecting terminals

Operation

5 (L/R)

6 (BR/W)

direction

-

+

DOWN

+

-

UP






2.  Rear Power Window Motor-RH Connector Circuit
  Disconnect the switch connector, apply the battery voltage

(12V) to the motor side connector terminals and check
operation.

Connecting terminals

Operation

1

2

direction

+

-

DOWN

-

+

UP





ELECTRICAL-BODY AND CHASSIS  8-309

AUDIO, CLOCK AND CIGARETTE LIGHTER

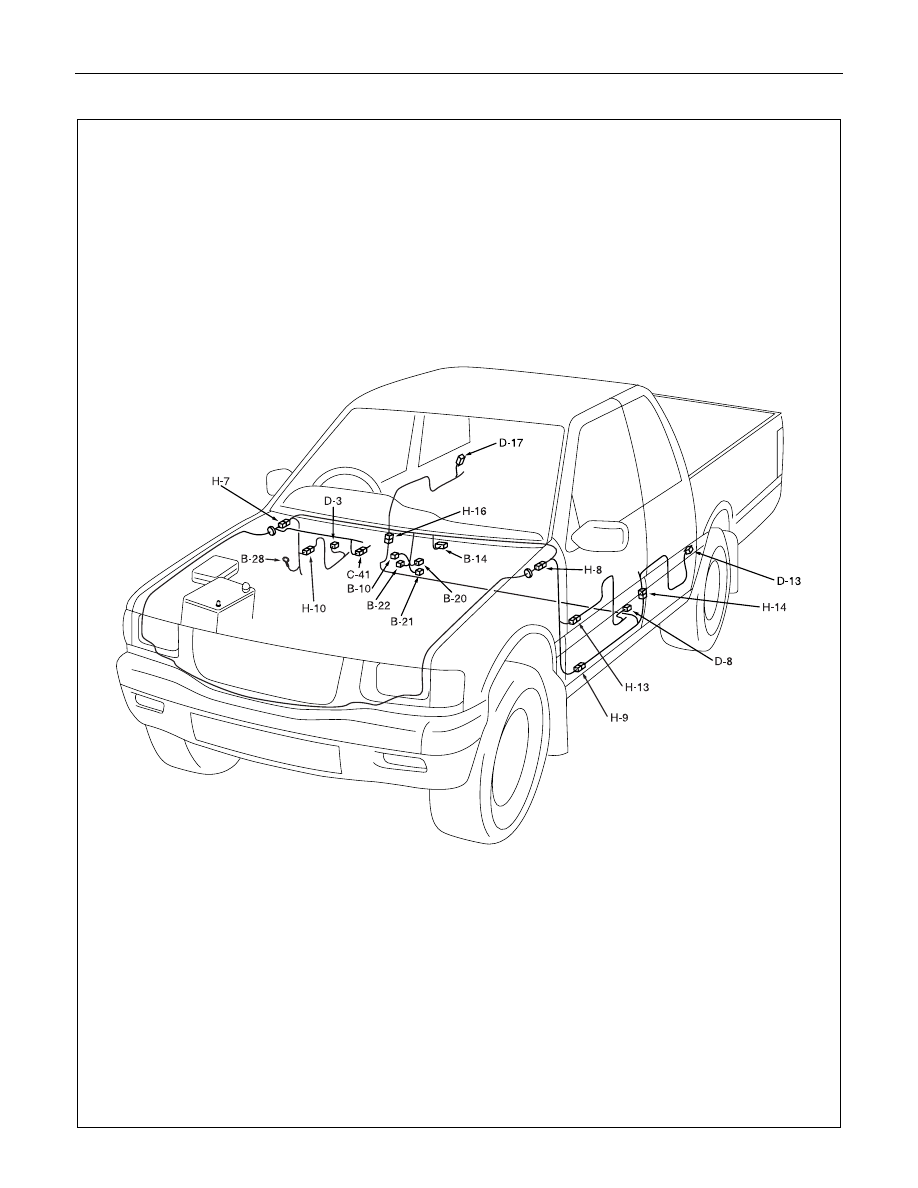

PARTS LOCATION (LHD)





8-310  ELECTRICAL-BODY AND CHASSIS

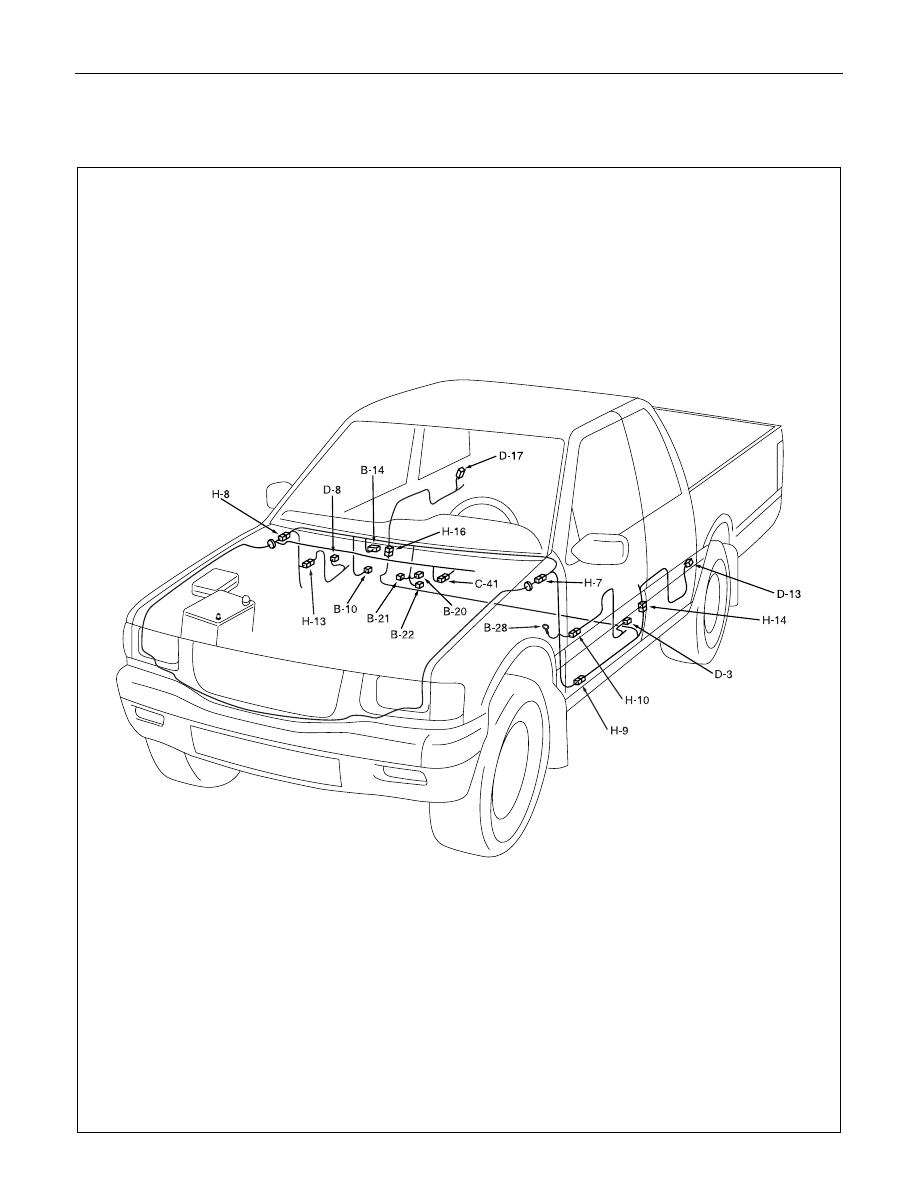

PARTS LOCATION (RHD)
