8-300  ELECTRICAL-BODY AND CHASSIS

5.  Rear window on the left (right) side does not operate


Checkpoint

Trouble

Cause



Countermeasure



Replace the driver seat side
power window & door lock
SW.

SW. malfunction

NG

Replace the rear power
window motor

Motor malfunction

NG

OK

Driver seat side power window
& door lock SW. function

OK

Repair open circuit or
connector contact

Open circuit or poor connector
contact

NG

Continuity between 5

D-12

and 2

D-11

 (5

D-16

 and 2 D-

15), or 6

D-12

 and 1

D-11

 (6

D-16

 and1

D-15

)

1. Rear power window motor-

LH (RH) function when
connecting the motor
connector 2

D-11

 (2

D-15

) to the battery (+)

terminal, and 1

D-11

 (1

D-15

) to the (-) terminal

(Should the motor rotate in
the “UP” direction of the
window)

2. Rear power window motor-

LH (RH) function when
connecting the motor
connector 1

D-11

 (1

D-15

) to the battery (+)

terminal, and 2

D-11

 (2

D-15

) to the (-) terminal

(Should the motor rotate in
the “DOWN” direction of the
window)

Replace the rear power
window SW. -LH (RH)

SW. malfunction

NG

OK

Rear power window SW. LH
(RH) function





ELECTRICAL-BODY AND CHASSIS  8-301



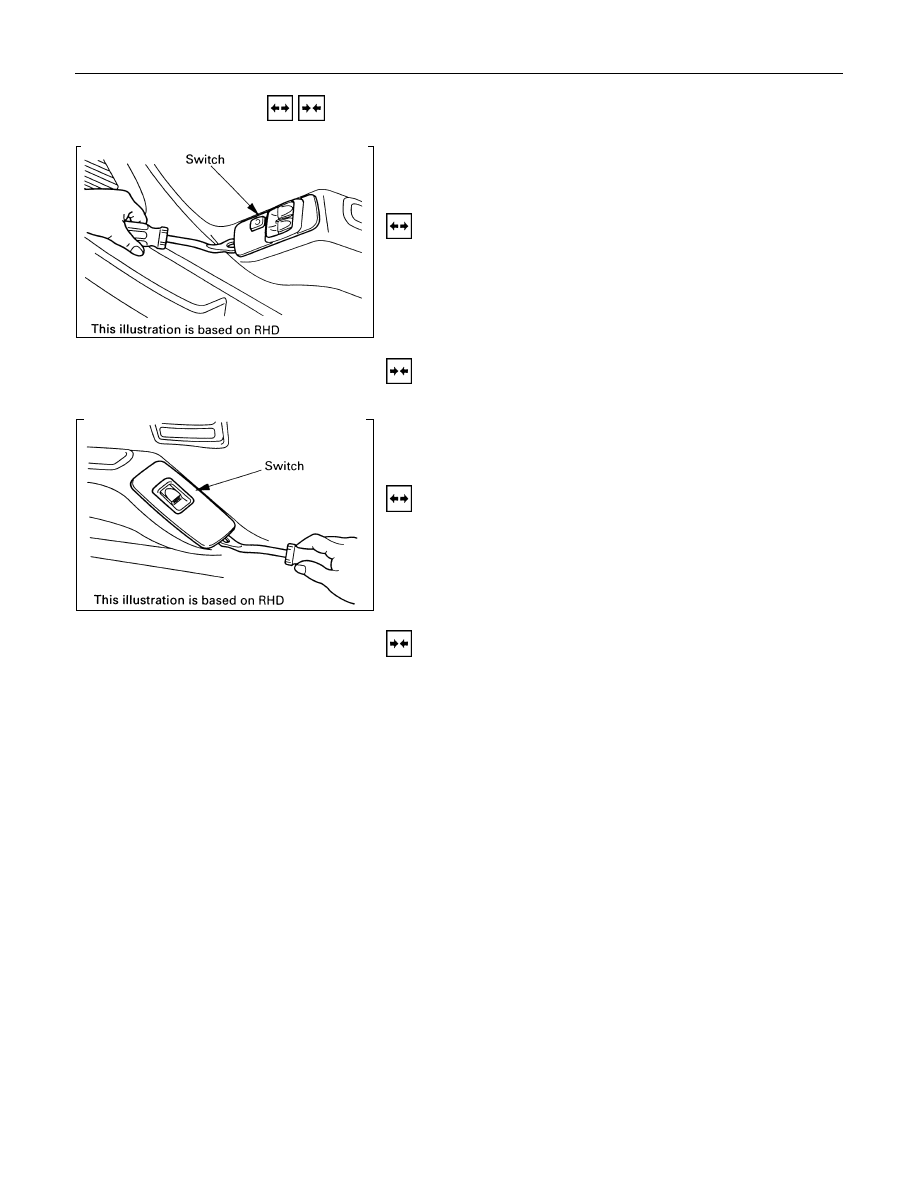

  REMOVAL AND INSTALLATION









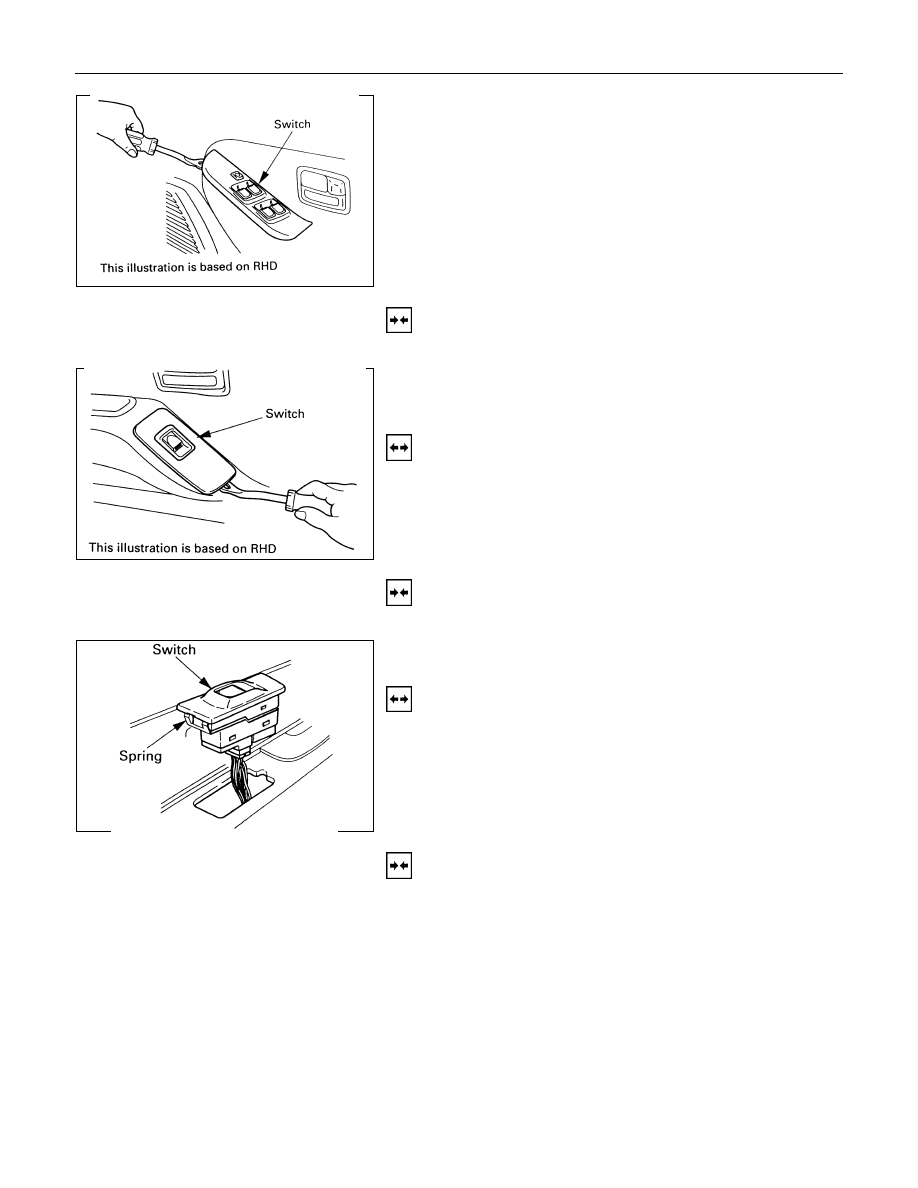

DRIVER SEAT SIDE POWER WINDOW &

DOOR LOCK SWITCH
(2 DOORS MODEL)

Removal

1.  Remove the switch by pushing the spring with the tip of a

screwdriver.

2.  Disconnect the connector.





Installation

To install, follow the removal steps in the reverse order.








FRONT PASSENGER’S POWER WINDOW

& DOOR LOCK SWITCH
(2 DOORS MODEL)

Removal

1.  Remove the switch by pushing the spring with the tip of a

screwdriver.

2.  Disconnect the connector.





Installation

To install, follow the removal steps in the reverse order.


8-302  ELECTRICAL-BODY AND CHASSIS



DRIVER SEAT SIDE POWER WINDOW &

DOOR LOCK SWITCH
(4 DOORS MODEL)

Removal

1.  Remove the switch by pushing the spring with the tip of a

screwdriver.

2.  Disconnect the connector.




Installation

To install, follow the removal steps in the reverse order.








FRONT PASSENGER’S POWER WINDOW

& DOOR LOCK SWITCH
(4 DOORS MODEL)

Removal

1.  Remove the switch by pushing the spring with the tip of a

screwdriver.

2.  Disconnect the connector.





Installation

To install, follow the removal steps in the reverse order.







REAR POWER WINDOW & DOOR LOCK

SWITCH-LH & RH

Removal

1.  Remove the switch by pushing the spring with the tip of a

screwdriver.

2.  Disconnect the connector.





Installation

To install, follow the removal steps in the reverse order.









8-302  ELECTRICAL-BODY AND CHASSIS





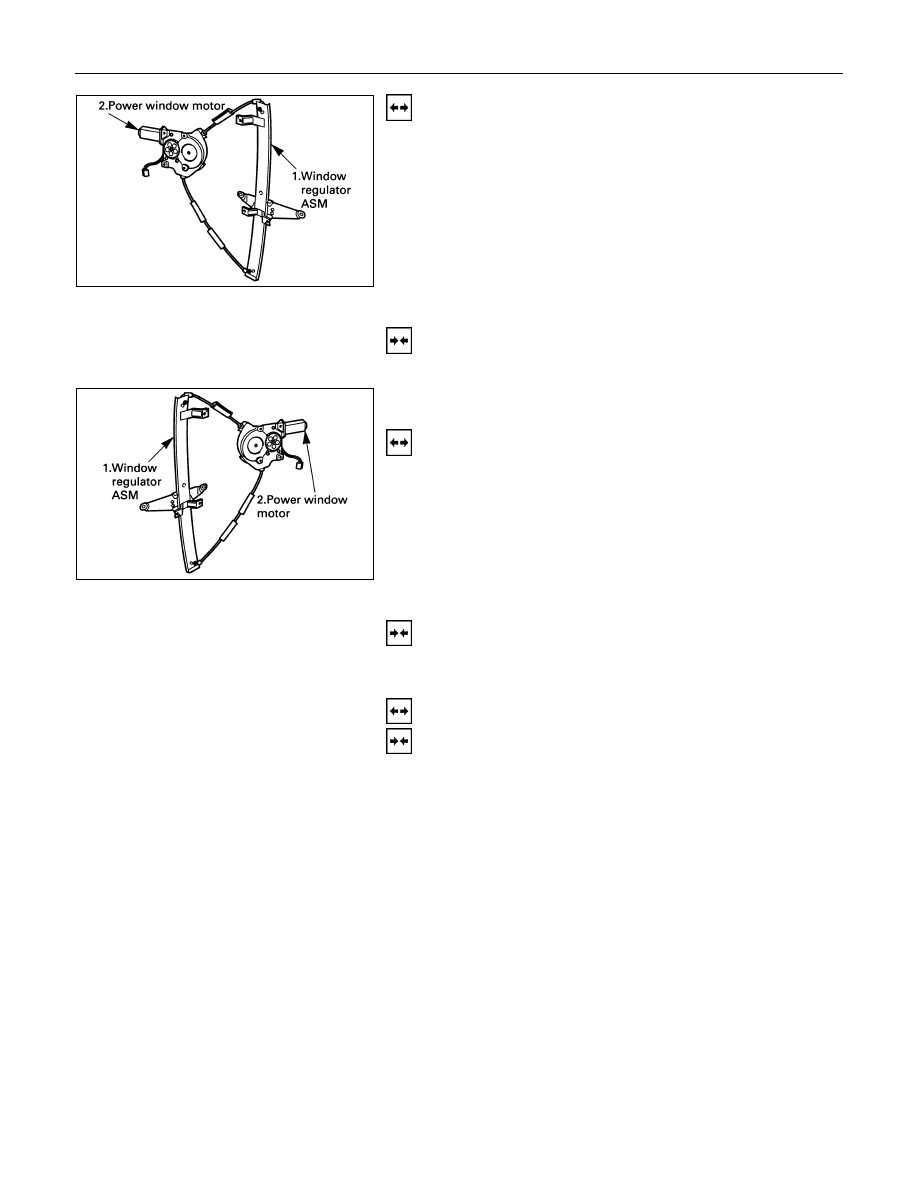

DRIVER SEAT SIDE POWER WINDOW

MOTOR

Removal

1.  Window Regulator ASM

· Refer to the removal steps of the WINDOW

REGULATOR/POWER WINDOW MOTOR in Section
10 “BODY”.

2.  Power Window Motor

·  Loosen the fixing bolts to remove the power window

motor from the regulator.






Installation

To install, follow the removal steps in the reverse order.







FRONT PASSENGER’S POWER WINDOW

MOTOR

Removal

1. Window Regulator ASM

· Refer to the removal steps of the WINDOW

REGULATOR/POWER WINDOW MOTOR in Section
10 “BODY”.

2. Power Window Motor

·  Loosen the fixing bolts to remove the power window

motor from the regulator.






Installation

To install, follow the removal steps in the reverse order.









REAR POWER WINDOW MOTOR-LH &

RH

Removal and Installation

Refer to the “DRIVER SEAT SIDE POWER WINDOW
MOTOR” removal and installation steps in this section.
