10-30  CAB

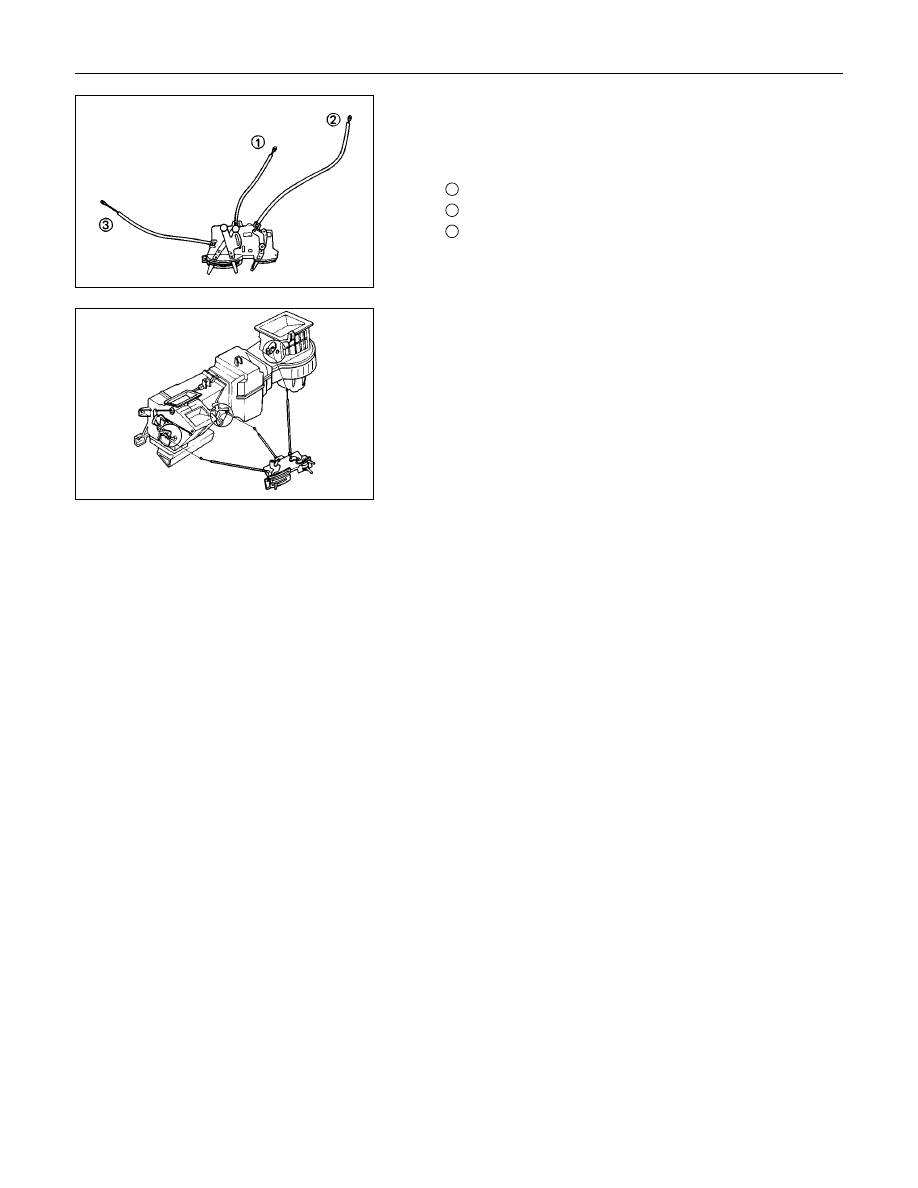

4. Control Lever Assembly

1) Set the temperature control lever and the airsource

select lever at the left-hand side end.

2) Set the air selector lever at the right-hand side end.

1

 : Temperature control cable

2

: Air source select cable

3

: Air selector

3) Attach the cable, after the work 1) and 2) have been

completed.

CAB  10-31

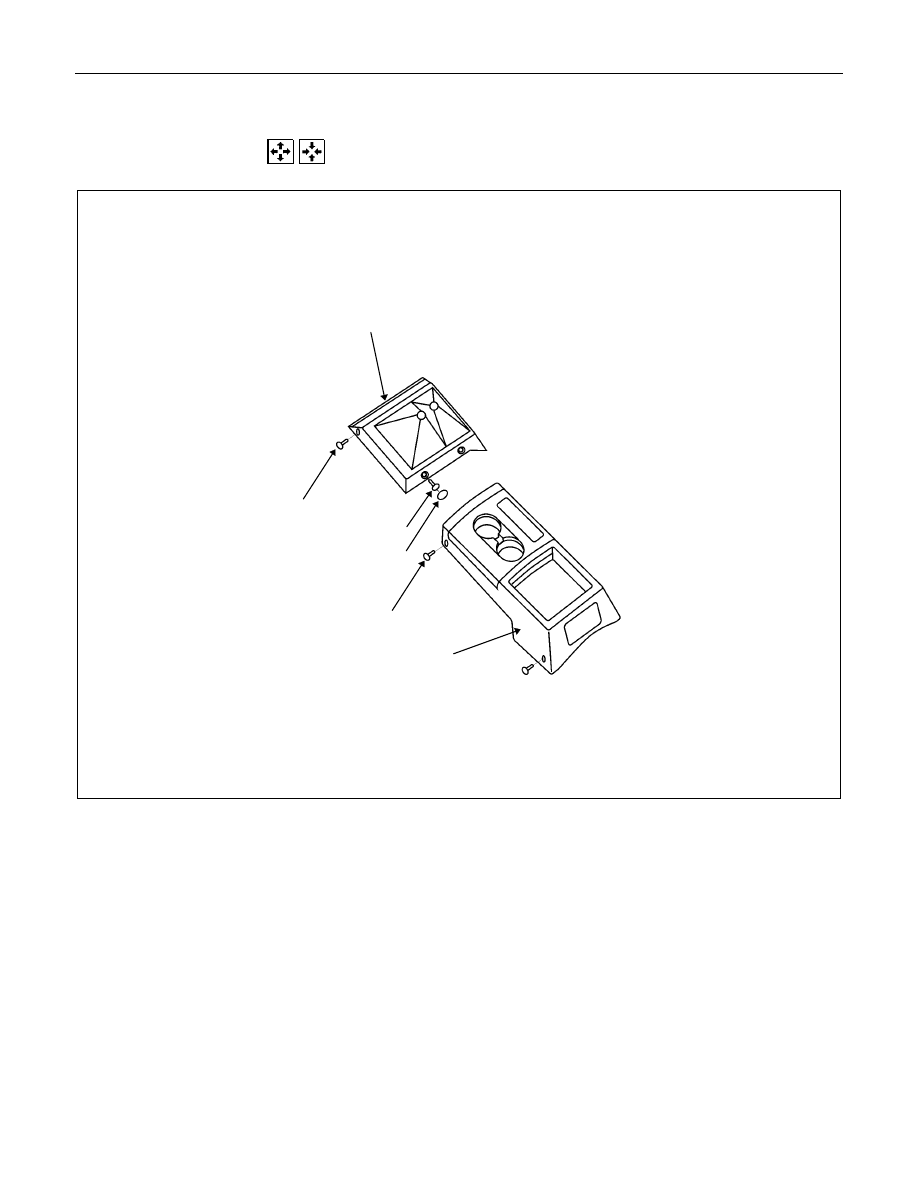

CONSOLE BOX



  REMOVAL AND INSTALLATION

6

5

1

2

4

3

4

×

4 S Model

Removal Steps

1. Hole cover

×

2

2. Screw

×

2

3. Screw

×

2

4. Center console
5. Screw

×

4

6. Rear console

Installation Steps

6. Rear console
5. Screw

×

4

4. Center console
3. Screw

×

2

2. Screw

×

2

1. Hole cover

×

2

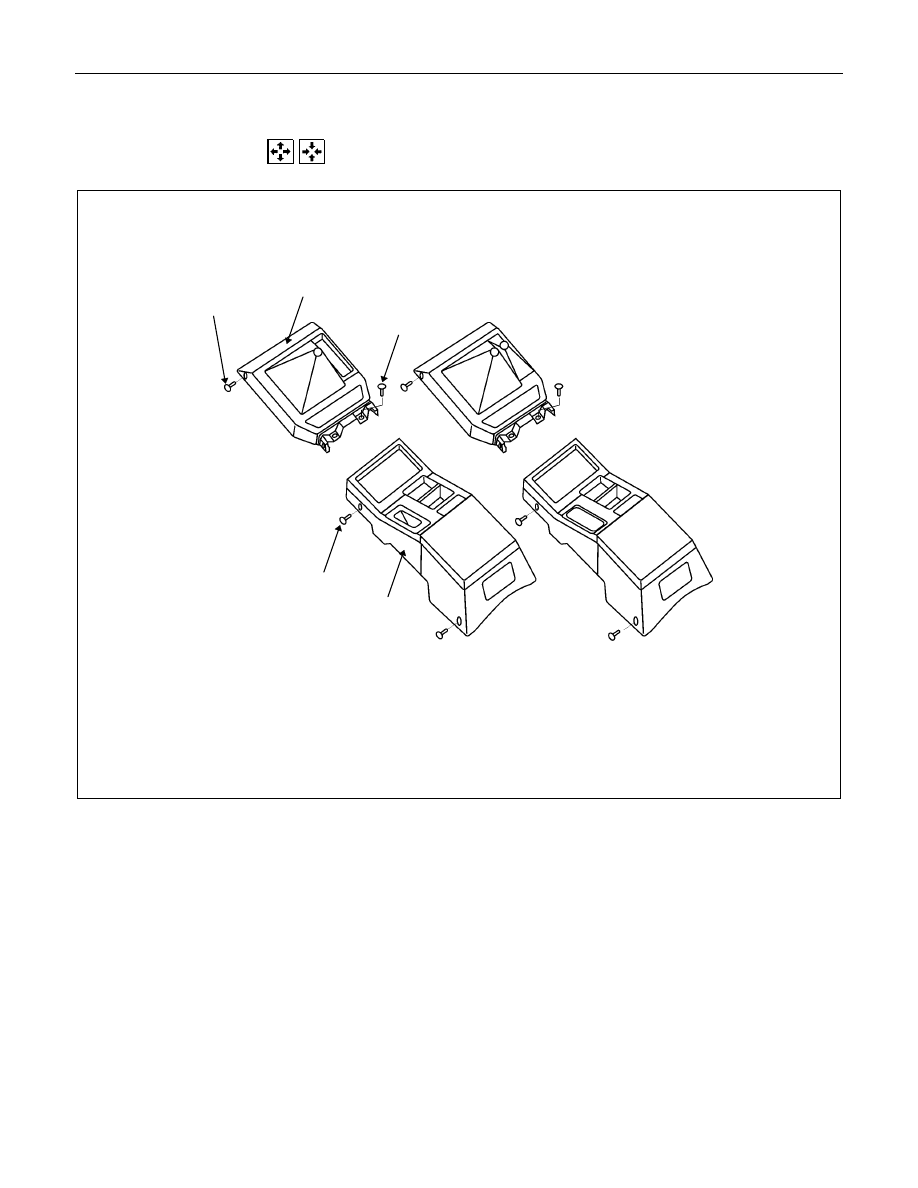

10-32  CAB

CONSOLE BOX



  REMOVAL AND INSTALLATION

4

5

3

2

1

4

×

2 LS Model

4

×

4 LS Model

4

×

2 LS AND 4

×

4 LS Model

Removal Steps

1. Screw

×

4

2. Rear console
3. Screw

×

2

4. Screw

×

2

5. Center console

Installation Steps

5. Center console
4. Screw

×

2

3. Screw

×

2

2. Rear console
1. Screw

×

4

CAB  10-33

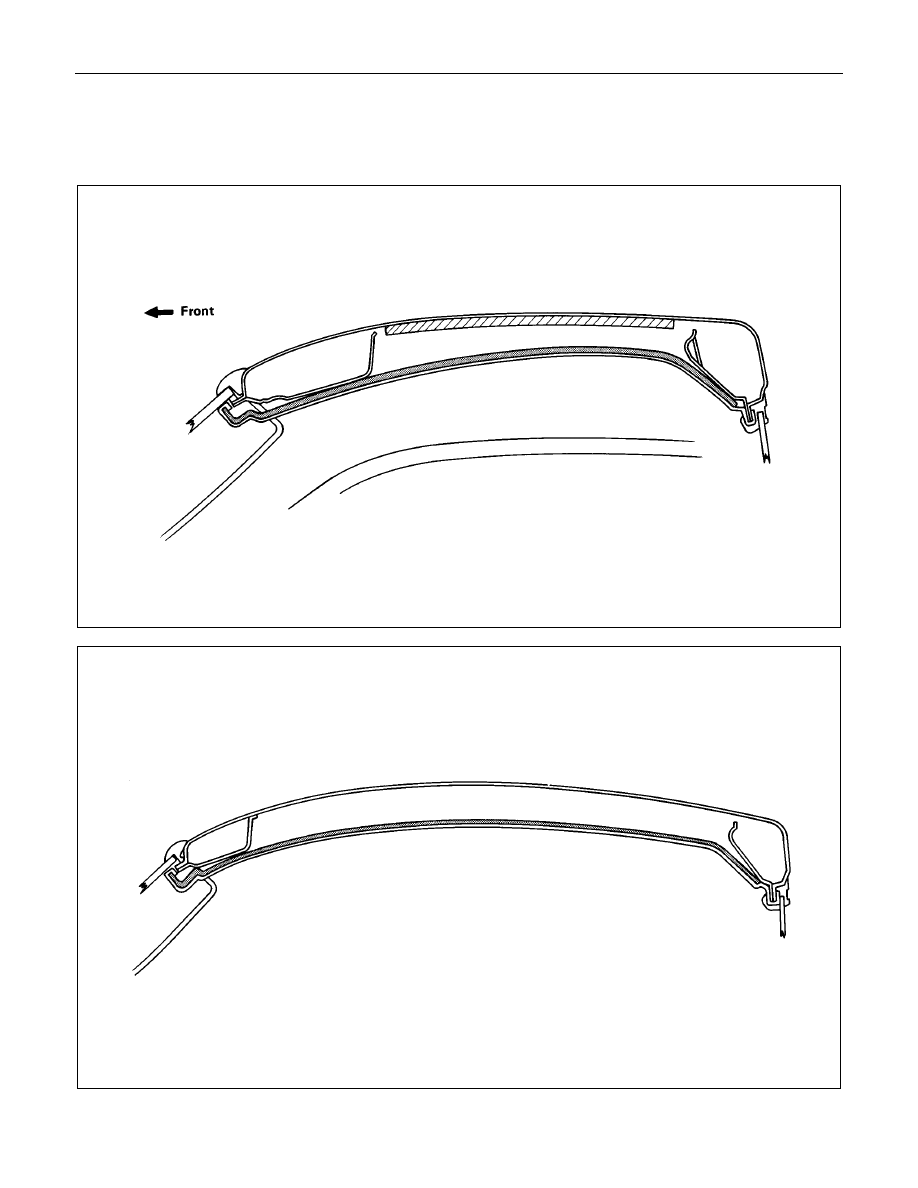

HEAD LINING

GENERAL DESCRIPTION

STANDARD CAB

SPACE CAB (SPORTS CAB)
