Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 1031





10-26  CAB

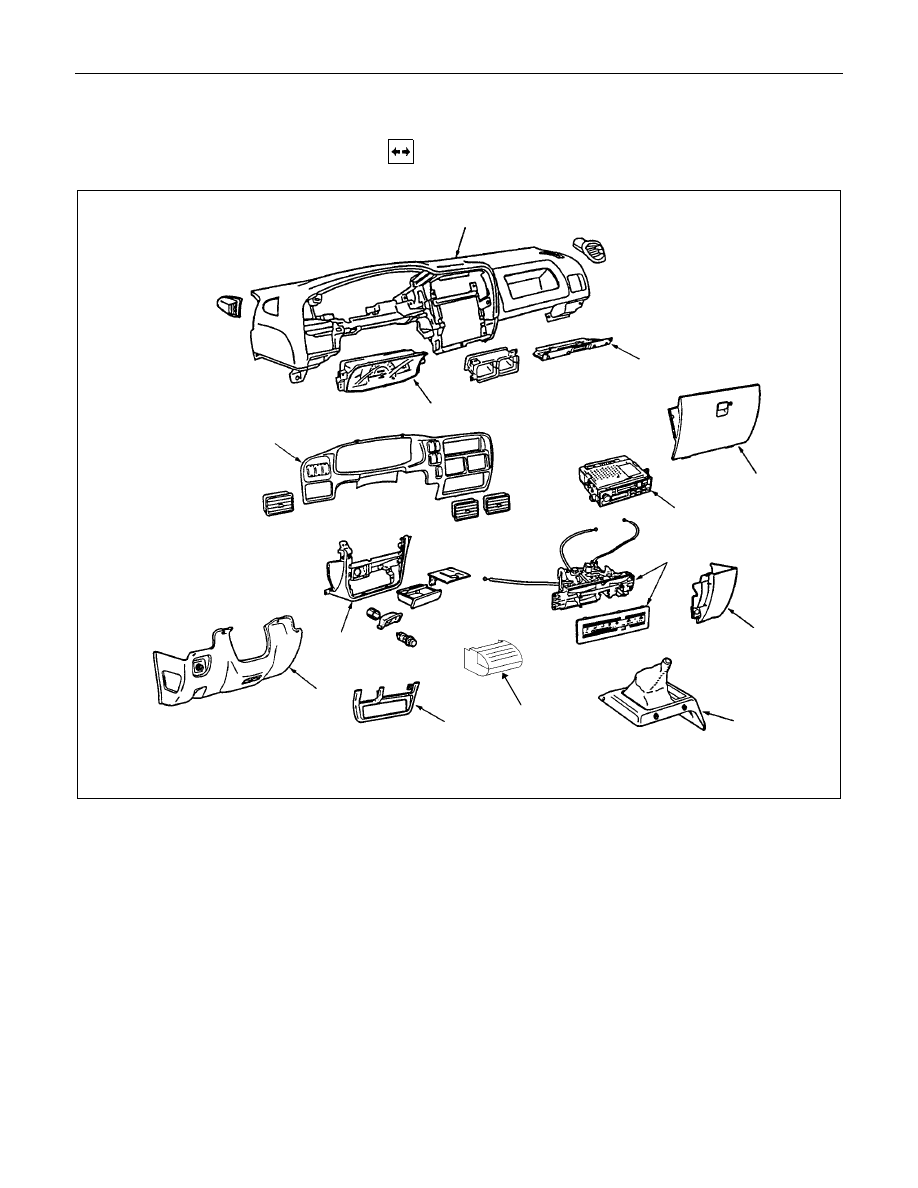

INSTRUMENT PANEL

  REMOVAL

2

9

6

7

1

5

10

13

8

12

11

4

3

Disassembly Steps

1. Center console assembly

2. ECM cover (M/T Remote only)

3. Glove box

4. Glove box cover

5. Instrument panel passenger lower cover

assembly

6. Instrument panel driver lower cover

assembly

7. Lower cluster assembly

8. Meter cluster assembly

9. Instrument panel lower center cover

assembly

10. Control lever assembly

11. Instrument panel assembly
12. Meter assembly
13. Radio assembly

CAB  10-27

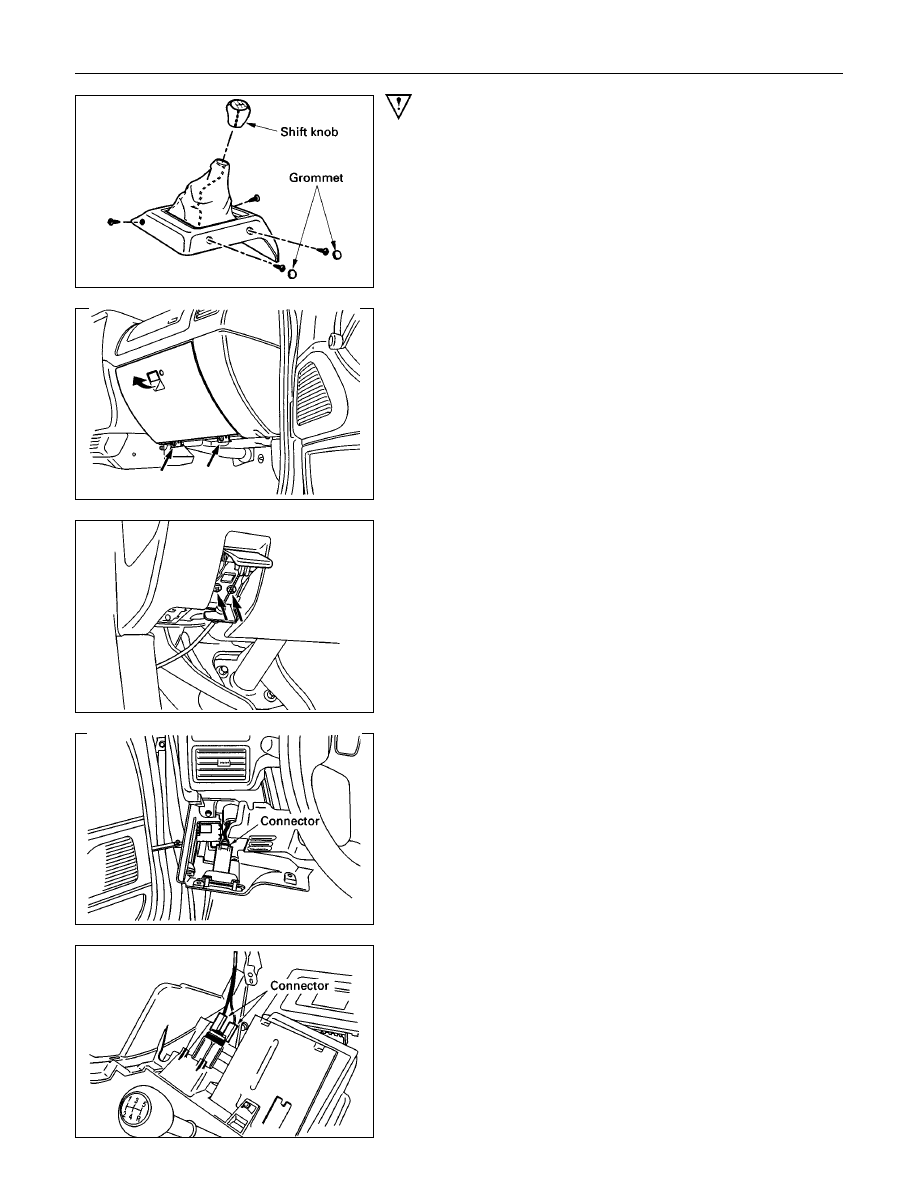

Important Operations

1. Center Console Assembly

Remove shift knob and 2 fixing screws (front side).

Open the grommet and remove 2 fixing screws (rear

side).

2. ECM cover

3. Glove Box

Remove 2 fixing screws and pulling the handle.

4. Glove Box Cover

Remove 4 fixing screws and pull the cover toward you

and remove the clips at 2 positions.

5. Instrument Panel Passenger Lower Cover Assembly

Remove 3 fixing screws and 1 clip.

6. Instrument Panel Driver Lower Cover Assembly

Remove the engine hood opener 2 fixing screws and 6

fixing screws.

Disconnect the connector of the illumination.

7. Lower Cluster Assembly

Remove 3 fixing clips.

8. Meter Cluster Assembly

Remove 3 fixing screws, 7 clips and switch connectors.

9. Instrument Panel Lower Center Cover Assembly

Remove 7 fixing screws and disconnect the connector of

the cigarette lighter.

10-28  CAB

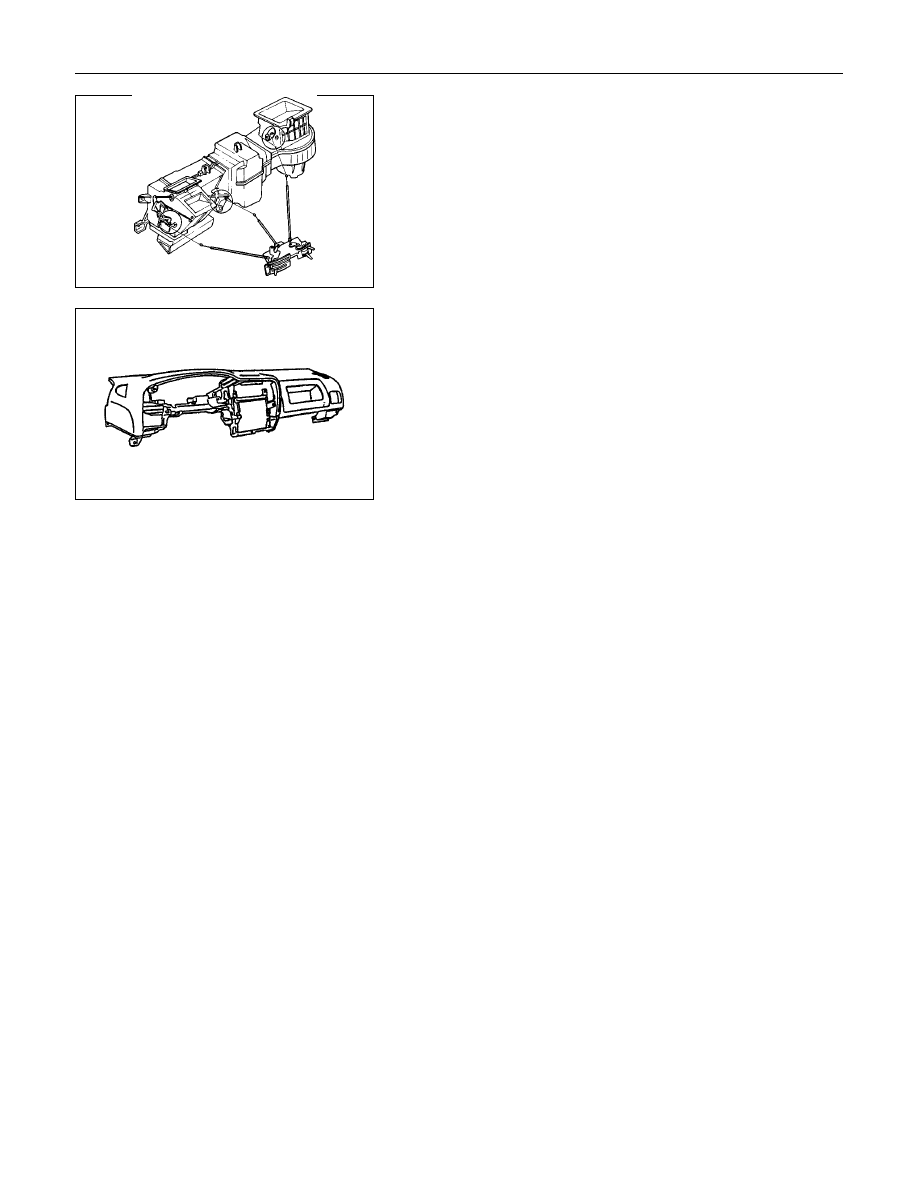

10.Control Lever Assembly

1) Disconnect the control cable from heater unit and blower

unit.

2) Remove the control lever assembly fixing screws.

11.Instrument Panel

1) Remove the instrument panel fixing nuts and bolts.

2) Disconnect the instrument harness on ECM.

3) Remove the instrument panel.

CAB  10-29

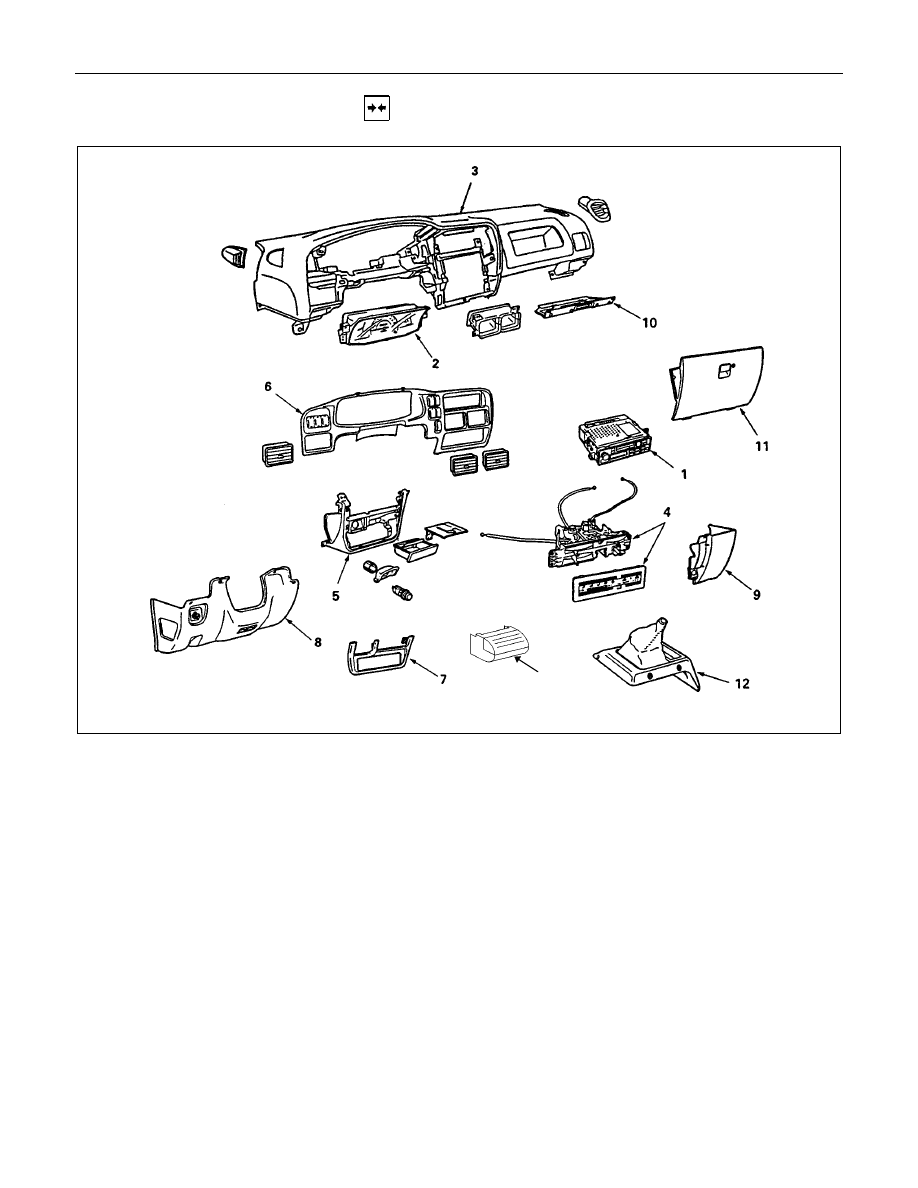

  INSTALLATION

12

Installation Steps

1. Radio assembly
2. Meter assembly
3. Instrument panel assembly

4. Control lever assembly
5. Instrument panel lower center cover

assembly

6. Meter cluster assembly

7. Lower cluster assembly
8. Instrument panel driver lower cover

assembly

9. Instrument panel passenger lower cover

assembly

10. Glove box cover
11. Glove box
12. ECM cover (M/T Remote only)
13. Center console assembly
