Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 1030





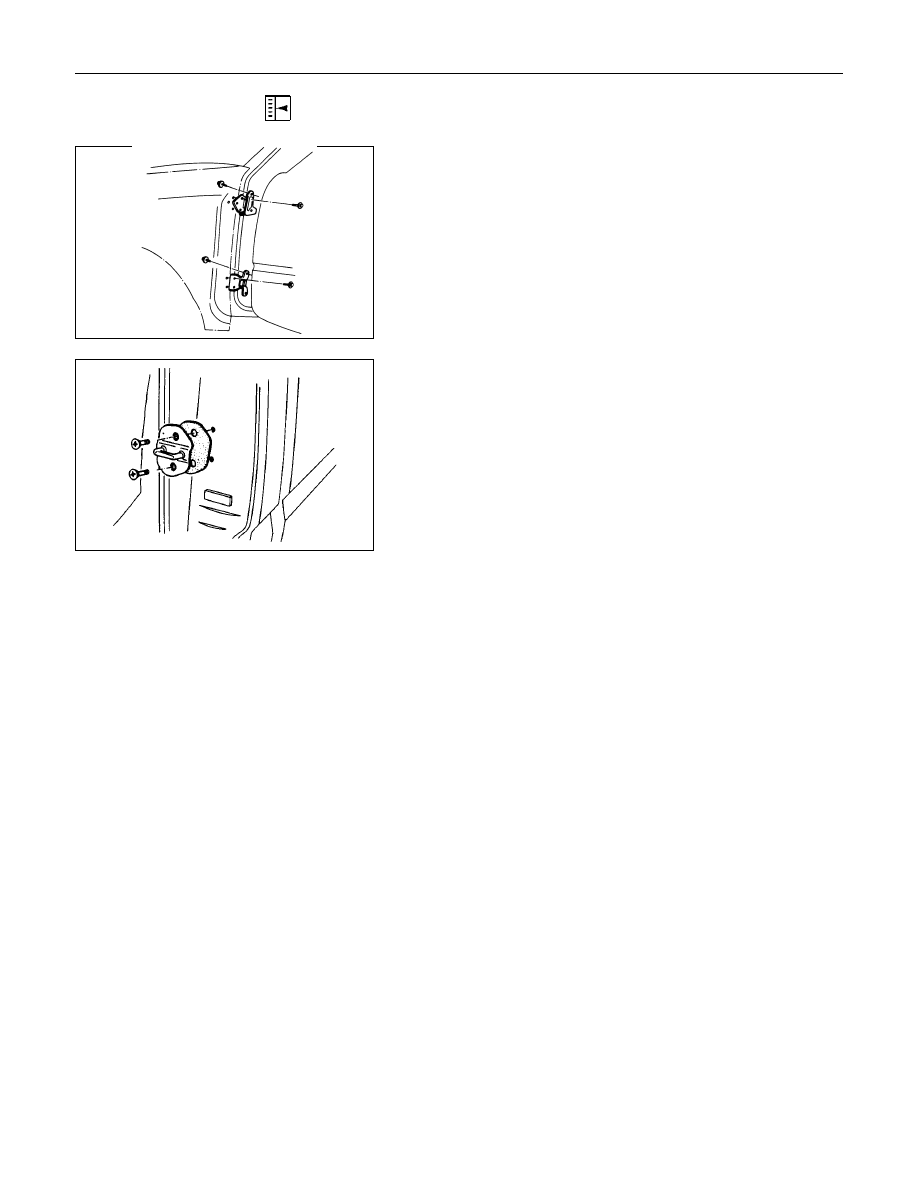

10-22  CAB

  ADJUSTMENT (FRONT AND REAR)

Door Hinge

Door alignment can be obtained by moving door hinges.
Prior to adjustment, remove the fender and set the door
temporarily.
Loosen hinge to door bolts when adjusting steps between the
door and body.
Loosen hinge to body bolts to adjust the clearance between the
door and body.

Door Striker

Loosen the striker screws and adjust the position of the striker
by holding a piece of wood against the striker and tapping it
with a hammer.
To obtain correct adjustment, move the position of the striker
vertically so that the lower face of the dovetail becomes parallel
to the striker.
Adjust the number of sheets to control engagement of the
striker with the door latch.  One or two sheets are generally
used to obtain correct adjustment.

CAB  10-23

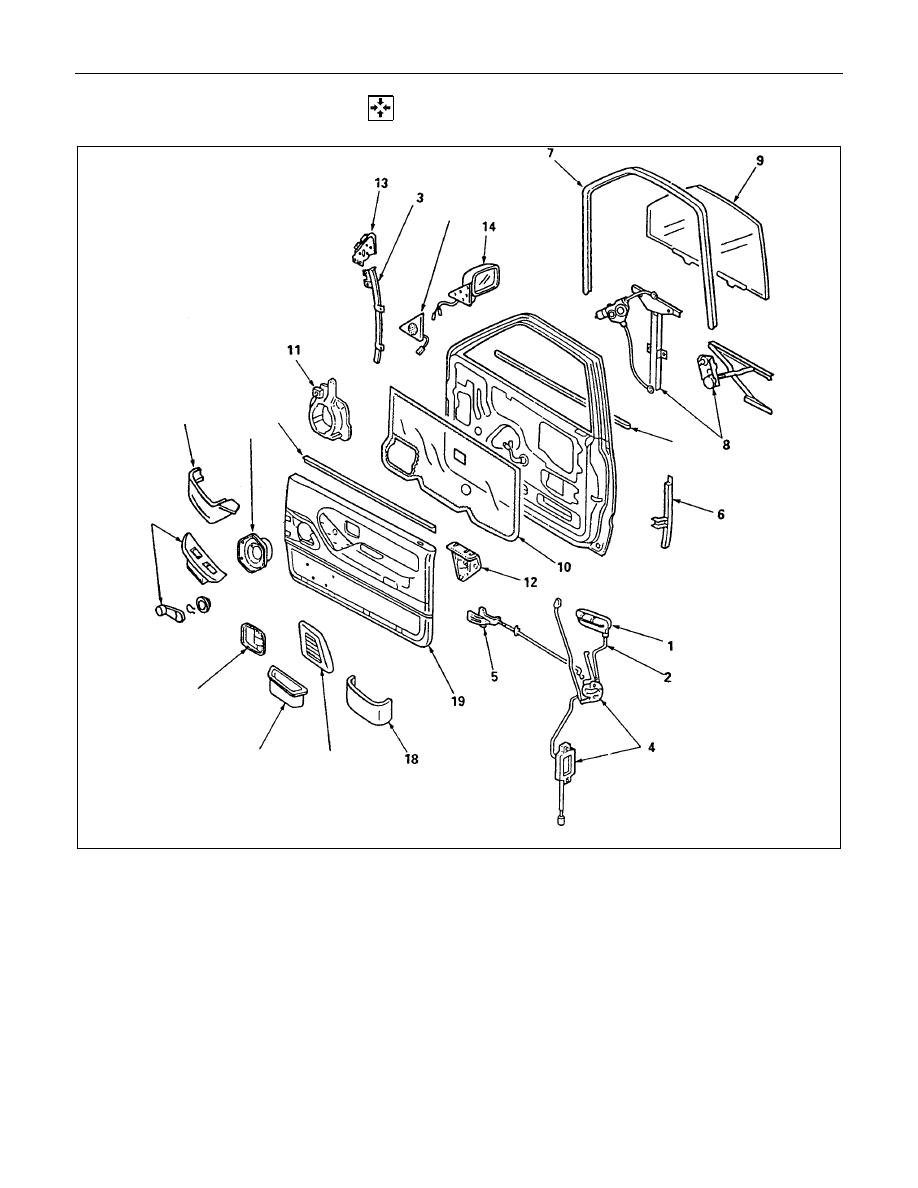

  REASSEMBLY

(Front Door)

15

23

21

24

25

22

17

16

20

Reassembly Steps

1. Outside handle
2. Door lock cylinder
3. Glass run front channel
4. Door lock assembly/Door lock actuator
5. Inside lever
6. Glass run rear channel
7. Glass run
8. Window regulator/Power window motor

9. Window glass

10. Water proof sheet
11. Speaker box
12. Bracket
13. Door mirror bracket

14. Door mirror assembly
15. Outer waste seal
16. Inner waste seal
17. Power window box
18. Door pocket
19. Door trim pad
20. Door mirror cover/Tweeter
21. Door pull case
22. Speaker assembly
23. Speaker grill
24. Bezel

25. Power window switch/Windows regulator

handle

10-24  CAB

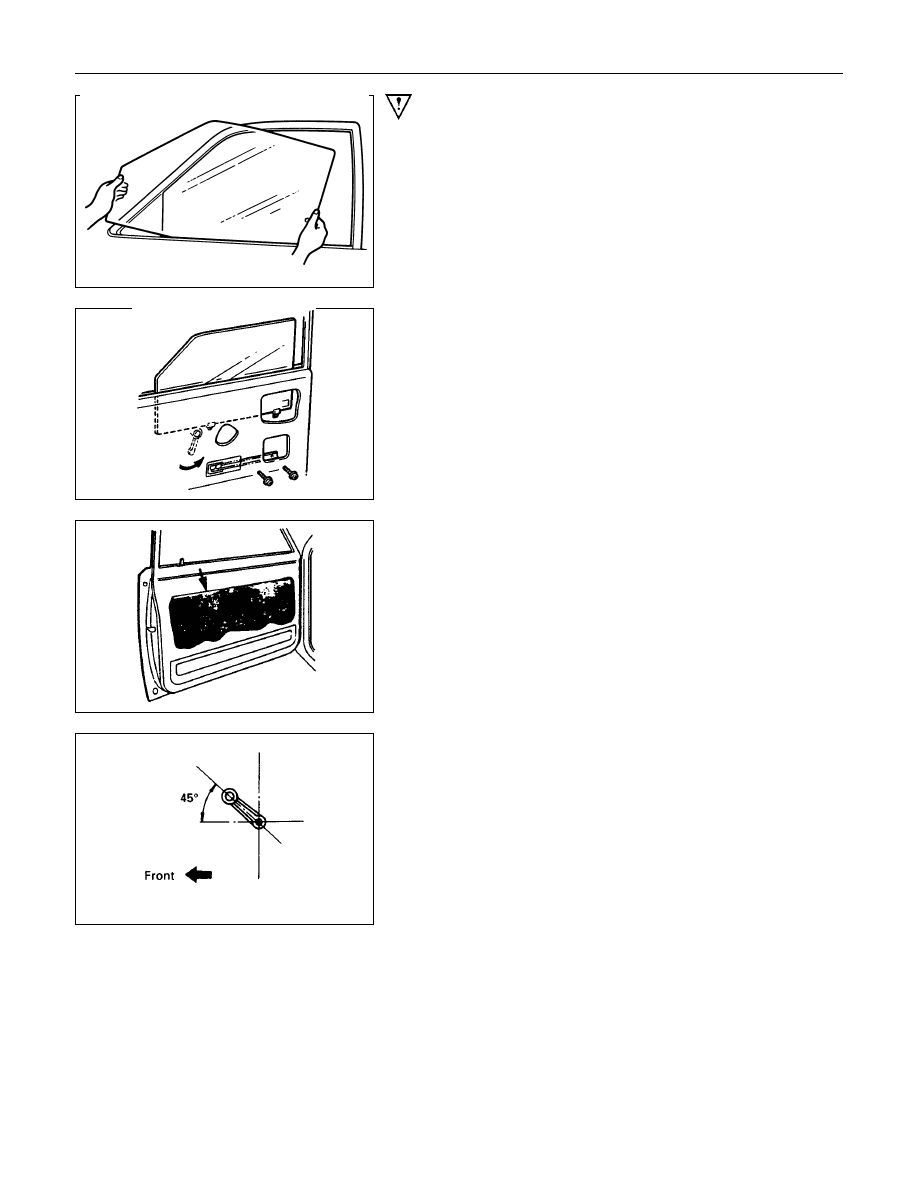

Important Operations

9.Window Glass

Insert the window glass into position by tilting it as

necessary, then set it against the channel of the window

regulator.

Attach the window glass to the window regulator with the

two screws.

10.Water Proof Sheet

Place the butyl type on the door panel so as not to cover

the drain hole.

25.Regulator Handle

Install the regulator handle as illustrated when closing

the window glass.

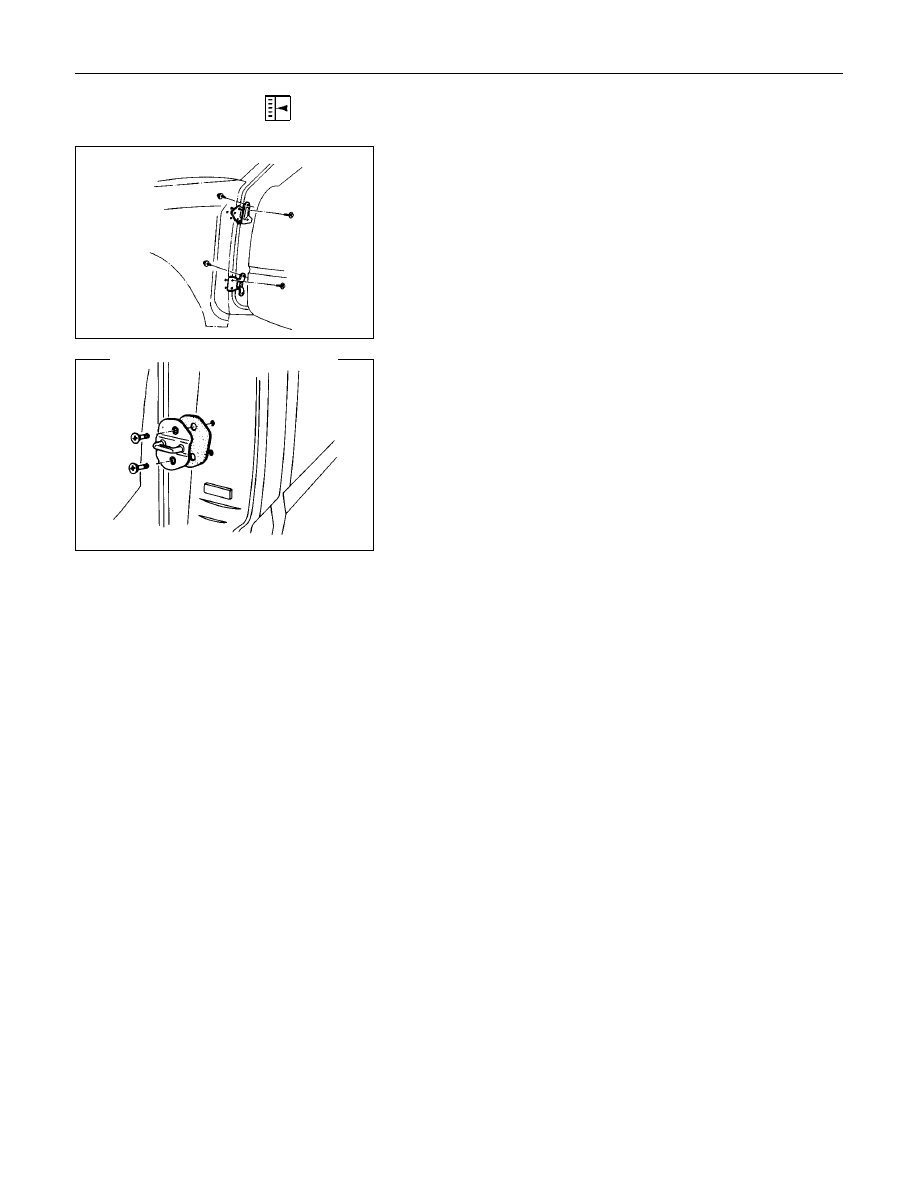

CAB  10-25

  ADJUSTMENT (FRONT AND REAR)

Door Hinge

Door alignment can be obtained by moving door hinges.
Prior to adjustment, remove the fender and set the door
temporarily.
Loosen hinge to door bolts when adjusting steps between the
door and body.
Loosen hinge to body bolts to adjust the clearance between the
door and body.

Door Striker

Loosen the striker screws and adjust the position of the striker
by holding a piece of wood against the striker and tapping it
with a hammer.
To obtain correct adjustment, move the position of the striker
vertically so that the lower face of the dovetail becomes parallel
to the striker.
Adjust the number of sheets to control engagement of the
striker with the door latch.  One or two sheets are generally
used to obtain correct adjustment.
