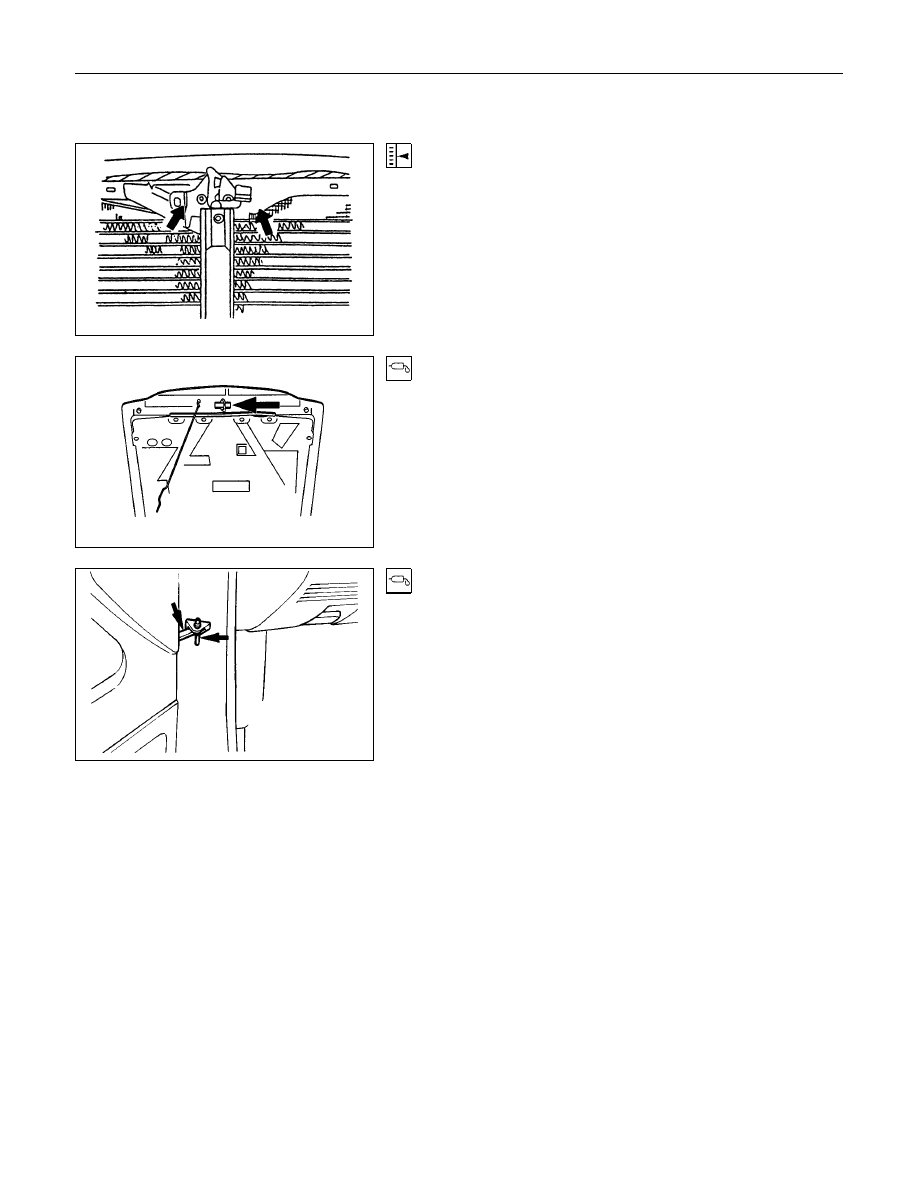

10-2  CAB

SERVICING

Engine Hood Lock

Align the engine hood lock with the installation holes.

Engine Hood Striker

Apply a light coat of grease to the striker.

Door Checker Arm and Pin

Apply a light coat of grease to the checker arm and pin.

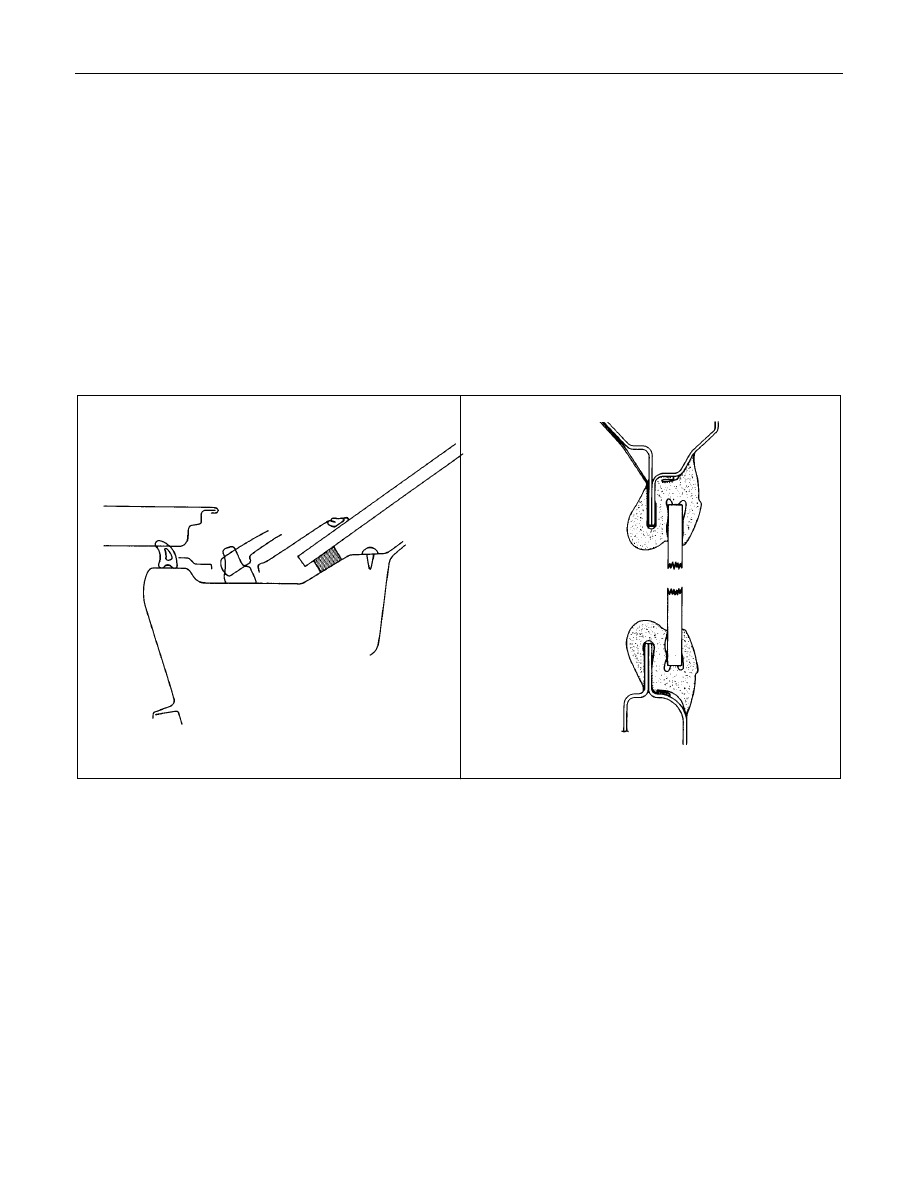

CAB  10-3

WINDSHIELD AND BACK LIGHT GLASSES

GENERAL DESCRIPTION

This vehicle uses two types of safety glass: (1) laminated safety plate, for the windshield, and (2) solid tempered
safety plate, for the back glass.
The windshield glass is one-piece and is directly retained in the windshield opening by the adhesive.
When replacing a cracked windshield glass, it is very important that the cause of the glass breakage be determined
and the condition corrected before a new glass is installed.  Otherwise, it is possible that a small obstruction or high
spot somewhere around the windshield opening will continue to crack or break the newly installed windshield.  This
is especially true when the strain on the glass caused by this obstruction is increased by such conditions as wind
pressures, extremes of temperature, motion of the vehicle, etc.  The procedure for removal of the windshield
applies to the complete windshield assembly.

WINDSHIELD GLASS

BACK LIGHT GLASS

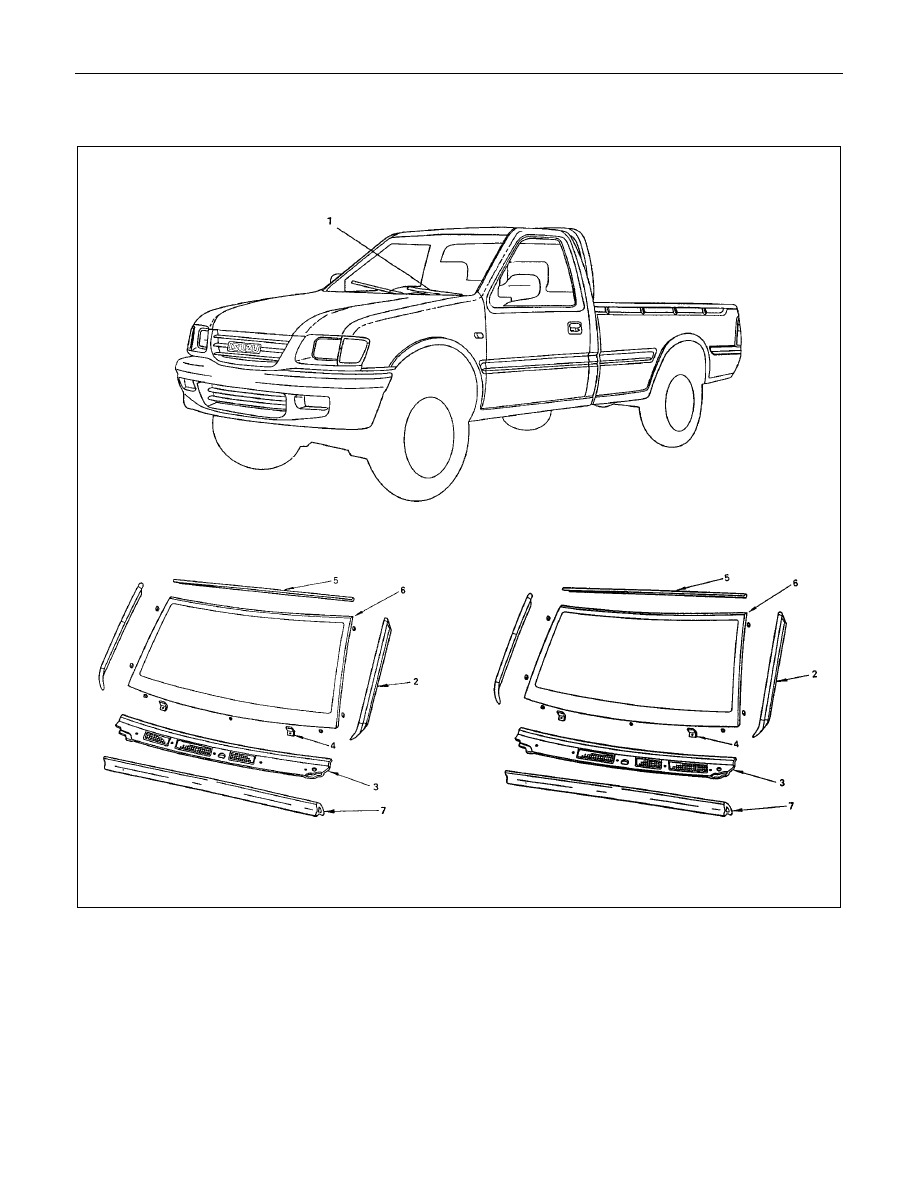

10-4  CAB

REMOVAL AND INSTALLATION

For RHD model

For LHD model

Removal Steps

1. Wiper arm assembly
2. Side moulding
3. Vent cowl cover
4. Windshield stopper
5. Upper moulding

▲

6. Windshield glass
7. Engine hood rear seal

Installation Steps

▲

7. Engine hood rear seal

▲

6. Windshield glass

▲

5. Upper moulding

▲

4. Windshield stopper
3. Vent cowl cover

▲

2. Side moulding
1. Wiper arm assembly

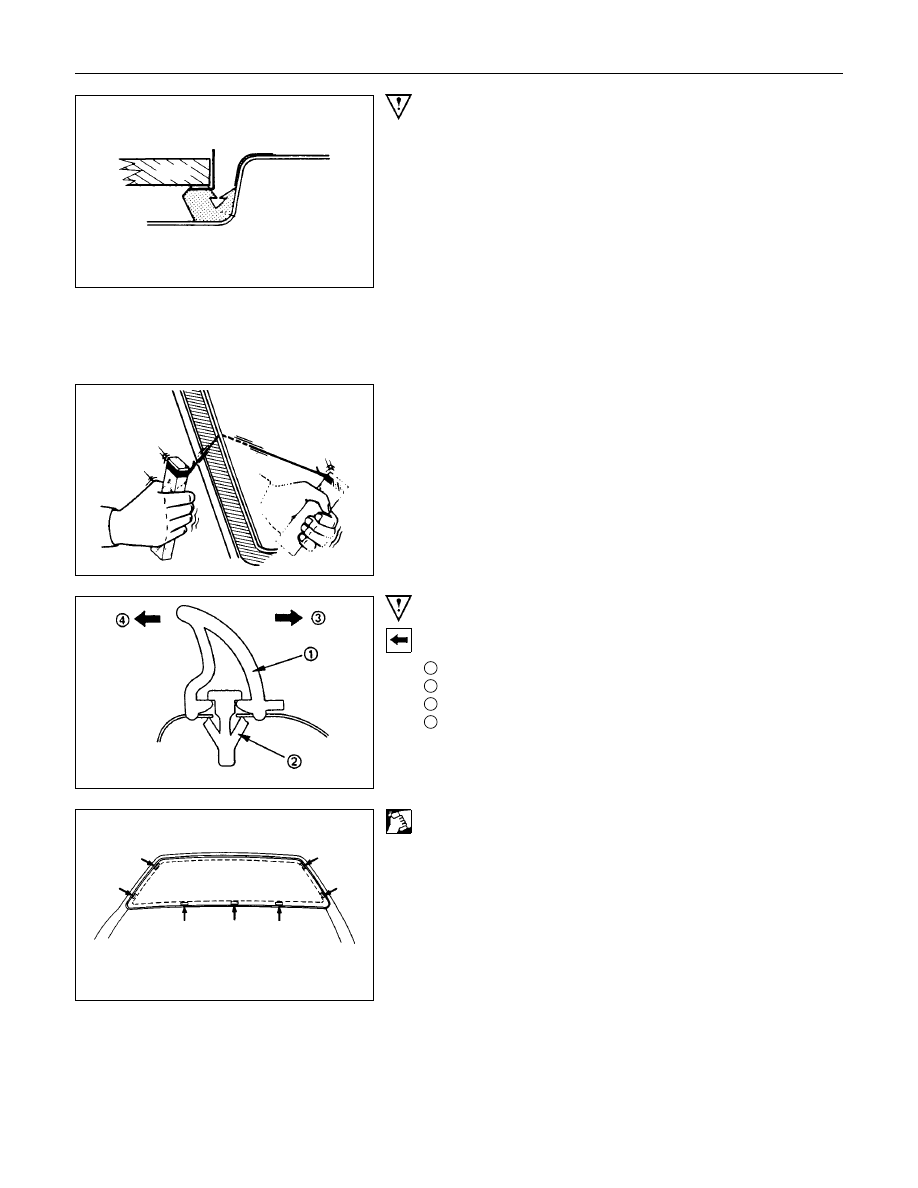

CAB  10-5

Important Operation - Removal

6. Windshield Glass
Remove the windshield glass, carefully following the steps
listed below :
1) Use a knife to cut through part of the adhesive caulking

material.

2) Secure one end of a piece of steel piano wire (0.02 inches

in diameter) to a piece of wood that can serve as a handle.

3) Use a pair of needle nose pliers to insert the other end of

the piano wire through the adhesive caulking material at the

edge of the windshield glass.

4) Secure the other end of the piano wire to another piece of

wood.

5) With the aid of an assistant, carefully move the piano wire

with a sawing motion to cut through the adhesive caulking

material around the entire circumferance of the windshield

glass.

6) Lift the windshield from the body.

7) Clean any remaining adhesive caulking material from the

area of the body which holds the windshield.

8) Use a soft rag and unleaded gasoline to wipe off any

adhesive remaining on the windshield glass.

Important Operations - Installation

7. Engine Hood Rear Seal
Install the engine hood rear seal as shown in the illustration.

1

 : Seal

2

 : Clip

3

 : Rear (windshield glass side)

4

 : Front

6. Windshield Glass

1) Clean the windshield glass bonding surface.

2) Use a soft rag and unleaded gasoline to wipe off any

adhesive remaining on the body.

3) Mount the body window glass as shown in the illustration.

Attach spacers at seven (7) locations.
