NOTICE

Before using this Workshop Manual to assist you in performing vehicle

service and maintenance operations, it is recommended that you

carefully read and thoroughly understand the information contained in

Section - 0A under the headings "GENERAL REPAIR

INSTRUCTIONS" and "HOW TO USE THIS MANUAL".

All material contained in this Manual is based on the latest product

information available at the time of publication.

All rights are reserved to make changes at any time without prior

notice.

This manual is applicable to 2000 year model and later vehicles

except those sold in the United States of America, and Canada.

CAB  10-1

SECTION 10

CAB

TABLE OF CONTENTS

PAGE

Servicing ............................................................................................................................ 10- 2

Windshield and Rear Window Glasses ........................................................................... 10- 3

Sliding Rear Window Assembly ....................................................................................... 10- 8

Doors .................................................................................................................................. 10- 12

Instrument Panel ............................................................................................................... 10- 26

Console Box ...................................................................................................................... 10- 31

Head Lining ........................................................................................................................ 10- 33

Fuel Filler Lid Opener Lever/Cable (Double Cab) ........................................................... 10- 36

Quarter Glass (Space Cab) ............................................................................................... 10- 44

Font Seat ............................................................................................................................ 10- 45

Rear Seat............................................................................................................................ 10- 47

Front Seat Belt ................................................................................................................... 10- 48

Rear Seat Belt .................................................................................................................... 10- 49

Jump Seat .......................................................................................................................... 10- 50

Jump Seat Belt .................................................................................................................. 10- 51

INDEX

10-2  CAB

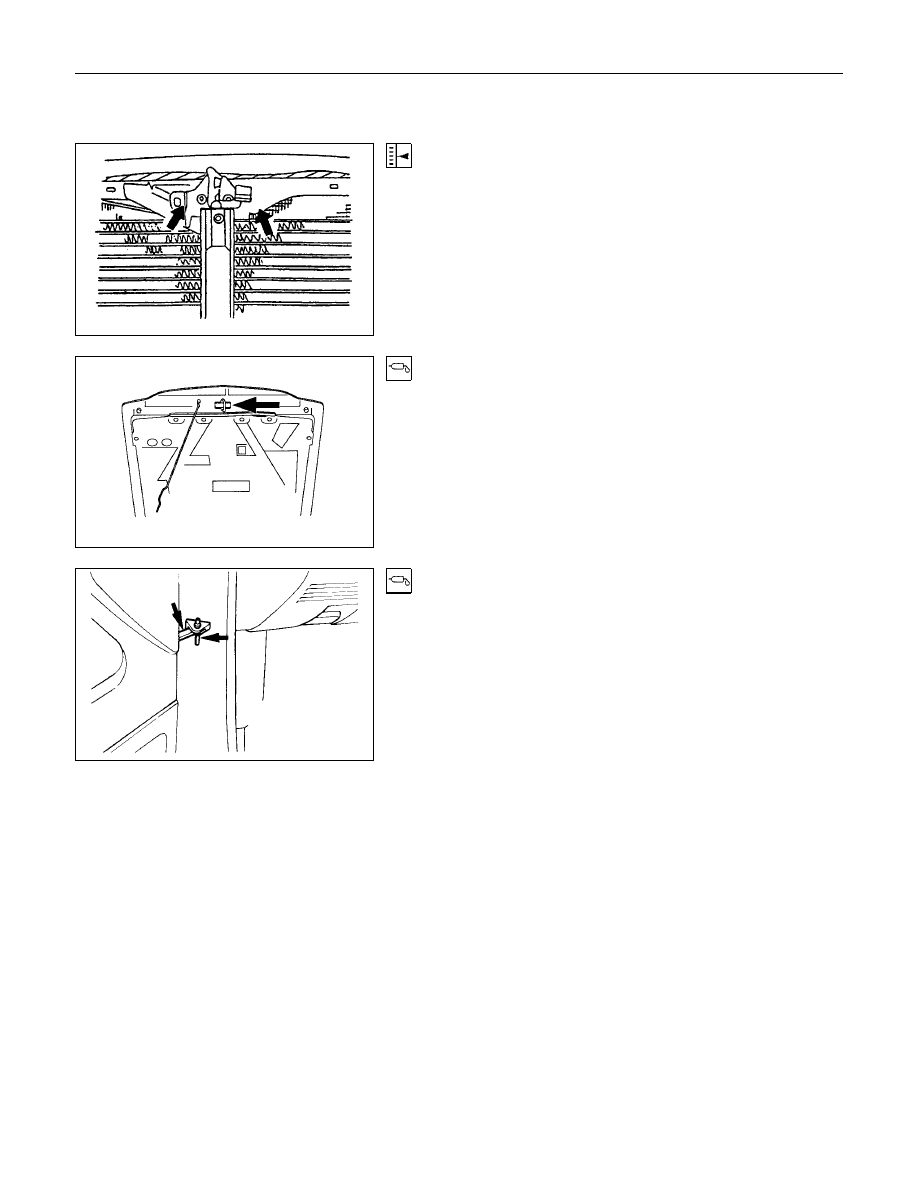

SERVICING

Engine Hood Lock

Align the engine hood lock with the installation holes.

Engine Hood Striker

Apply a light coat of grease to the striker.

Door Checker Arm and Pin

Apply a light coat of grease to the checker arm and pin.

CAB  10-3

WINDSHIELD AND REAR WINDOW GLASSES

GENERAL DESCRIPTION

This vehicle uses two types of safety glass: (1) laminated safety plate, for the windshield, and (2) solid tempered
safety plate, for the rear window glass.

The windshield glass is one-piece and is directly retained in the windshield opening by the adhesive.

When replacing a cracked windshield glass, it is very important that the cause of the glass breakage be determined
and the condition corrected before a new glass is installed.  Otherwise, it is possible that a small obstruction or high
spot somewhere around the windshield opening will continue to crack or break the newly installed windshield.  This
is especially true when the strain on the glass caused by this obstruction is increased by such conditions as wind
pressures, extremes of temperature, motion of the vehicle, etc.  The procedure for removal of the windshield
applies to the complete windshield assembly.

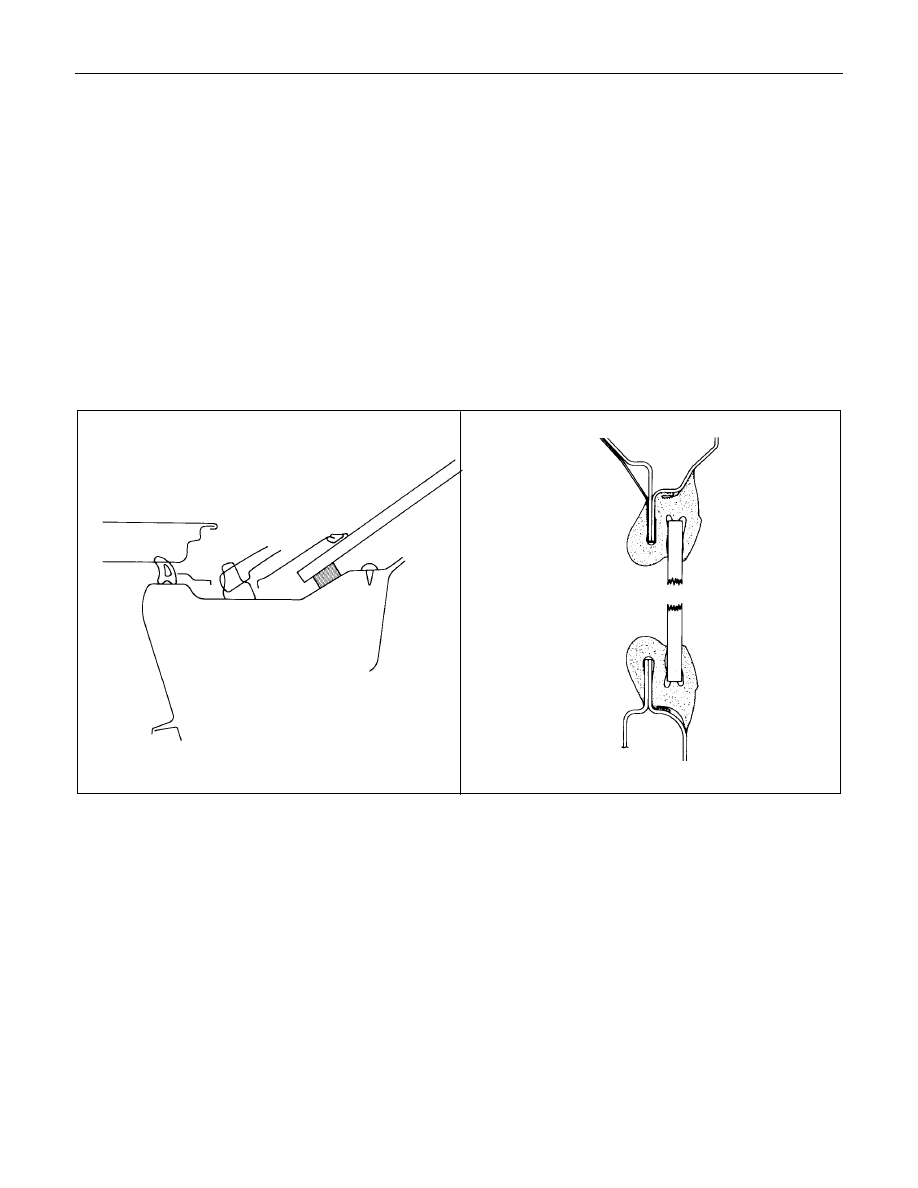

WINDSHIELD GLASS

REAR WINDOW GLASS
