4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

6E–115

8

Using the DVM and check the MAF sensor signal
circuit.

1. Ignition “On”, engine “Off”.

2. Disconnect the MAF sensor connector.

3. Check the circuit for short to power supply circuit.

Was the DVM indicated specified value?

Less than 1V

Go to Step 9

Repair faulty
harness and

verify repair

9

Substitute a known good MAF & IAT sensor assembly
and recheck.
Was the problem solved?

—

Go to Step 10

Go to Step 11

10

Replace the MAF & IAT sensor assembly.
Is the action complete?

—

Verify repair

—

11

Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?

—

Verify repair

Go to Step 12

12

Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobiliser system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobiliser System-ECM replacement” for
the ECM/Immobiliser linking procedure.

—

Verify repair

—

Step

Action

Value(s)

Yes

No

5

V

C-51

6E–116

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

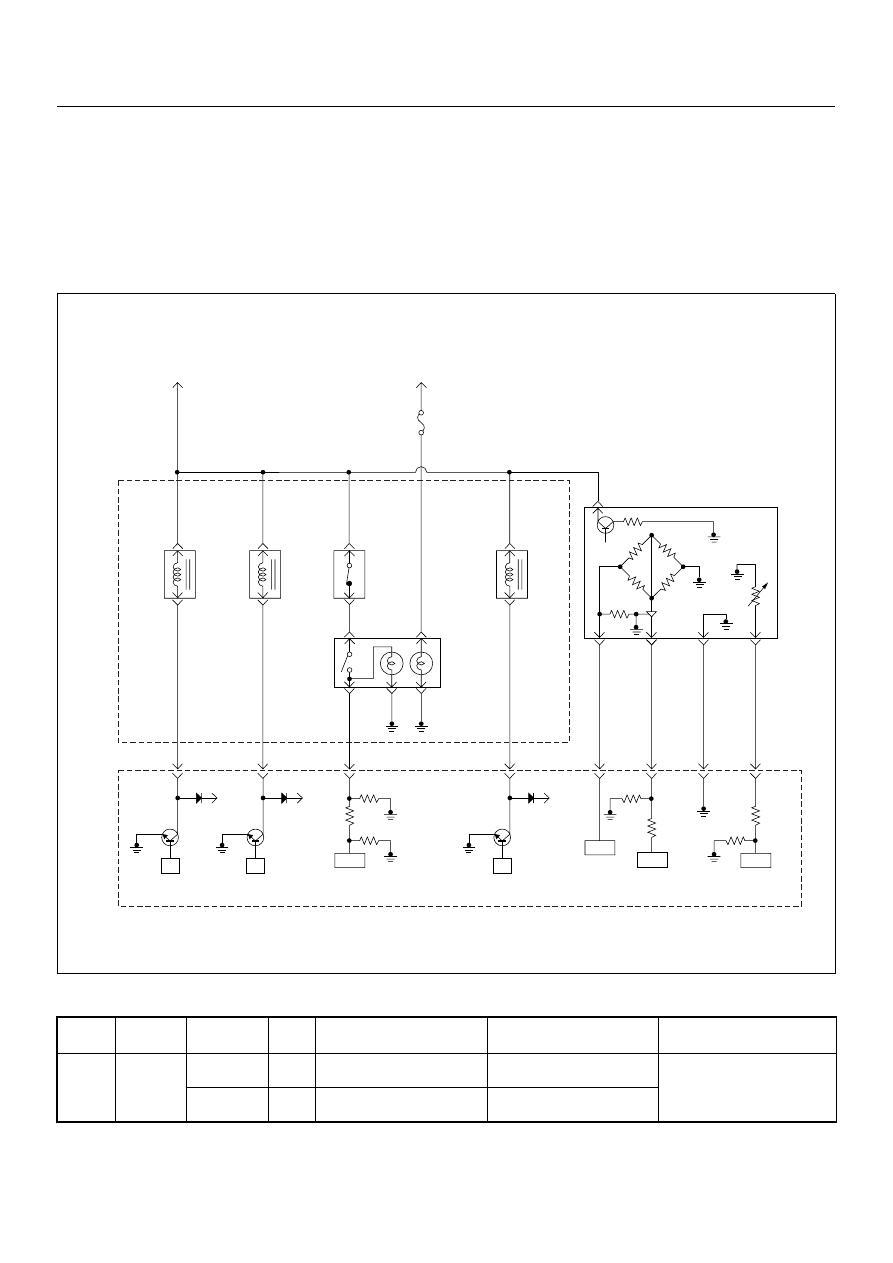

DIAGNOSTIC TROUBLE CODE (DTC) P0110 (SYMPTOM CODE 1)

(FLASH CODE 23) INTAKE AIR TEMPERATURE (IAT) SENSOR CIRCUIT HIGH

INPUT

DIAGNOSTIC TROUBLE CODE (DTC) P0110 (SYMPTOM CODE 2)

(FLASH CODE 23) INTAKE AIR TEMPERATURE (IAT) SENSOR CIRCUIT LOW

INPUT

Condition for setting the DTC and action taken when the DTC sets

Circuit Description

The IAT sensor is a thermistor. A temperature changes

the resistance value. And it changes voltage. In other
words it measures a temperature value. Low air
temperature produces a high resistance.

Flash

Code

Code

Symptom

Code

MIL

DTC Name

DTC Setting Condition

Fail-Safe (Back Up)

23

P0110

1

ON

Intake Air Temperature (IAT)
Sensor Circuit High Input

IAT sensor output voltage is
more than 4.7V.

ECM use 0°C conditions as
substitute.

2

ON

Intake Air Temperature (IAT)
Sensor Circuit Low Input

IAT sensor output voltage is
below 0.3V.

Batt

µP

Batt

µP

Batt

µP

0.5
BLK/
URG

0.5
BRN/
RED

0.5
BLU/
RED

0.5
BLU/
RED

4JA1-TC

0.5
GRY/
YEL

97

46

61

0.5
WHT/
RED

83

0.5
GRN/
RED

88

0.5
BLK/
RED

92

0.5
BLK/
BLU

84

IAT
Sensor

MAF &
IAT
Sensor

Rr Fog
Light
10A

EGR-
EVRV

0.5
WHT/
BLK

0.5
BLU/
RED

0.5
WHT/
BLU

0.5
BLU/
RED

0.5
GRN/
RED

0.5
BLU/
RED

Exhaust
Throttle
VSV2

Exhaust
Throttle
VSV1

Engine
Warming Up
SW

Thermo
SW

2

4

5

3

1

Battery
Voltage

ECM
Main Relay

IC

IC

IC

CPU

Engine
Control
Module
(ECM)

40

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

6E–117

The ECM supplies 5 volts signal to the IAT sensor
through resisters in the ECM and measures the voltage.
The signal voltage will be high when the air temperature
is cold, and it will be low when the air temperature is hot.
The output voltage excessively high or low, DTC P0110
(Symptom Code 1) or P0110 (Symptom Code 2) will be
stored.

Diagnostic Aids

An intermittent may be caused by the following:

• Poor connections.

• Misrouted harness.

• Rubbed through wire insulation.

• Broken wire inside the insulation.
Check for the following conditions:

• Poor connection at ECM-Inspect harness connectors

for backed out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal to wire connection.

• Damaged harness-Inspect the wiring harness for

damage. If the harness appears to be OK, observe
the  “Intake Air Temperature” display on the Tech2
while moving connectors and wiring harness related
to the sensor.

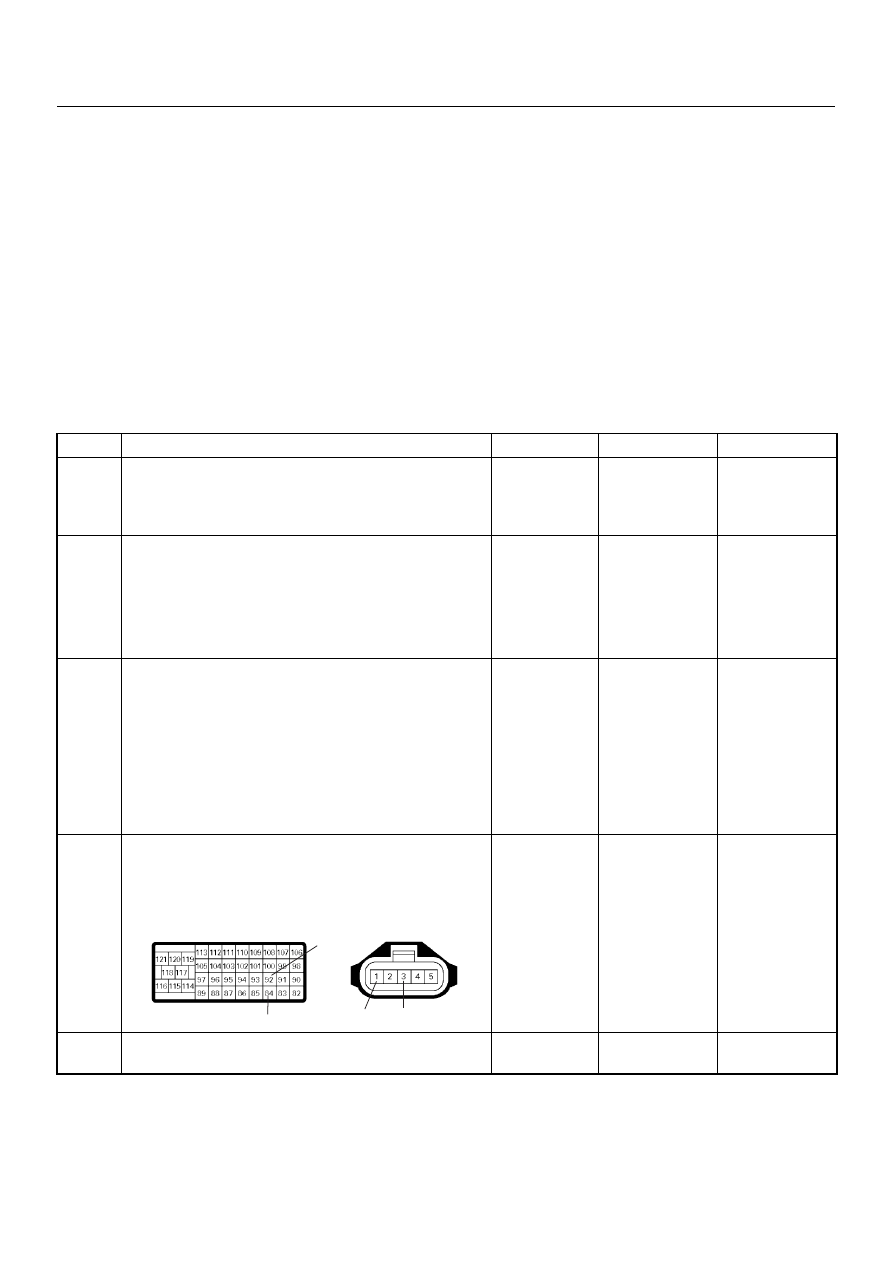

Diagnostic Trouble Code (DTC) P0110 (Symptom Code 1) (Flash Code 23)

Intake Air Temperature (IAT) Sensor Circuit High Input

Step

Action

Value(s)

Yes

No

1

Was the “On-Board Diagnostic (OBD) System Check”
performed?

—

Go to Step 2

Go to On Board

Diagnostic

(OBD) System

Check

2

1. Connect the Tech 2.

2. Review and record the failure information.

3. Select “F0: Read DTC Infor As Stored By ECU” in

“F0: Diagnostic Trouble Codes”.

Is the DTC P0110 (Symptom Code 1) stored as
“Present Failure”?

—

Go to Step 3

Refer to

Diagnostic Aids

and Go to Step

3

3

1. Using the Tech 2, ignition “On” and engine “Off”.

2. Select  “F1: Clear DTC Information” in “F0:

Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.

3. Operate the vehicle and monitor the “F0: Read

DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.

Was the DTC P0110 (Symptom Code 1) stored in this
ignition cycle?

—

Go to Step 4

Refer to

Diagnostic Aids

and Go to Step

4

4

Check for poor/faulty connection at the IAT sensor or
ECM connector. If a poor/faulty connection is found,
repair as necessary.
Was the problem found?

—

Verify repair

Go to Step 5

5

Visually check the IAT sensor.
Was the problem found?

—

Go to Step 12

Go to Step 6

92

84

1

3

C-51

C-57(B)

6E–118

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

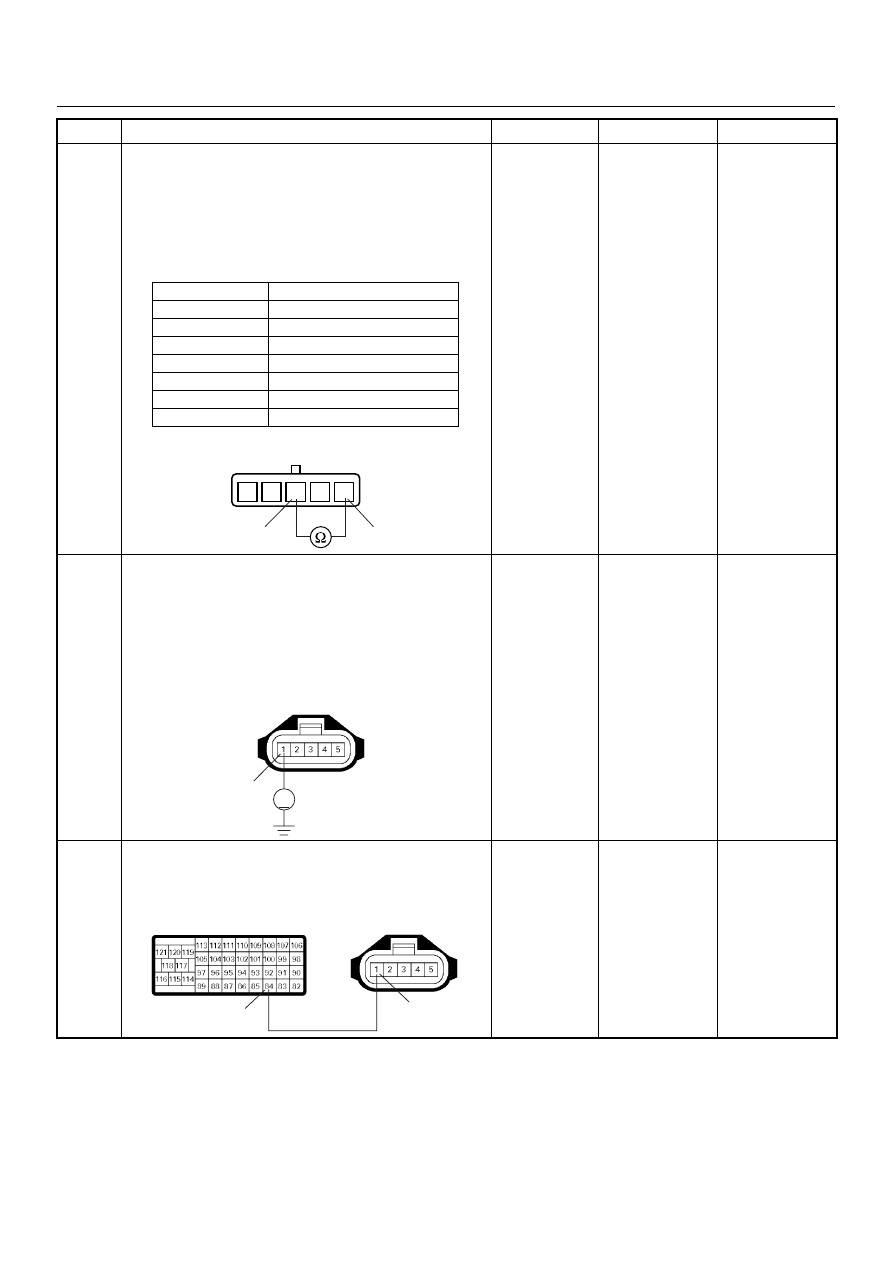

6

Using the DVM and check the IAT sensor.

1. Ignition “Off”,  engine “Off”.

2. Disconnect MAF & IAT sensor connector.

3. Measure the resistance of IAT sensor.

Does the tester indicate standard resistance as shown
in the following table?

Standard

resistance

Go to Step 7

Go to Step 12

7

Using the DVM and check the IAT sensor signal
circuit.

1. Ignition “On”, engine “Off”.

2. Disconnect the MAF & IAT sensor connector.

3. Check the circuit for open circuit.

Was the DVM indicated specified value?

Approximately

5.0V

Go to Step 10

Less than 1V:

Go to Step 8

More than

specified value:

Go to Step 9

8

Repair the open circuit between the ECM and IAT
sensor.
Was the problem solved?

—

Verify repair

Go to Step 14

Step

Action

Value(s)

Yes

No

Temperature (°C)

Resistance (

Ω) (Approximately)

-20

14210

0

5402

20

2343

40

1131

60

596

80

338

100

203

1

2

3

5

4

1

3

IAT Sensor

1

V

C-51

1

84

C-51

C-57(B)
