4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

6E–119

9

Repair the short to voltage circuit between the ECM
and IAT sensor.
Was the problem solved?

—

Verify repair

Go to Step 14

10

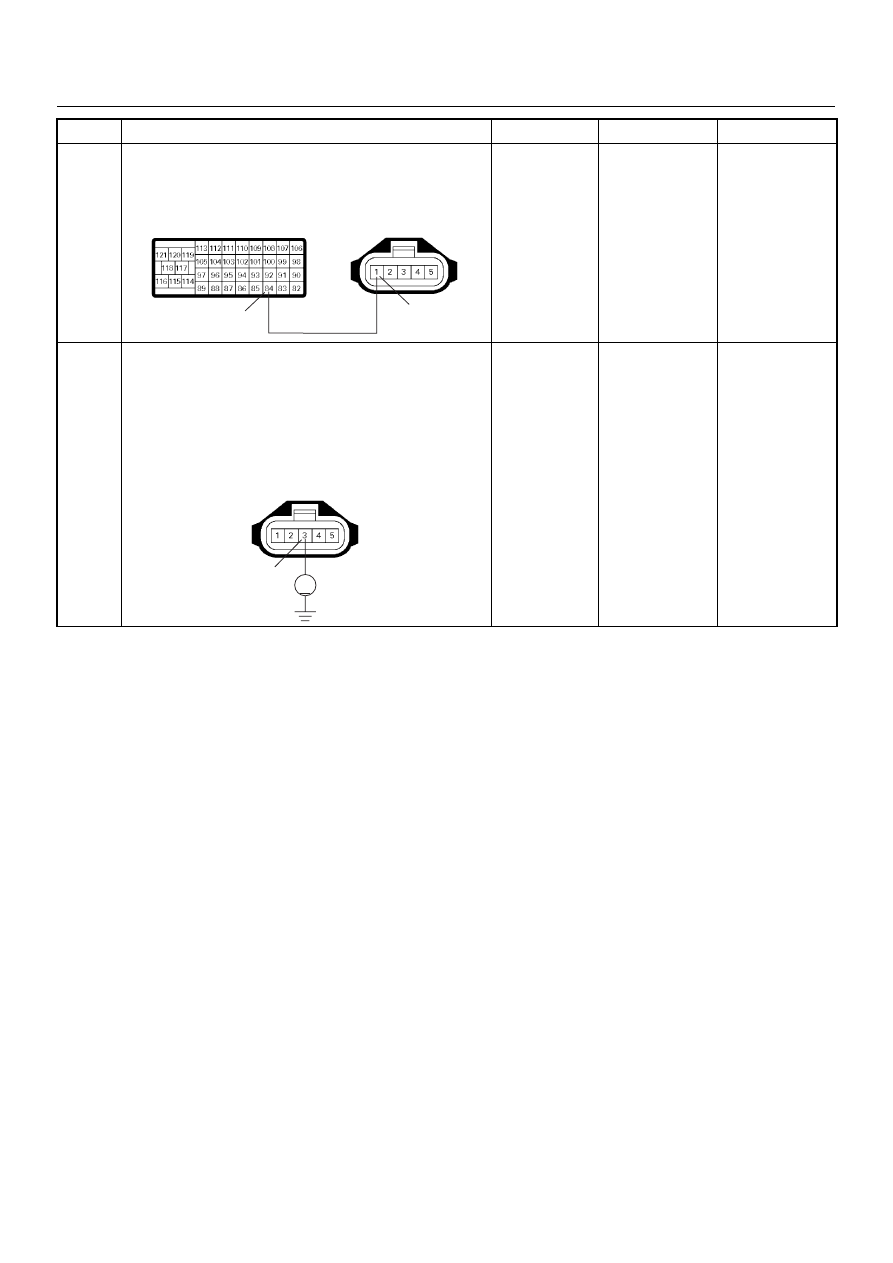

Using the DVM and check the IAT sensor ground
circuit.

1. Ignition “On”, engine “Off”.

2. Disconnect the MAF & IAT sensor connector.

3. Check the circuit for short to power supply circuit.

Was the DVM indicated specified value?

Less than 1V

Go to Step 11

Repair faulty
harness and

verify repair

Step

Action

Value(s)

Yes

No

1

84

C-51

C-57(B)

3

V

C-51

6E–120

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

11

Using the DVM and check the IAT sensor ground
circuit.
Breaker box is available:

1. Ignition “Off”, engine “Off”.

2. Install the breaker box as type A. (ECM

disconnected) Ref. Page 6E-81

3. Disconnect the MAF & IAT sensor connector.

4. Check the circuit for open circuit.

Was the problem found?

Breaker box is not available:

1. Ignition “Off”, engine “Off”.

2. Disconnect the MAF & IAT sensor connector and

ECM connector.

3. Check the circuit for open circuit.

Was the problem found?

—

Repair faulty
harness and

verify repair

Go to Step 14

12

Substitute a known good MAF & IAT sensor assembly
and recheck.
Was the problem solved?

—

Go to Step 13

Go to Step 14

13

Replace the MAF & IAT sensor assembly.
Is the action complete?

—

Verify repair

—

14

Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?

—

Verify repair

Go to Step 15

15

Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobiliser system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobiliser System-ECM replacement” for
the ECM/Immobiliser linking procedure.

—

Verify repair

—

Step

Action

Value(s)

Yes

No

92

3

C-51

3

92

C-51

C-57(B)

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

6E–121

Diagnostic Trouble Code (DTC) P0110 (Symptom Code 2) (Flash Code 23)

Intake Air Temperature (IAT) Sensor Circuit Low Input

Step

Action

Value(s)

Yes

No

1

Was the “On-Board Diagnostic (OBD) System Check”
performed?

—

Go to Step 2

Go to On Board

Diagnostic

(OBD) System

Check

2

1. Connect the Tech 2.

2. Review and record the failure information.

3. Select “F0: Read DTC Infor As Stored By ECU” in

“F0: Diagnostic Trouble Codes”.

Is the DTC P0110 (Symptom Code 2) stored as
“Present Failure”?

—

Go to Step 3

Refer to

Diagnostic Aids

and Go to Step

3

3

1.  Using the Tech 2, ignition “On” and engine “Off”.

2. Select  “F1: Clear DTC Information” in “F0:

Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.

3. Operate the vehicle and monitor the “F0: Read

DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.

Was the DTC P0110 (Symptom Code 2) stored in this
ignition cycle?

—

Go to Step 4

Refer to

Diagnostic Aids

and Go to Step

4

4

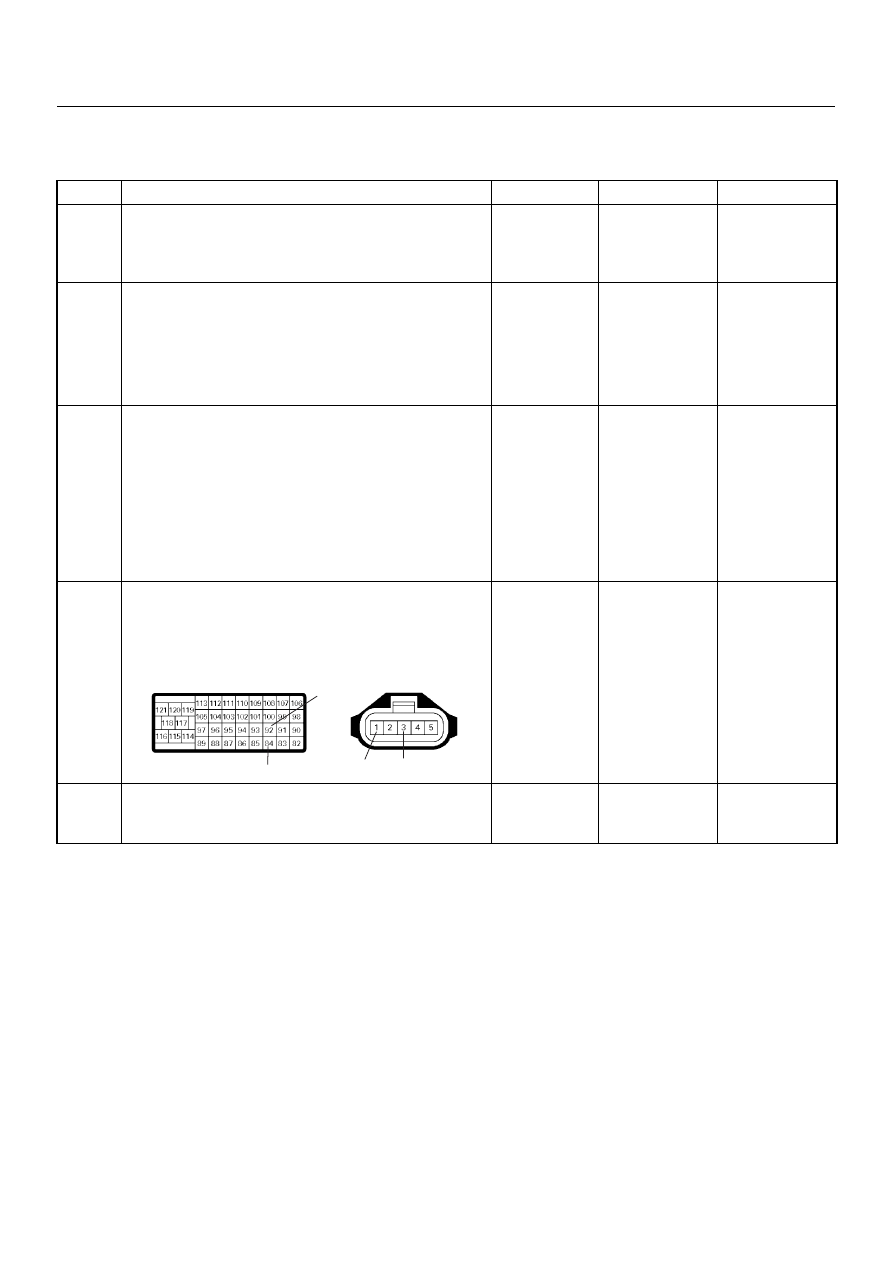

Check for poor/faulty connection at the IAT sensor or
ECM connector. If a poor/faulty connection is found,
repair as necessary.
Was the problem found?

—

Verify repair

Go to Step 5

5

Remove the MAF & IAT sensor assembly and visually
check.
Was the problem found?

—

Go to Step 8

Go to Step 6

92

84

1

3

C-51

C-57(B)

6E–122

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

6

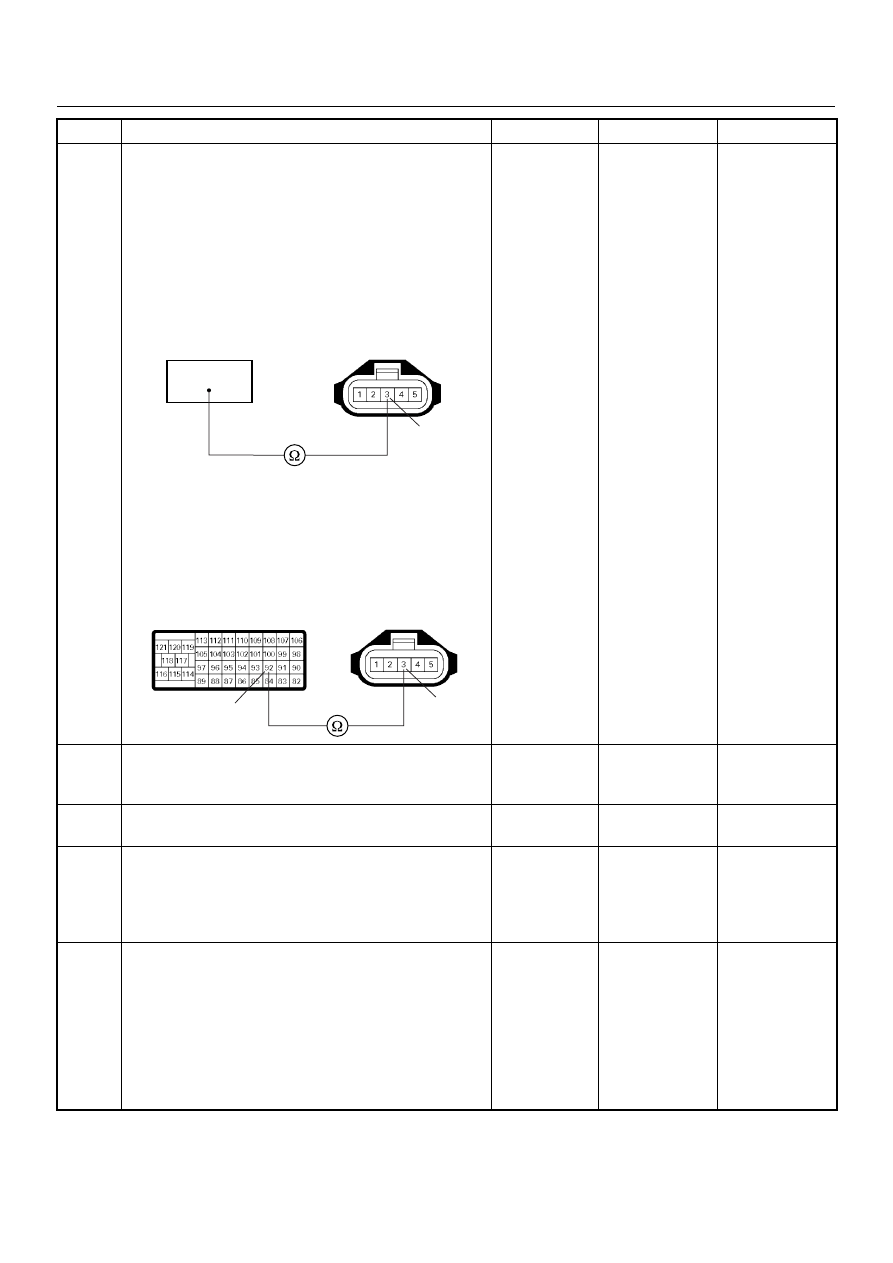

Using the DVM and check the IAT sensor.

1. Ignition “Off”,  engine “Off”.

2. Disconnect MAF & IAT sensor connector.

3. Measure the resistance of IAT sensor.

Does the tester indicate standard resistance as shown
in the following table?

Standard

resistance

Go to Step 7

Go to Step 8

Step

Action

Value(s)

Yes

No

Temperature (°C)

Resistance (

Ω) (Approximately)

-20

14210

0

5402

20

2343

40

1131

60

596

80

338

100

203

1

2

3

5

4

1

3

IAT Sensor
