Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 6

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

6E–19

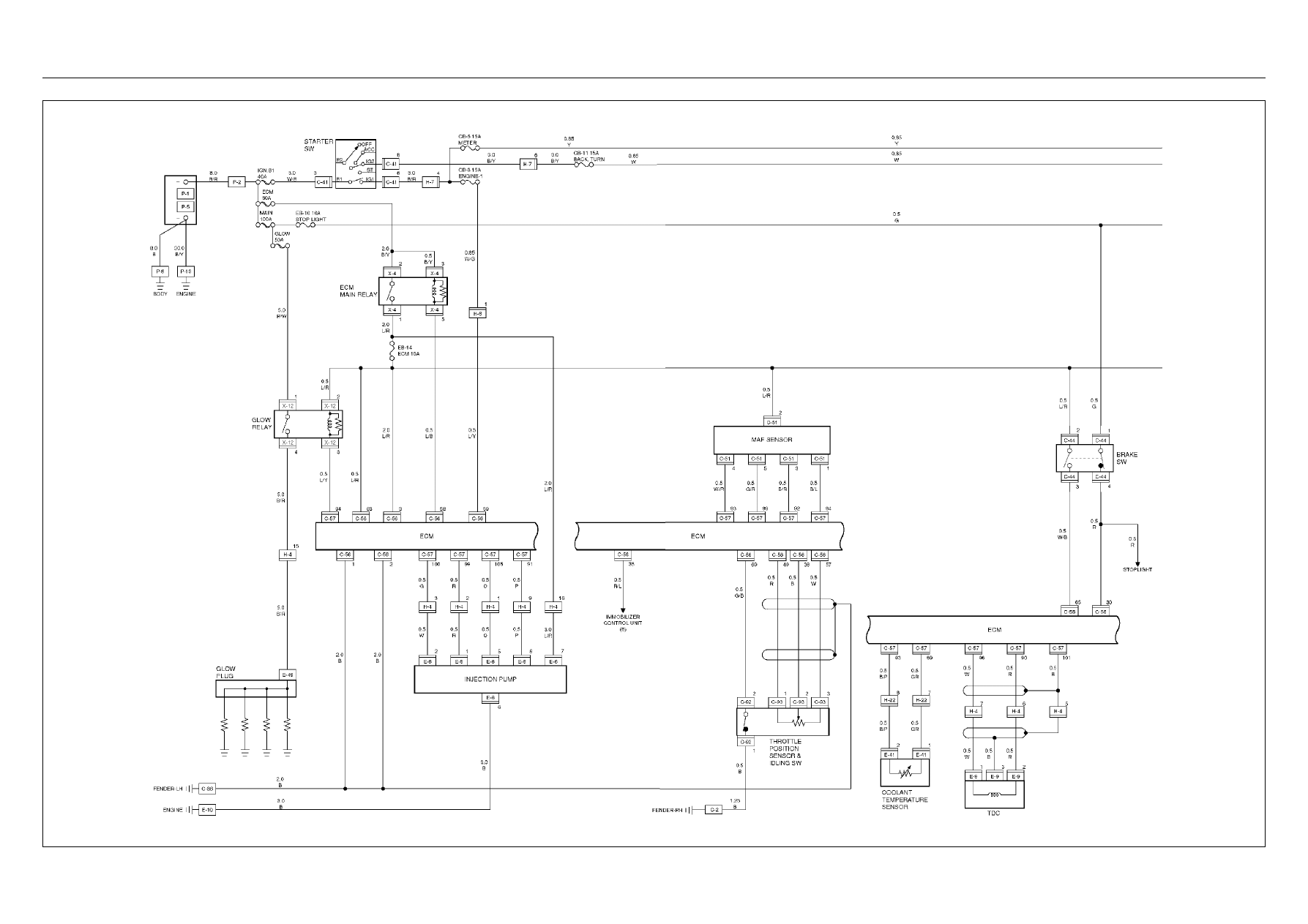

ECM CIRCUIT DIAGRAM (4JH1-TC RHD A/T) (1/2)

6E–20

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

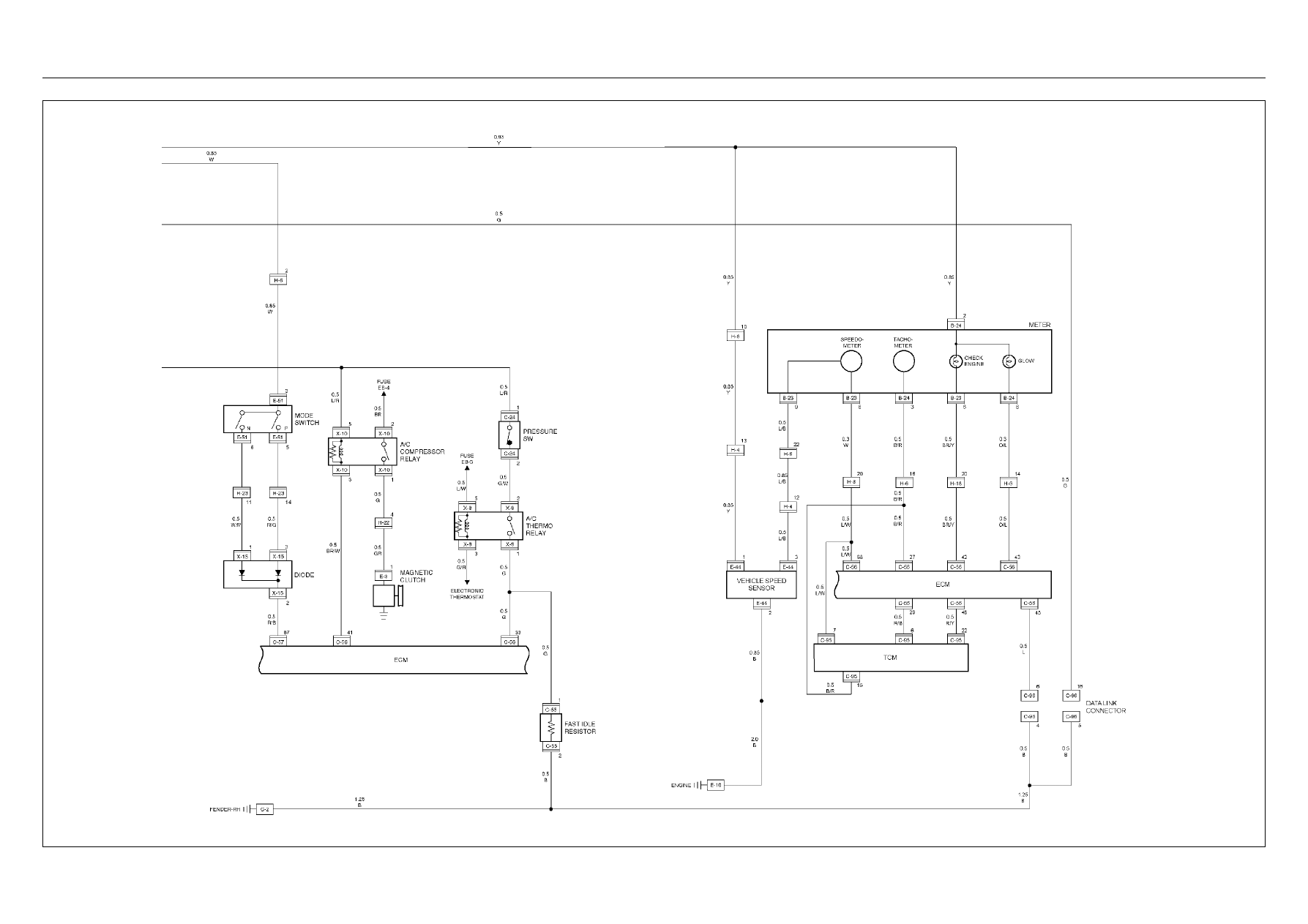

ECM CIRCUIT DIAGRAM (4JH1-TC RHD A/T) (2/2)

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

6E–21

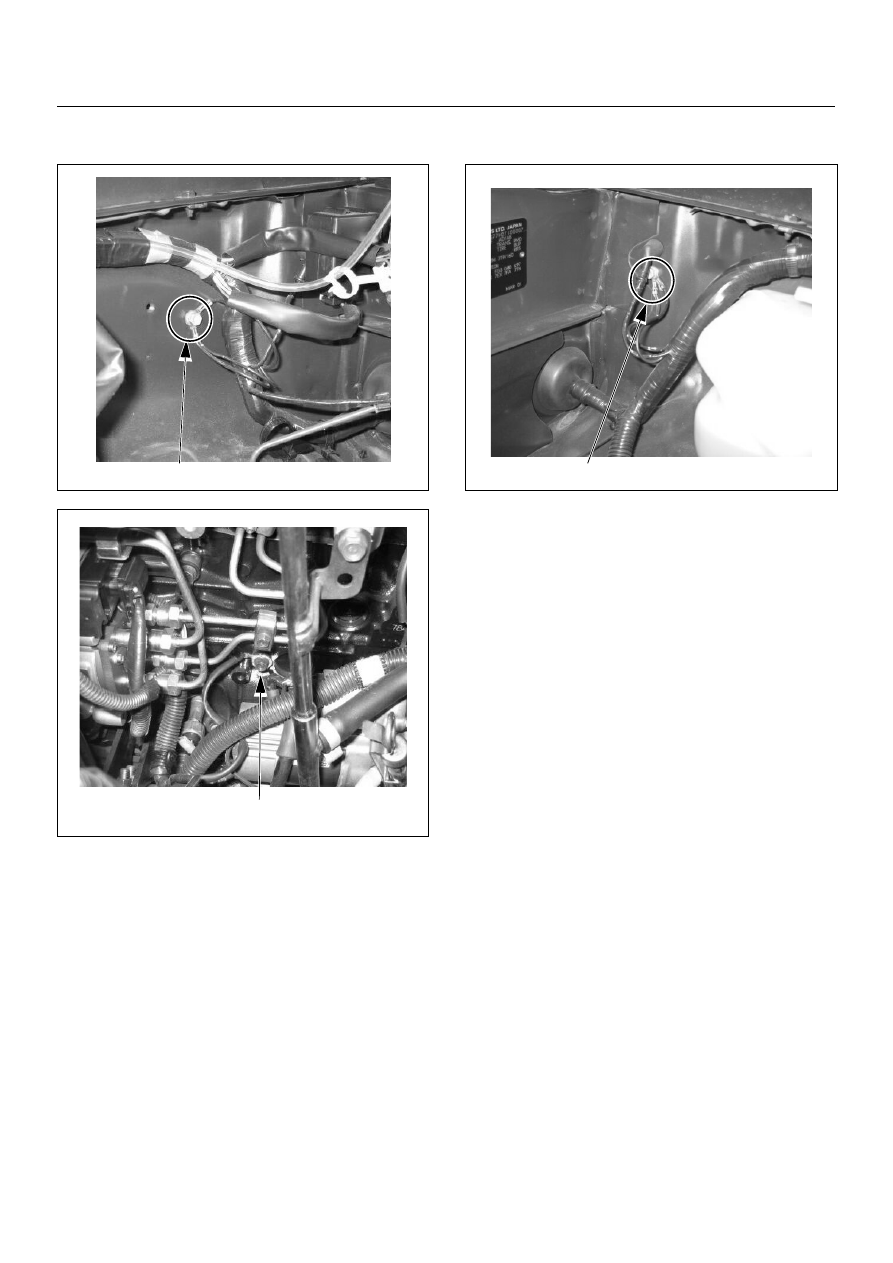

GROUND LOCATION

C2

E10

C36

6E–22

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

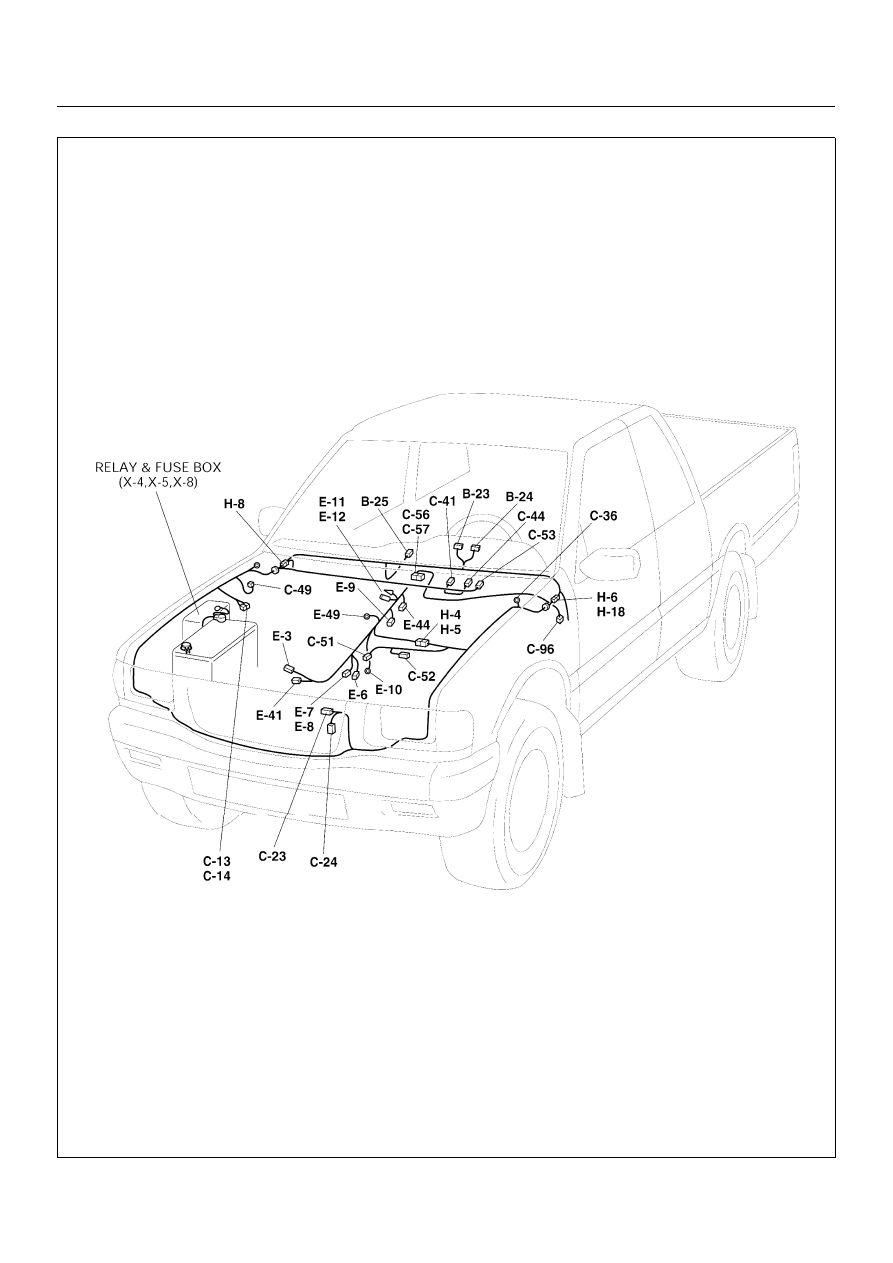

CABLE HARNESS & CONNECTOR LOCATION (4JA1-TC LHD)
