Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 4

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

6E–11

4

3

1

2

4JH1-TC

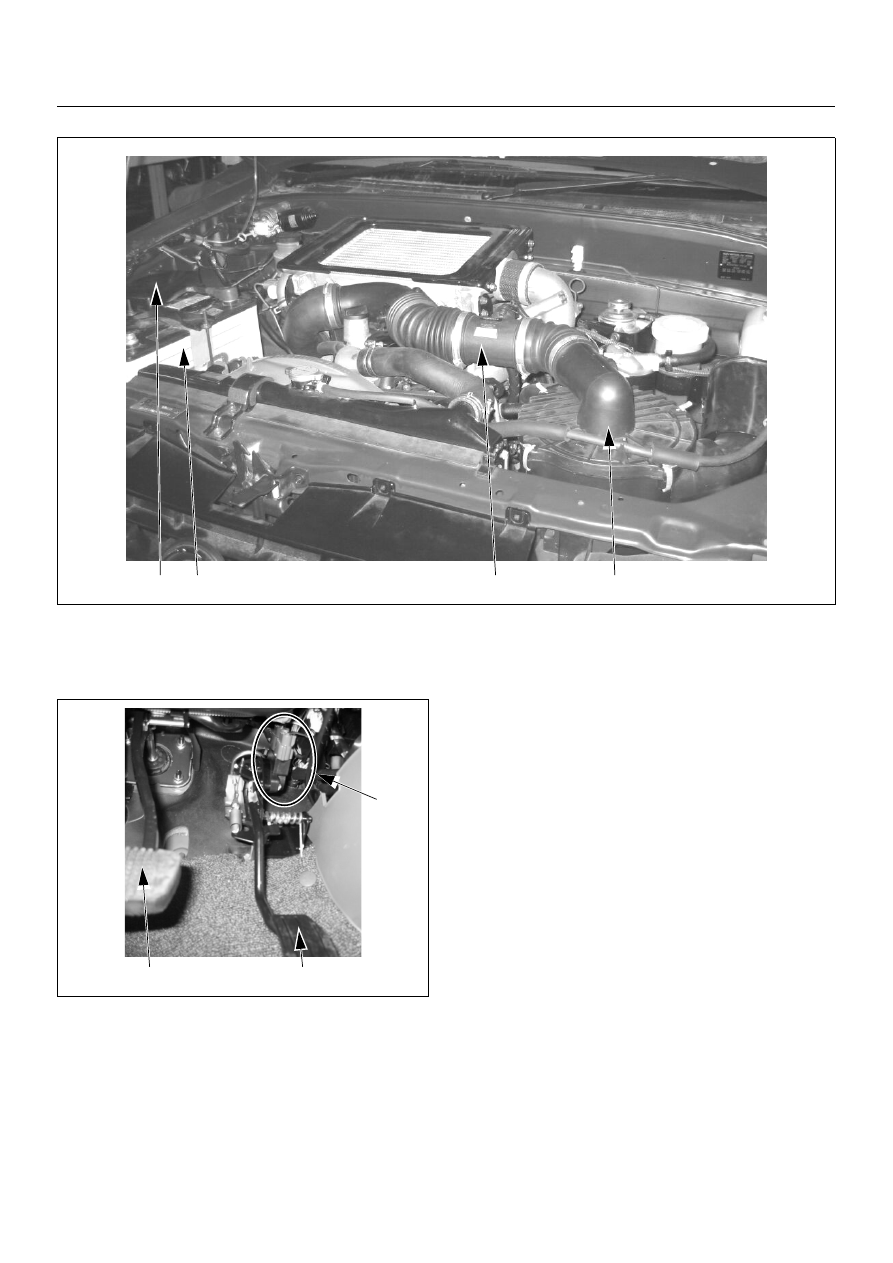

(1) Mass Air Flow (MAF) & Intake Air Temperature

(IAT) Sensor Assembly

(2) Air Cleaner Case

(3) Battery
(4) Relay & Fuse Box

4JH1-TC

(1) Pedal/Throttle Position Sensor (TPS)
(2) Accelerator Pedal
(3) Brake Pedal

1

3

2

6E–12

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

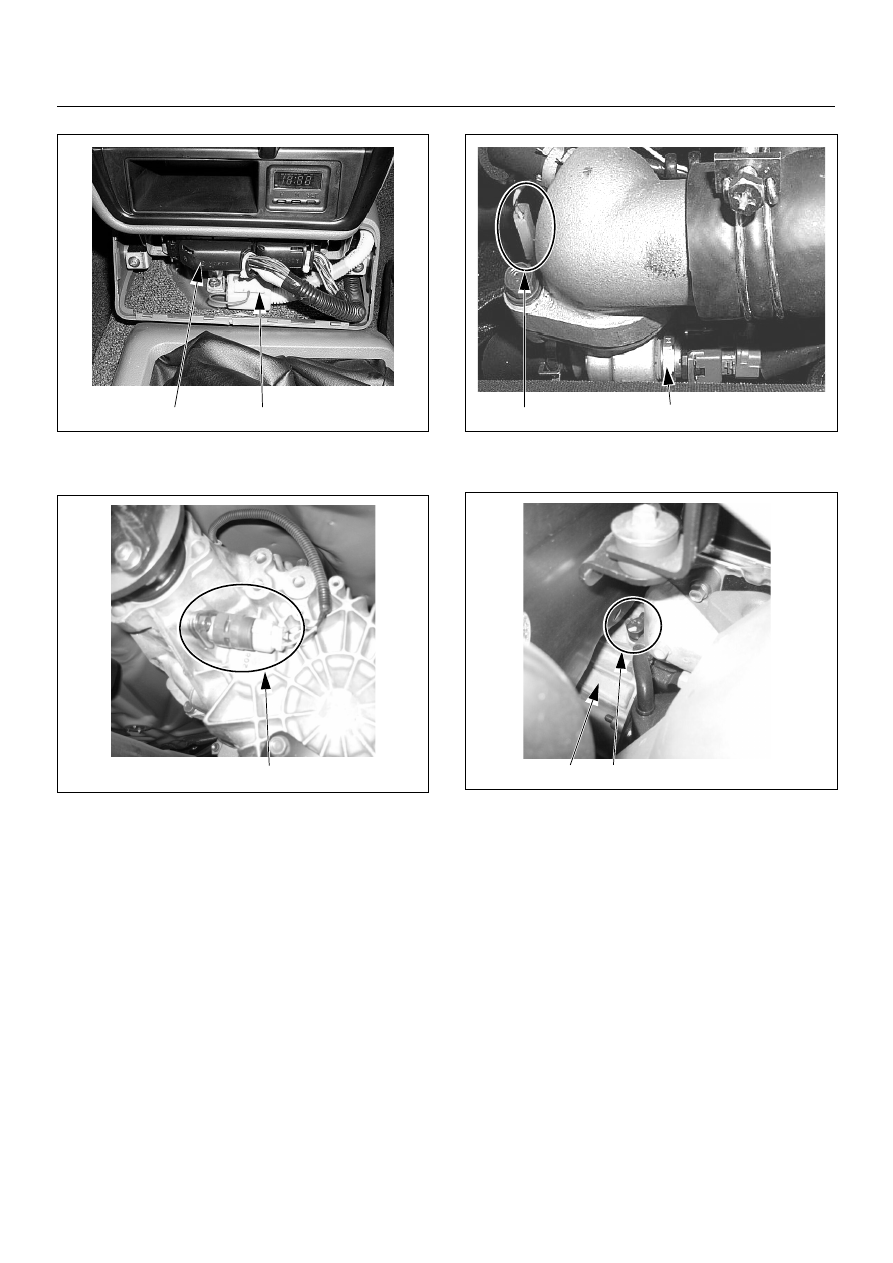

(1) Engine Control Module (ECM)
(2) SRS Control Module

(1) Vehicle Speed Sensor (VSS)

2

1

1

(1) Engine Coolant Temperature (ECT) Sensor
(2) Thermo Unit for Water Temperature Gauge

(1) Crankshaft Position (CKP) Sensor
(2) Clutch Housing

2

1

2

1

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

6E–13

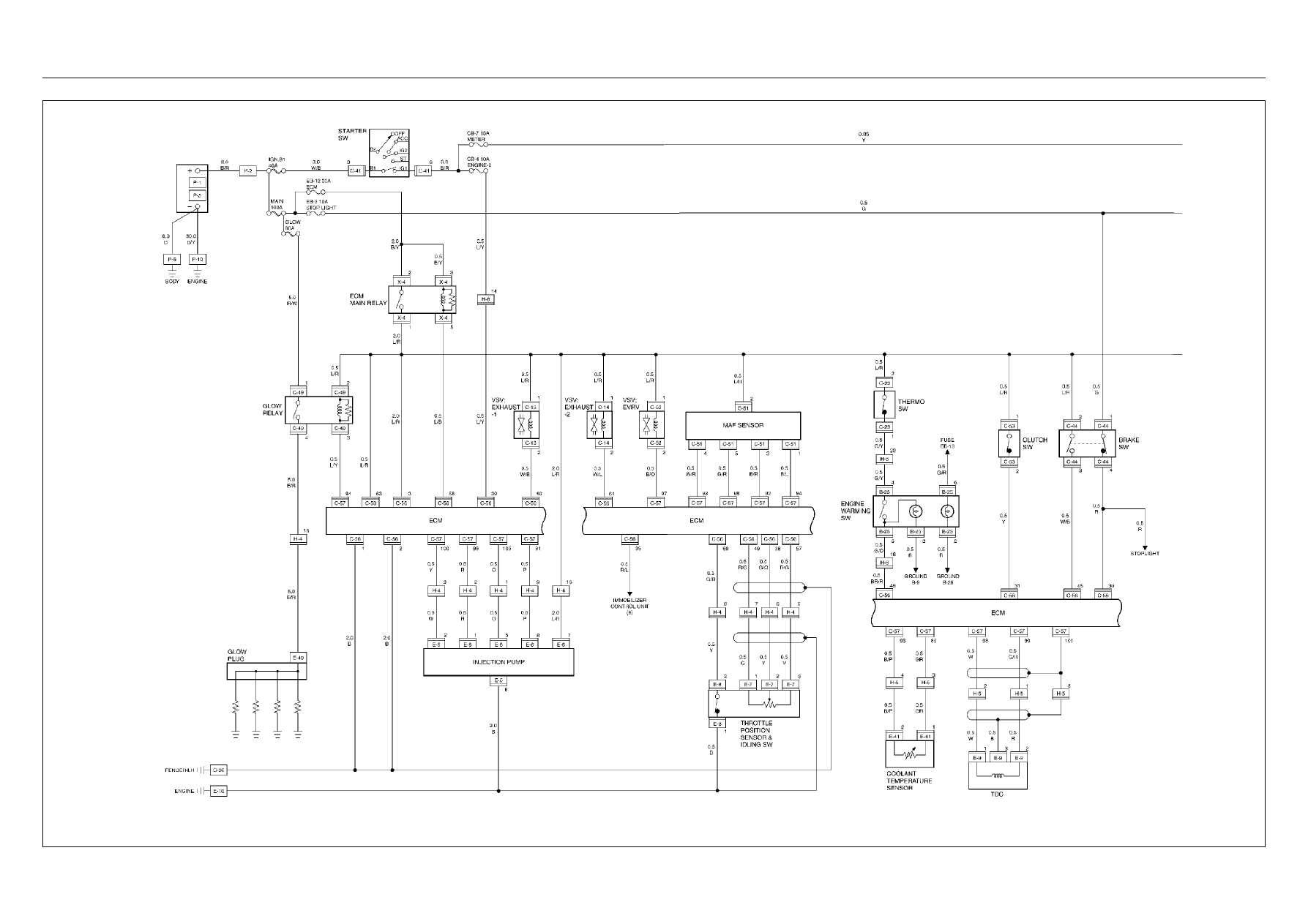

ECM CIRCUIT DIAGRAM (4JA1-TC LHD) (1/2)

6E–14

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

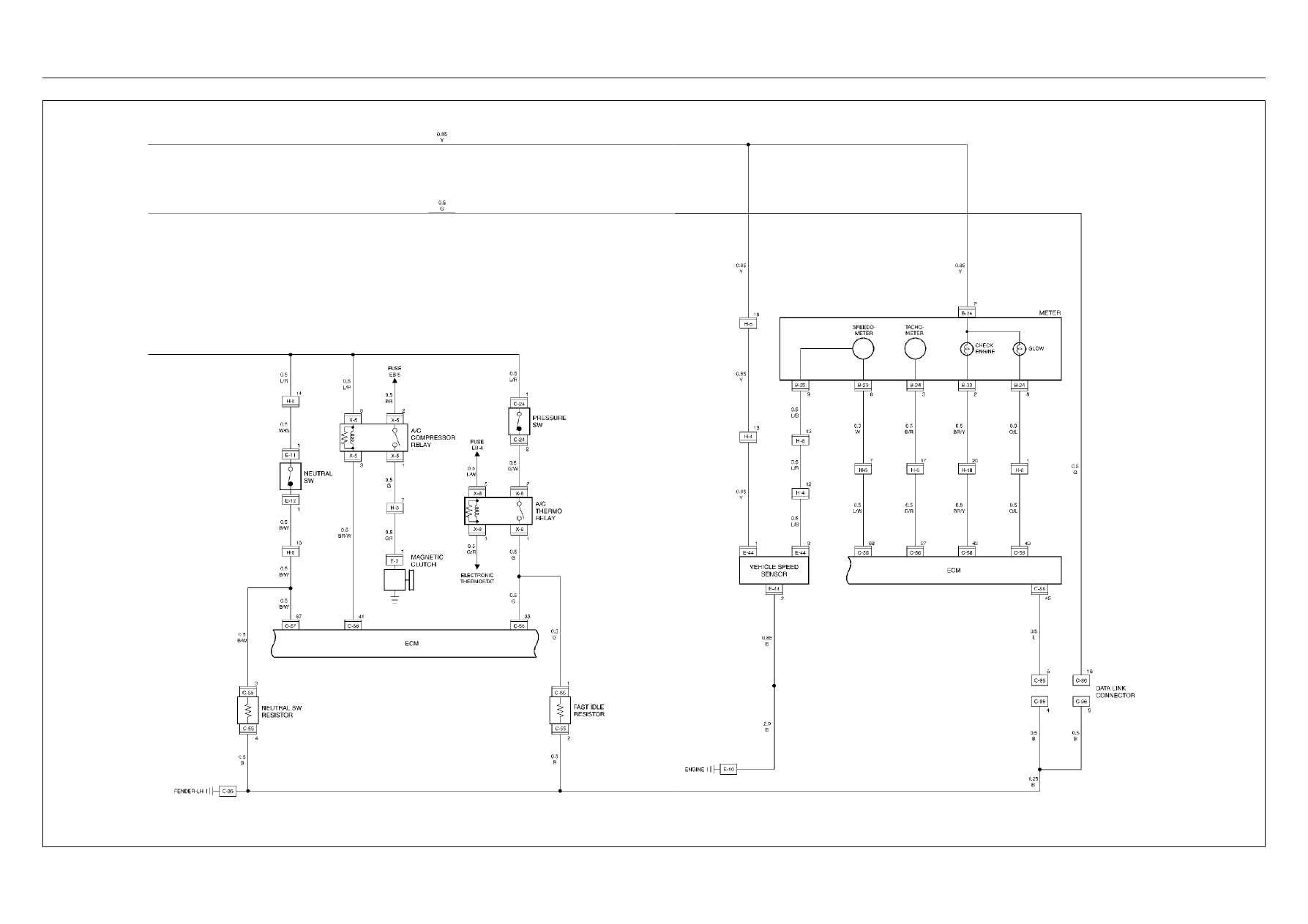

ECM CIRCUIT DIAGRAM (4JA1-TC LHD) (2/2)
