4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

6E–23

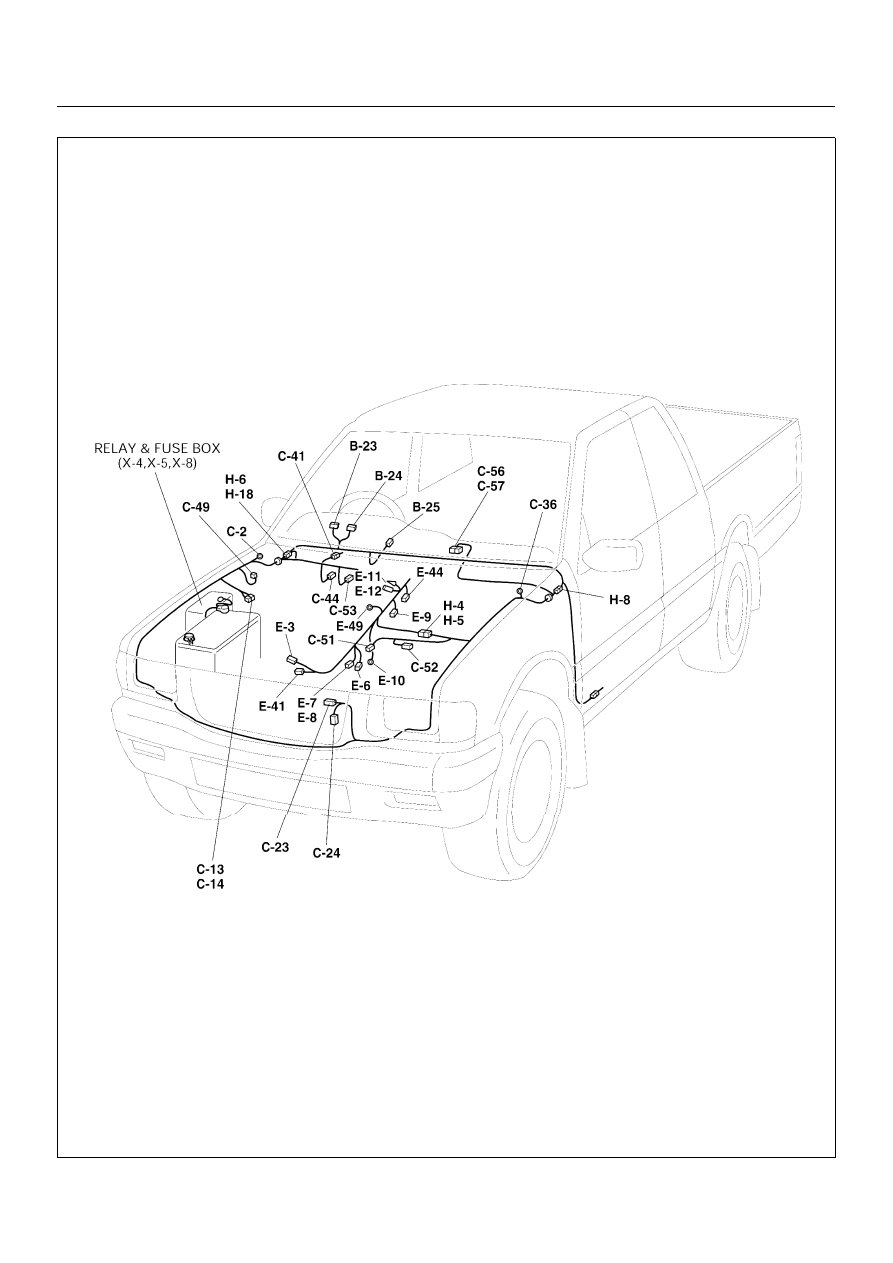

CABLE HARNESS & CONNECTOR LOCATION (4JA1-TC RHD)

6E–24

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

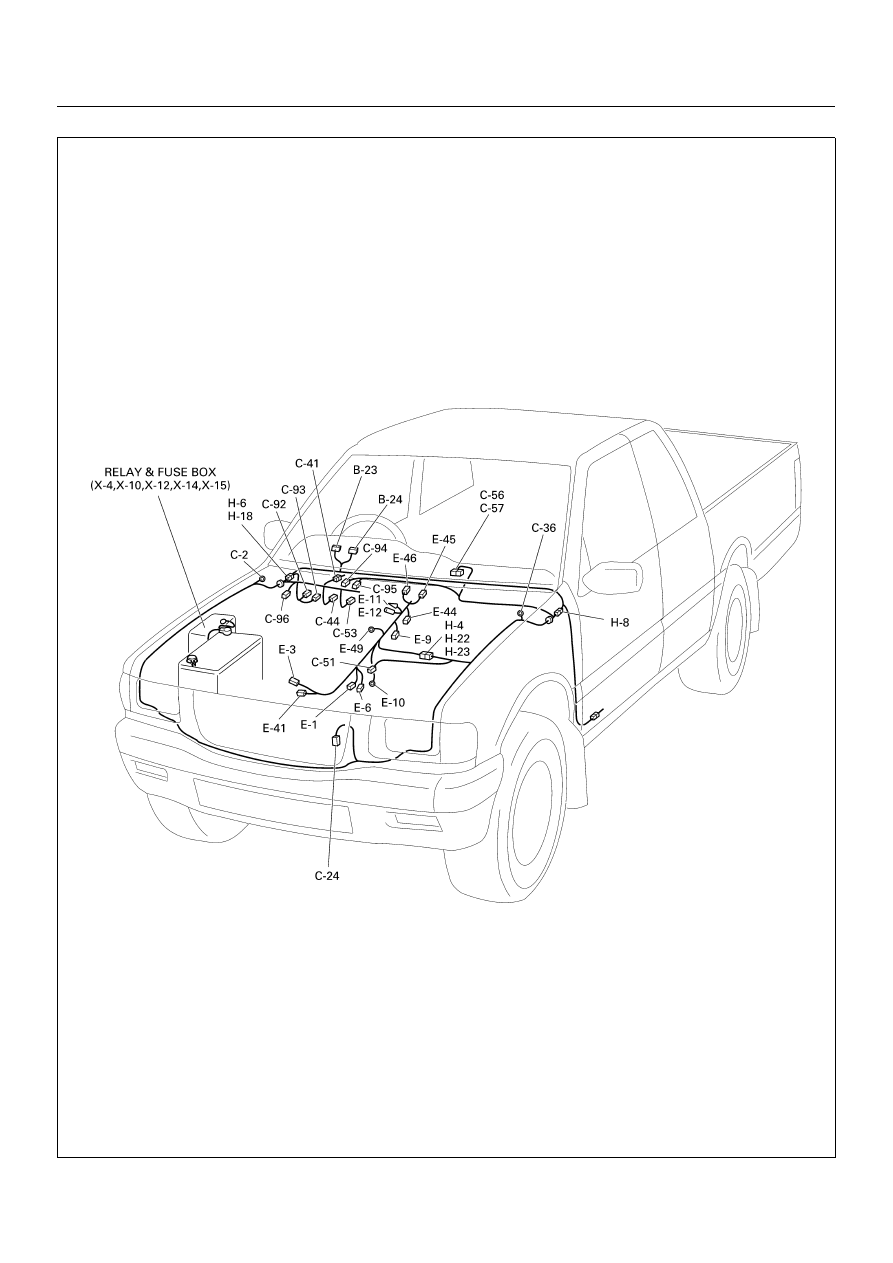

CABLE HARNESS & CONNECTOR LOCATION (4JH1-TC RHD)

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

6E–25

CONNECTOR LIST

No.

Connector face

No.

Connector face

B-23

C-41

B-24

C-44

B-25

C-49

B-68

Immobiliser

C-51

C-2

C-52

EVRV

C-13

C-53

C-14

C-55

C-23

C-56

C-24

C-57

C-36

C-58

6E–26

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

No.

Connector face

No.

Connector face

C-92

E-12

C-93

TPS 1 main

E-41

C-96

E-44

E-3

E-49

E-6

E-51

E-7

TPS 1 main

H-4

E-8

Idle SW

H-5

E-9

H-6

E-10

H-7

(LHD)

E-11

H-7

(RHD)
