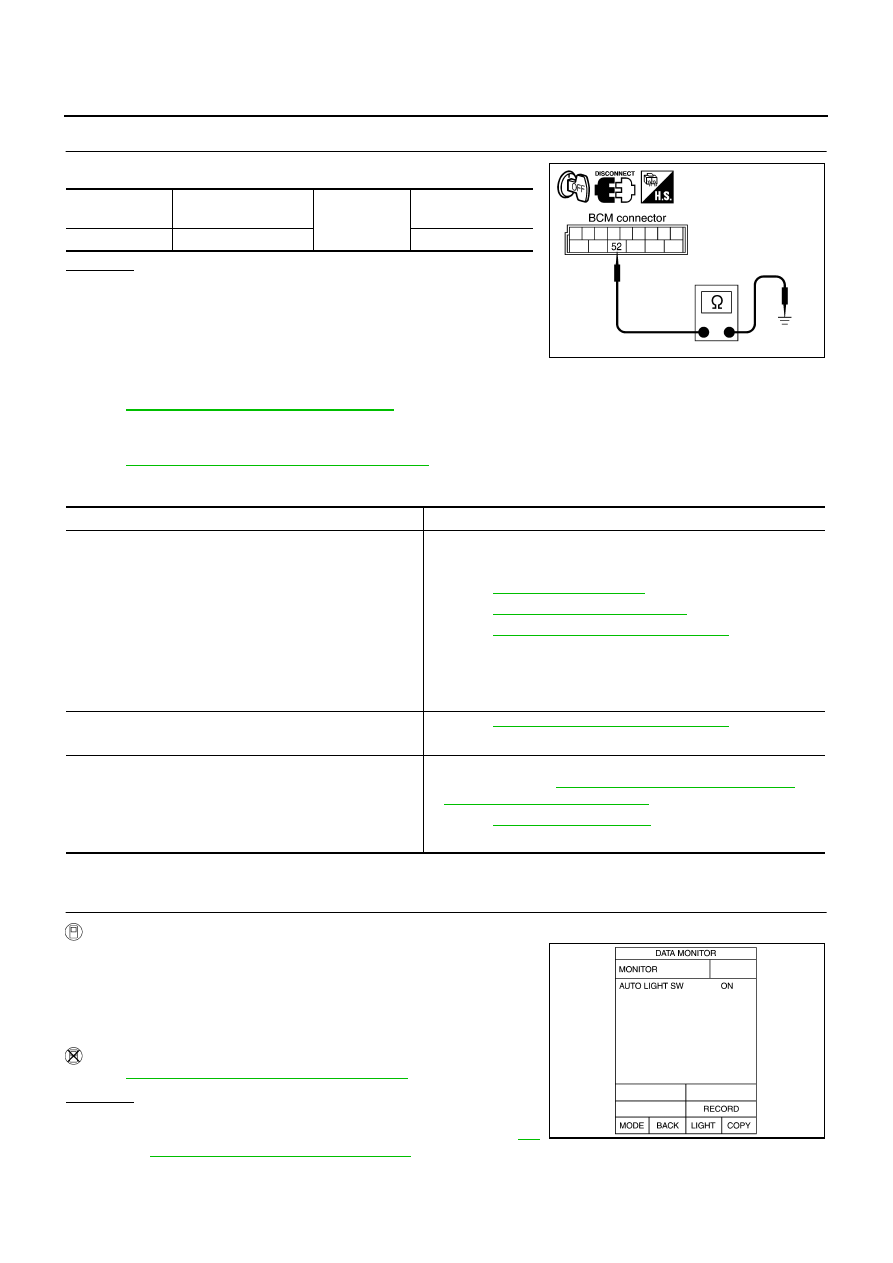

LT-60

AUTO LIGHT SYSTEM

3.

CHECK GROUND CIRCUIT

Check continuity between BCM harness connector and ground.

OK or NG

OK

>> INSPECTION END

NG

>> Repair harness or connector.

CONSULT-II Functions (BCM)

NKS000H9

Refer to

LT-16, "CONSULT-II Functions (BCM)"

 .

CONSULT-II Functions (IPDM E/R)

NKS000HA

Refer to

LT-18, "CONSULT-II Functions (IPDM E/R)"

 .

Symptom Chart

NKS000HB

Lighting Switch Inspection

NKS000HC

1.

CHECK LIGHTING SWITCH INPUT SIGNAL

With CONSULT-II

Select “BCM” on CONSULT-II. With “HEAD LAMP” data monitor,
make sure “AUTO LIGHT SW” turns ON-OFF linked with operation
of lighting switch.

Without CONSULT-II

Refer to

LT-100, "Combination Switch Inspection"

 .

OK or NG

OK

>> INSPECTION END

NG

>> Check combination switch (lighting switch). Refer to

LT-

100, "Combination Switch Inspection"

 .

BCM

connector

Terminal

Ground

Continuity

M2

52

Yes

PKIA6256E

Phenomenon

Malfunction system and reference

●

Parking, license plate, side marker and tail lamps and
headlamps will not illuminate when outside of the vehicle
becomes dark. (Lighting switch 1ST position and 2ND posi-
tion operate normally.)

●

Parking, license plate, side marker and tail lamps and
headlamp will not go out when outside of the vehicle
becomes light. (Lighting switch 1ST position and 2ND posi-
tion operate normally.)

●

Headlamps go out when outside of the vehicle becomes
light, but parking lamps stay on.

●

Refer to

LT-16, "WORK SUPPORT"

 .

●

Refer to

LT-60, "Lighting Switch Inspection"

 .

●

Refer to

LT-61, "Optical sensor System Inspection"

 .

If above systems are normal, replace BCM.

Auto light adjustment system will not operate. (Lighting switch
AUTO, 1ST position and 2ND position operate normally.)

●

Refer to

LT-61, "Optical sensor System Inspection"

 .

If above system is normal, replace BCM.

Shut off delay feature will not operate.

●

CAN communication line inspection between BCM and combina-
tion meter. Refer to

BCS-15, "CAN Communication Inspection

Using CONSULT-II (Self-Diagnosis)"

 .

●

Refer to

BL-68, "Check Door Switch"

 .

If above system is normal, replace BCM.

When lighting switch is AUTO
position

: AUTO LIGHT SW ON

PKIA7595E

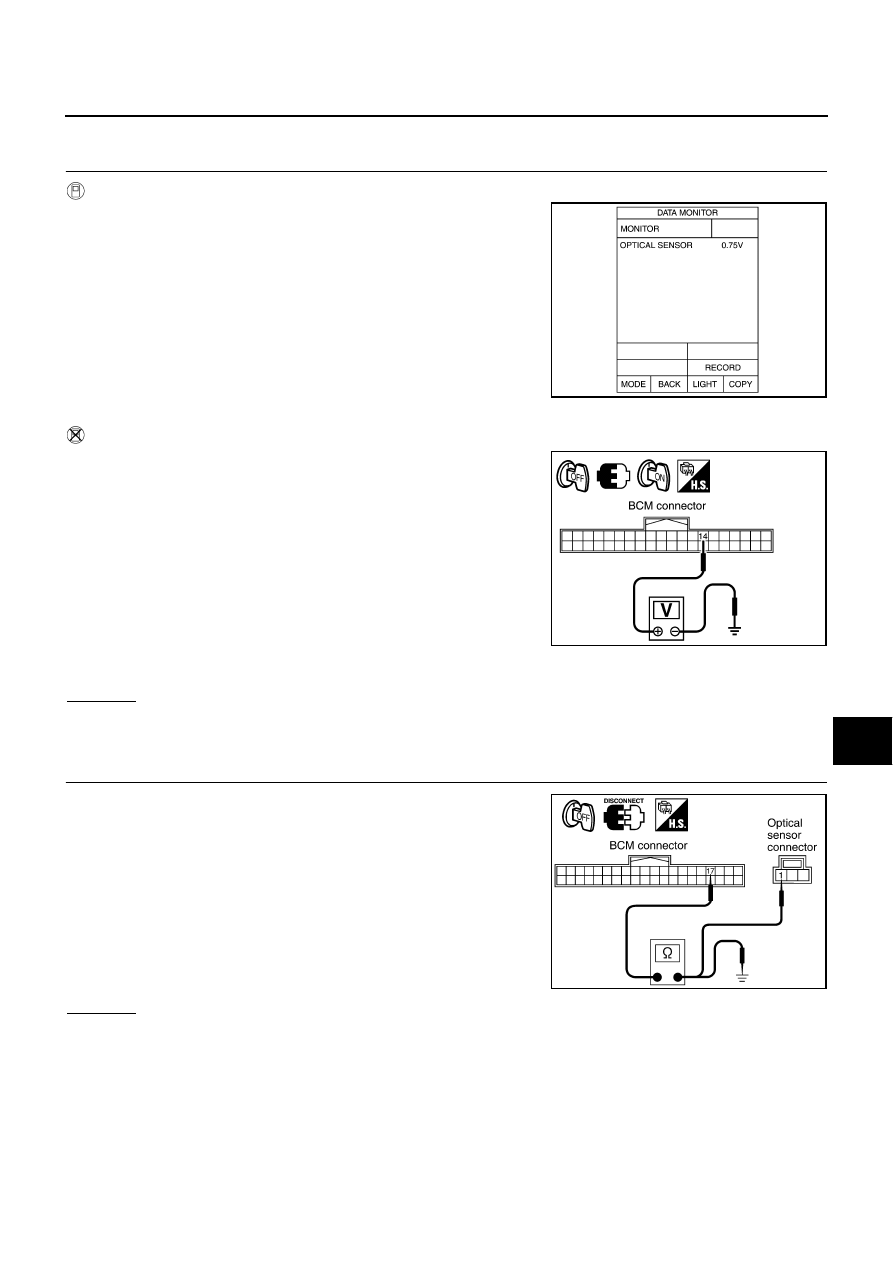

AUTO LIGHT SYSTEM

LT-61

C

D

E

F

G

H

I

J

L

M

A

B

LT

Optical sensor System Inspection

NKS000HD

1.

CHECK OPTICAL SENSOR INPUT SIGNAL

With CONSULT-II

Select “BCM” on CONSULT-II. With “HEAD LAMP” data monitor,
make sure “OPTICAL SENSOR”, and check difference in voltage
when the optical sensor is illuminated and not illuminated.

CAUTION:

Optical sensor must be securely subjected to work lamp light. If
optical sensor is insufficiently illuminated, the measured value
may not satisfy the standard.

Without CONSULT-II

1.

Turn ignition switch ON.

2.

Check voltage between BCM harness connector M1 terminal 14
and ground.

CAUTION:

Optical sensor must be securely subjected to work lamp light. If
optical sensor is insufficiently illuminated, the measured value
may not satisfy the standard.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

2.

CHECK OPTICAL SENSOR POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector and optical sensor connector.

3.

Check continuity (open circuit) between BCM harness connector
M1 terminal 17 and optical sensor harness connector M63 ter-
minal 1.

4.

Check continuity (short circuit) between BCM harness connector
M1 terminal 17 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair harness or connector.

Illuminated

OPTICAL SENSOR

: 3.1 V or more

Not illuminated

OPTICAL SENSOR

: 0.6 V or less

Illuminated

OPTICAL SENSOR

: 3.1 V or more

Not illuminated

OPTICAL SENSOR

: 0.6 V or less

PKIA7596E

PKIB6163E

17 – 1

: Continuity should exist.

17 – Ground

: Continuity should not exist.

SKIA5891E

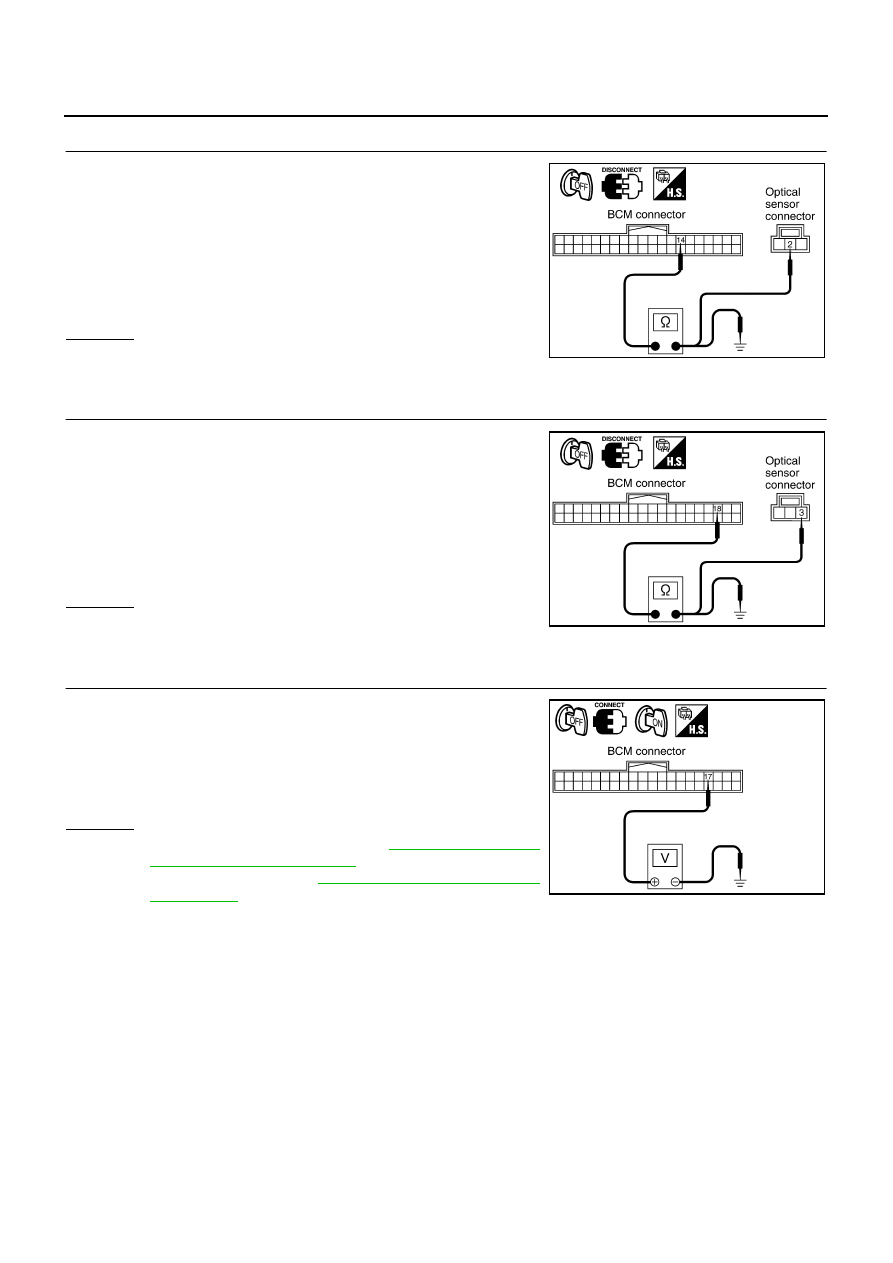

LT-62

AUTO LIGHT SYSTEM

3.

CHECK OPTICAL SENSOR SIGNAL CIRCUIT

1.

Check continuity (open circuit) between BCM harness connector
M1 terminal 14 and optical sensor harness connector M63 ter-
minal 2.

2.

Check continuity (short circuit) between BCM harness connector
M1 terminal 14 and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Repair harness or connector.

4.

CHECK OPTICAL SENSOR GROUND CIRCUIT

1.

Check continuity (open circuit) between BCM harness connector
M1 terminal 18 and optical sensor harness connector M63 ter-
minal 3.

2.

Check continuity (short circuit) between BCM harness connector
M1 terminal 18 and ground.

OK or NG

OK

>> GO TO 5.

NG

>> Repair harness or connector.

5.

CHECK OPTICAL SENSOR VOLTAGE

1.

Connect BCM connector.

2.

Turn ignition switch ON.

3.

Check voltage between BCM harness connector M1 terminal 17
and ground.

OK or NG

OK

>> Replace optical sensor. Refer to

LT-63, "Removal and

Installation of Optical Sensor"

 .

NG

>> Replace BCM. Refer to

BCS-16, "Removal and Installa-

tion of BCM"

 .

14 – 2

: Continuity should exist.

14 – Ground

: Continuity should not exist.

SKIA5892E

18 – 3

: Continuity should exist.

18 – Ground

: Continuity should not exist.

SKIA5893E

17 – Ground

: Approx. 5 V

SKIA5894E

AUTO LIGHT SYSTEM

LT-63

C

D

E

F

G

H

I

J

L

M

A

B

LT

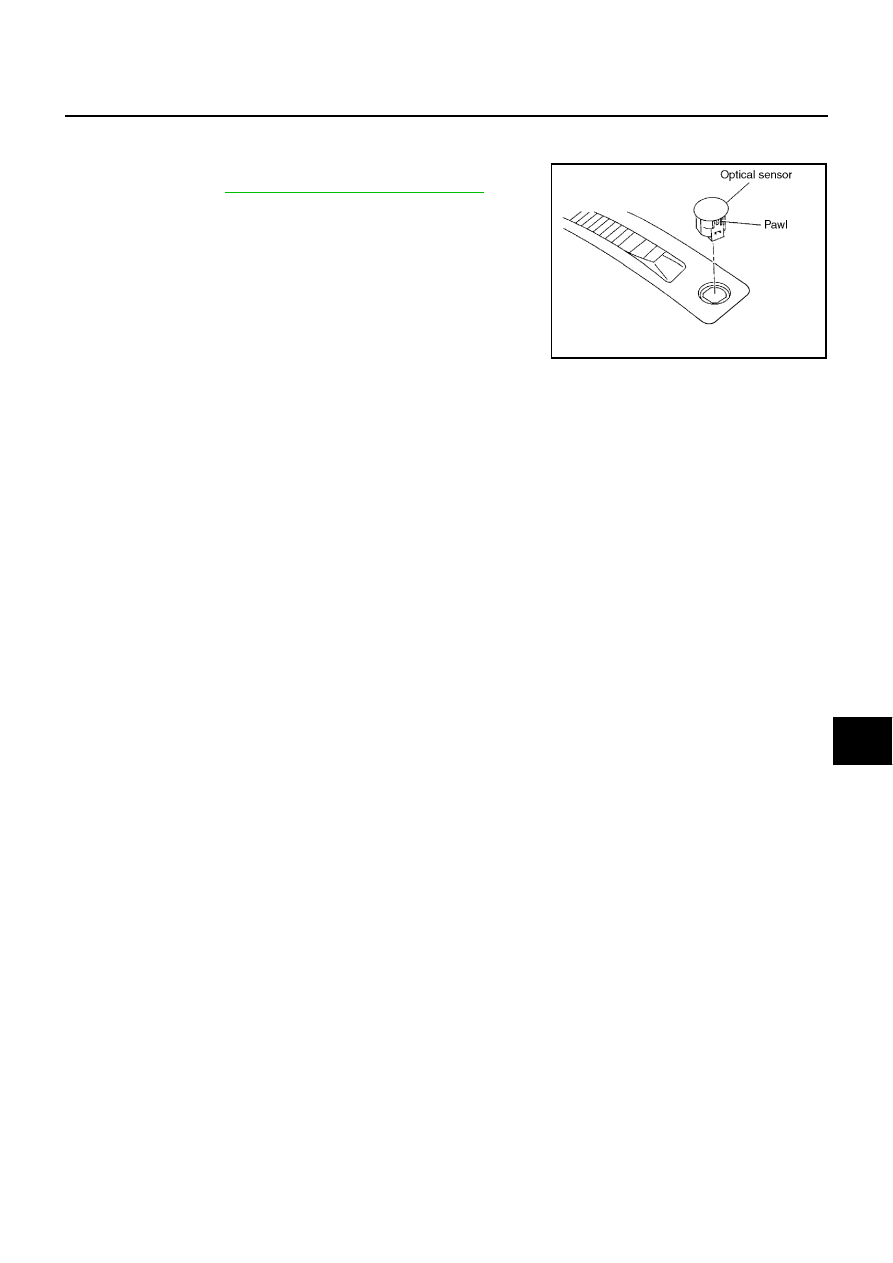

Removal and Installation of Optical Sensor

NKS000HE

REMOVAL

1.

Insert a screwdriver or similar tool and remove front defroster
grill (LH). Refer to

IP-15, "(Aa) Defroster Grille (RH/LH)"

 .

2.

Disconnect optical sensor connector.

3.

Remove optical sensor.

INSTALLATION

Installation is the reverse order of removal.

PKIA4905E
